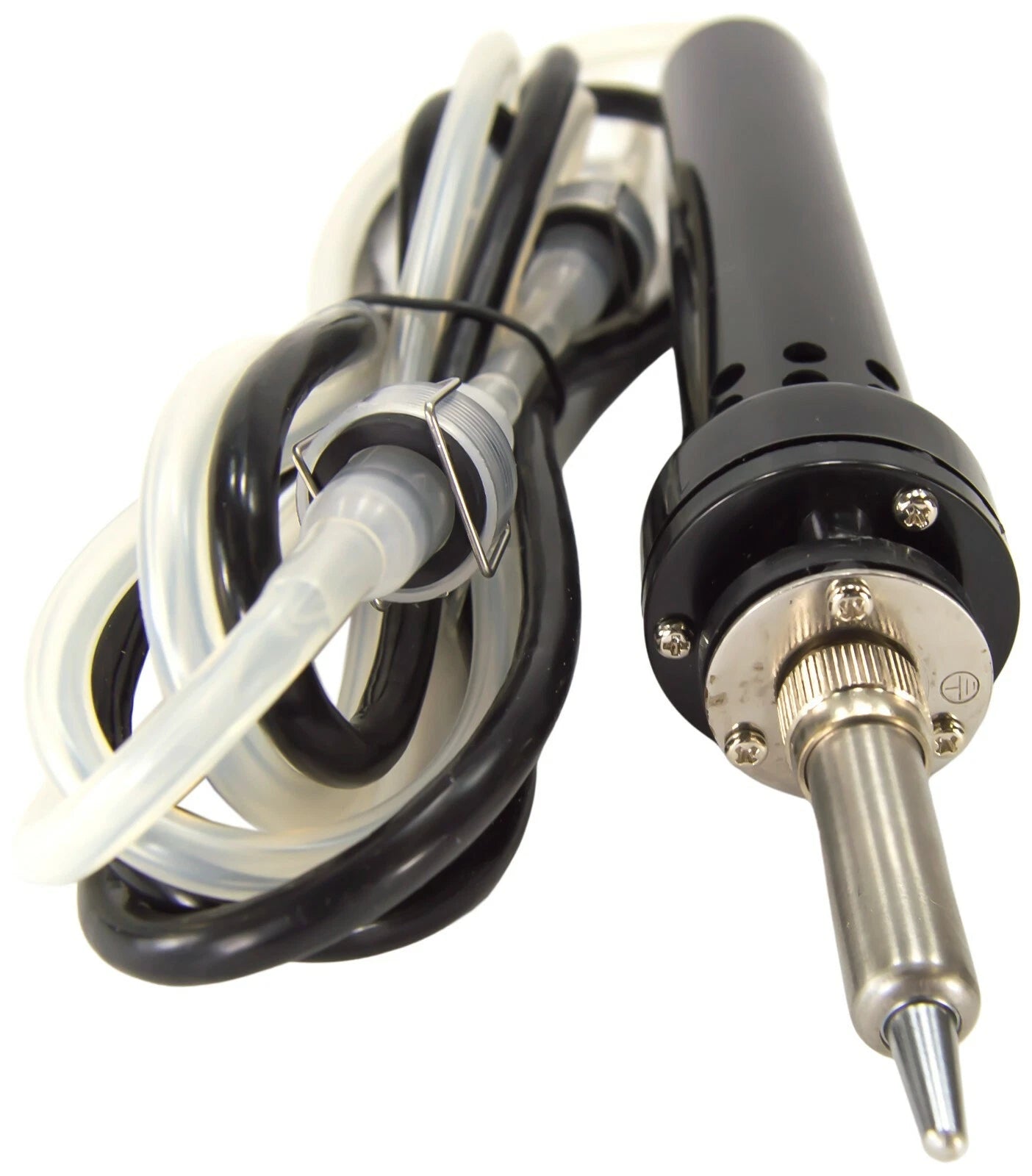

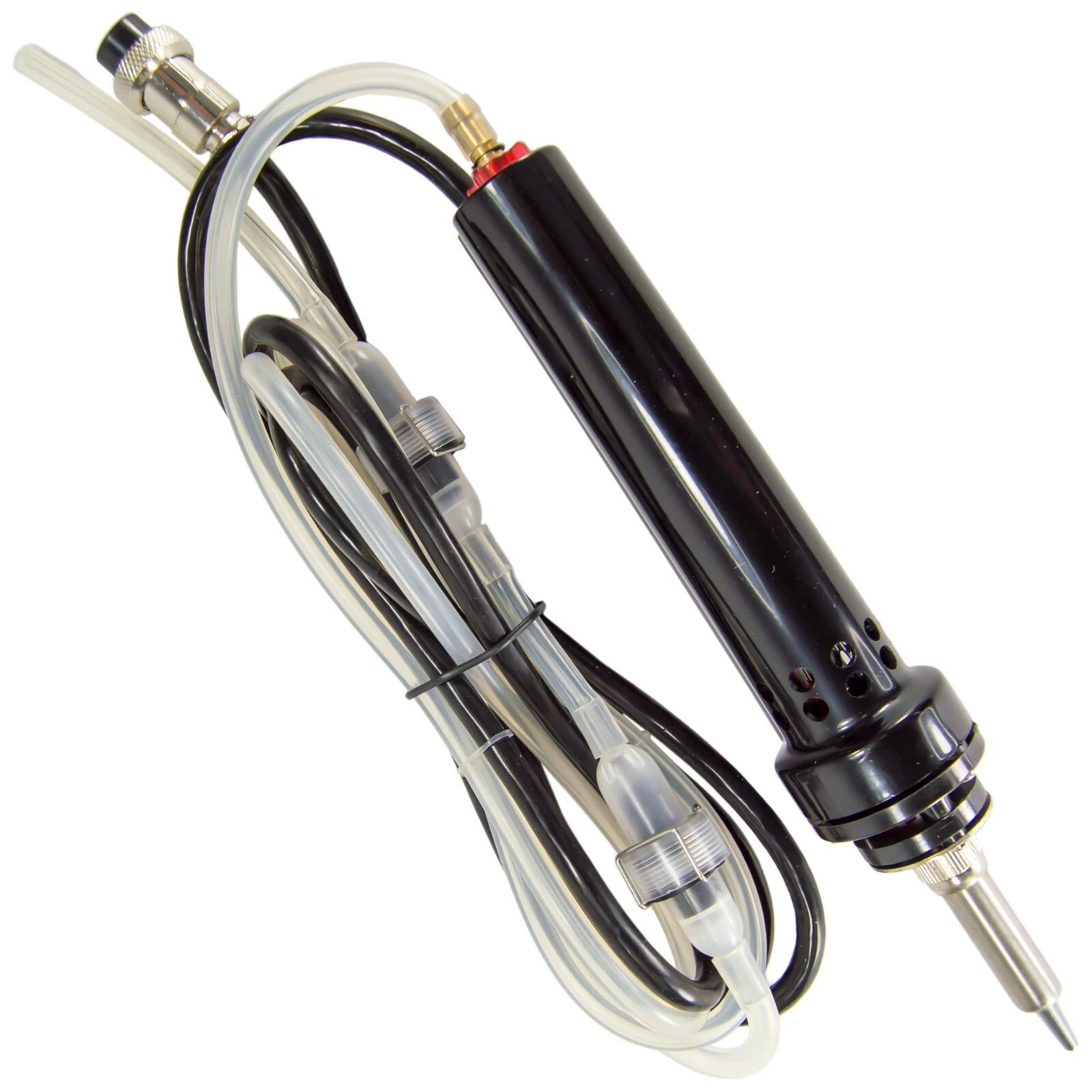

The Xytronic HAP60 is a 60W hot air pencil attachment for removing or reflowing surface mount devices, reaching up to 350°C (662°F). It has a non-burning silicone rubber cable and a 7-pin connector compatible with the Xytronic 968, 988 and 999SD-A stations. It is not a standalone tool and requires one of those stations.
Key Features
- 60W heater for SMD removal and reflow
- Maximum temperature 350°C (662°F)
- Non-burning silicone rubber cable
- 7-pin connector
- Compatible with Xytronic 968, 988 and 999SD-A stations
Specifications
| Brand / model | Xytronic HAP60 |
|---|---|
| Heater power | 60 W |
| Max temperature | 350°C (662°F) |
| Connector | 7-pin |
| Cable | Silicone rubber |
| Compatible stations | Xytronic 968, 988, 999SD-A |
| SKU | 0608HAP60 |
What's Included
- 1 x Xytronic HAP60 hot air pencil
What You'll Need (Sold Separately)
- Compatible Xytronic station (968, 988 or 999SD-A)
Ideal For
Adding hot air SMD rework to an existing Xytronic 968, 988 or 999SD-A station.
Frequently Asked Questions
Can I use it on its own?
No. It must be plugged into a compatible Xytronic station.
What is a hot air pencil used for?
It blows heated air to melt solder on all leads of an SMD part at once, so the part can be lifted off or reflowed.
Not a standalone unit: requires a compatible Xytronic station.
