- Voltage Adjustable: 0-18V DC
- Current Adjustable: 0-3A
- Constant voltage or current operation

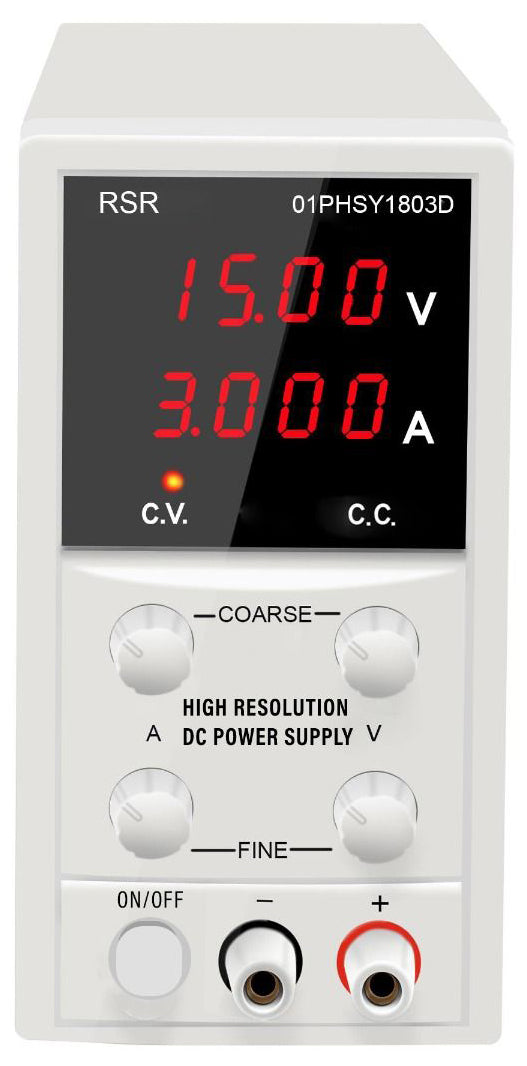

- LCD displays both current and voltage
- Current limiting and short circuit protection
Detailed Specifications:

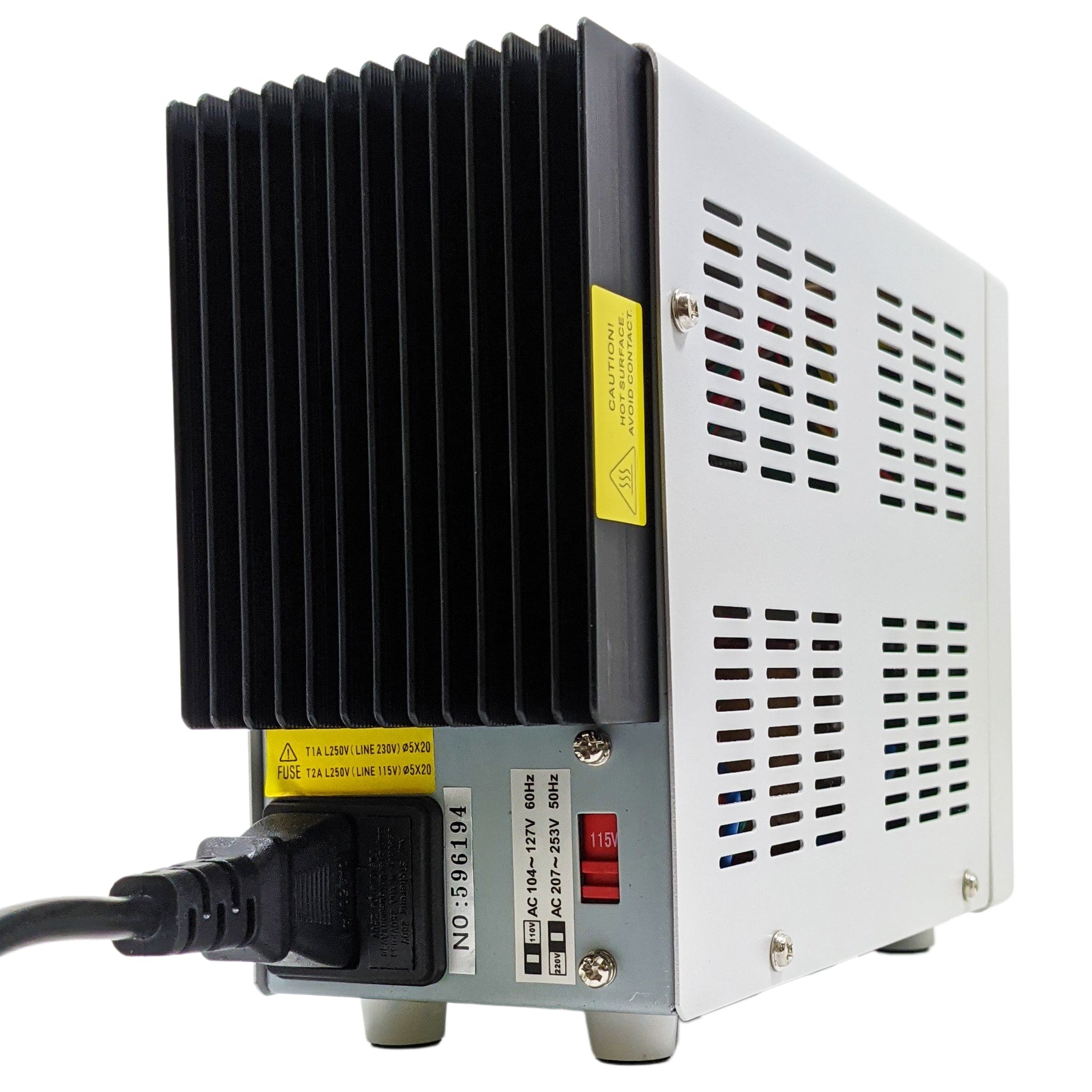

Input voltage, change via switch on back of unit: 104~127V AC (60Hz), 207~253V AC (50Hz)
Line regulation: CV≤0.01%+1mV CC≤0.2%+1mA
Load regulation: CV≤0.01%+3mV CC≤0.2%+3mA
Ripple and noise: CV≤0.5mVr.m.s CC≤3mAr.m.s
Protection: constant current and short-circuit protection
Voltage indication accuracy: LED±0.5%+5digits
Current indication accuracy: LED±0.5%+5digits
Environment: 0 ~ +40 °C relative humidity:<90%
Dimensions: 9" x 3.1" x 6.25"
Weight: ~5.12 lbs.
