330 Ω SIP Resistor Network, 10 Pin, 9 Bussed Thick Film Resistors, Common Terminal, ±2% – 10 Pack

13S10,9330PK10
Regular price
$4.50
Sale price
$4.50
Regular price
$4.00
Sold out
Unit price
per
Shipping calculated at checkout.

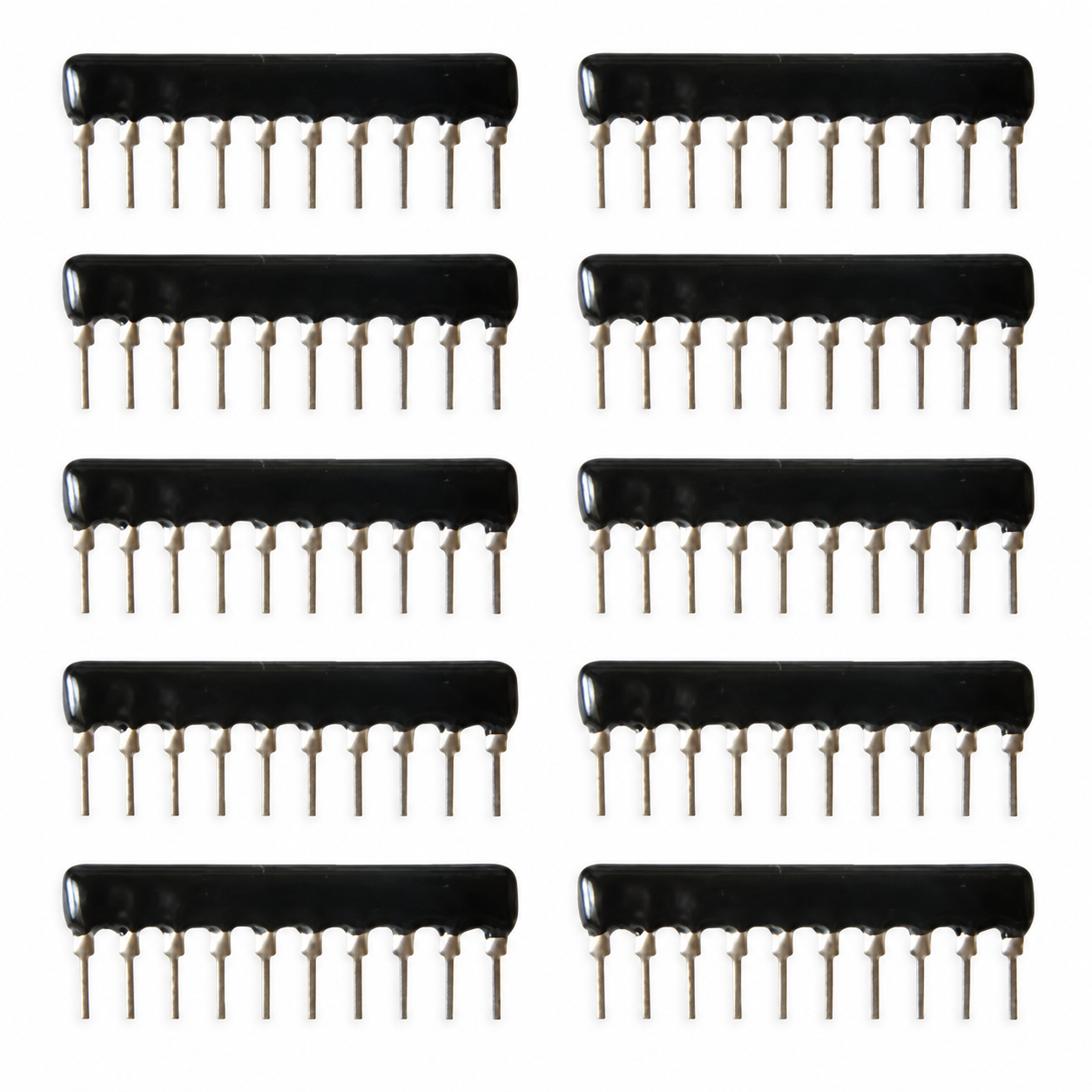

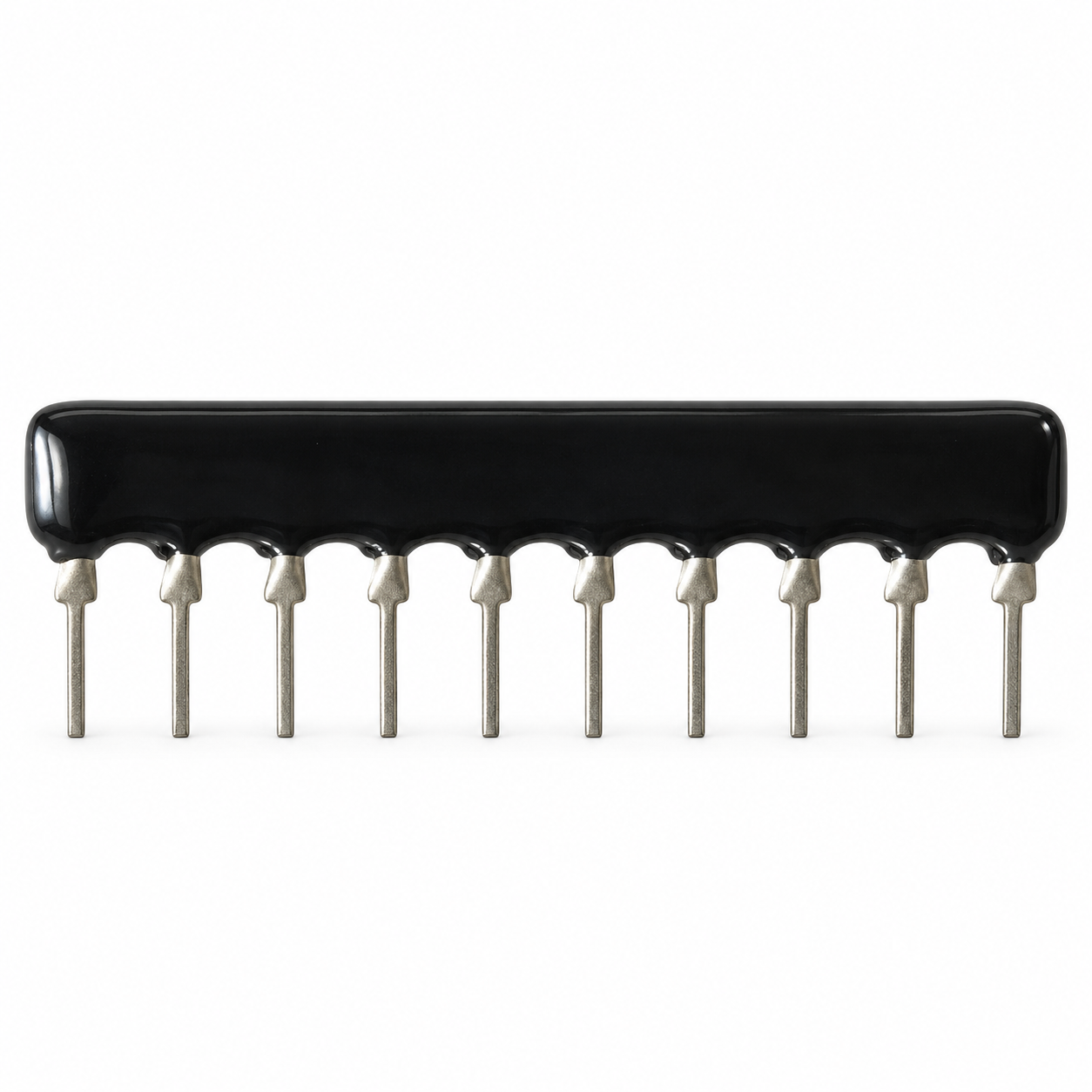

This is a 10-pack of 10-pin SIP resistor networks containing nine 330 Ω thick film resistors tied to one common terminal, with ±2% tolerance. In this bussed layout, one pin is common and each of the other nine pins connects through its own resistor, which suits pull-up or pull-down arrays and LED current limiting in a single row of pins.

Key Features

  • Nine 330 Ω thick film resistors

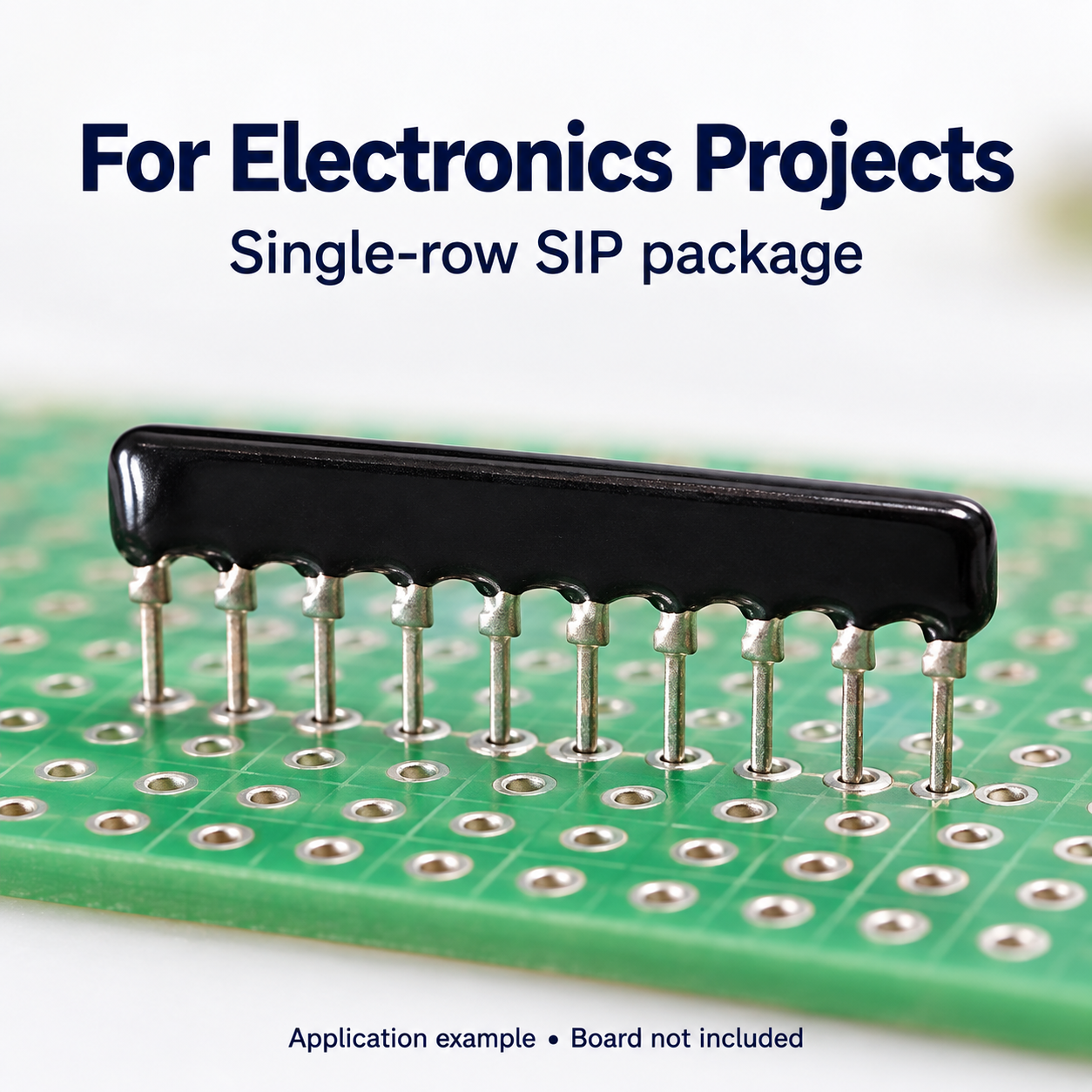

  • 10-pin single in-line (SIP) package
  • Bussed: 1 common pin to all resistors
  • Tolerance: ±2%
  • Pack of 10

Specifications

Resistance 330 Ω
Number of resistors 9
Number of pins 10
Circuit type Bussed (common terminal)
Case style SIP
Tolerance ±2%
Element Thick film
Quantity 10
SKU 13S10,9330PK10

What's Included

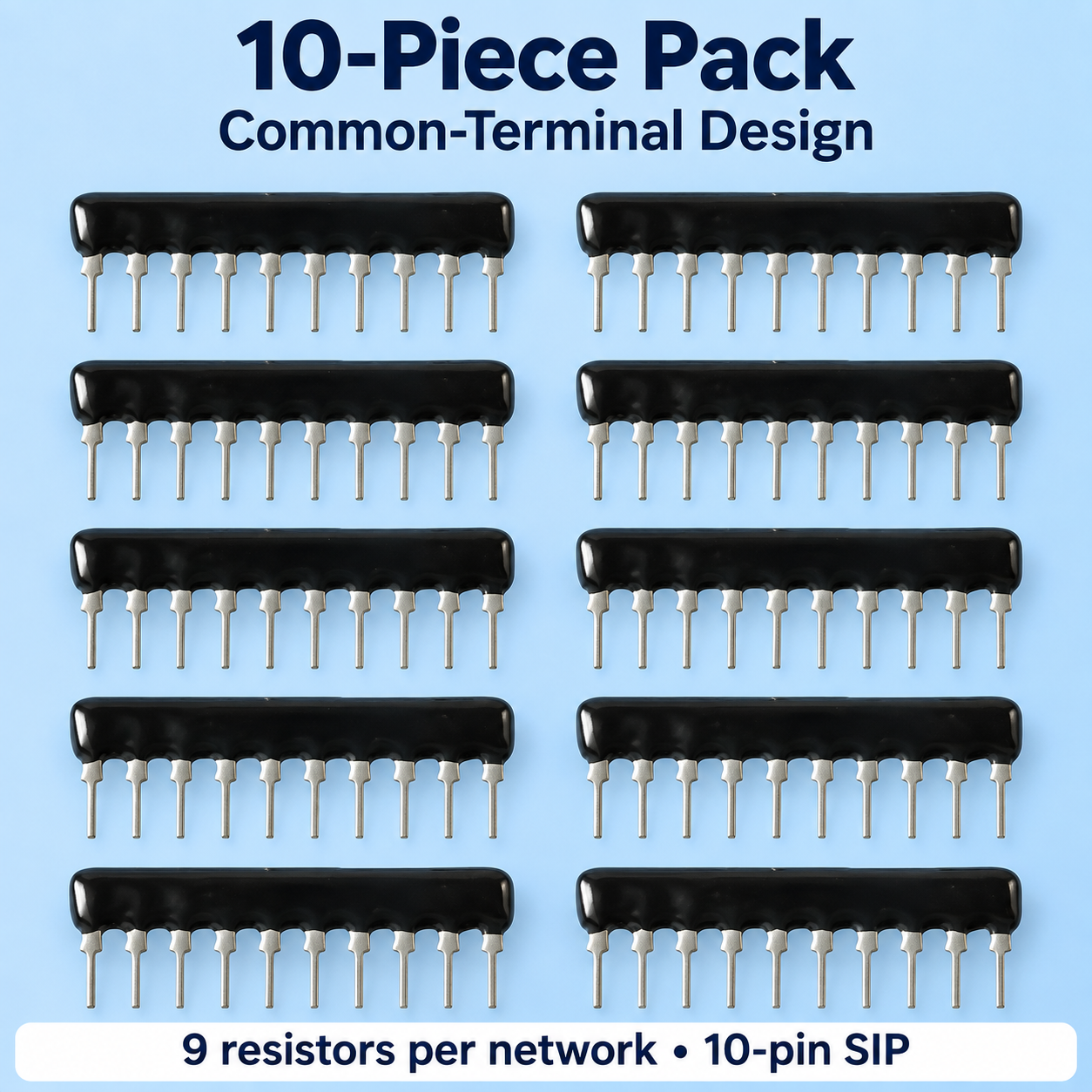

  • 10 × 330 Ω 10-pin bussed SIP resistor networks

Ideal For

Circuits needing several matched 330 Ω resistors to a common line, such as LED arrays or pull-ups.

Frequently Asked Questions

Which pin is the common pin?
On bussed SIP networks the common pin is usually pin 1, marked by a dot or line on the body. Check the marking before soldering.

Can I drive LEDs with it?
330 Ω is a common LED current-limiting value at 5V; with the common pin to ground or supply, each output pin feeds one LED.
