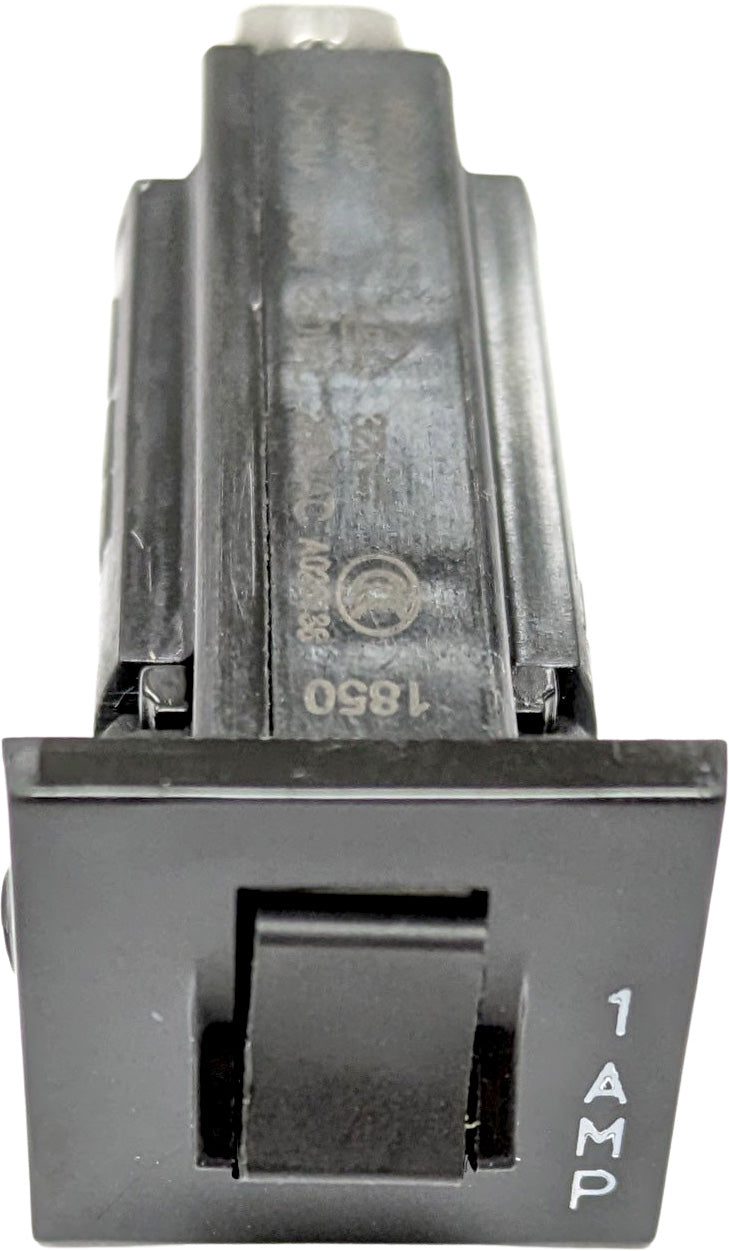

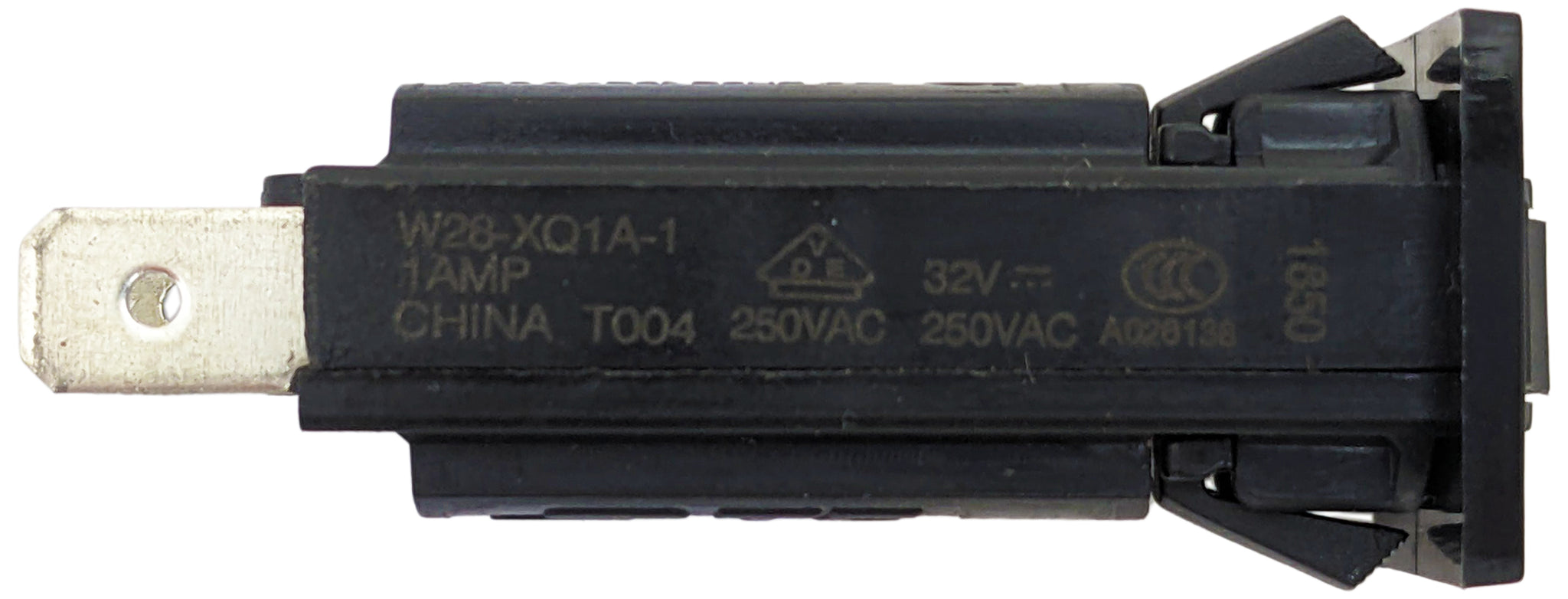

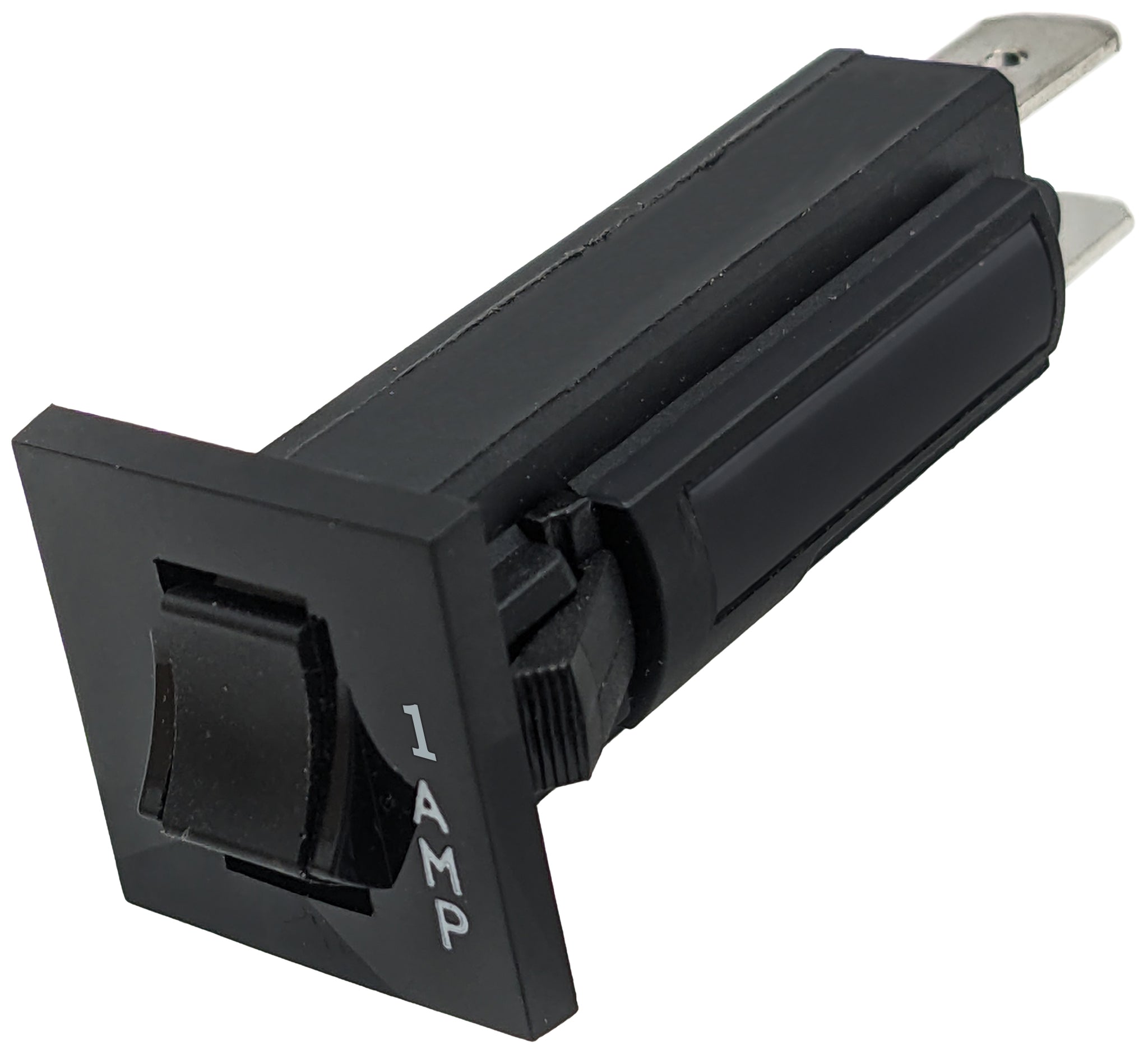

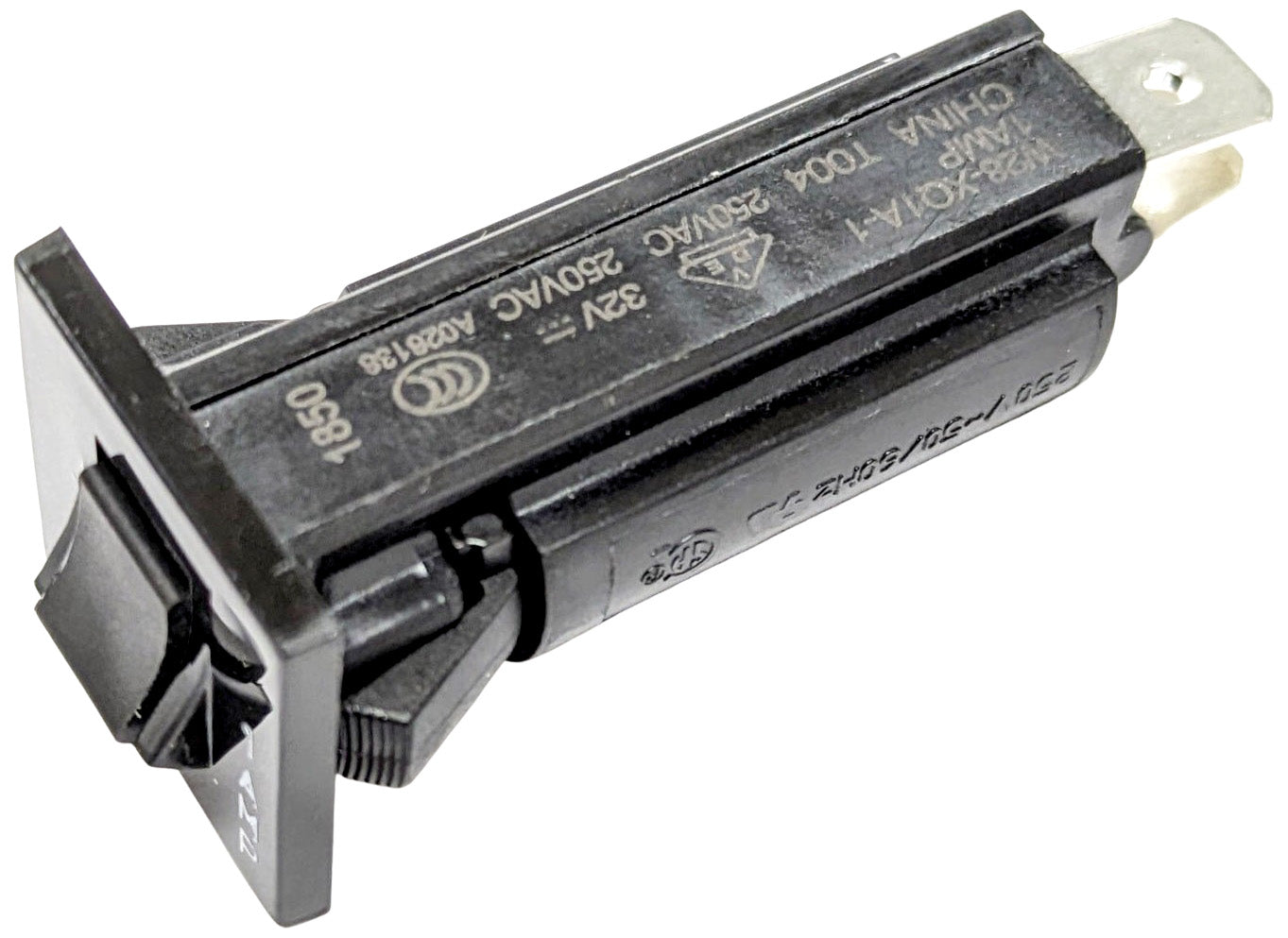

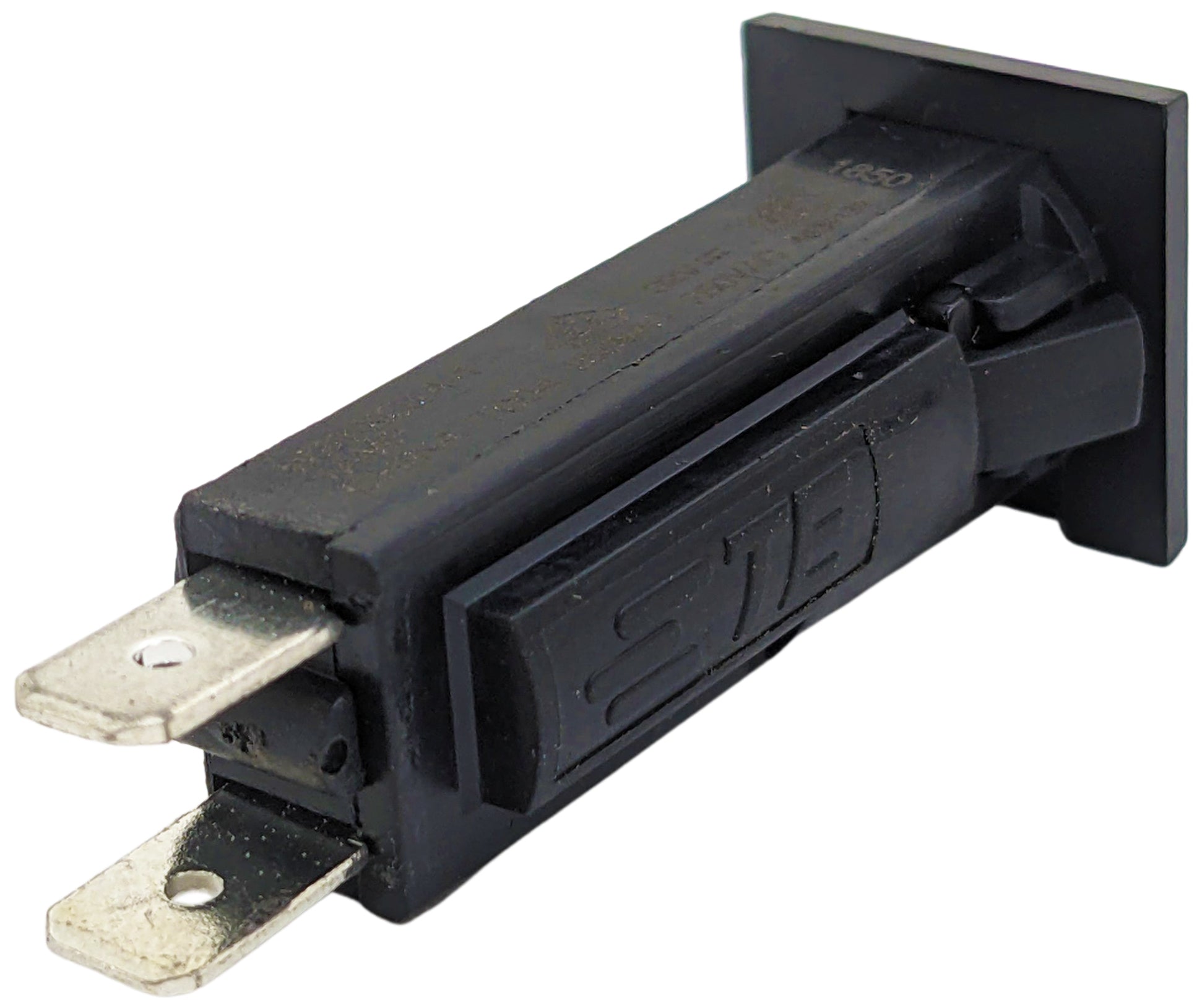

The W28-XQ1A-1 is a 1A push to reset fuse holder type Thermal Circuit Breaker, calibration will continuously carry 100% of rating, may trip between 101% and 174% of rating, must trip at 175% in one hour at 25°C. Six times rated current is resettable overload capacity, over 1500V RMS dielectric strength. Snaps into panel from front mounting, 250VAC/32VDC voltage rating. 0.250-inch quick connect will mount in 0.032 to 0.062-inch thick panel. Replaces slow blow glass cartridge fuse.
Product Features:
Terminal Configuration : 6.35 [.25] Straight Quick Connect Tab
Actuator Type : Push to Reset
Circuit Breaker Type : Thermal
Circuit Breaker Style : Fuse Holder Type
Configuration Features:
Circuit Function : Series Trip
Number of Poles : 1
Electrical Characteristics:
Operating Voltage (VAC): 250
Operating Voltage (VDC): 32
Current Rating (A): 1
Interrupt Capacity : 1000A @ 250VAC/32VDC
Body Features:
Actuator Color : Black
Bezel Color : Black
Contact Features:
Trip Time at 200% (seconds): 4.5 – 28
Mechanical Attachment:
Mounting Options : Snap-In Panel Mount
Mounting Bushing : None
Dimensions:
Panel Thickness (Recommended) : .81 – 1.57 mm [ .032 – .062 in ]
Identification Marking:
Stamped Marking Type : White Rate Marking
