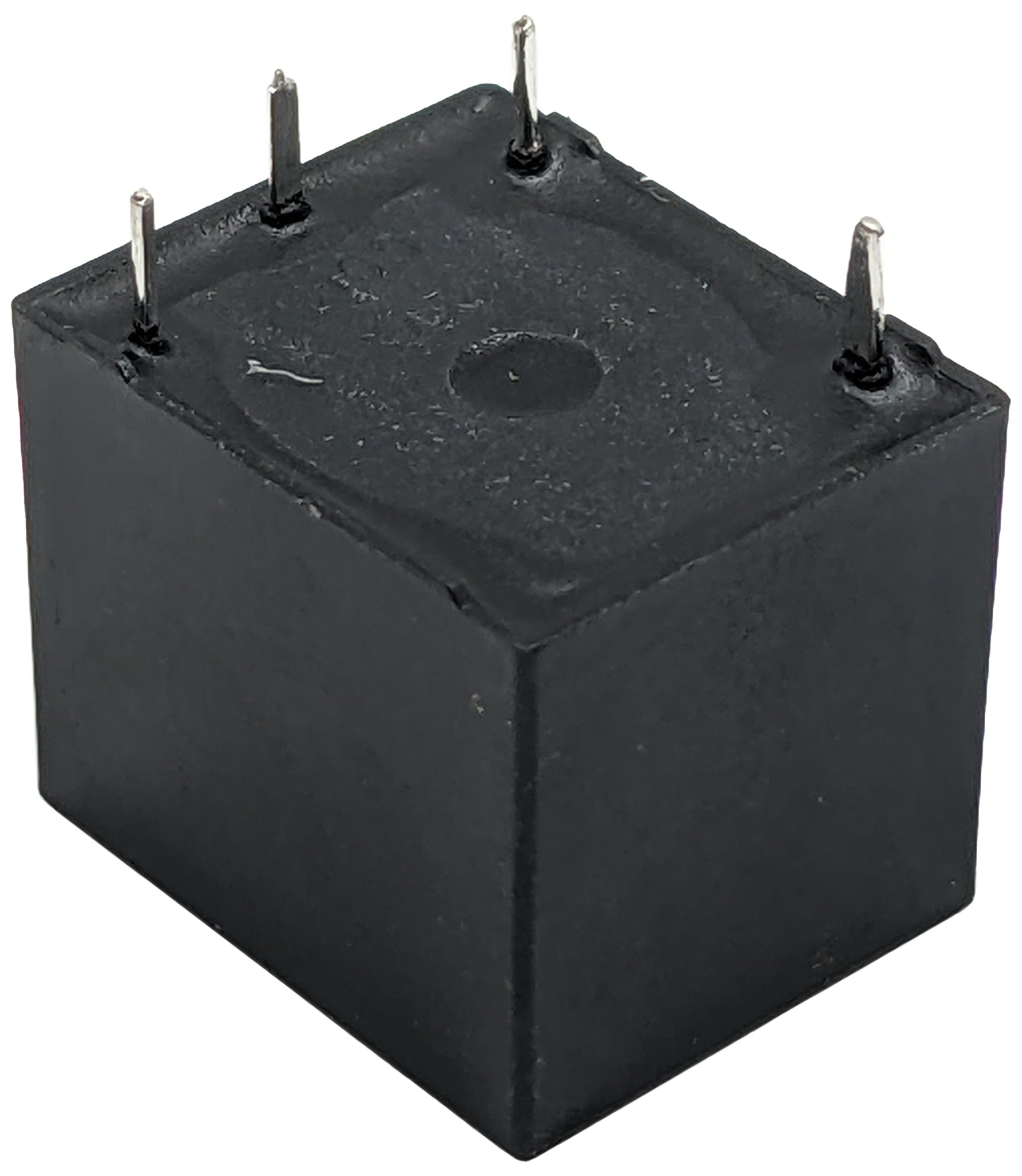

This is a sensitive 10 amp relay with a 12 volt, 720 ohm coil, listed as SPST. It measures 0.73" x 0.59" x 0.61" (height not including pins) and suits home appliances, fan control and timer circuits.
Key Features
- 10 A contact rating
- 12 V coil, 720 ohm resistance
- Sensitive coil
- Compact 0.73" x 0.59" body
- Suited to appliances, fan control and timers
Specifications
| Contact rating | 10 A |
|---|---|
| Contact form | SPST (per title) |
| Coil voltage | 12 V |
| Coil resistance | 720 ohms |
| Dimensions | 0.73" x 0.59" x 0.61" (height without pins) |
| SKU | 22RG5Q1DC12 |
What's Included
- 1 × 12 V 10 A relay
Ideal For
Switching fans, small appliances or timer-controlled loads from a 12 V control circuit.
Frequently Asked Questions
How much current does the coil draw?
At 12 V across 720 ohms, the coil draws about 17 mA, which is why it is described as sensitive.
What does sensitive relay mean?
A sensitive relay needs relatively little coil power to switch, which makes it easier to drive from small control circuits.
