SPDT On-Off-On Mini Slide Switch with 3 Solder Lug Terminals (0.24" x 0.50")
SPDT On-Off-On Mini Slide Switch with 3 Solder Lug Terminals (0.24" x 0.50")
SPDT On-Off-On Mini Slide Switch with 3 Solder Lug Terminals (0.24" x 0.50")
  • Load image into Gallery viewer, SPDT On-Off-On Mini Slide Switch with 3 Solder Lug Terminals (0.24" x 0.50")
  • Load image into Gallery viewer, SPDT On-Off-On Mini Slide Switch with 3 Solder Lug Terminals (0.24" x 0.50")
  • Load image into Gallery viewer, SPDT On-Off-On Mini Slide Switch with 3 Solder Lug Terminals (0.24" x 0.50")

SPDT On-Off-On Mini Slide Switch with 3 Solder Lug Terminals (0.24" x 0.50")

17TS14B
$1.99
$1.99
Sold out
Shipping calculated at checkout.
  • SPDT (Single Pole Double Throw) Mini Slide Switch
  • On-Off-On (3 Positions)
  • Termination: Solder Lugs
  • Number of Terminals: 3
  • Working Power: 6A @125 VAC or 28 VDC

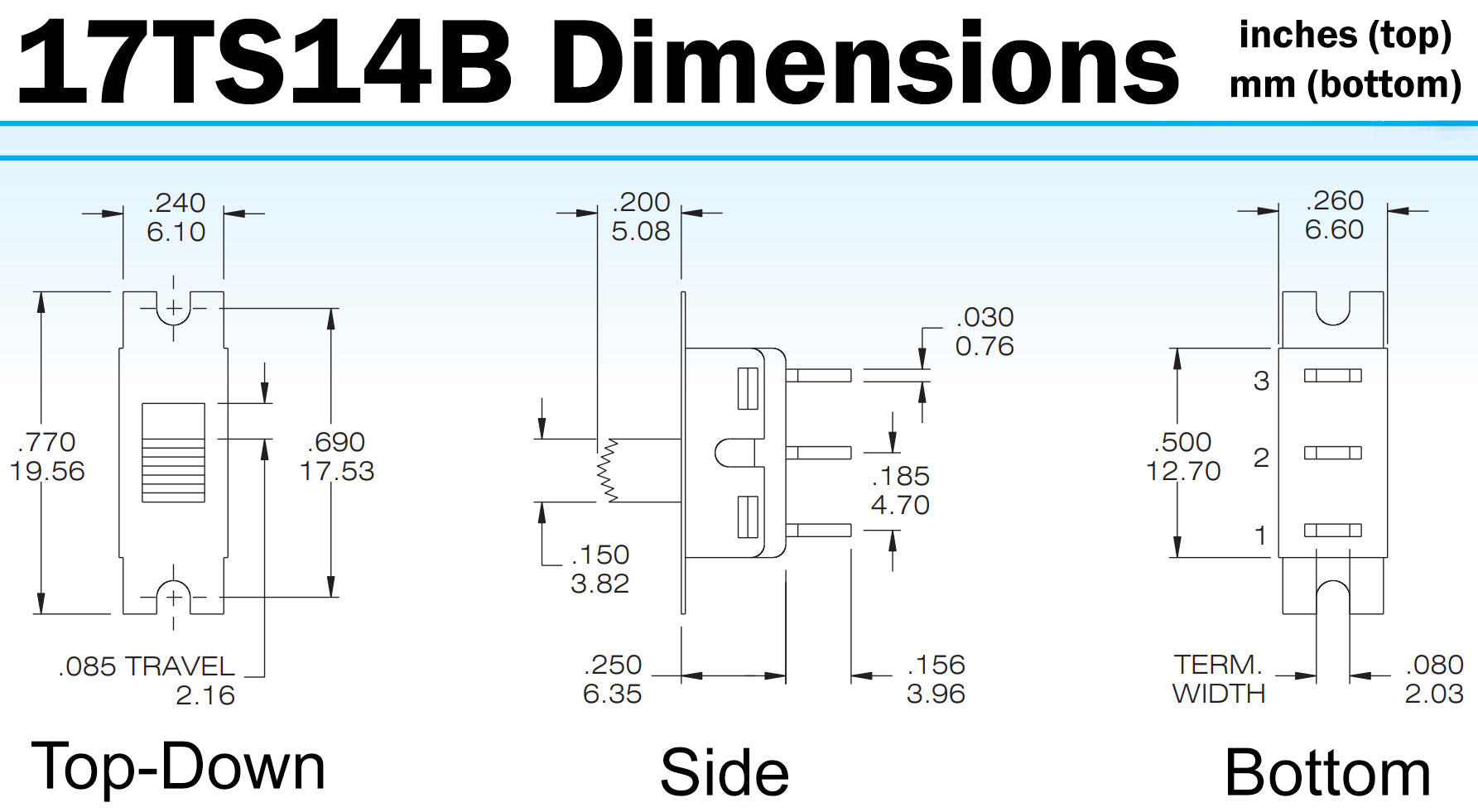

  • Measures 0.24" x 0.50" (not including mounting ears)
