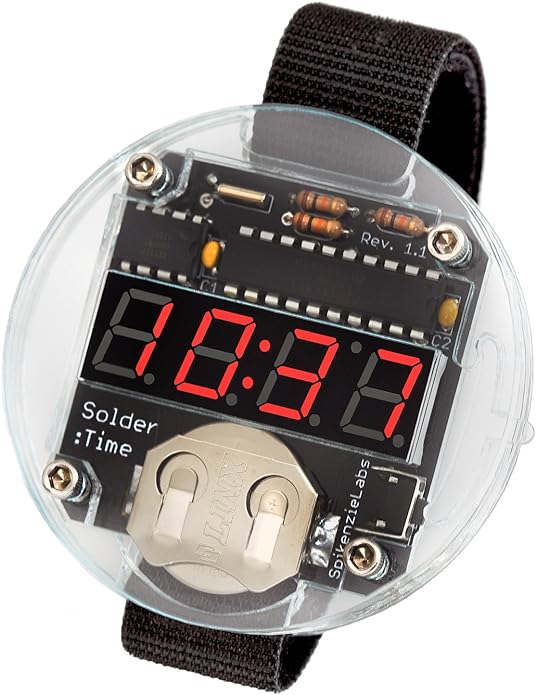

- The Solder:Time is an original design watch kit that you solder and assemble yourself. Delivered as a through-hole kit, you solder the components to the PCB, and enclose it all in four layers of laser cut acrylic.
- The supplied battery lasts a really long time, and the onboard Dallas RTC keeps impeccable time.
- Solder:Time is not only a wristwatch. Set it up as a desk clock, badge clip-it to your clothes, thread a chain, and you've got a pocket watch.
- More advanced tinkerers will see the bottom side I2C lines broken out, for modding and integrating RTC into other projects. There are also pads on the backside of the PCB for DC supply, as well as an 'always-on' function.

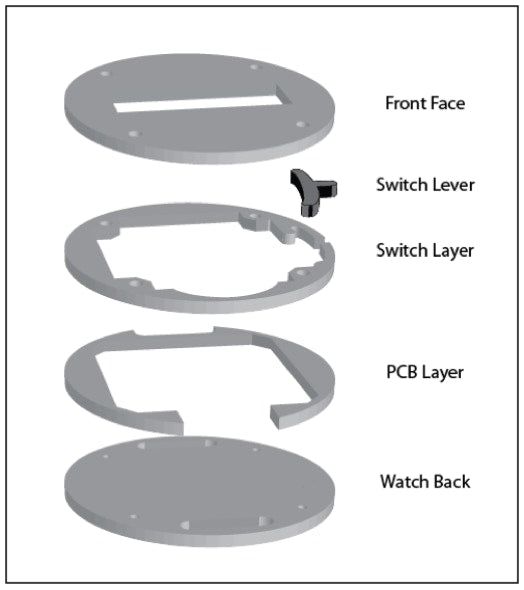

Easy to solder real time watch kit with a unique laser cut acrylic casing. Four individual acrylic parts cut to fit the internal PCB, battery and switch perfectly. Included is a velcro wrist band. After soldering the Solder:Time, the watch is built by stacking the acrylic parts with the PCB and holding it together with the included screws.
The Solder:Time was designed to be a wrist watch. It doesn't have to be limited to living on your wrist, you could also use it as a badge or desk clock.
Features:
- Great looking laser cut acrylic case
- Unique watch
- Easy to solder
- Stand alone project - no computer or other programmer required. Just solder it and it's ready!
- On board Dallas DS1337+ Real Time Clock (RTC) for super accurate time keeping
- Jumper (on bottom) for always on use.
- Hackable: Programming and I2C pads labeled on bottom
- Clear front and back casing to show the internal electronics
- Adjustable wrist band
- Can be also be worn as a badge with optional badge clip.
- Long lasting battery, with special LED lighting method and very low power processor sleeping.
Kit Includes:

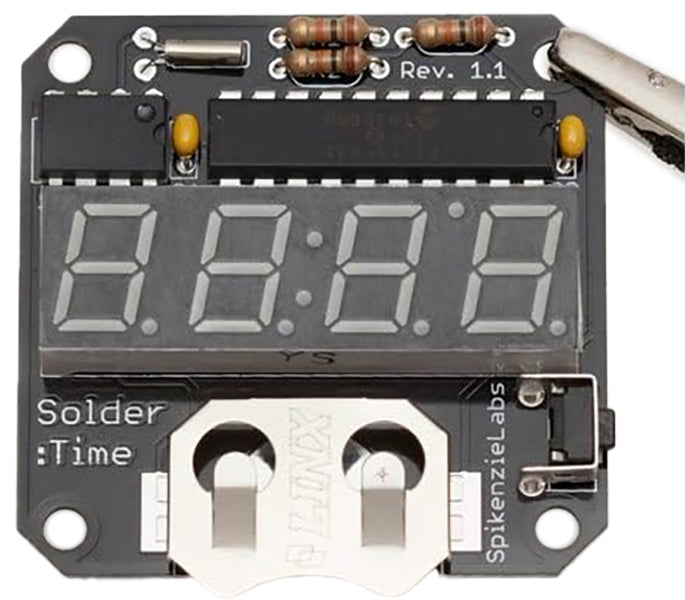

- Solder:Time PCB with all of the electronics
- Laser cut acrylic casing with four screws
- Easy to use Velcro type wrist band (long enough for huge wrists, trim-able for smaller ones.
- CR2032 Battery
