- Max output frequency: 30 MHz
- Max sampling rate: 150 MSa/s
- Vertical resolution: 14-bit
- Wave length: 16 kpts
- Channels: 2 CH

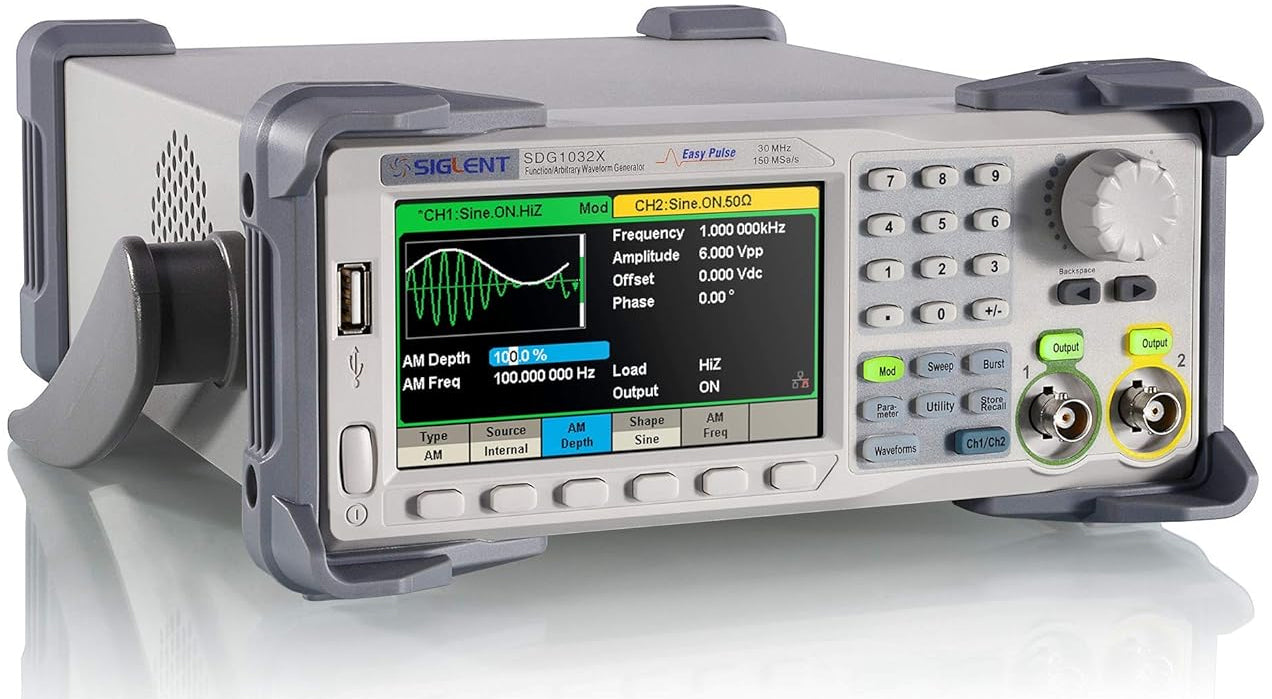

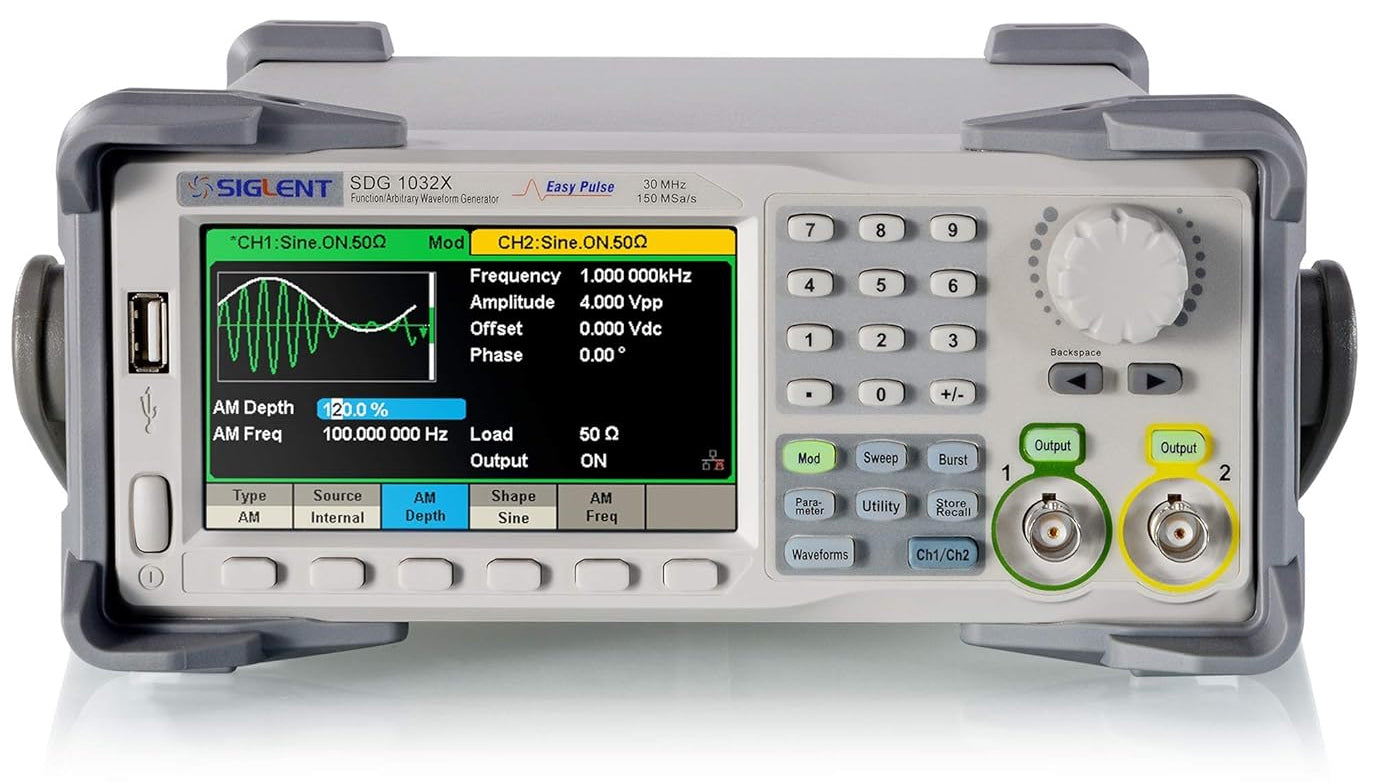

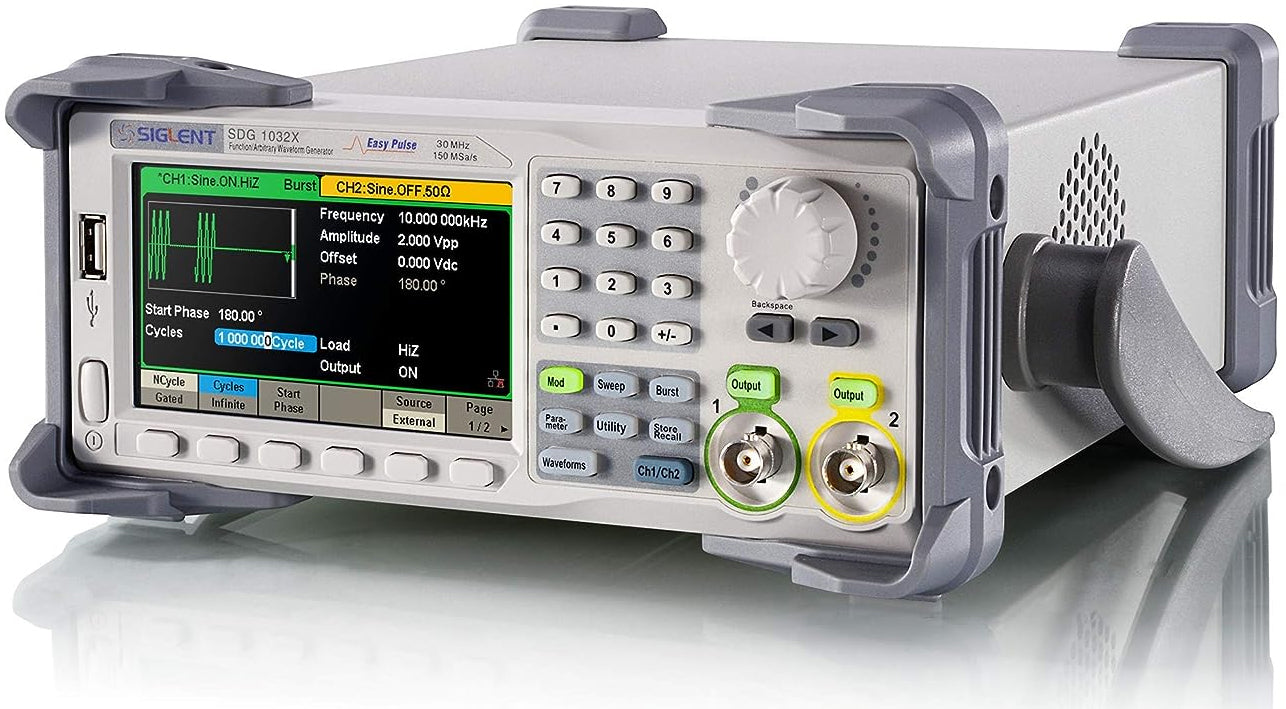

The SIGLENT SDG1032X is Siglent's latest addition to an already powerful line of arb/function generators. With the ability to offset the phase between CH1 and CH2, numerous modulation types, a harmonics generation mode, this 30 MHz generator can generate square waves to 30 MHz. A feature not found in most other generators in this price Class.
SIGLENT SDG1000X Series Function/Arbitrary Waveform Generators
The SDG1000X can provide users with a variety of high fidelity / low jitter signals while meeting the growing requirements of a wide range of complex and varied applications.
Key Features
- 14-bit vertical resolution, and 16 kpts waveform length
- Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
- Innovative EasyPulse technology, capable of generating lower-jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
- NEW: Innovative TrueArb technology supports user-defined waveforms from 2 to 16 kpts and user-defined sample rate from 1 μSa/s to 30 MSa/s
- Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
- Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
Key Performance Specifications
- 2 CH, 30 MHz/60MHz bandwidth
- 20 Vpp amplitude
- 150 MSa/s sampling rate
- 4.3” TFT-LCD display
|
|
|
|
|
|---|---|---|---|
Identical dual output-channels with high performanceCapable of outputting large signals at high frequencies. dual-channels, 20 Vpp amplitude can be guaranteed at up to 10 MHz. |
Low Distortion OutputWith 0 dBm output, the THD (Total Harmonic Distortion) is less than 0.075%. Harmonics and spurs are less than -40 dBc throughout the entire bandwidth. |
Harmonics FunctionUp to 16 harmonics may be generated. Amplitude and phase of each harmonic can be set independently |
Waveform CombiningCapable of combining the waveforms of 2 channels from internal, providing more flexible tools to generate complex waveforms. |
|
|
|
|
|
|---|---|---|---|
Innovative TrueArb TechnologyWhen a Pulse waveform is generated by a common DDS generator, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency. SDG1000X EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Pulse waveforms. |
High performance Square WavesBenefitting from a special square-wave generating circuitry, the Square from the SDG1000X breaks the 60 MHz bandwidth barrier,reaching rise/fall times of less than 4.2 ns, and frequencies up to 60 MHz. |
TrueArb Technology ArchitectureWith SIGLENT’s TrueArb technology, the generator retains the advantages of DDS technology while overcoming the serious weaknesses of DDS jitter and distortion. Because TrueArb technology generates arbitrary waveform in a point-by-point fashion, every data point is used to generate the output signal which has been stored in memory. Date points will not missed or repeated and arbitrary waveforms possess very low jitter (< 150ps). |
Arbitrary Waveform Software EasyWaveEasyWave is a powerful arbitrary waveform editing software program that supports several ways to generate arbitrary waveform such as manual drawing, line-drawing, equation-drawing, coordinate-drawing, etc. It is quite convenient for users to edit their own arbitrary waveforms through EasyWave. |
