- Max output frequency: 40 MHz
- Max sampling rate: 1.2 GSa/s
- Vertical resolution: 16 bit
- Waveform memory: 8 pts~8 Mpts
- Channels: 2

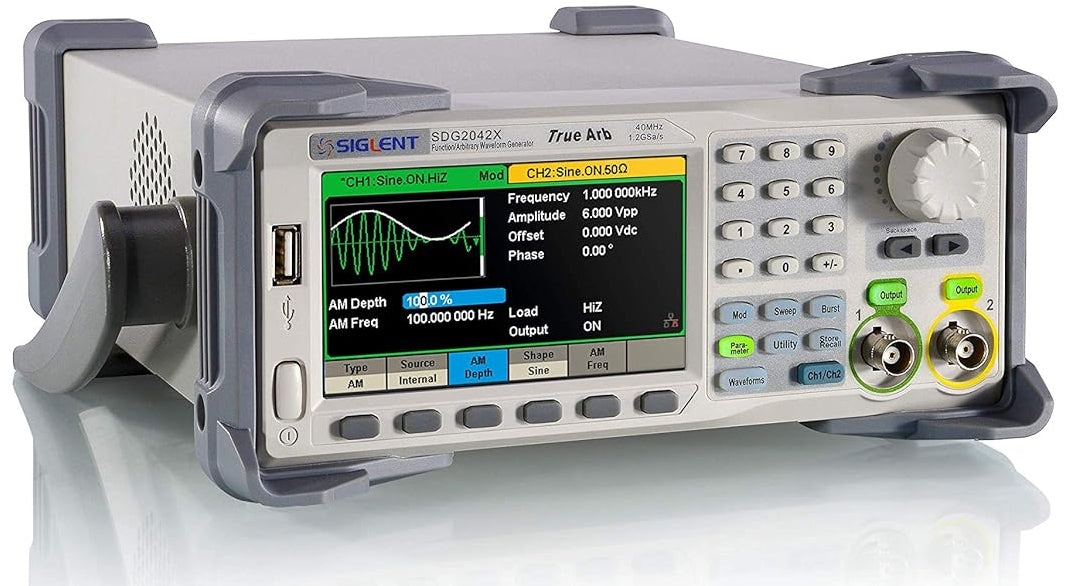

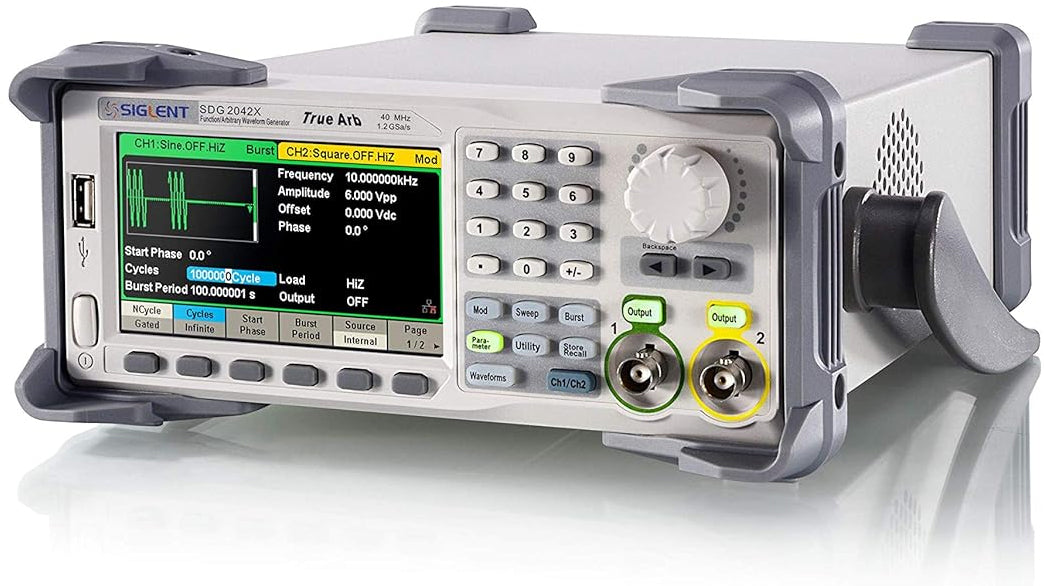

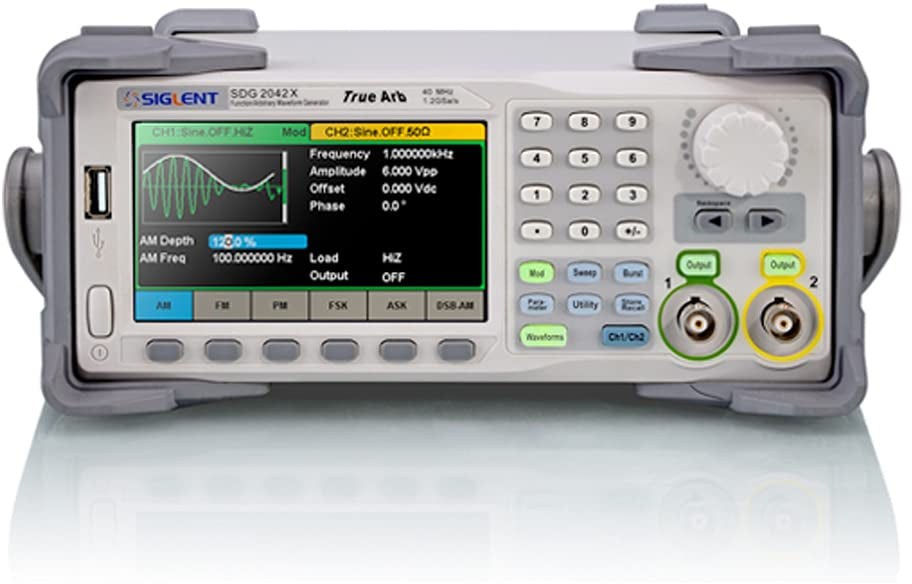

- Dual channel 40 MHz (Sine wave) Touch screen display
- 16 bit vertical resolution Modulation / Sweep / Burst
- TrueArb Technology / Easy Pulse Technology
- Built-in high precision Frequency Counter

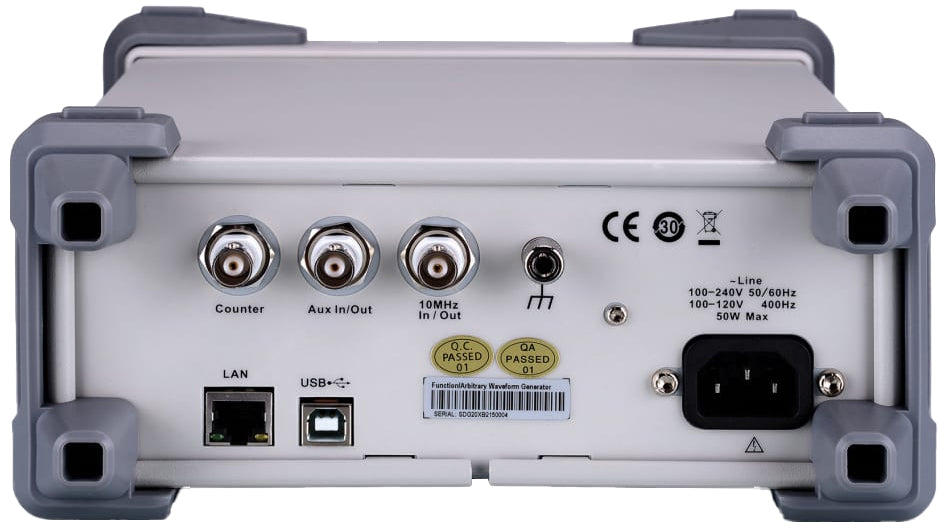

- USB / LAN interfaces (Optional GPIB adapter available)
Arbitrary Waveform Software EasyWave
EasyWave is a powerful arbitrary waveform editing software that supports several ways to generate arbitrary waveform such as manual drawing, line-drawing, equation-drawing, coordinate-drawing, etc. It is quite convenient for users to edit their own arbitrary waveforms through EasyWave.
Innovative EasyPulse Technology
- When a Square/Pulse waveform is generated by DDS, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency.SDG2000X EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Square/Pulse waveforms.
- The Pulse width can be fine-tuned to the minimum of 16.3 ns with the adjustment step as small as 100 ps.
- The rise/fall times can be set independently to the minimum of 8.4 ns at any frequency and to the maximum of 22.4 s. The adjustment step is as small as 100 ps.
As with EasyPulse, TrueArb effectively overcomes the defect that DDS may cause the one-clock-jitter in arbitrary waveforms.
