- Frequency Range: 9 kHz ~ 2.1 GHz
- Resolution Bandwidth (RBW): 1 Hz~1 MHz
- Phase Noise: < -98 dBc/Hz
- Total Amplitude Accuracy: < 0.7 dB
- Display Average Noise Level (DANL): -161 dBm/Hz

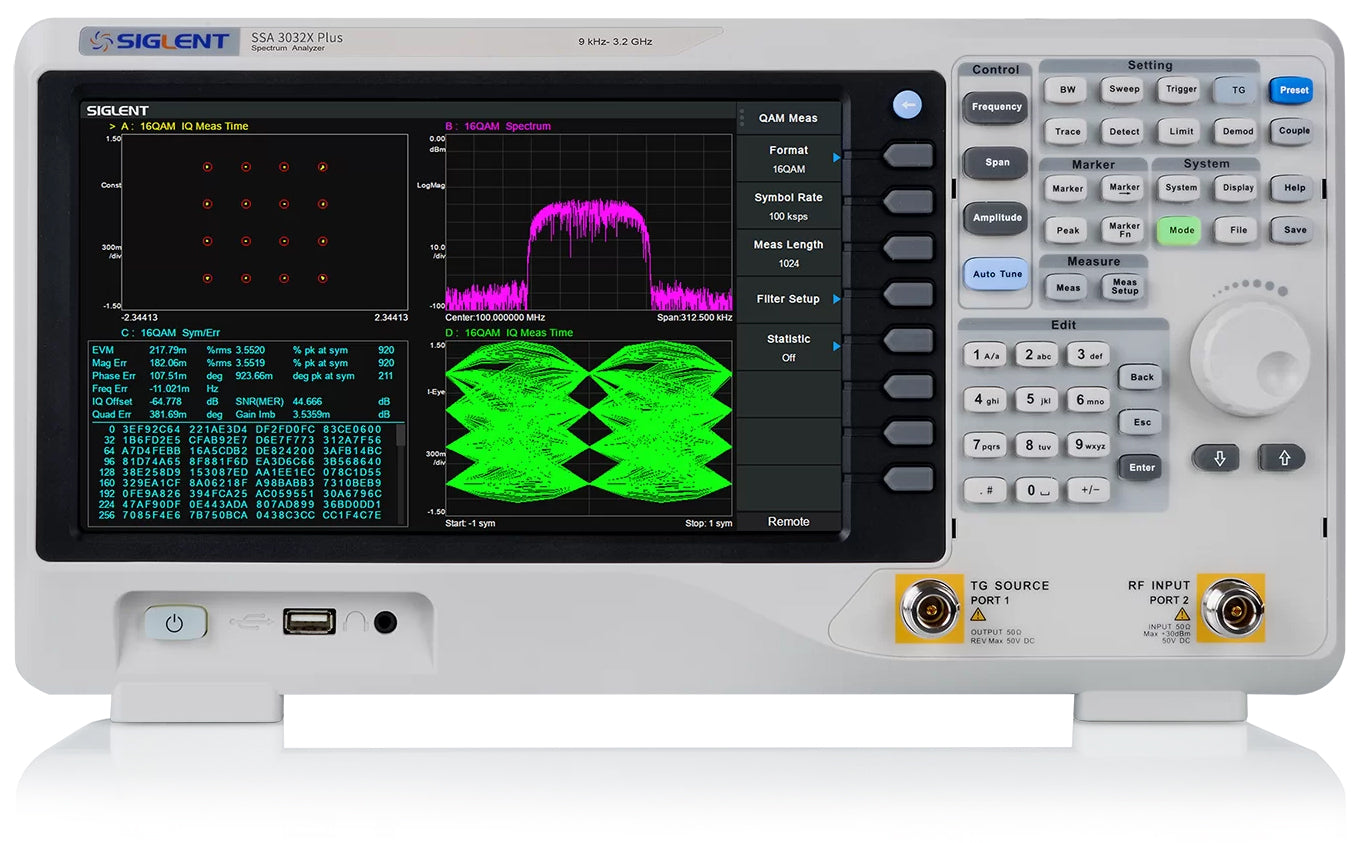

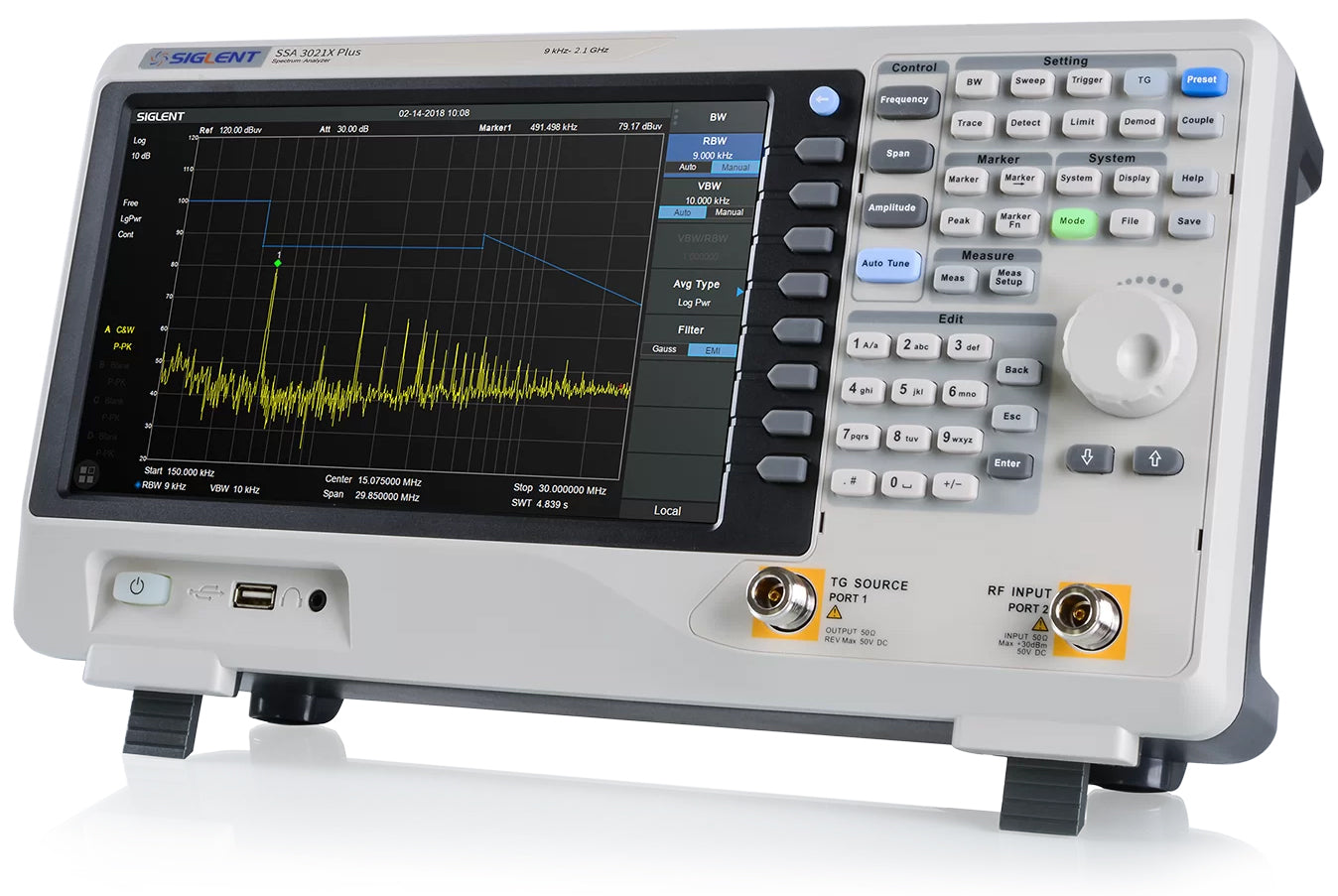

The SIGLENT SSA3000X Plus series spectrum analyzers are powerful and flexible tools for RF signal and network analysis. With a frequency range to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test.
Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.
Key Features
- Spectrum Analyzer Frequency Range from 9 kHz up to 2.1 GHz
- -161 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
- Level Measurement Uncertainty < 0.7 dB (Typ.)
- 1 Hz Minimum Resolution Bandwidth (RBW)
- Preamplifier Standard
- Up to 3.2 GHz Tracking Generator Kit (included)
- Vector Signal Modulation Analysis Mode (not included, available separately)
- Reflection Measurement Kit (not included, available separately)
- EMI Filter and Quasi-Peak Detector Kit (not included, available separately)
- Advanced Measurement Kit (not included, available separately)
- 10.1 inch Multi-Touch Screen, Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
Includes
- Quick Start
- USB Cable
- Power Cord
- Tracking Generator
Additional Information
- Weight: 13 lbs
- Dimensions: 18 × 12 × 11 in
