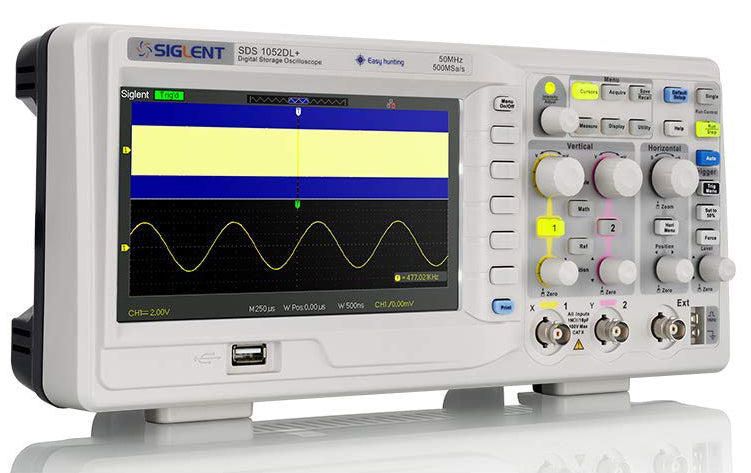

- SDS1052DL+ is a new and improved version of Siglent's popular SDS1052DL. With a new, higher-resolution LCD display and an added LAN interface, the SDS1052DL+ represents the updated version of one of the most popular 50 MHz oscilloscopes available today
- Bandwidth: 50 MHz
- Real-time sampling rate up to 500 MSa/s
- Memory Depth up to 32 kpts
- Trigger types: Edge, Pulse, Video, Slope, Alternate

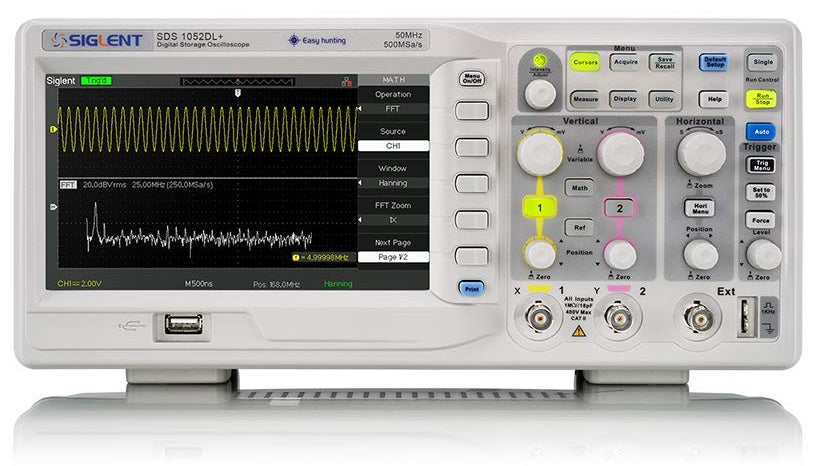

- Waveform math functions:+, -, *, /, FFT
- 6 digital frequency counter
- Supports Multi-language display and embedded online help
- Screensaver from 1 minute to 5 hours
- Digital filter and waveform recorder function
- Shortcut storage function key
- 7 inch TFT-LCD display with 800 * 480 resolution

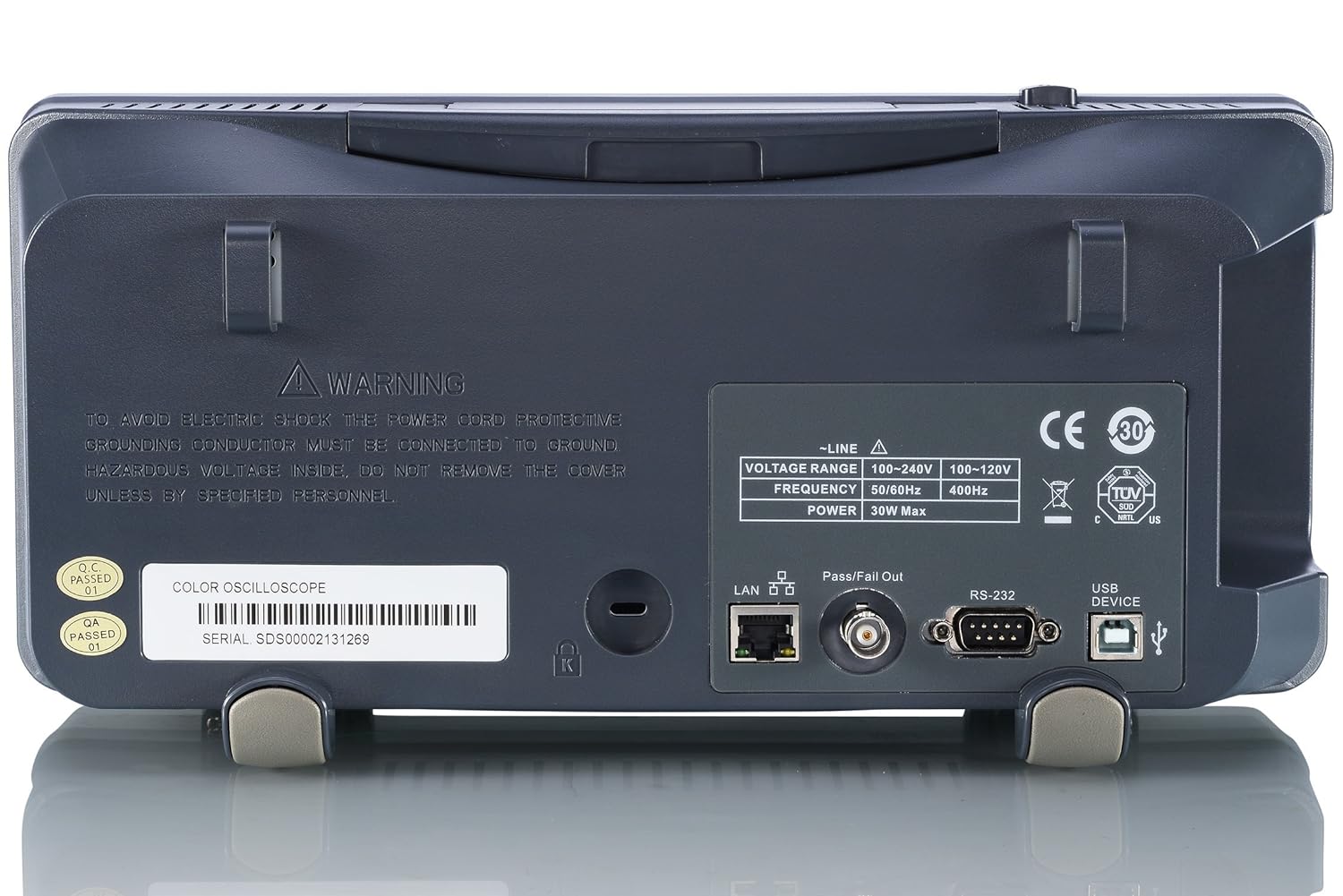

- Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail

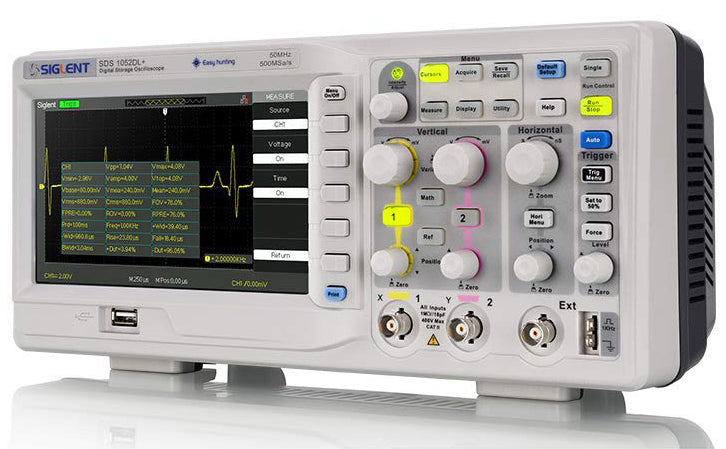

SDS1052DL+ is a dual-channel universal digital oscilloscope with 50 MHz bandwidth. It includes a 32 kpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 500 MSa/s sampling rate, the SDS1000DL+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.
Weight: 12 lbs
Dimensions: 17 × 10 × 15 in.
