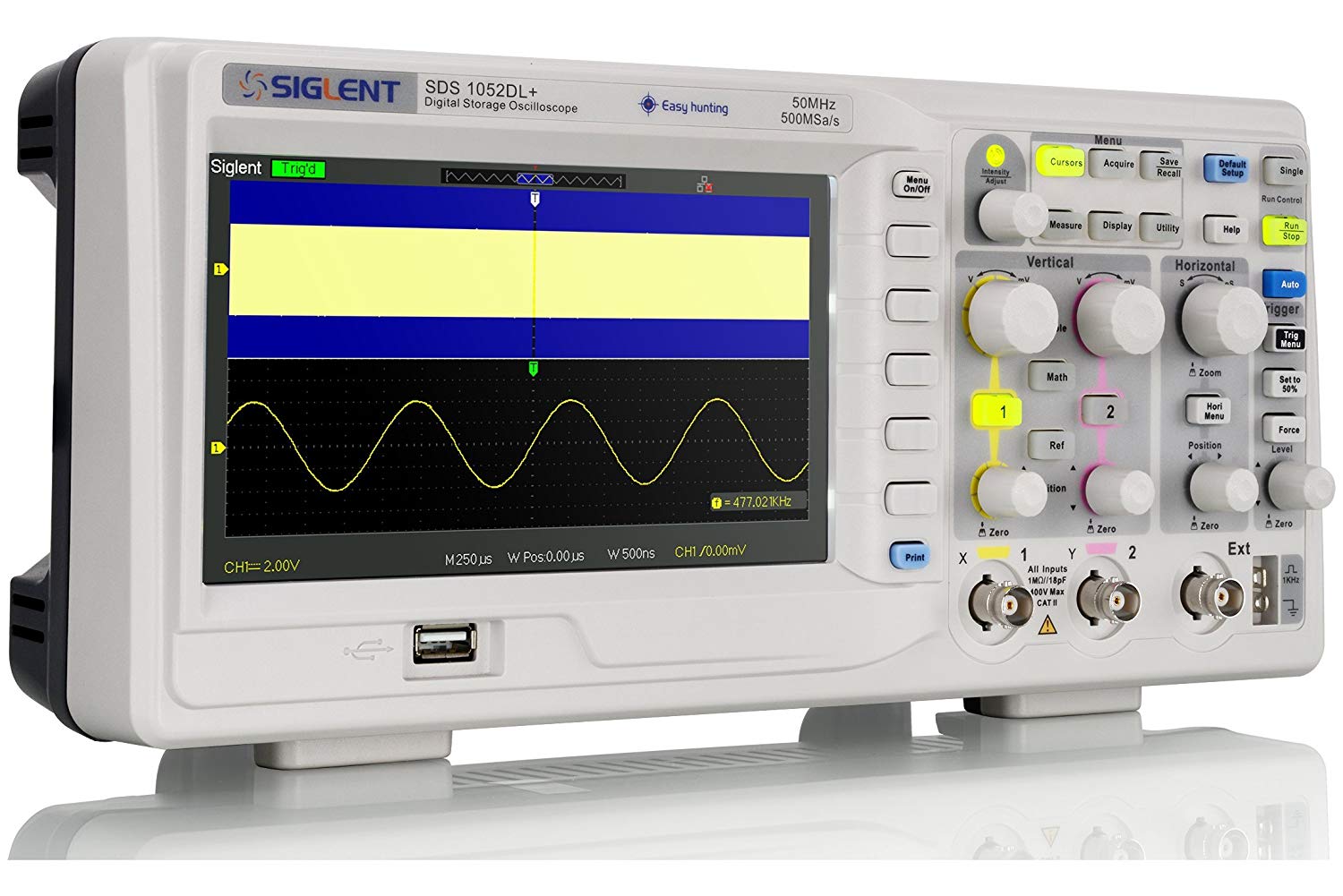

The Siglent SDS1052DL+ is a 50 MHz, two-channel digital storage oscilloscope with a real-time sample rate of up to 500 MSa/s and 32 kpts of memory. It supports 32 automatic measurements, FFT and basic waveform math, a 6-digit frequency counter, and a waveform recorder, shown on a 7-inch 800 x 480 display. USB host, USB device (USBTMC) and LAN (VXI-11) interfaces cover storage and PC control.

Key Features

  • 50 MHz bandwidth, 2 channels
  • Up to 500 MSa/s real-time sampling; up to 32 kpts memory
  • Triggers: edge, pulse, video, slope, alternate

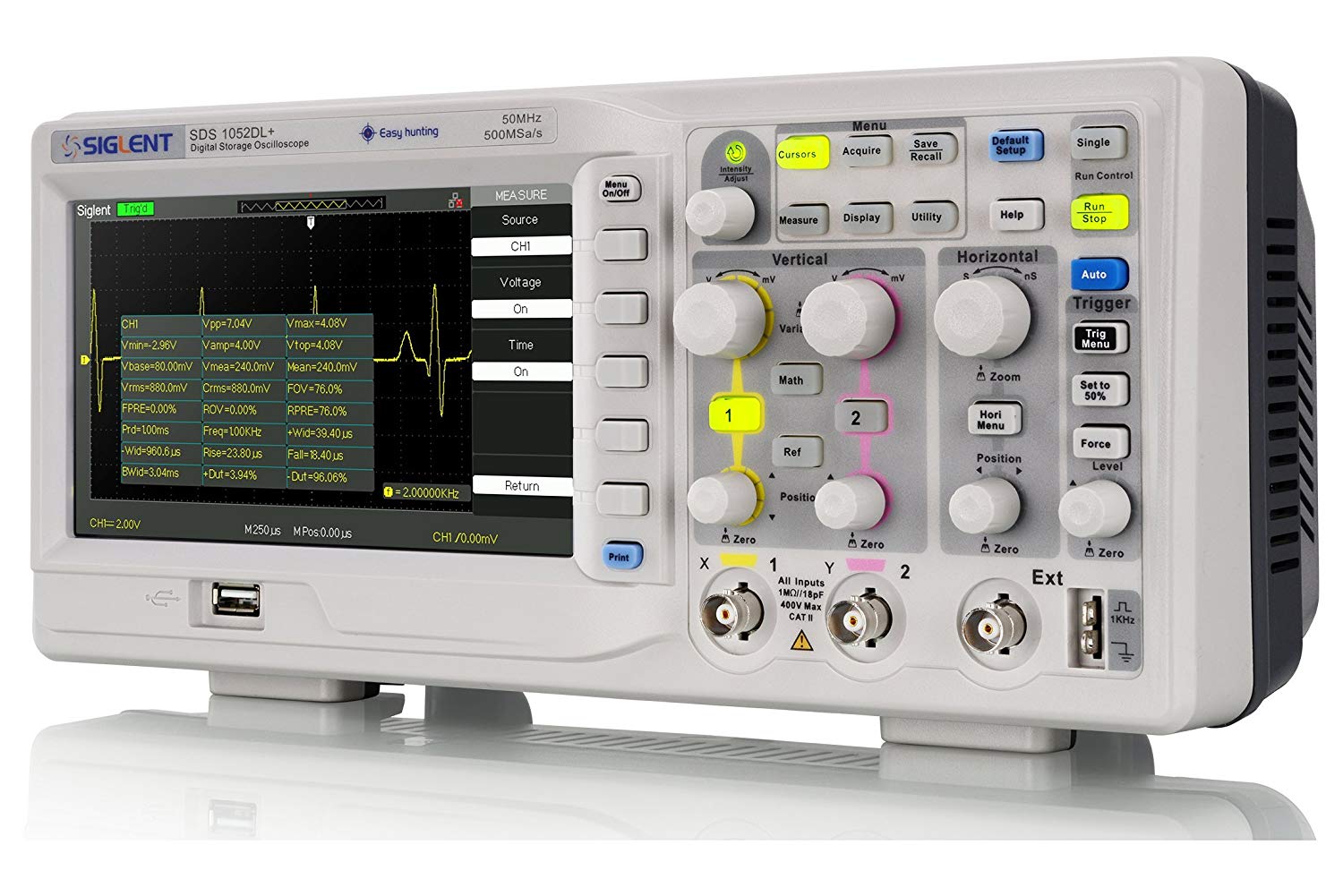

  • 32 automatic measurements; math +, -, x, / and FFT
  • 6-digit frequency counter, digital filter and waveform recorder
  • 7 in. TFT-LCD, 800 x 480
  • USB host, USB device (USBTMC), LAN (VXI-11), pass/fail output

Specifications

Brand / model Siglent SDS1052DL+
Type Digital storage oscilloscope
Bandwidth 50 MHz
Channels 2
Real-time sample rate Up to 500 MSa/s
Memory depth Up to 32 kpts
Triggers Edge, pulse, video, slope, alternate
Math +, -, x, /, FFT
Measurements 32 parameters
Frequency counter 6 digits
Display 7 in. TFT-LCD, 800 x 480
Interfaces USB host, USB device (USBTMC), LAN (VXI-11), pass/fail
SKU 01SDS1052DL

What's Included

  • Oscilloscope (see manufacturer for standard accessories)

Ideal For

Schools, hobbyists and service benches that want a simple two-channel 50 MHz scope with a large screen and LAN control.

Frequently Asked Questions

Is 32 kpts of memory enough?
It is fine for viewing repeating signals and short events. For long captures at high sample rates, deep-memory scopes (millions of points) let you zoom in further on a single acquisition.

Can I control it from a PC?
Yes. It has USB device (USBTMC) and LAN (VXI-11) interfaces.
