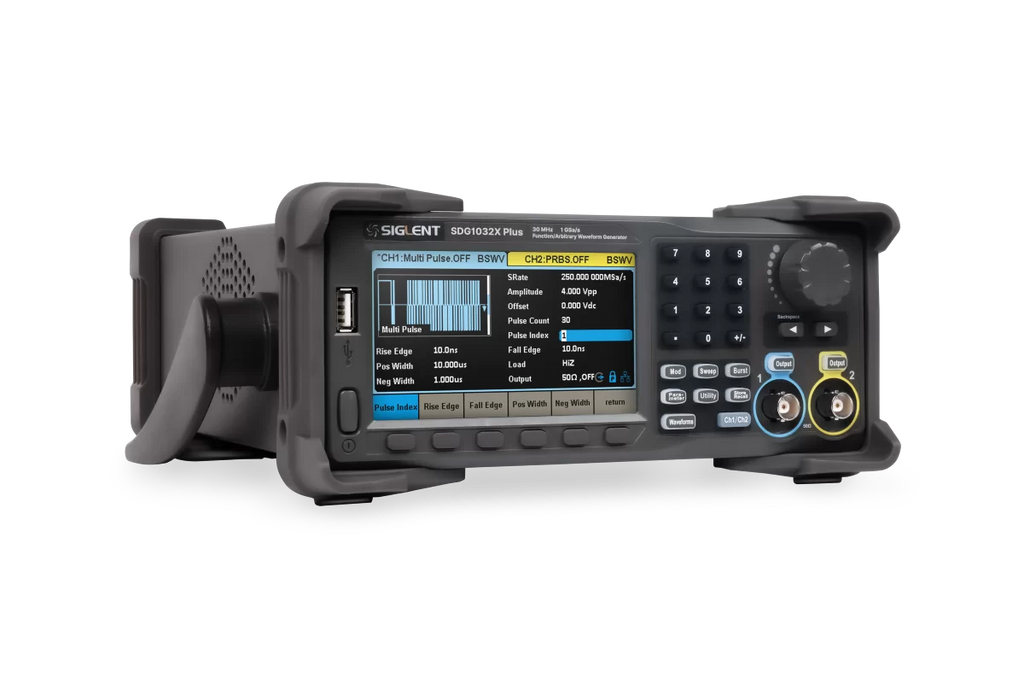

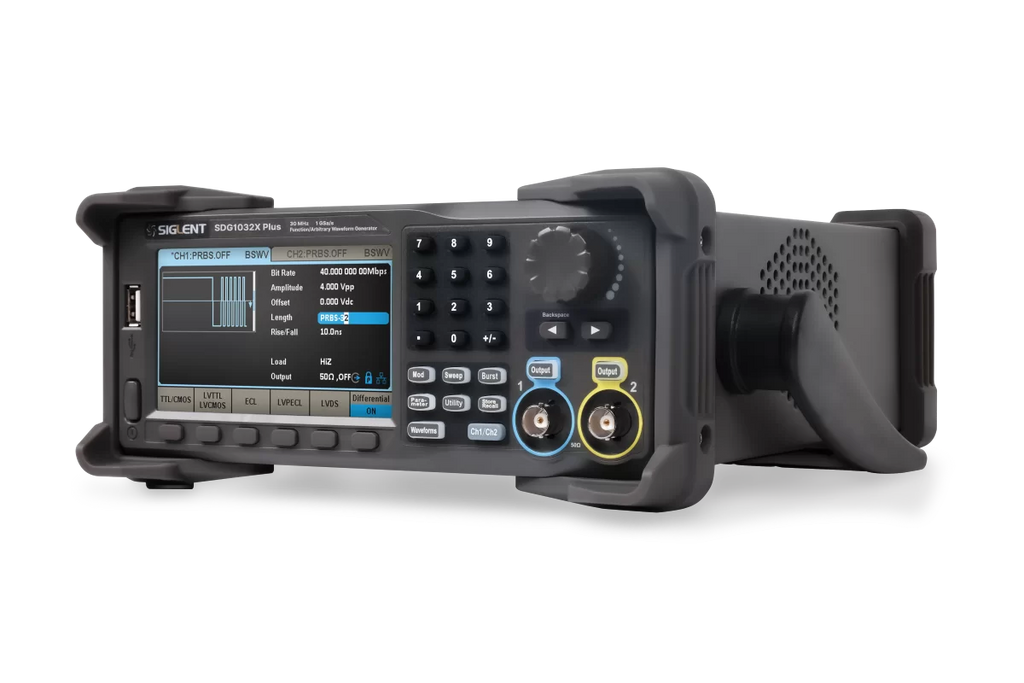

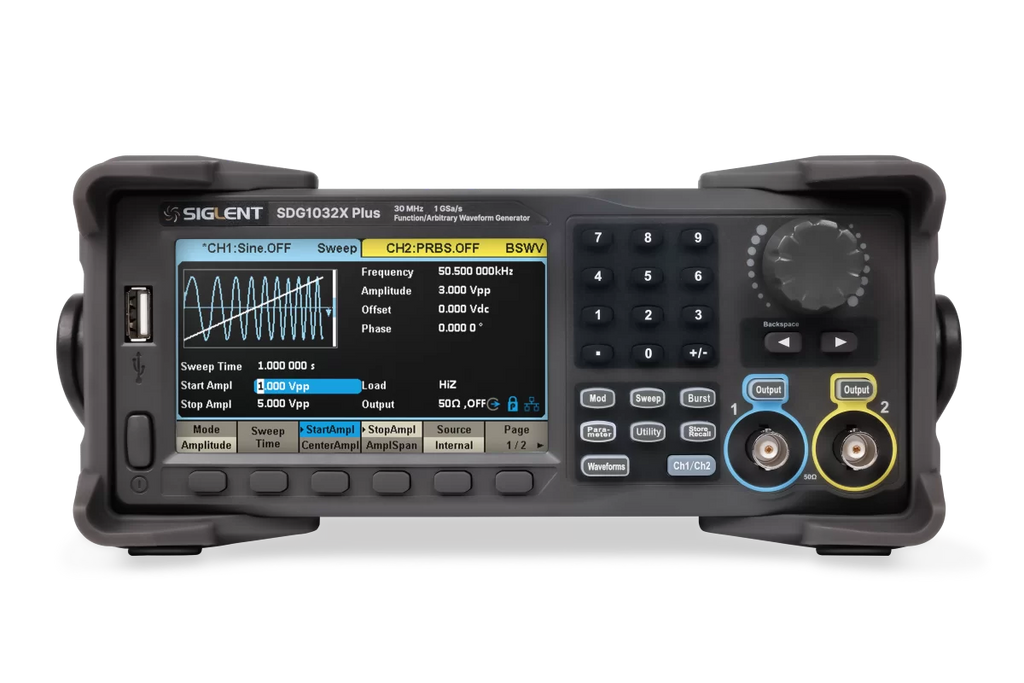

The Siglent SDG1032X Plus is a 30 MHz, dual-channel function/arbitrary waveform generator from the SDG1000X Plus series, with 16-bit vertical resolution and a maximum sampling rate of 1 GSa/s. It builds on DDS (direct digital synthesis) and adds Siglent's TrueArb and EasyPulse technologies to overcome DDS weaknesses when outputting arbitrary waveforms and square/pulse signals.
Key Features
- 30 MHz maximum output, 2 channels
- 16-bit vertical resolution
- 1 GSa/s maximum sampling rate
- TrueArb technology for accurate arbitrary waveforms
- EasyPulse technology for clean square and pulse output
- DDS-based design
Specifications
| Brand / model | Siglent SDG1032X Plus (SDG1000X Plus series) |
|---|---|
| Max frequency | 30 MHz |
| Channels | 2 |
| Vertical resolution | 16 bits |
| Max sampling rate | 1 GSa/s |
| Technology | DDS with TrueArb and EasyPulse |
| SKU | 01SDG1032XPLUS |
What's Included
- Siglent SDG1032X Plus waveform generator (1)
Ideal For
Engineers and educators who need a precise two-channel source with clean arbitrary and pulse output.
Frequently Asked Questions
What does TrueArb do?
It plays arbitrary waveforms point by point instead of through a DDS phase accumulator, avoiding skipped or repeated points and the jitter they cause.
What is the difference between the SDG1000X Plus models?
Models in the series share the same architecture and differ mainly in maximum frequency (25 to 60 MHz). This model is 30 MHz.
