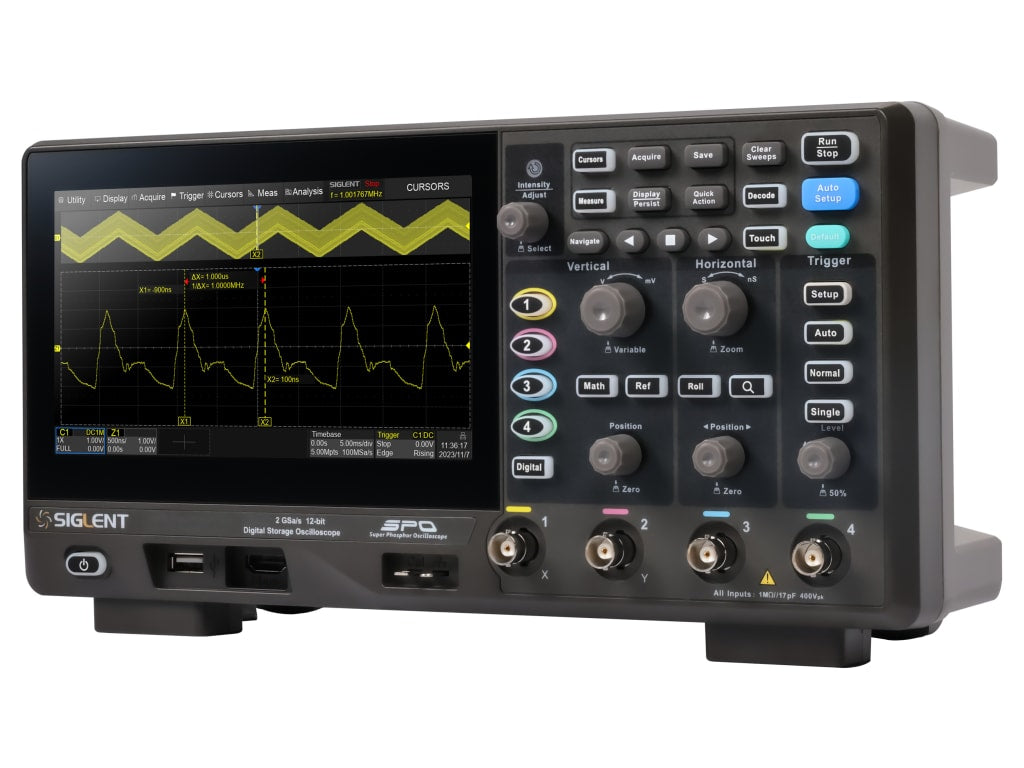

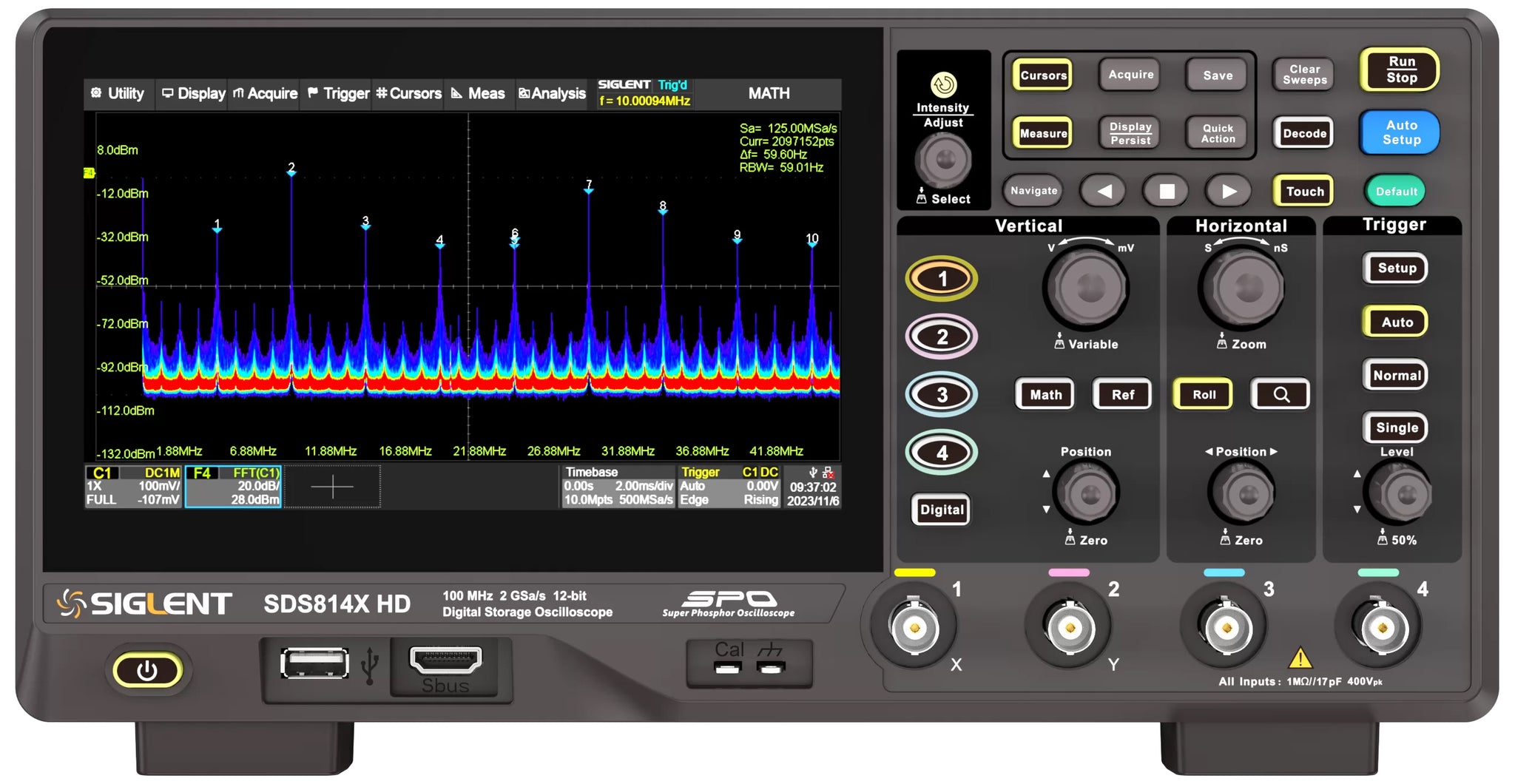

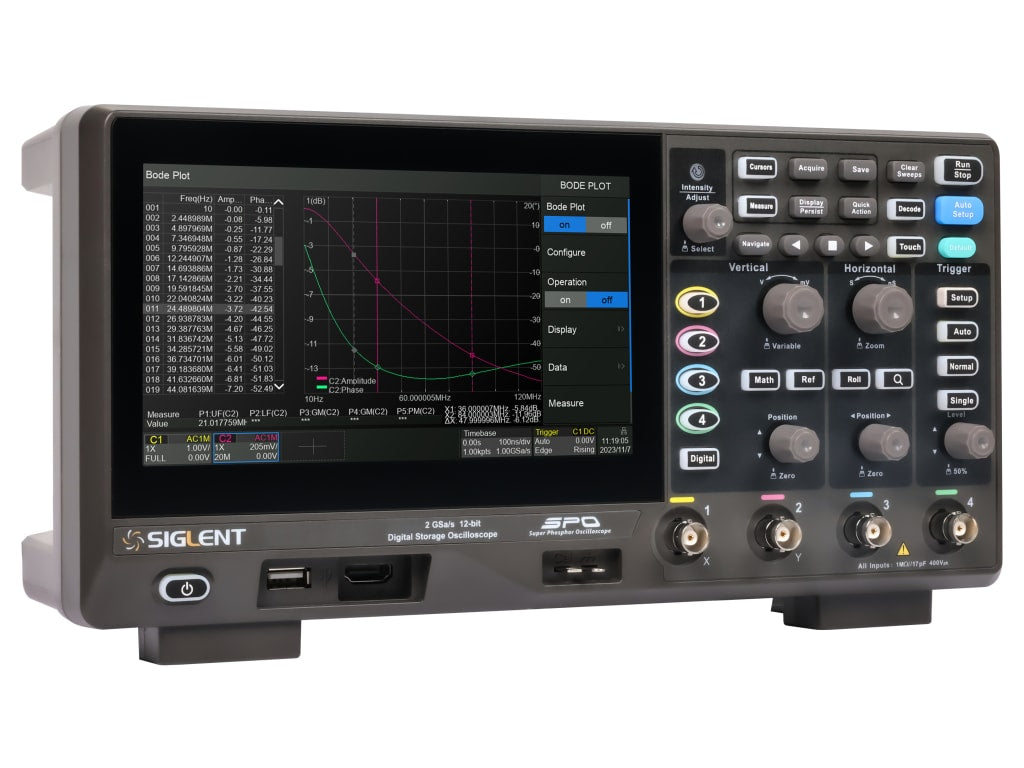

The Siglent SDS814X HD is a 100 MHz, four-channel high-resolution digital oscilloscope with a 12-bit ADC and a sample rate of up to 2 GSa/s. Its 12-bit resolution and low noise floor show small signal details that 8-bit scopes can miss, and serial trigger and decode for I2C, SPI, UART, CAN and LIN are included as standard. A 7-inch capacitive multi-touch screen, mouse support and web control over LAN make it easy to drive, and it can be expanded to 16 digital channels or a 25 MHz generator with options.

Key Features

  • 100 MHz bandwidth, 4 analog channels
  • 12-bit ADC, up to 2 GSa/s sampling
  • Serial trigger and decode standard: I2C, SPI, UART, CAN, LIN
  • 7 in. capacitive multi-touch screen; mouse and LAN web control
  • 256-level intensity grading plus color temperature display
  • Optional 16 digital channels and 25 MHz waveform generator (sold separately)
  • USB host, USB device (USBTMC), LAN, pass/fail, trigger out

Specifications

Brand / model Siglent SDS814X HD
Type High-resolution digital oscilloscope (MSO-upgradable)
Bandwidth 100 MHz
Channels 4 analog (16 digital optional)
ADC resolution 12-bit
Sample rate Up to 2 GSa/s
Record length Up to 50 Mpts (per model specs)
Serial decode I2C, SPI, UART, CAN, LIN (standard)
Display 7 in. capacitive multi-touch
Interfaces USB host, USB device (USBTMC), LAN (VXI-11/Telnet/Socket), pass/fail, trigger out
SKU 01SDS814XHD

What's Included

  • Oscilloscope (see manufacturer for standard accessories)

What You'll Need (Sold Separately)

  • SDS800XHD-16LA option and SLA1016 logic probe for the 16 digital channels
  • SDS800XHD-FG option plus SAG1021I or an SDG series generator for the 25 MHz waveform generator

Ideal For

Engineers, educators and advanced hobbyists who want 12-bit resolution, four channels and standard serial decoding at an entry-level price point.

Frequently Asked Questions

Why does a 12-bit oscilloscope matter?
A 12-bit ADC divides the vertical range into 4,096 levels instead of 256 for 8-bit, so you can see small ripple, noise and low-level details more clearly.

Is it a mixed signal oscilloscope out of the box?
No. The 16 digital channels require the SDS800XHD-16LA option and the SLA1016 logic probe, both sold separately.

Which serial protocols are included?
I2C, SPI, UART, CAN and LIN trigger and decode are included as standard.
