RP-S40-ST Thin Film Pressure Sensor, 40 x 40 mm – Flexible Force Sensing Resistor, 20 g–10 kg Range, 0.45 mm Thick

26DFRSEN0296
Regular price
$8.99
Sale price
$8.99
Regular price
$7.90
Sold out
Unit price
per
Shipping calculated at checkout.

The RP-S40-ST is a square 40 x 40 mm flexible thin-film pressure sensor that measures static and dynamic force. It is 0.45 mm thick, and its resistance falls as force increases, from over 10 MΩ unloaded across a 20 g to 10 kg range. It responds in under 10 ms and is rated for more than 1 million cycles.

Key Features

  • Square 40 x 40 mm sensing area, 0.45 mm thick and flexible
  • Measures 20 g to 10 kg; trigger force 20 g

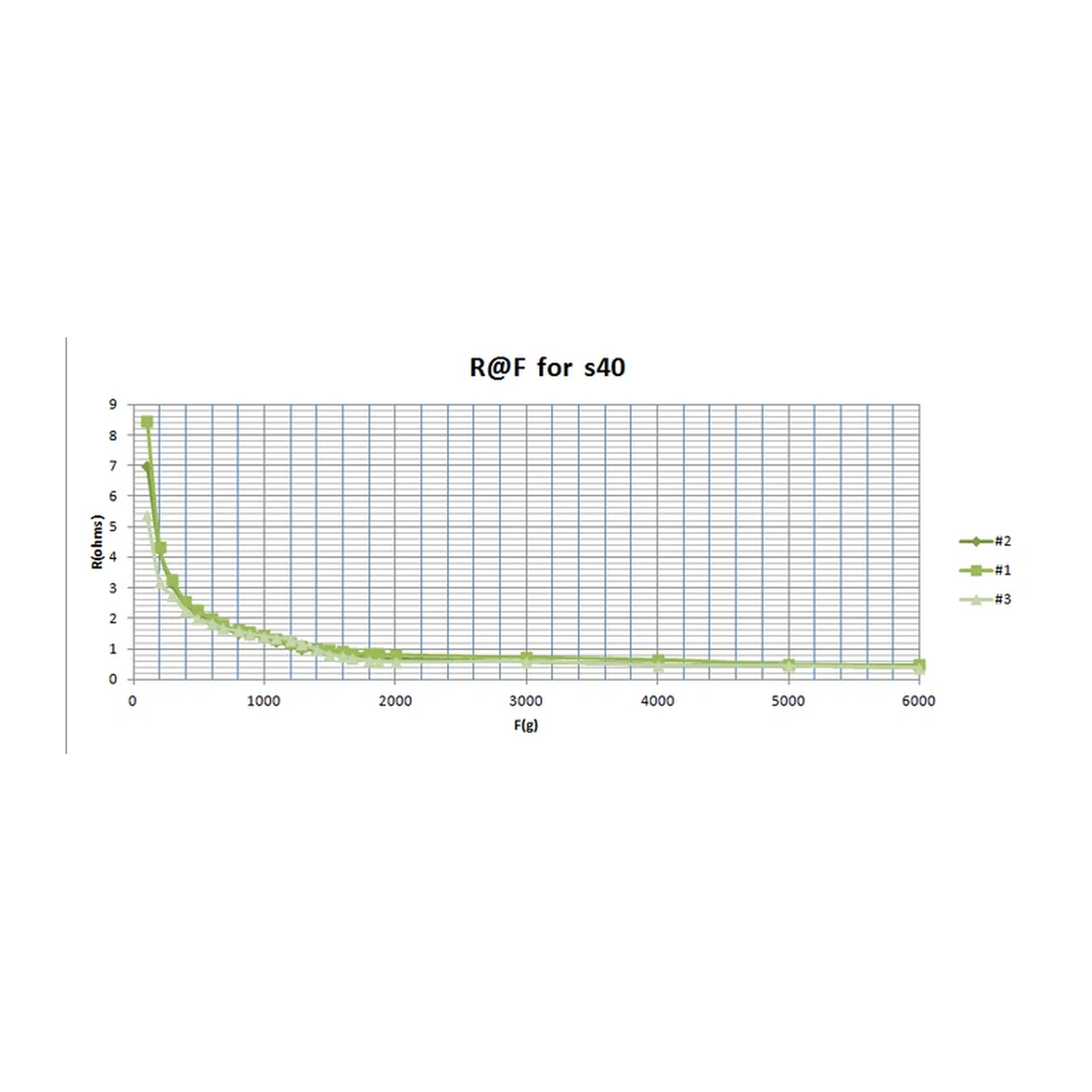

  • Resistance decreases as pressure increases
  • Static and dynamic measurement up to 10 Hz
  • Response time < 10 ms
  • Lifespan > 1 million presses; -40 to +85 °C

Specifications

Model RP-S40-ST

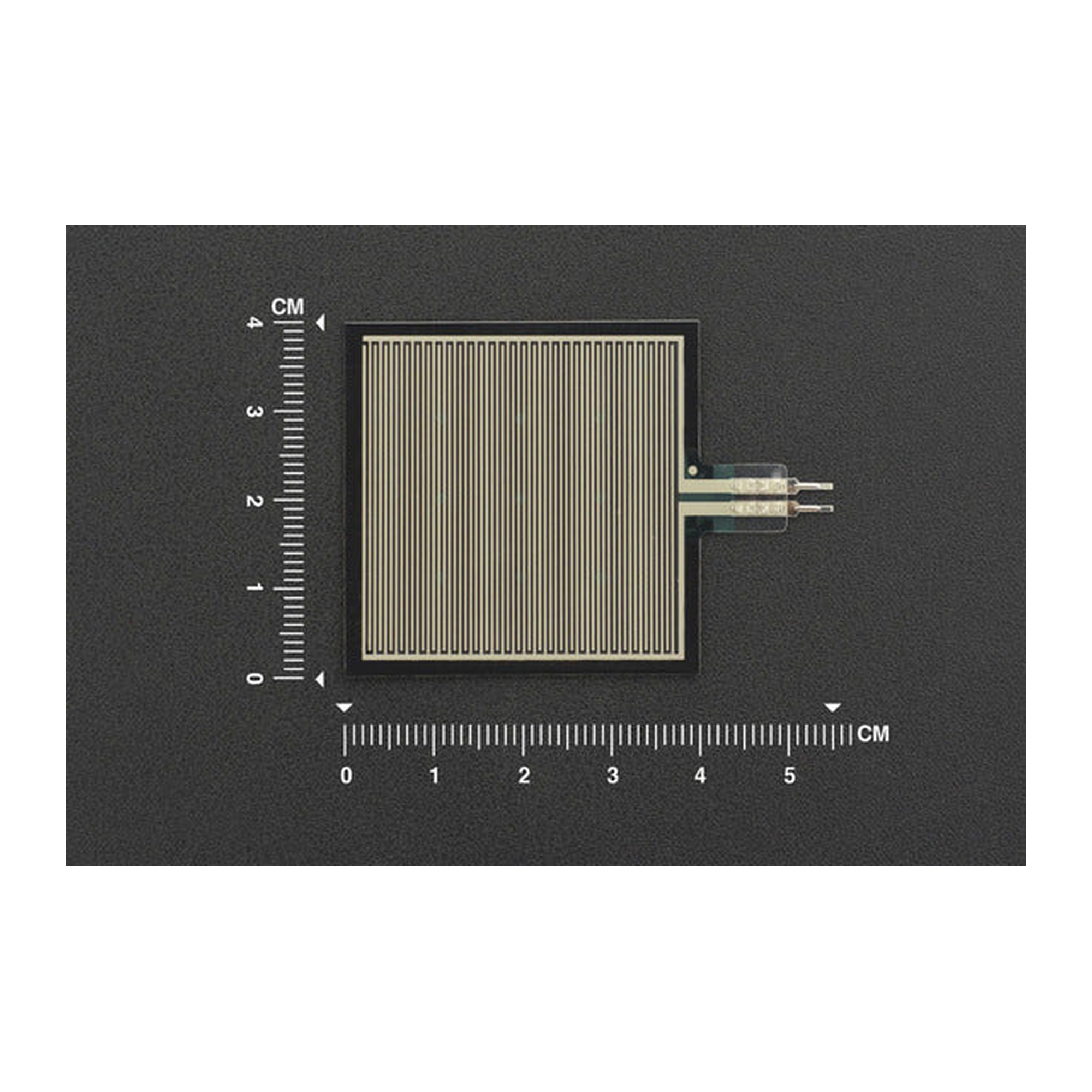

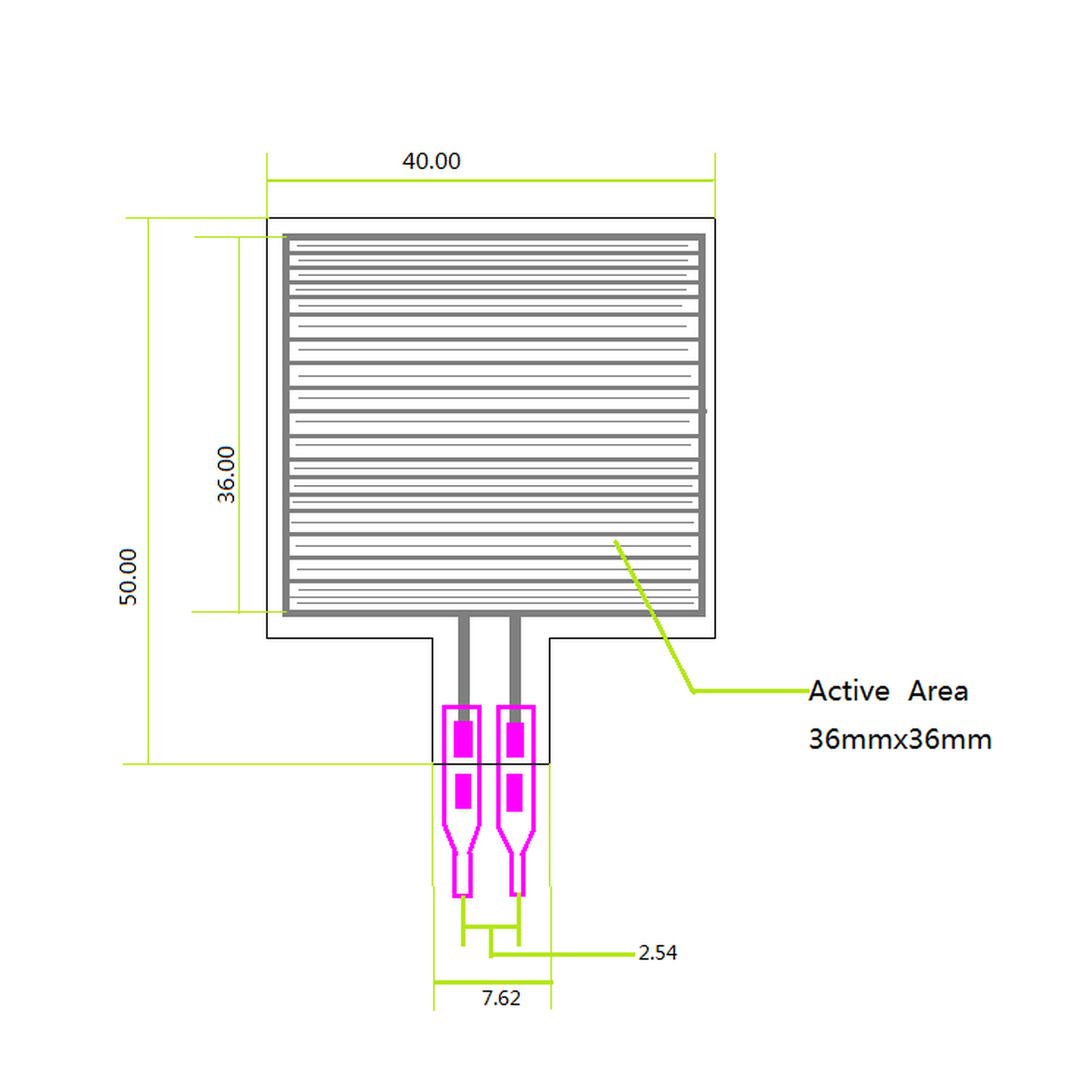

Size 40 x 40 mm
Thickness 0.45 mm
Range 20 g – 10 kg
Trigger force 20 g (resistance < 200 kΩ)
Initial resistance > 10 MΩ
Response time < 10 ms
Dynamic measurement Up to 10 Hz
Drift < 5% (2.5 kg static load, 24 h)
Hysteresis +10% at 1,000 g
Operating temperature -40 to +85 °C
Lifespan > 1 million cycles
SKU 26DFRSEN0296

What's Included

  • 1 x RP-S40-ST thin film pressure sensor

Ideal For

Seat and bed occupancy detection, smart footwear, robotics and pressure switches.

Frequently Asked Questions

How do I read it with a microcontroller?
Put it in a voltage divider with a fixed resistor and read the voltage on an analog input; the voltage changes as force changes the sensor's resistance.

Is it precise enough for weighing?
It is best for detecting and comparing force; with up to 5% drift and 10% hysteresis it is not a precision scale sensor.
