- Four channel, 100 MHz digital / mixed signal oscilloscope
- Up to 8 GSa/s real-time sample rate

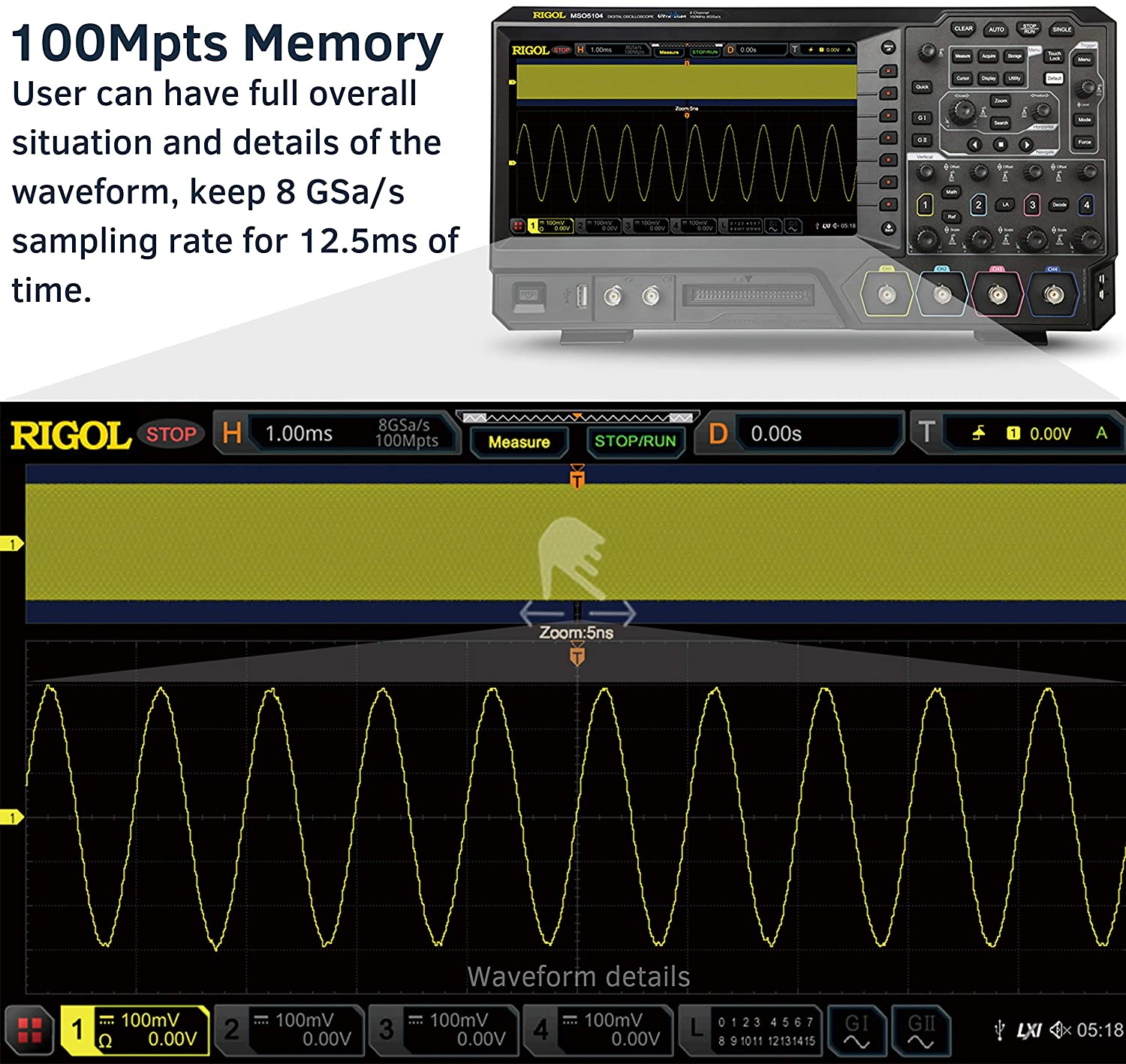

- 100 Mpts memory depth, optional memory depth up to 200 Mpts
- 16 digital channels included - requires optional PLA2216 logic probe to operate

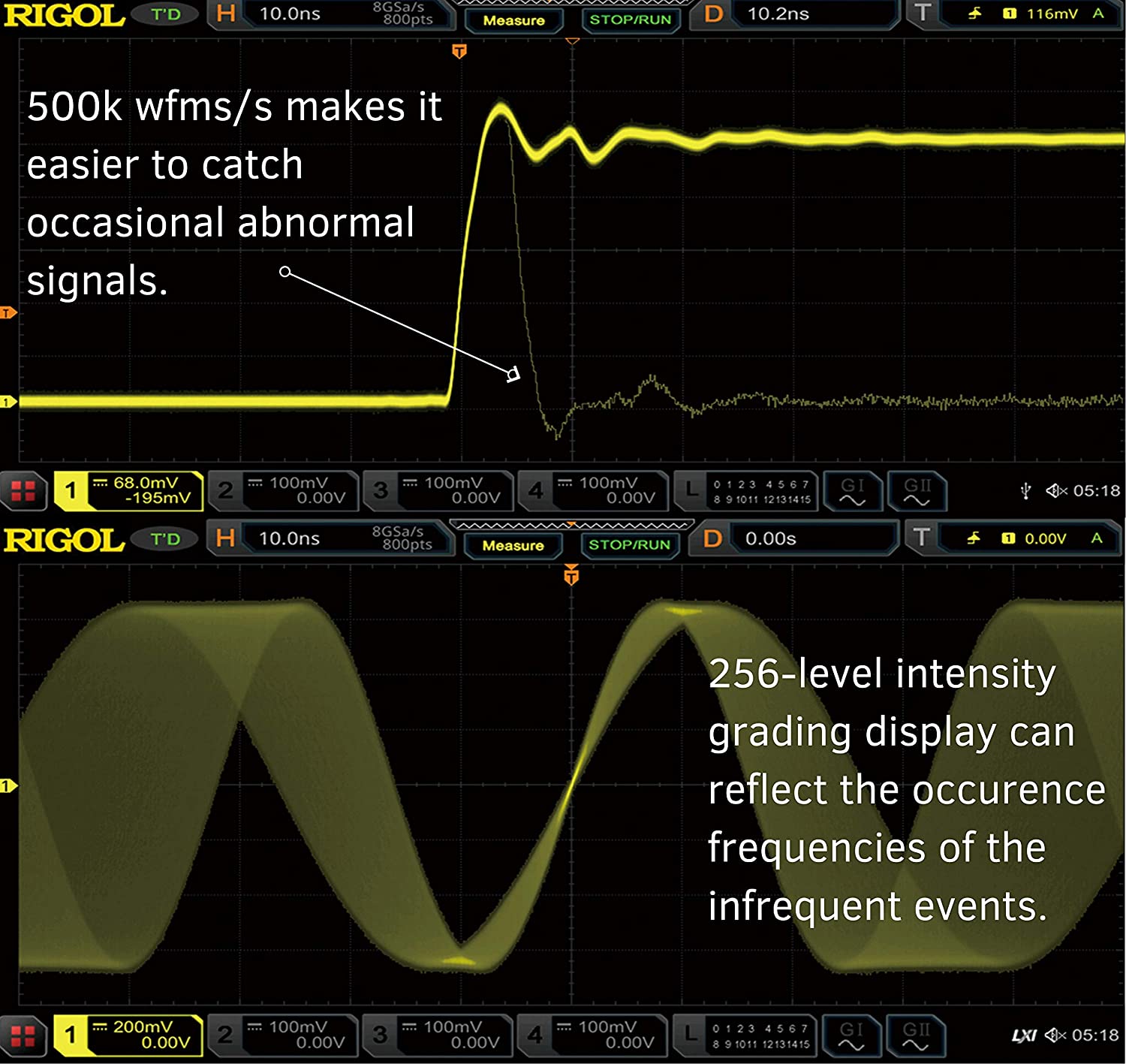

- High waveform capture rate (over 500,000 wfm/s)

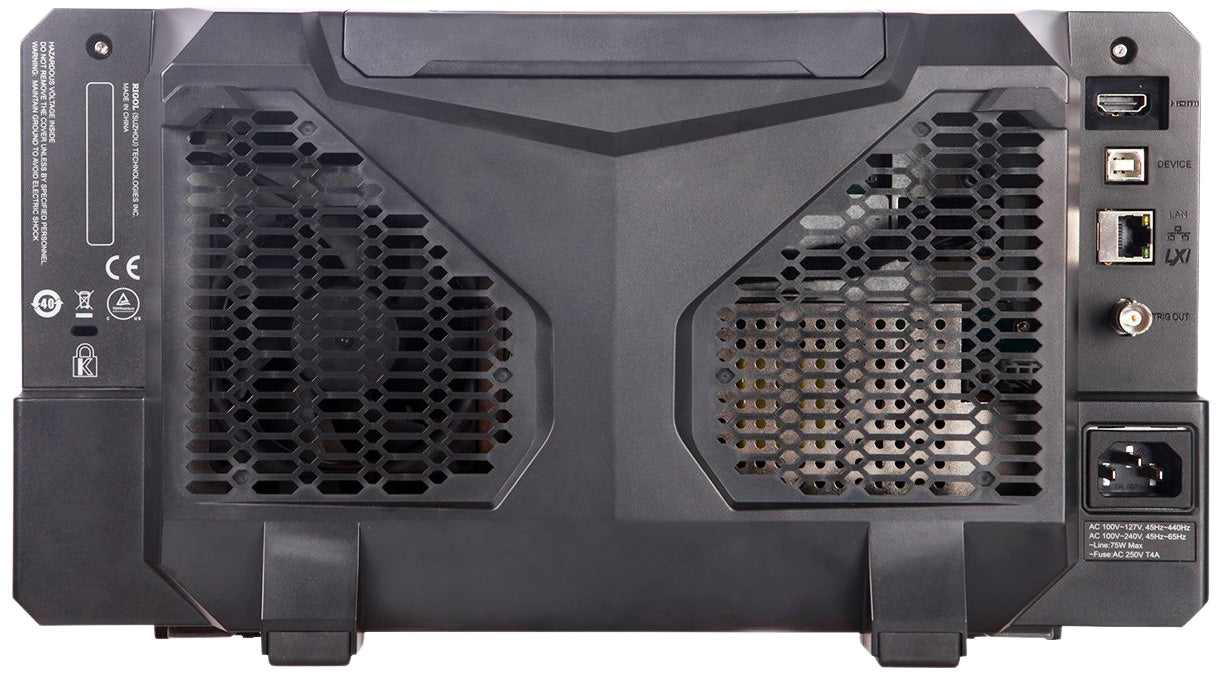

- Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
- Remote wireless control software - migrate instrument control and waveform analysis to PC

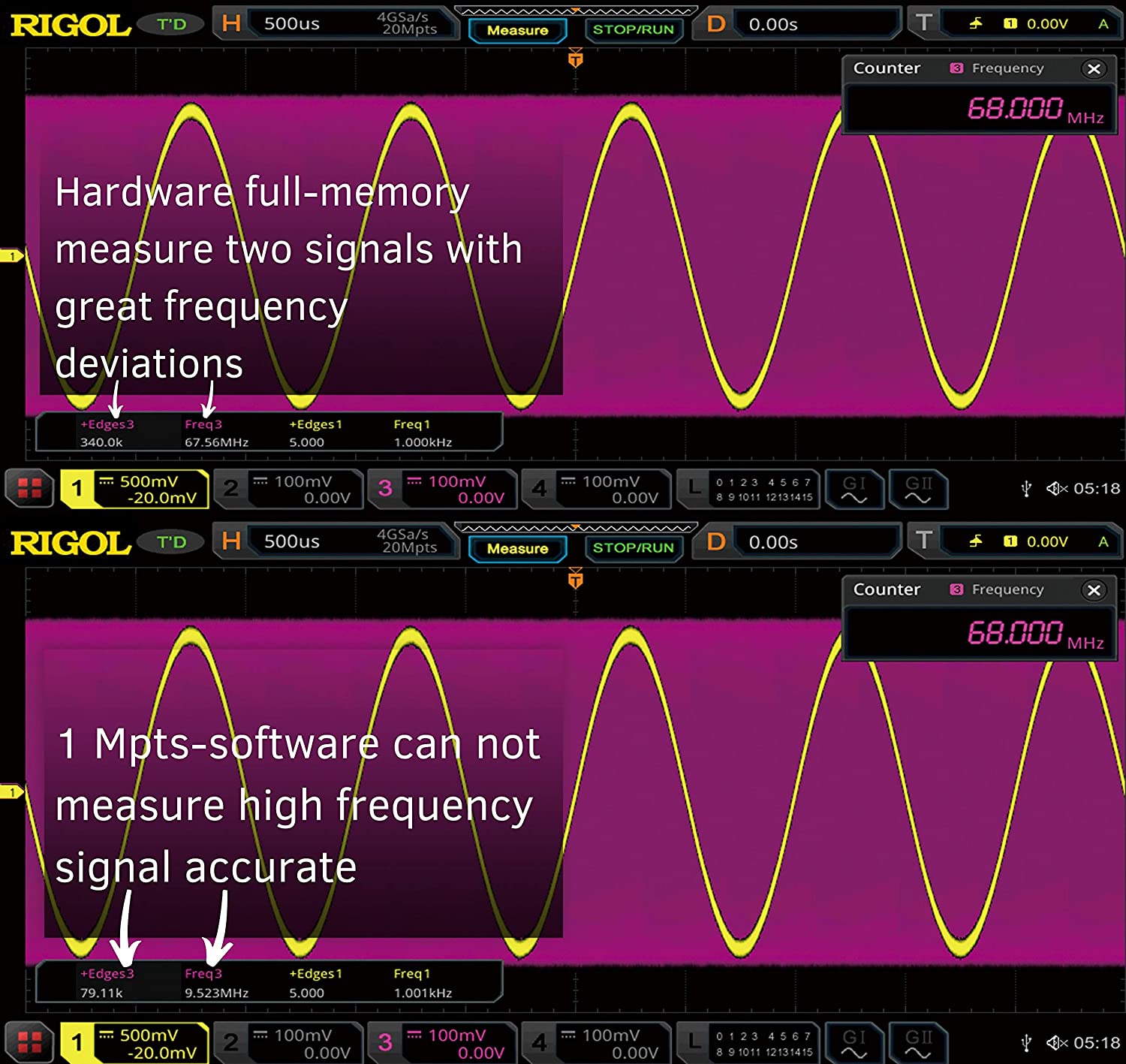

- Auto measurement of 41 waveform parameters; full-memory hardware measurement function
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions

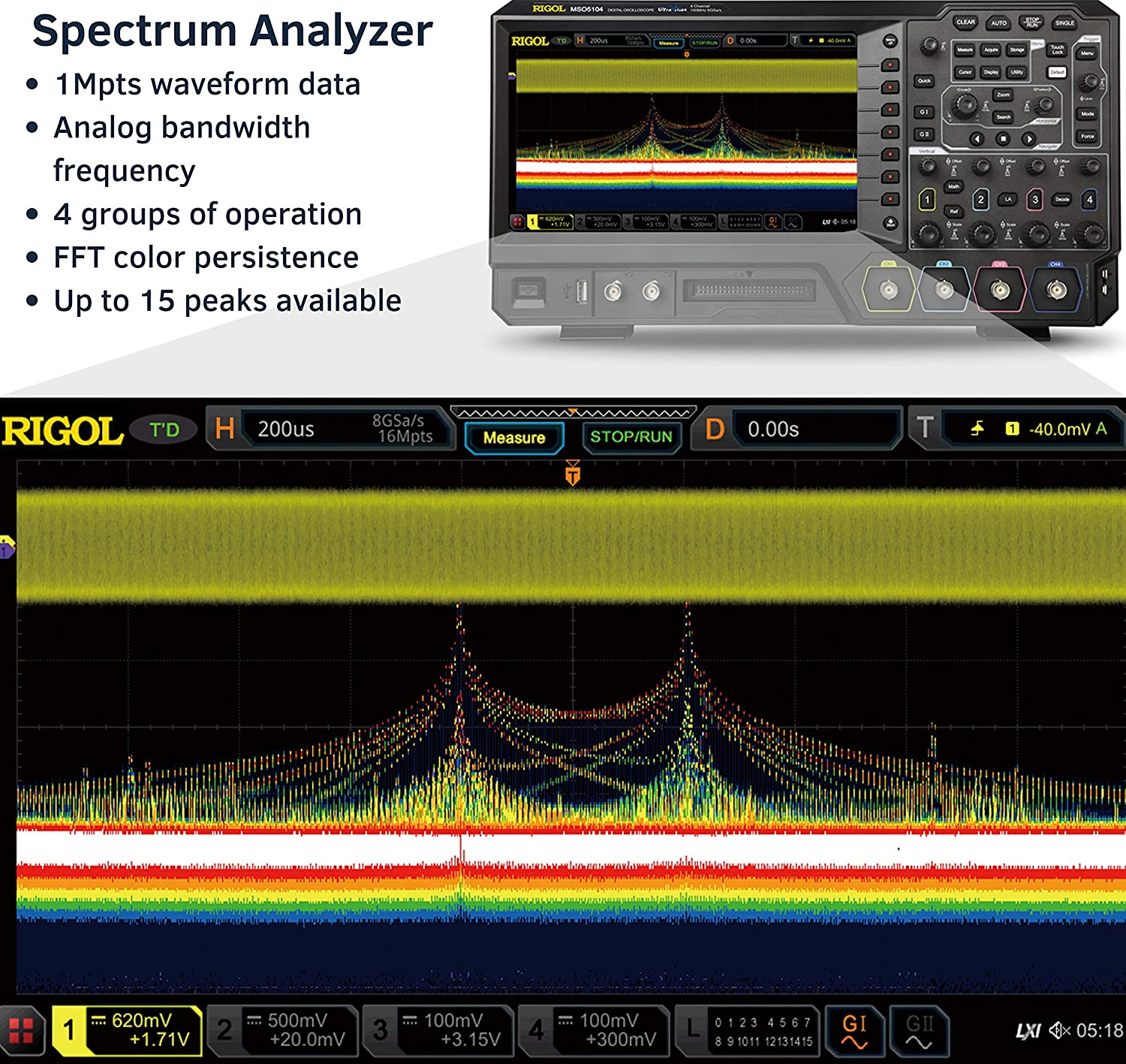

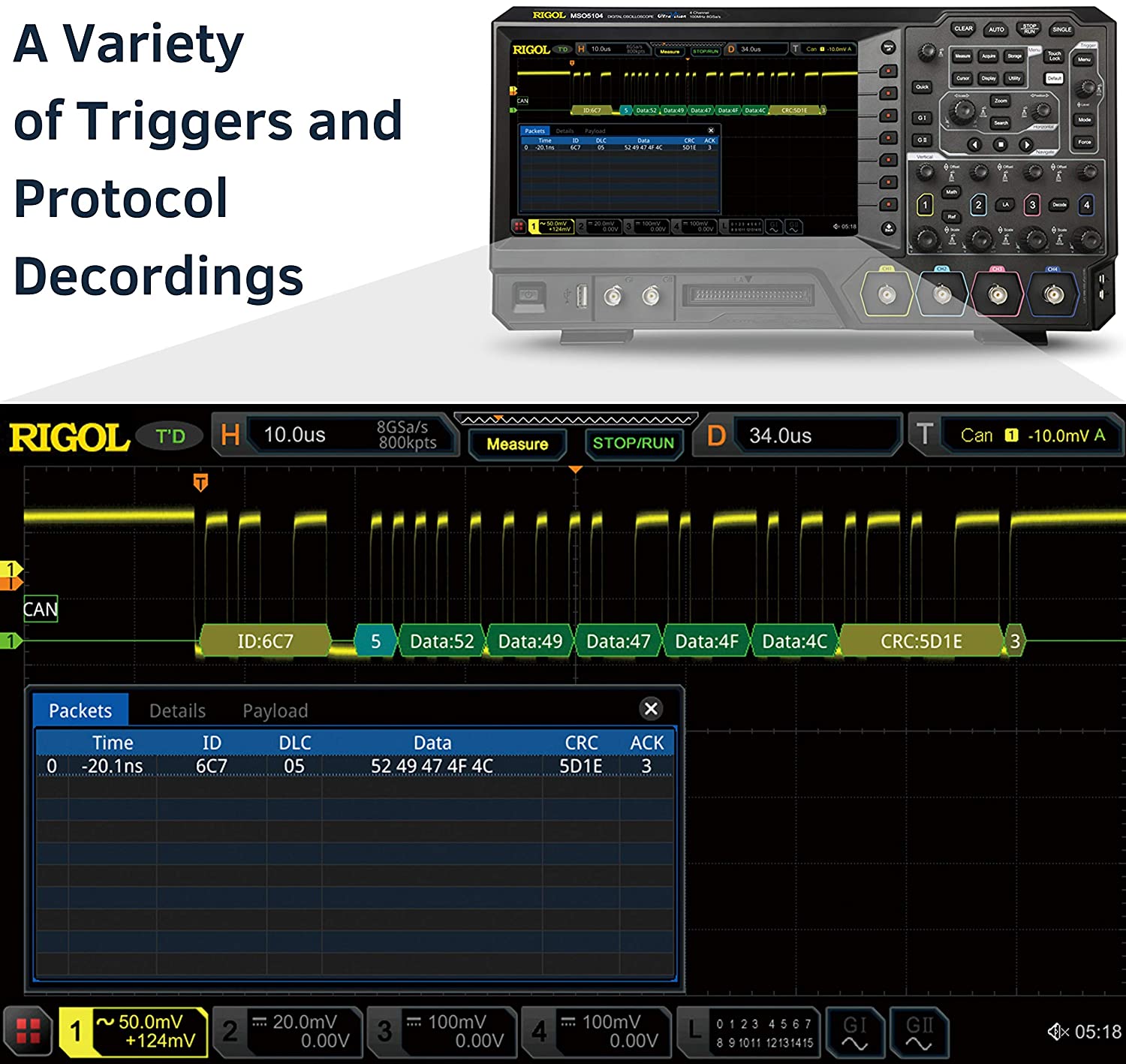

- Integrates 7 independent instruments into 1 - digital oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, a frequency counter and totalizer, and protocol analyzer
- 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence

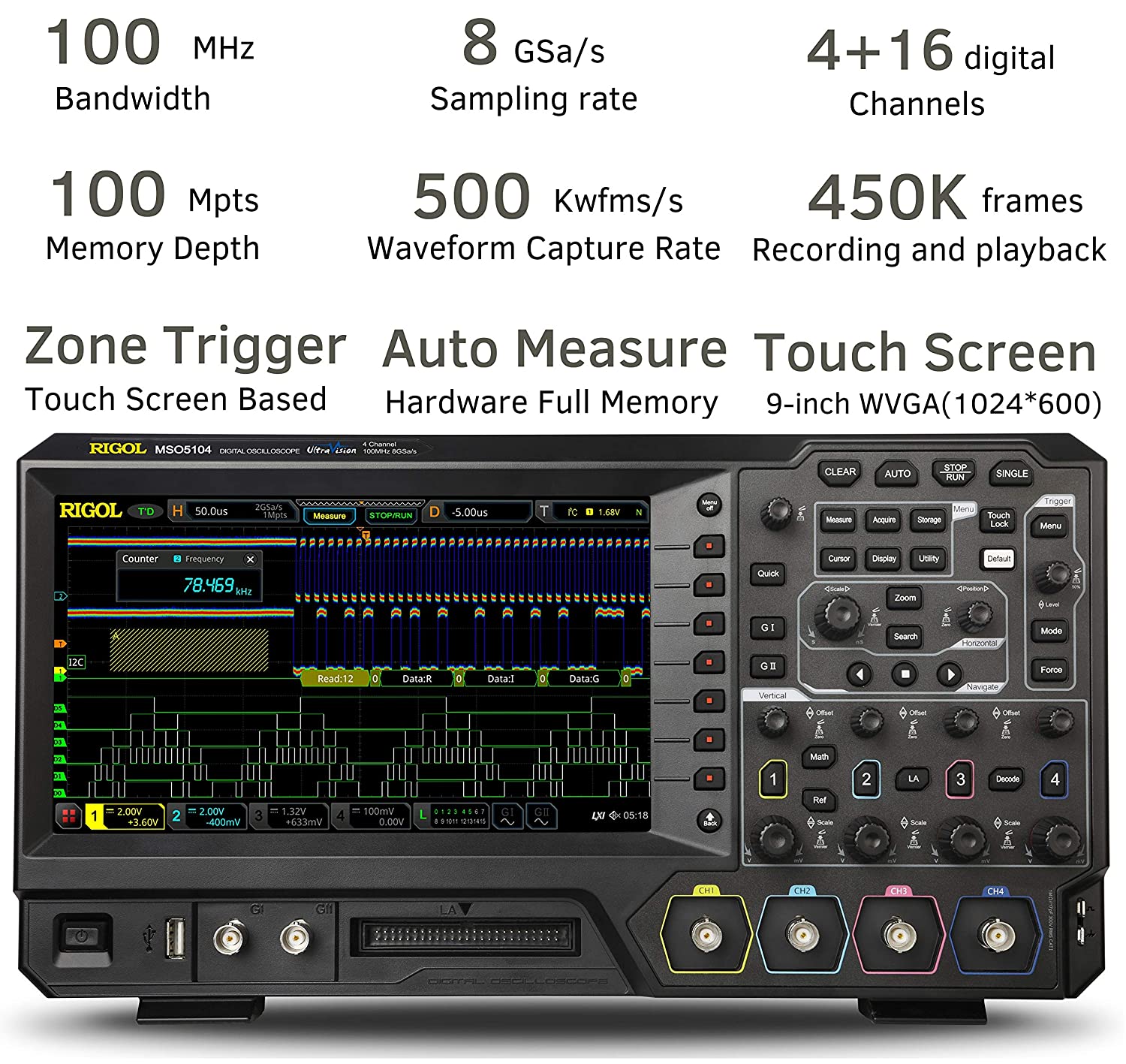

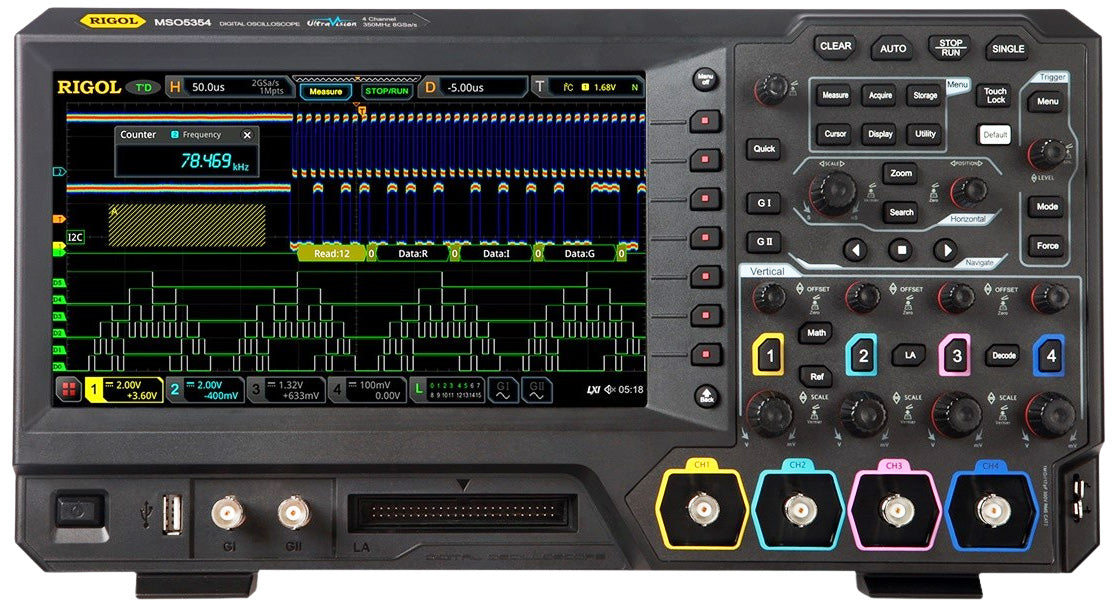

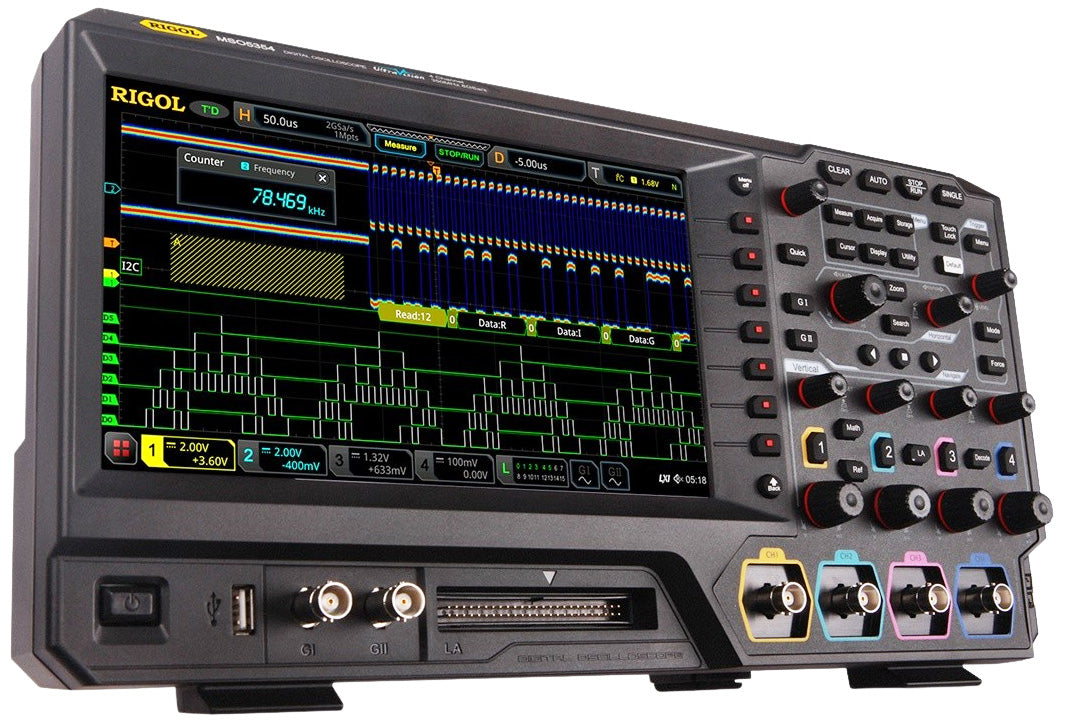

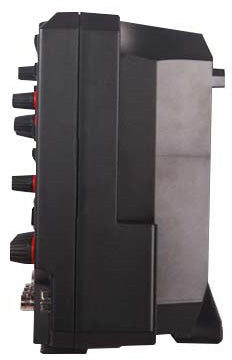

The Rigol MSO5104 is a four-channel, 100 MHz digital/mixed-signal oscilloscope with a real-time sample rate of up to 8 GSa/s. Easily upgraded, it features a 100 Mpts memory depth which is upgradable to 200 Mpts via software key code. It also includes 16 digital channels as a standard feature - simply add the PLA2216 logic probe (not included) to operate.
The Rigol MSO5000 series digital oscilloscope is a high-performance instrument based on Rigol’s UltraVision II technology. With a real-time sample rate of up to 8 GSa/s and extremely high memory depth, the MSO5000 seamlessly integrates 7 instruments into one - oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator and much more. The MSO5000 also features a 9 inch, capacitive multi touch screen with 256 level intensity grading and color persistence.
