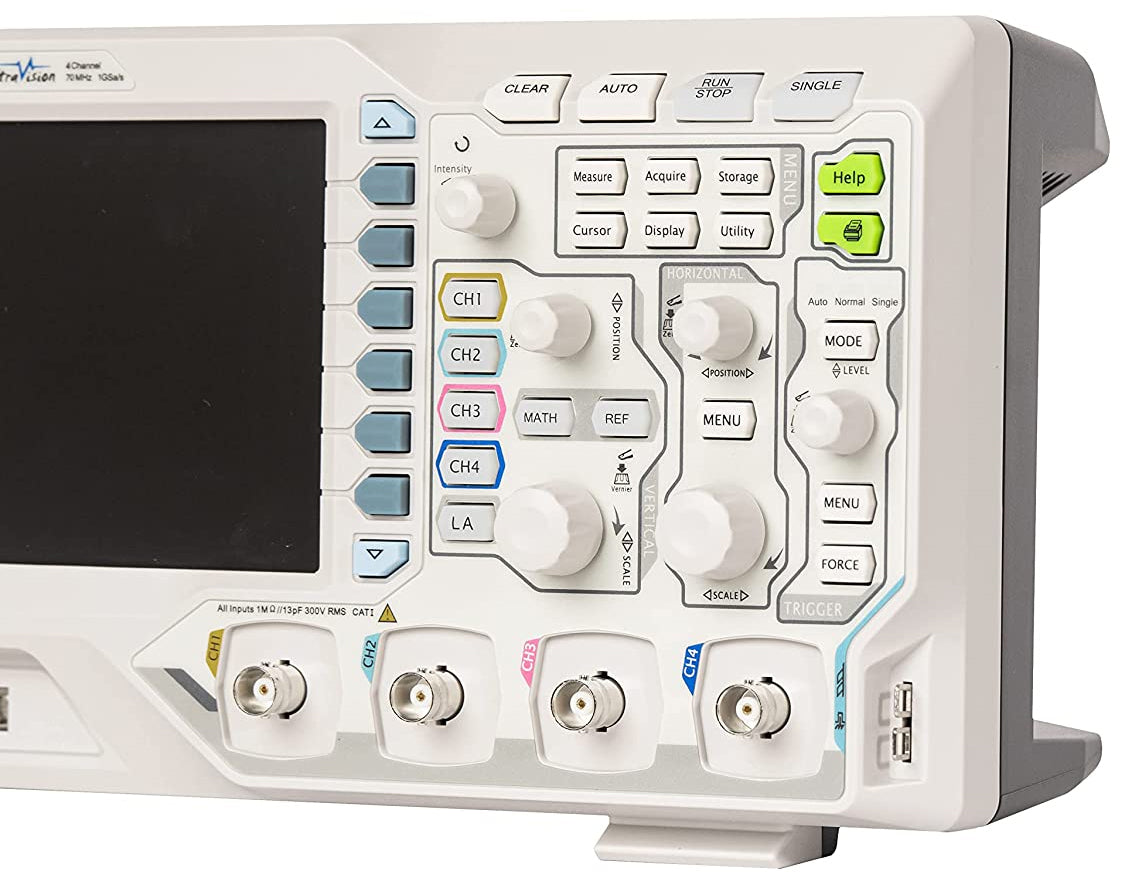

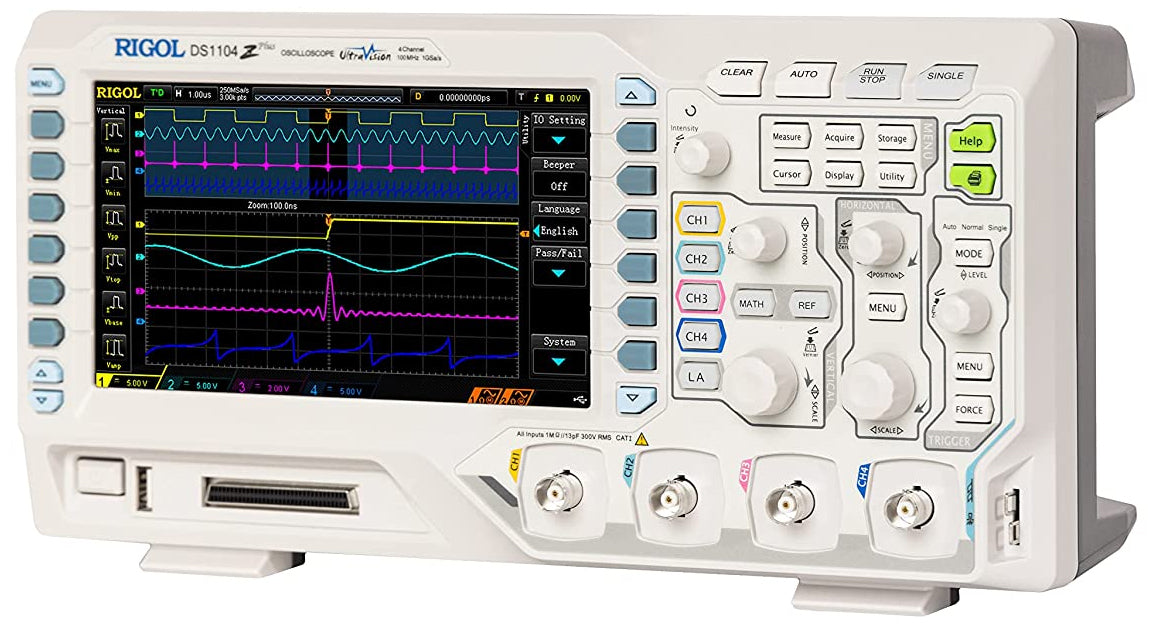

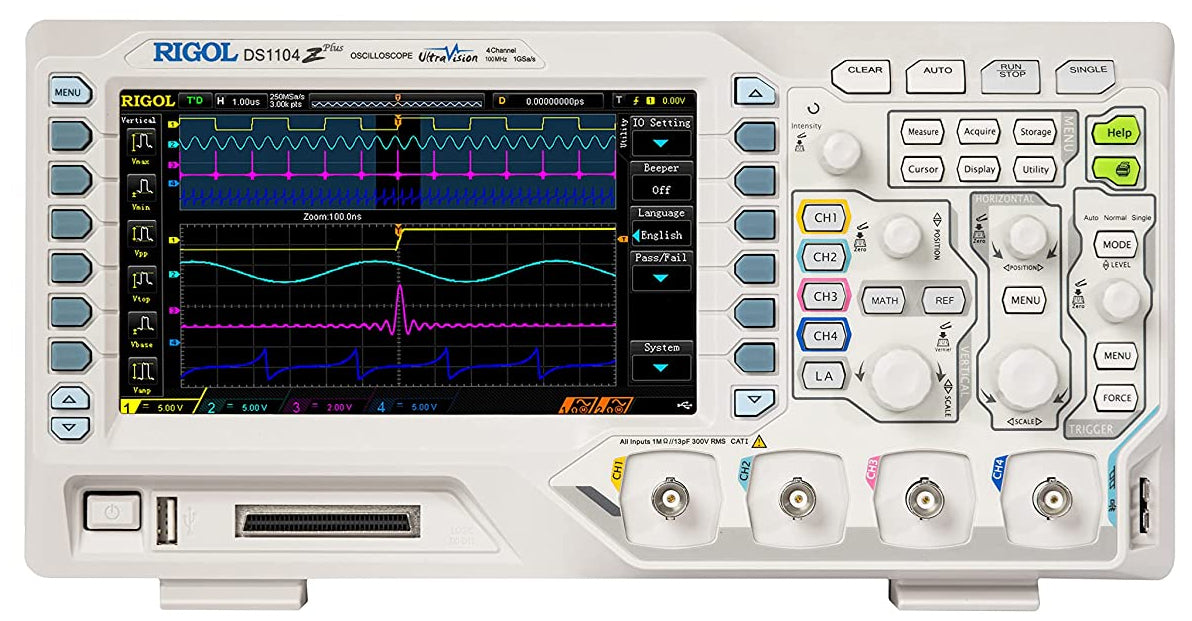

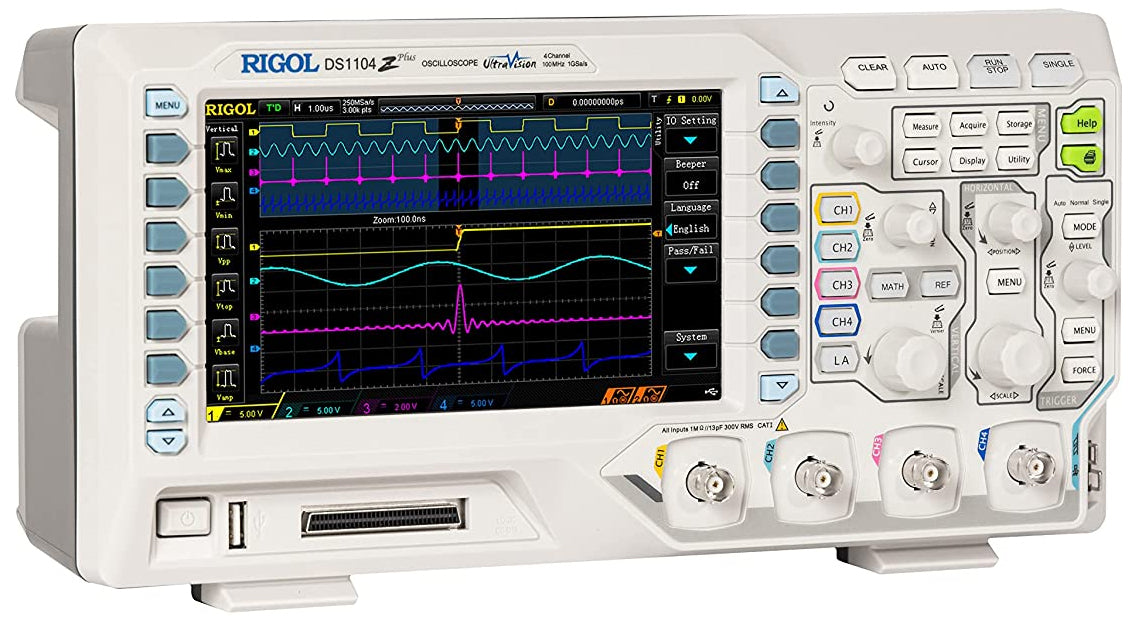

- Analog channel bandwidth: 100 MHz
- 4 analog channels, 16 digital channels
- Real-time sample rate up to 1 GSa/s
- Memory depth up to 24 Mpts
- Up to 30,000 wfms/s waveform capture rate
- Up to 60,000 frames hardware real-time waveform recording and playback functions
- Various trigger and bus decoding functions
- Low noise floor, vertical scale range: 1 mV/div to 10 V/div

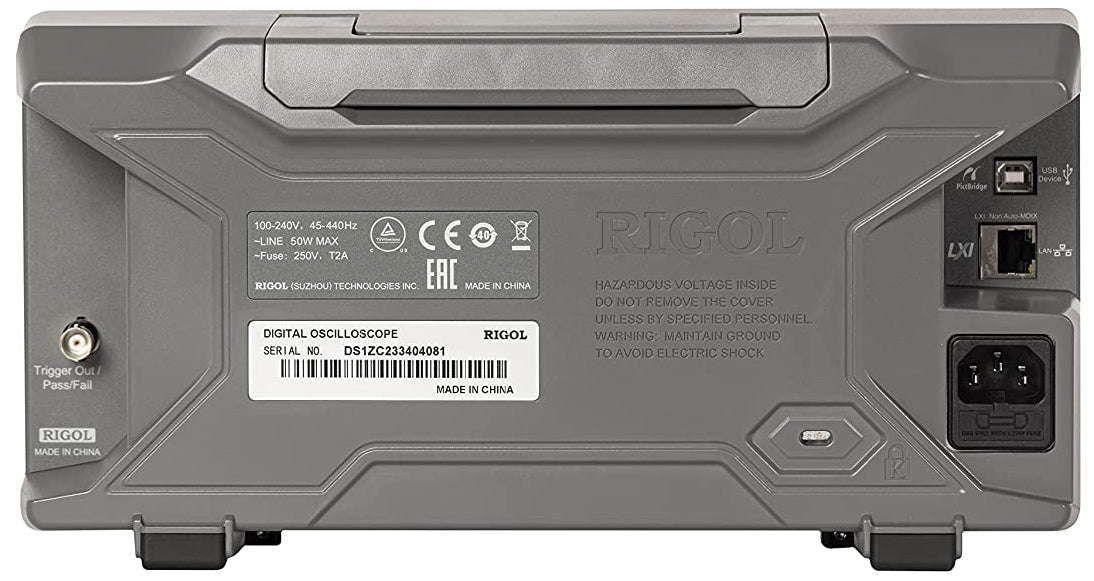

- Various interfaces: USB Host&Device, LAN (LXI), AUX
- 7 inch WVGA (800x480) TFT LCD, intensity graded color display
Sample & Input Specifications

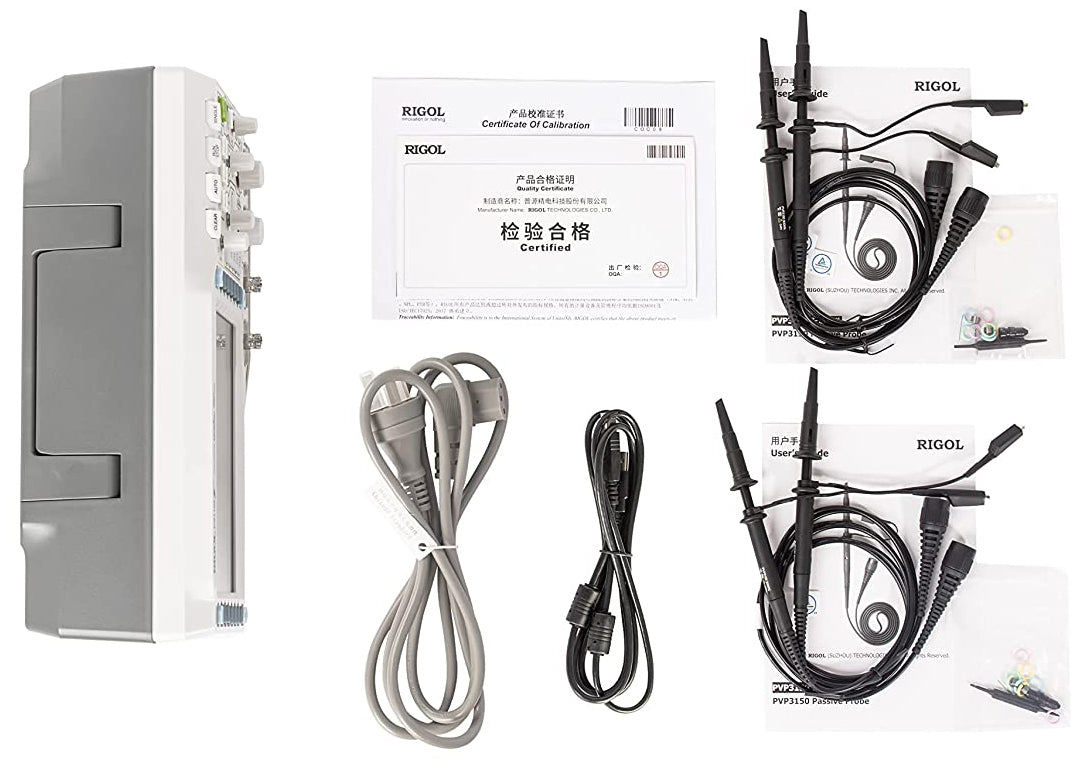

| Sample Mode | Real-time sample |
| Real-time Sample Rate | Analog channel: 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (three/four-channel) ;Digital channel: 1 GSa/s (8-channel), 500 MSa/s (16-channel) |
| Peak Detect | Analog channel: 4 ns ;Digital channel: 4 ns |
| Averaging | Average 2^N samples where N=1 to 10 (2 to 1024 samples) |
| High Resolution | 12 bit (max.) achieved through sample averaging |
| Interpolation | Sin(x)/x (optional) |
| Minimum Detect Pulse Width | Digital channel: 10 ns |
| Memory Depth | Analog channel: 24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (three/four-channel) ;Digital channel: 24 Mpts (8-channel), 12 Mpts (16-channel) |
| Number of Channels | 4 analog channels, 16 digital channels available with RPL1116 probe |
| Input Coupling | DC, AC or GND |
| Input Impedance | Analog channel: (1 MΩ±1%) || (15 pF±3 pF) ;Digital channel: (100 kΩ±1%) || 8 pF±3 pF) |
| Probe Attenuation Coefficient | Analog channe: 0.01X to 1000X, in 1-2-5 step |
| Maximum Input Voltage (1 MΩ) | Analog channel: CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk ;Digital channel: CAT I 40 Vrms, transient overvoltage 800 Vpk |
Horizontal & Vertical Specifications
| Timebase Scale | 5 ns/div to 50 s/div |
| Maximum Record Length | 24 Mpts |
| Timebase Accuracy | ≤ ± 25 ppm |
| Clock Drift | ≤ ± 5 ppm/year |
| Maximum Delay Range | Negative delay: 1/2 (Memory Depth/Sample Rate); Positive delay: 1 s to 500 s |
| Timebase Mode | YT, XY, Roll |
| Number of X-Ys | 1 |
| Waveform Capture Rate | 30,000 wfms/s (dots display) |
| Zero Offset | ±0.5div*minimum time base scale |
| Bandwidth (-3dB) | DC to 100 MHz |
| Single-shot Bandwidth | DC to 100 MHz |
| Vertical Resolution | Analog channel: 8 bits; Digital channel: 1 bit |
| Vertical Scale (1XProbe ratio) | 1 mV/div to 10 V/div |
| Offset Range (1XProbe ratio) | 1 mV/div to 499 mV/div: ± 2 V ;500 mV/div to 10 V/div: ± 100 V |
| Bandwidth Limit | 20 MHz |
| Calculated Rise Time | 3.5 ns |
