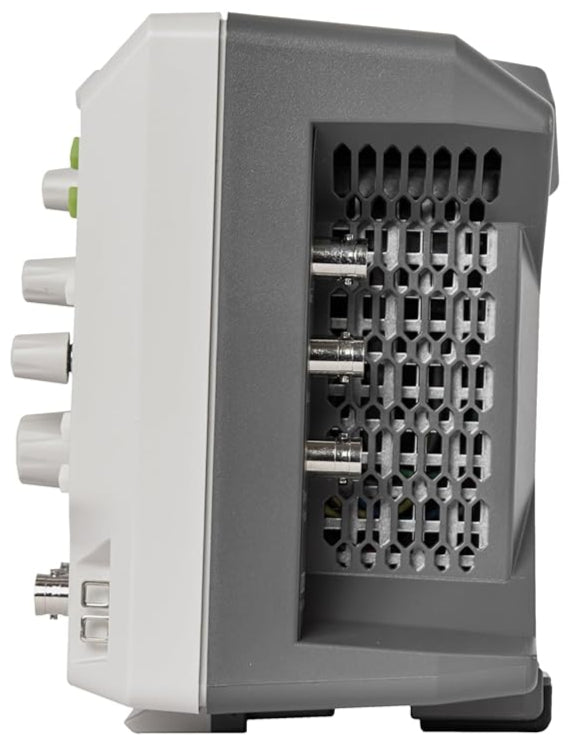

The Rigol DS1074Z Plus is a 70 MHz, four-channel digital oscilloscope with a 1 GSa/s real-time sample rate, 24 Mpts of memory (single-channel mode) and a waveform capture rate of up to 30,000 wfms/s. As a "Plus" model it can become a mixed signal oscilloscope with 16 digital channels by adding the optional RPL1116 logic probe. Standard RS232/UART, I2C and SPI triggering and decoding, 37 automatic measurements with statistics, and 60,000-frame recording make it well suited to embedded and teaching labs.

Key Features

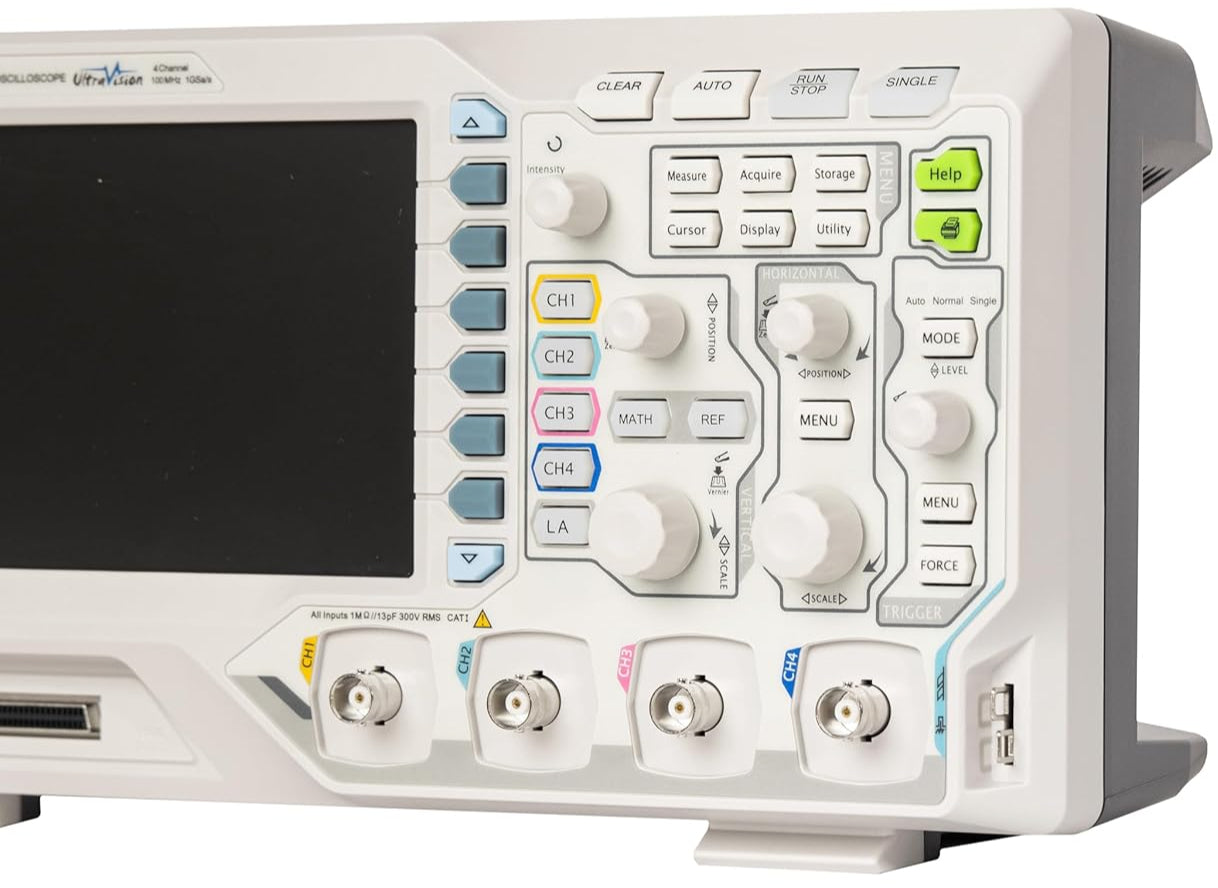

  • 70 MHz bandwidth, 4 analog channels
  • 1 GSa/s real-time sampling; 24 Mpts memory (1-channel mode)
  • Up to 30,000 wfms/s; record and play back up to 60,000 frames
  • RS232/UART, I2C and SPI trigger and decode standard
  • 37 automatic measurements with statistics, FFT, pass/fail, waveform math
  • Upgradable to MSO: 16 digital channels with optional RPL1116 probe
  • 7 in. WVGA display; USB host/device, LAN (LXI), AUX

Specifications

Brand / model Rigol DS1074Z Plus
Type Digital oscilloscope (MSO-upgradable)
Bandwidth 70 MHz
Channels 4 analog (16 digital with RPL1116 probe)
Real-time sample rate 1 GSa/s
Memory depth 24 Mpts (1-channel mode)
Waveform capture rate Up to 30,000 wfms/s
Recording Up to 60,000 frames
Vertical scale 1 mV/div to 10 V/div
Decoding RS232/UART, I2C, SPI
Display 7 in. WVGA (800 x 480) TFT

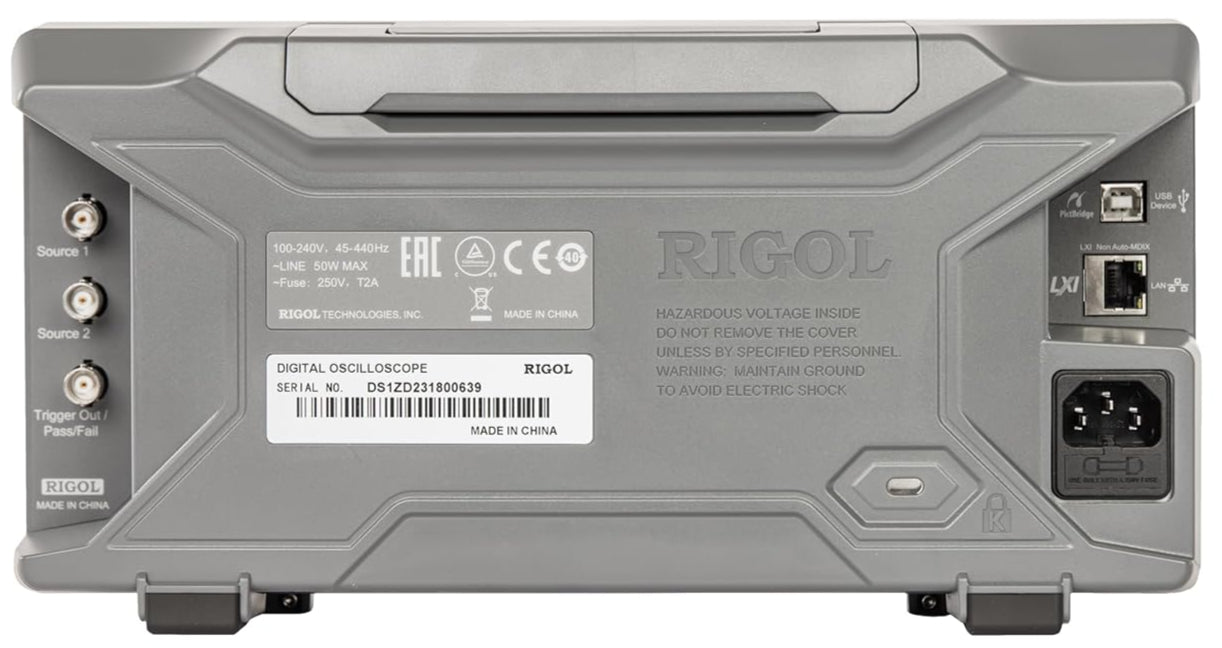

Interfaces USB host & device, LAN (LXI Core 2011), AUX
SKU 01DS1074ZPLUS

What's Included

  • DS1074Z Plus oscilloscope
  • 4 probes
  • USB cable
  • Power cable
  • PDF instruction manual

What You'll Need (Sold Separately)

  • RPL1116 logic probe (optional) for the 16 digital channels

Ideal For

Embedded developers, educators and hobbyists who want four analog channels now and the option of logic channels later.

Frequently Asked Questions

What does "Plus" mean on the DS1074Z?
Plus models accept the optional RPL1116 logic probe, which adds 16 digital channels for mixed signal analysis.

What does the -S suffix mean?
Per the listing, -S models add two 25 MHz arbitrary waveform generator channels. This DS1074Z Plus is not an -S model, so it has no built-in generator.

Does it include probes?
Yes. It comes with 4 probes, a USB cable and a power cable.
