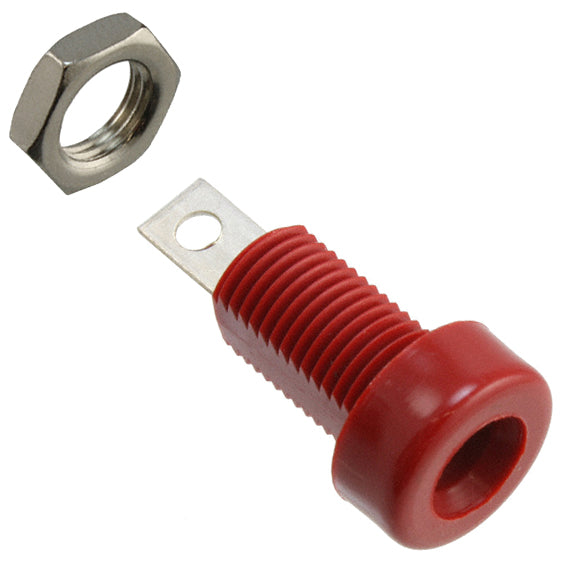

This is a red standard 4mm banana jack with a solder tab for panel mounting. It is rated for 15 amps, has a breakdown voltage of 7000 Vrms minimum and a maximum contact resistance of 0.010 ohms. The keyed mounting with double flats keeps it from turning in the panel.
Key Features
- Accepts 4mm (0.16") banana plugs
- Red self-extinguishing nylon 6/6 body (UL approved nylon)
- 15A current; 7000 Vrms minimum breakdown voltage
- 0.010Ω maximum contact resistance
- Keyed mounting with double flats
- Solder tab termination, nickel-plated nut included (unassembled)
Specifications
| Type | Banana jack, female |
|---|---|
| Color | Red |
| Mates with | Standard 4mm banana plugs |
| Mounting | Panel mount, keyed double flats |
| Termination | Solder tab |
| Wire gauge | 12 AWG |
| Contact | Formed brass per QQ-B-626D |
| Finish | Bright tin (contact finish also listed as nickel) |
| Body | Nylon 6/6 per ASTM D4066 |
| Hardware | Nickel-plated nut (unassembled) |
| Panel thickness | Up to .343 (8.80) as listed |
| Current | 15 A |
| Breakdown voltage | 7000 Vrms minimum |
| Contact resistance | 0.010 Ω max |
| Contact-to-panel capacitance | 2.4 pF nominal |
| Body thread stripping torque | 6.0 lb-in (7 kg-cm) |
| Operating temperature | -55°C to 85°C |
| SKU | 07030902 |
What's Included
- 1 red banana jack
- Nickel-plated nut (unassembled)
Ideal For
Adding a red 4mm banana connection point to a test fixture, power supply or project enclosure.
Frequently Asked Questions
How do I connect wire to it?
Solder the wire to the solder tab on the back of the jack.
What does the keyed double-flat mounting do?
Cutting a matching D-shaped or double-flat hole stops the jack from rotating when plugs are inserted or removed.
