10 Pack Red Stackable 4mm Banana Plugs, Solder Type for Test Leads, 30A, Beryllium Copper, PVC Handle

070332270PK10
Regular price
$8.99
Sale price
$8.99
Regular price
$8.00
Sold out
Unit price
per
Shipping calculated at checkout.

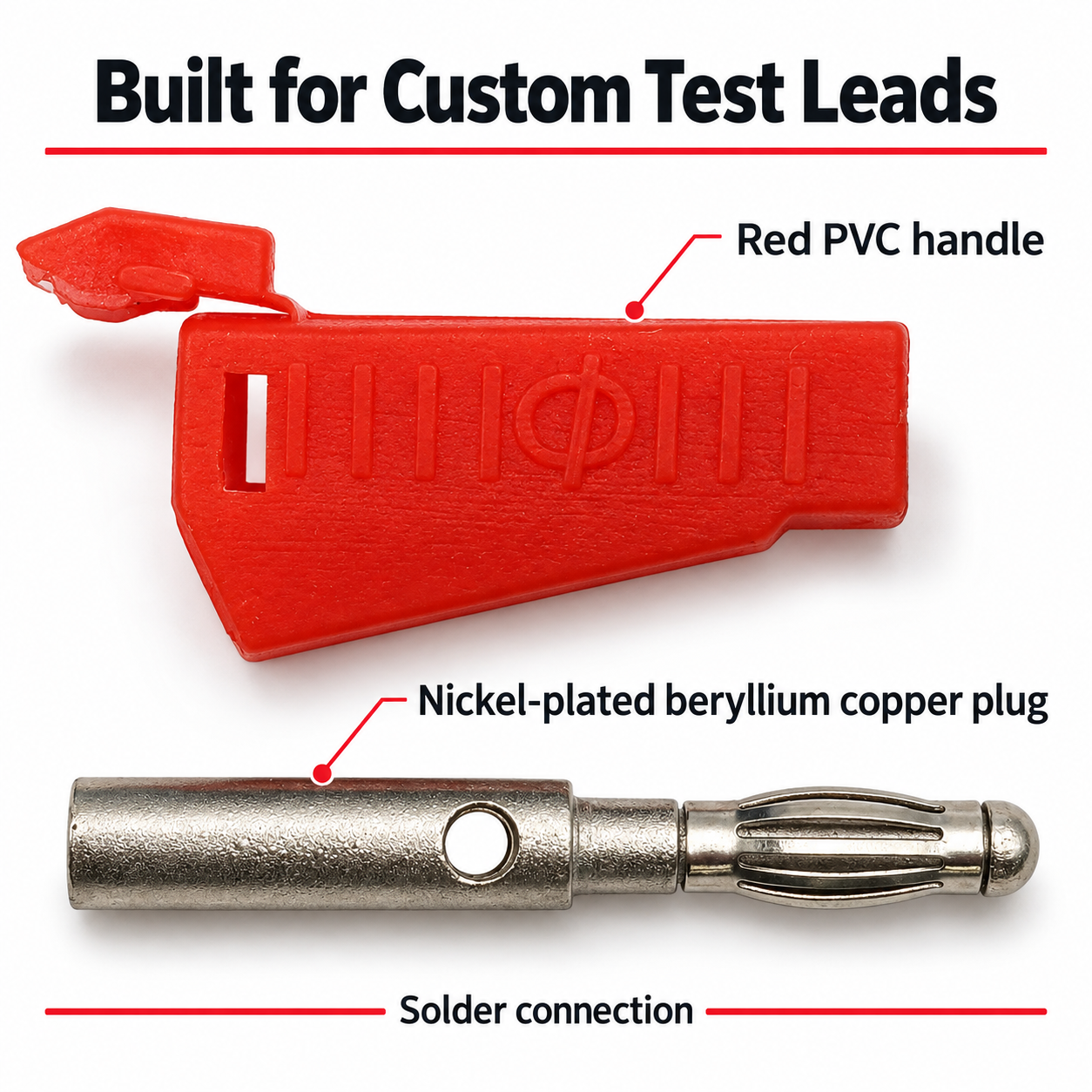

This 10 pack red stackable banana plug set fits standard 4mm banana sockets and is made for building or repairing test leads. Each plug solders to test lead wire with an outer diameter under 3mm, and its stackable design lets another plug connect to the back. The contacts are nickel-plated, heat-treated beryllium copper in a PVC handle, rated 30A.

Key Features

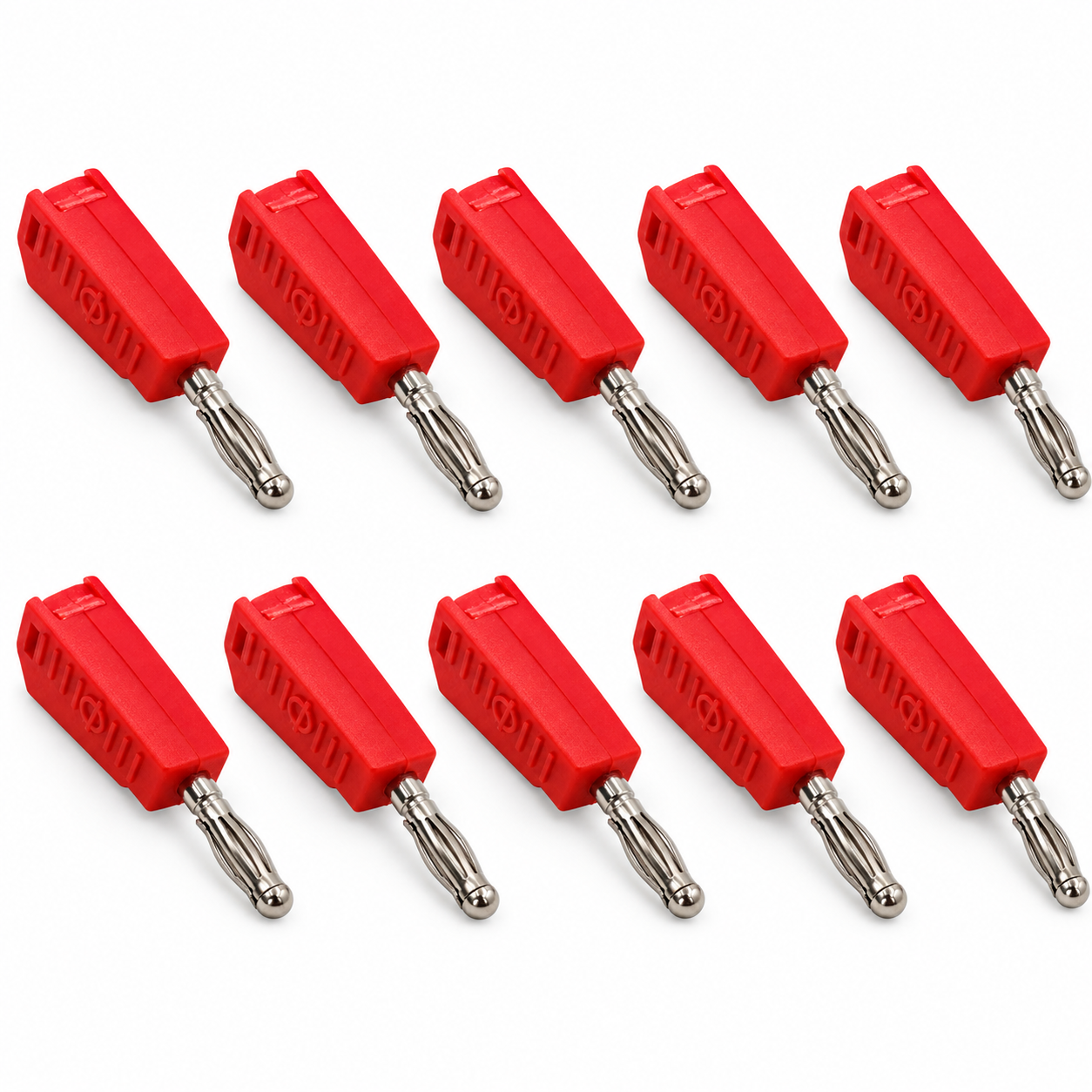

  • Pack of 10 identical plugs

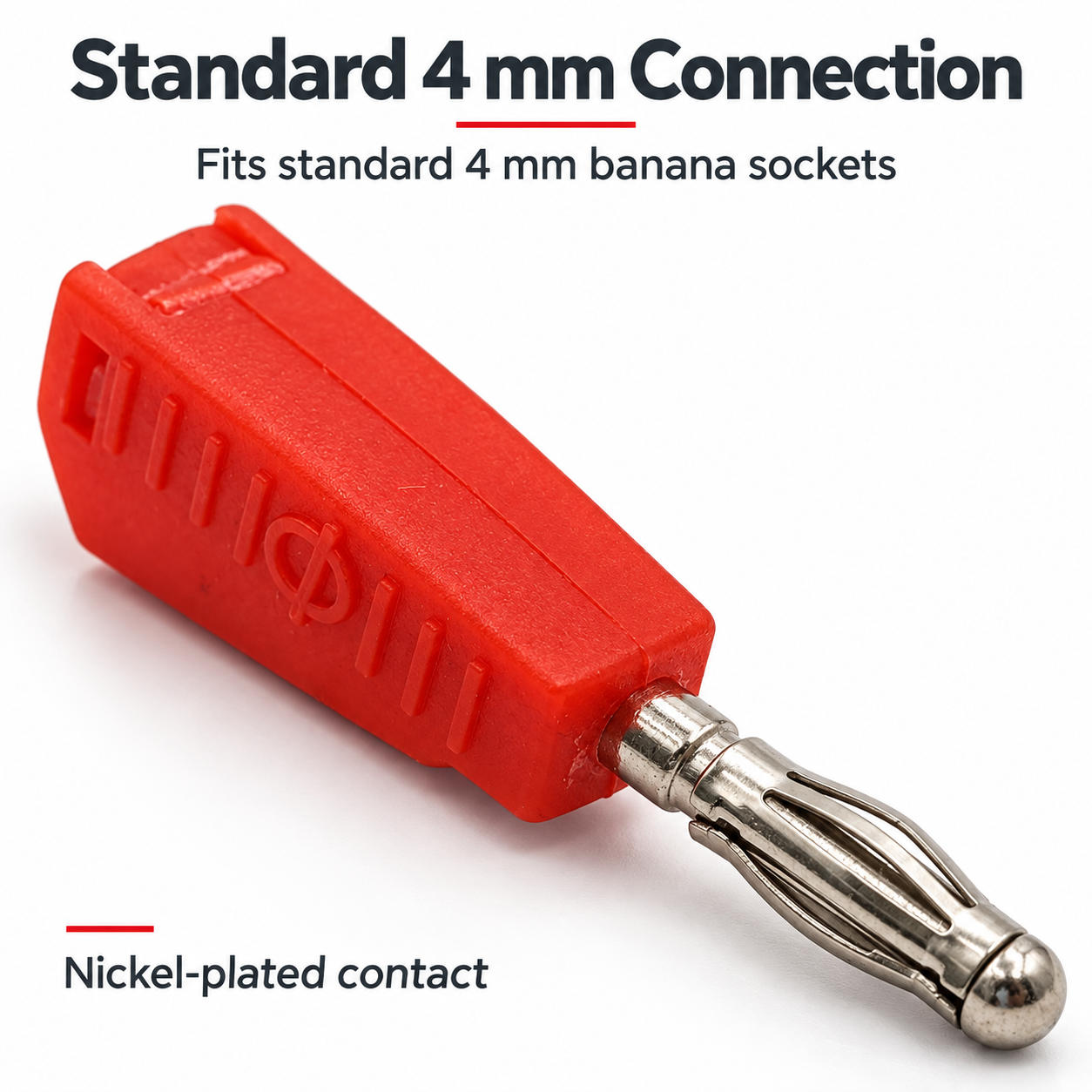

  • Fits standard 4mm banana sockets
  • Stackable: another plug can connect to the back

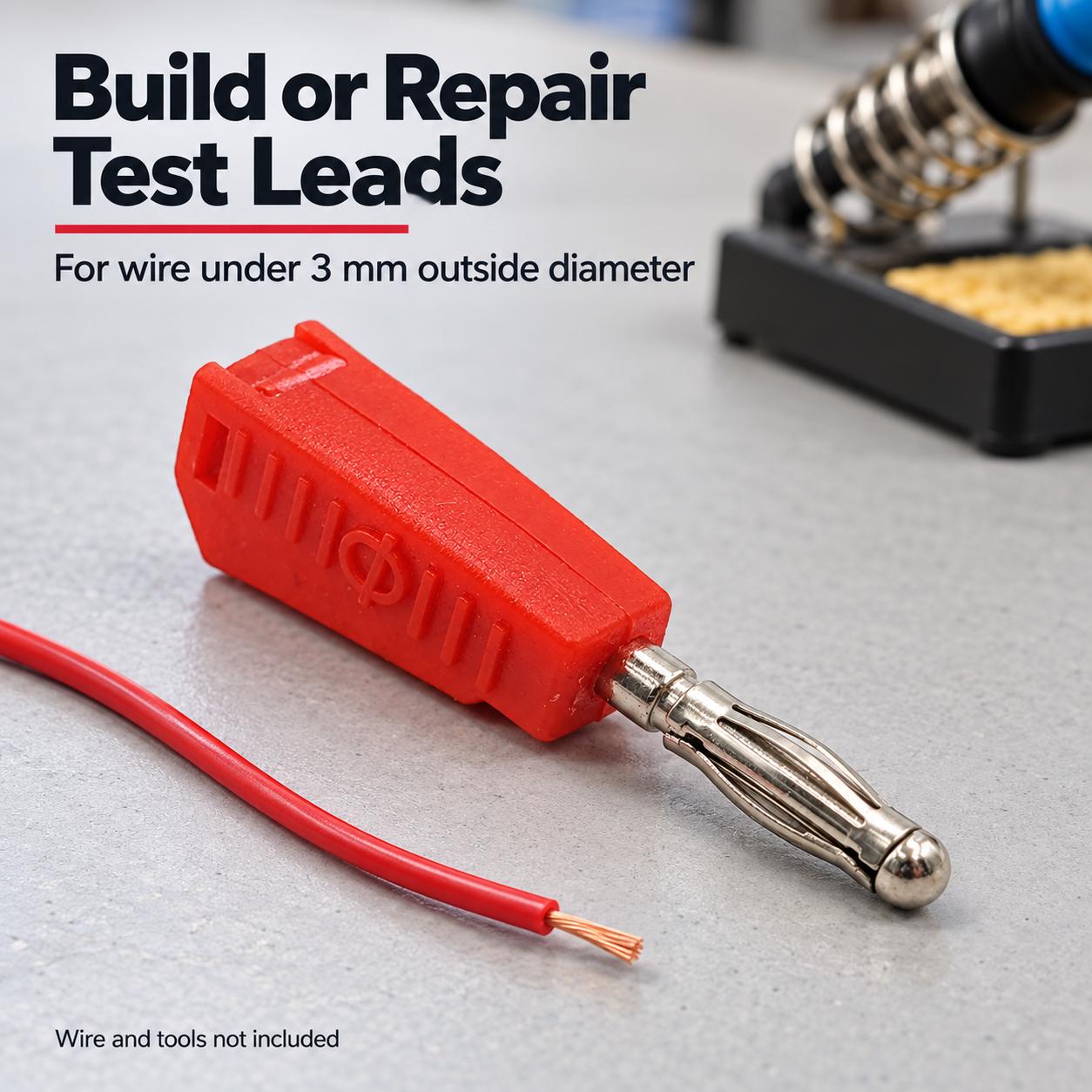

  • Solders to wire under 3mm outer diameter
  • Nickel-plated, heat-treated beryllium copper contact
  • Red PVC handle
  • Rated 30A

Specifications

Quantity 10
Color Red
Mates with Standard 4mm banana sockets
Termination Solder
Wire outer diameter Under 3mm
Plug material Nickel-plated, heat-treated beryllium copper
Handle PVC
Current 30 A
Insulation DC 500V, 100 MΩ
Withstand voltage AC 1,500V (1 minute)
SKU 070332270PK10

What's Included

  • 10 red stackable banana plugs

Ideal For

Making or repairing red multimeter and power supply test leads.

Frequently Asked Questions

What wire does it fit?
Test lead wire with an outer diameter under 3mm, soldered to the plug.

What does stackable mean?

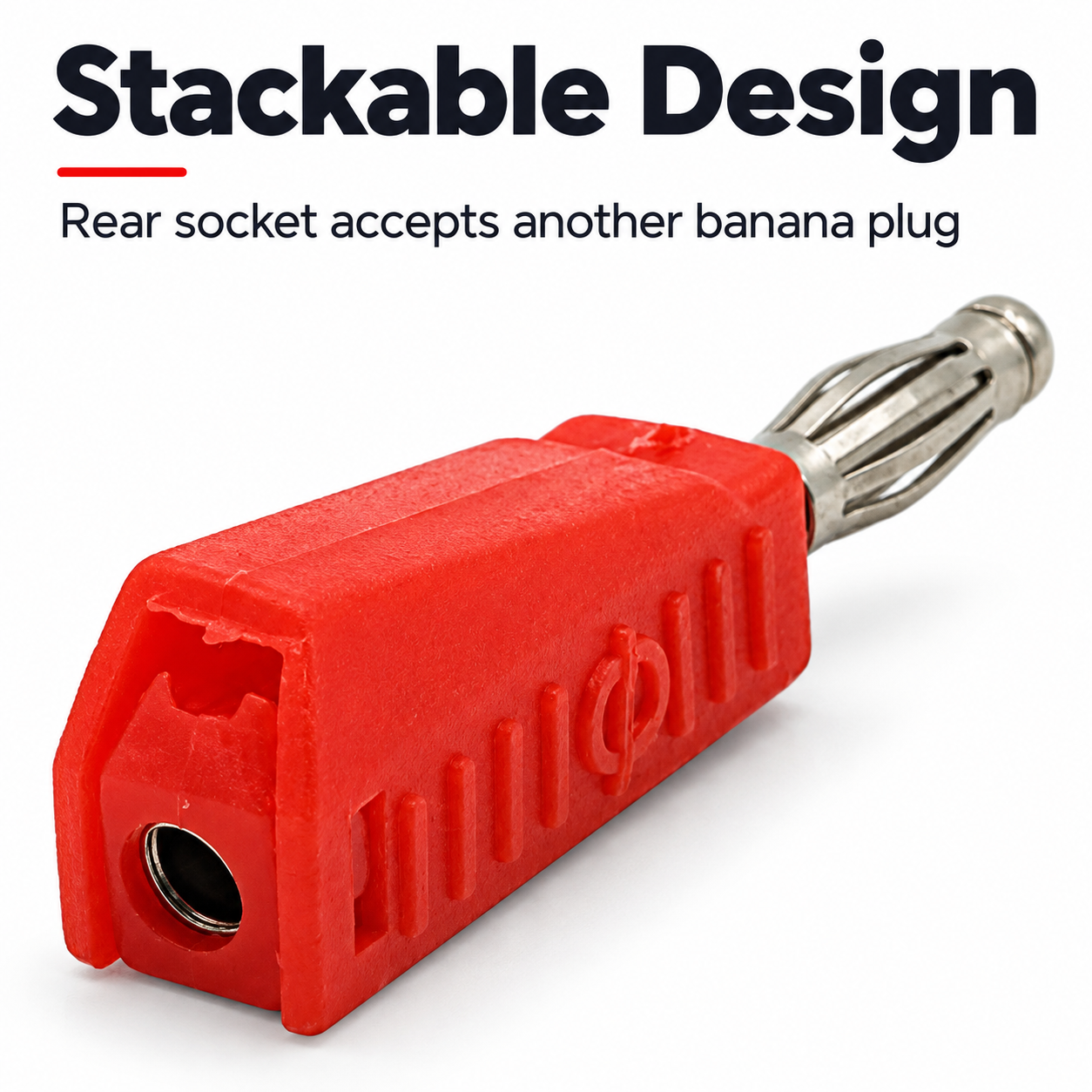

The back of the plug has a socket, so another banana plug can be connected to it to tap the same point.

What does 'DC 500V 100MΩ' mean?
It is the insulation resistance rating: at least 100 megohms measured at 500 V DC.
