Red 3-Digit 7-Segment LED Display, Common Anode, 28 Pins, 0.6" (14.22mm) Digit Height

08FYT5631D
Regular price
$1.99
Sale price
$1.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

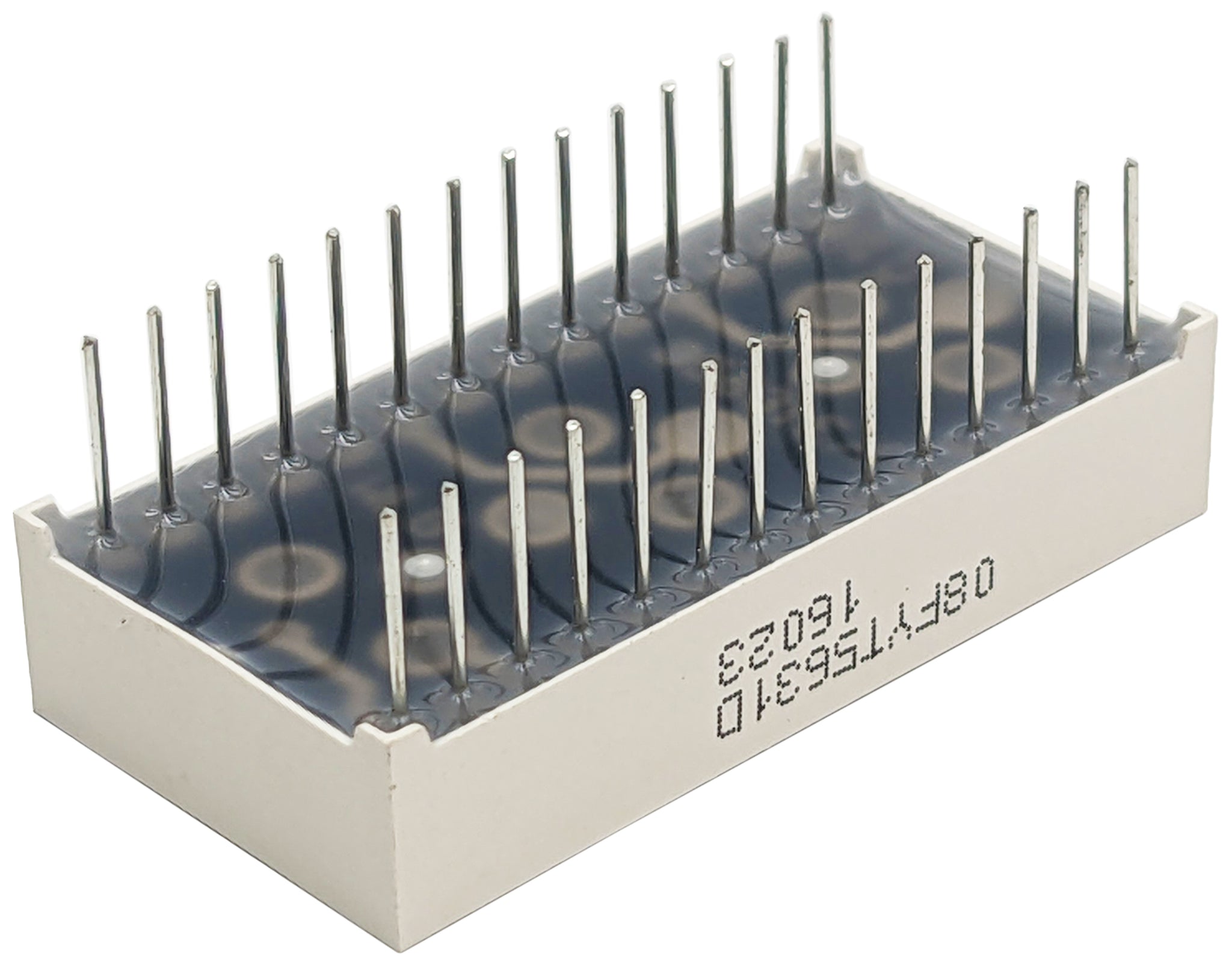

This is a red 3-digit 7-segment LED display with a 0.6" (14.22mm) digit height, common anode configuration and 28 pins. The body measures 1.47" x 0.74" x 0.31", not including pins. Three-digit displays are a common choice for voltmeters, temperature readouts and timers.

Key Features

  • 3 digits in one package
  • 0.6" (14.22mm) digit height
  • Red LED segments
  • Common Anode configuration
  • 28 pins

Specifications

Digits 3
Digit height 0.6" (14.22mm)
Color Red
Common pin Common Anode
Pins 28
Dimensions 1.47" x 0.74" x 0.31" (height excluding pins)
SKU 08FYT5631D

What's Included

  • 1 × red 3-digit common anode 7-segment display

Ideal For

Panel meters, thermometers and countdown timers that need three red digits.

Frequently Asked Questions

What does common anode mean?
All segment anodes in a digit share a pin tied to the positive supply, and segments light when their pins are pulled low.

How are multi-digit displays driven?
Usually by multiplexing: one digit is enabled at a time and scanned fast enough that all appear lit, using a microcontroller or a display driver IC.
