- Small and beautiful - the accurate mill for lab, optician, jewelry, electronic and model building
- With a stable base of cast iron, vertical column and compound table are of high quality aluminum
- All axes are play-free and have adjustable slides, headstock, made of die-cast aluminum
- Balanced special motor and provides stability even at high operating speeds
- Variable speed 5000-20000-Rpm with 1/8HP (100-Watts) motor; 110 to 120-Volt AC, 60 HZ
- Table size 7-7/8-Inch by 2-3/4-Inch (200 by 700mm)

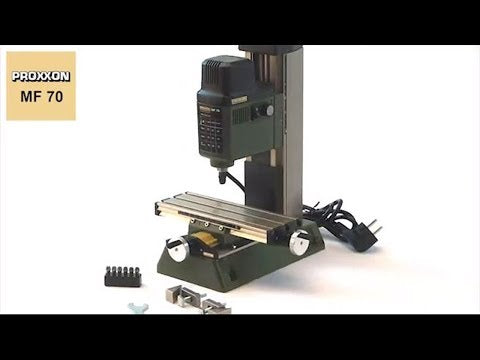

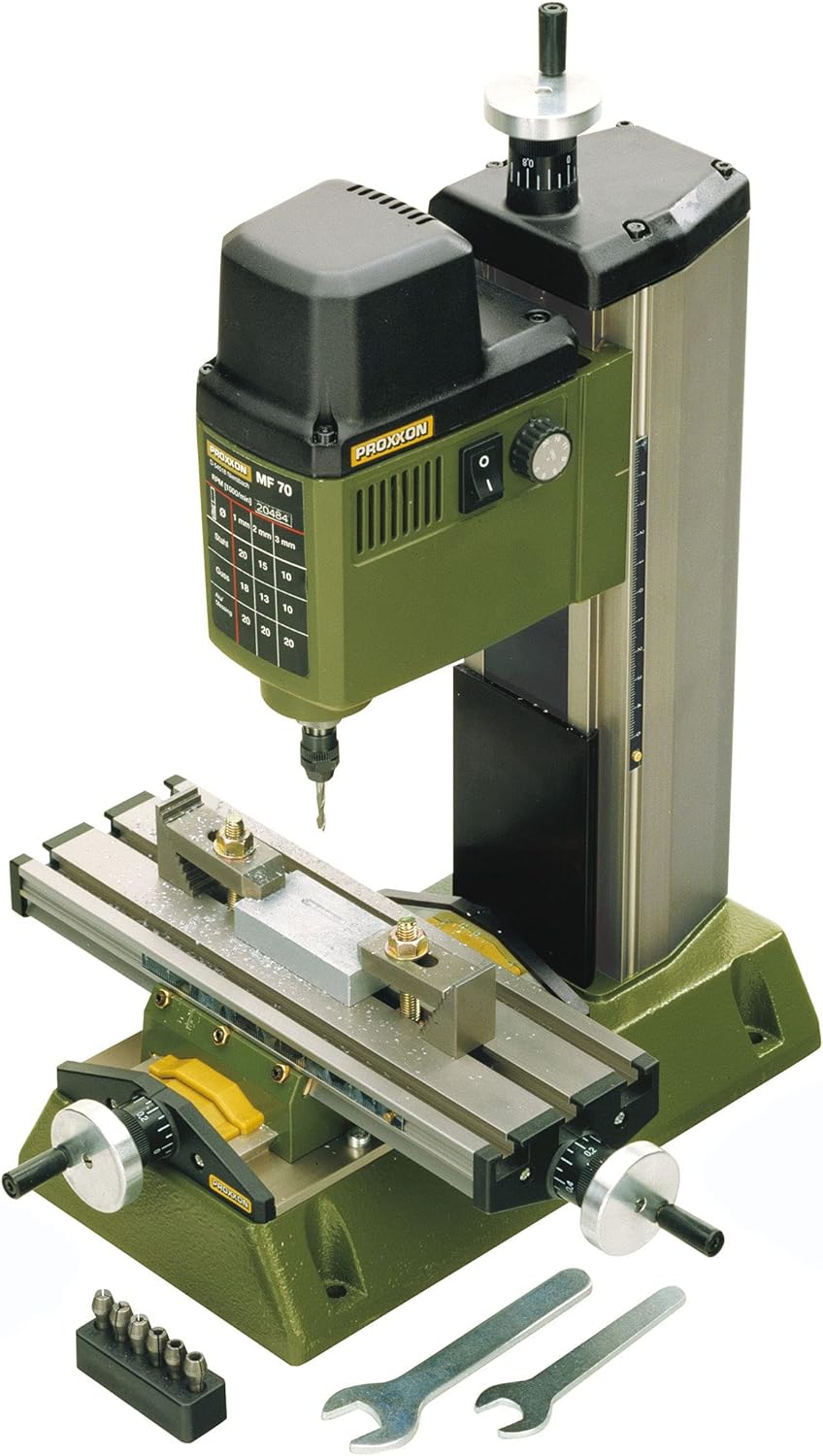

Small and beautiful - the accurate mill for lab, optician, jewelry, electronic and model building projects. The stability of this machine facilitates the use of the finest cutters. Six triple slit, hardened MICROMOT steel collets are included.

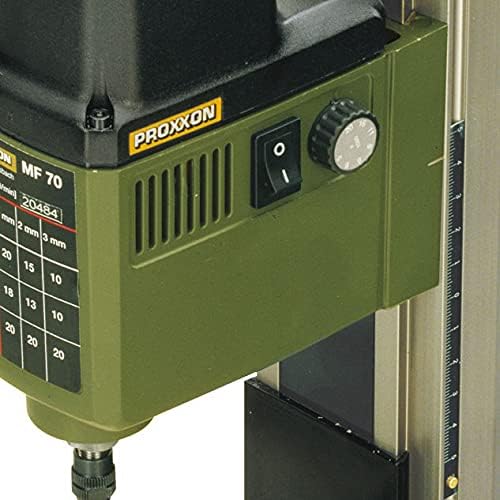

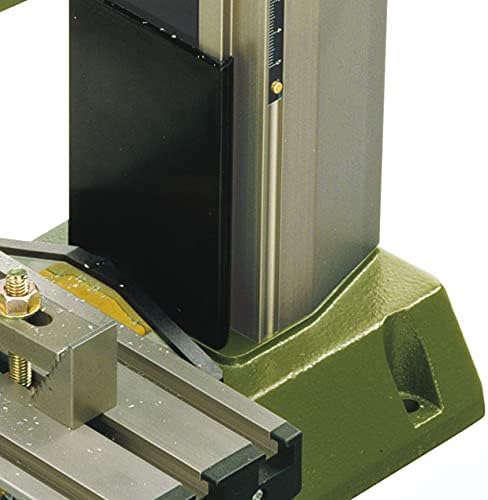

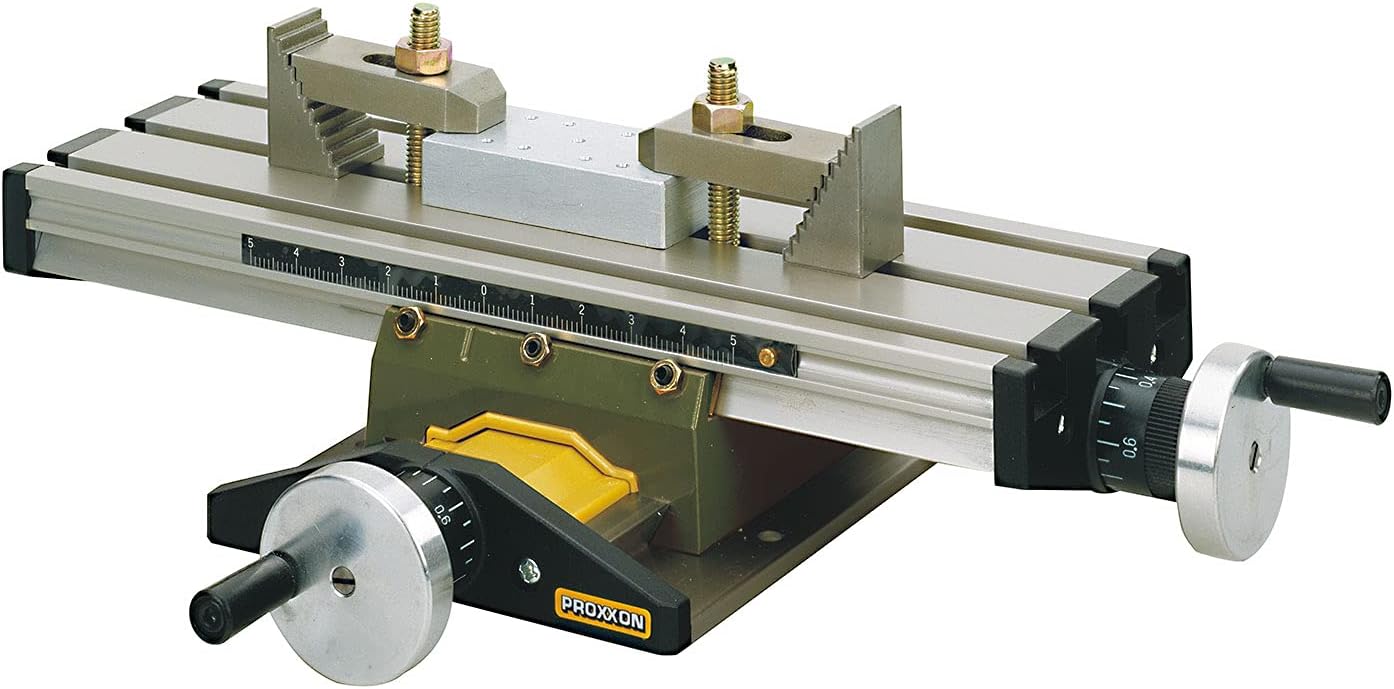

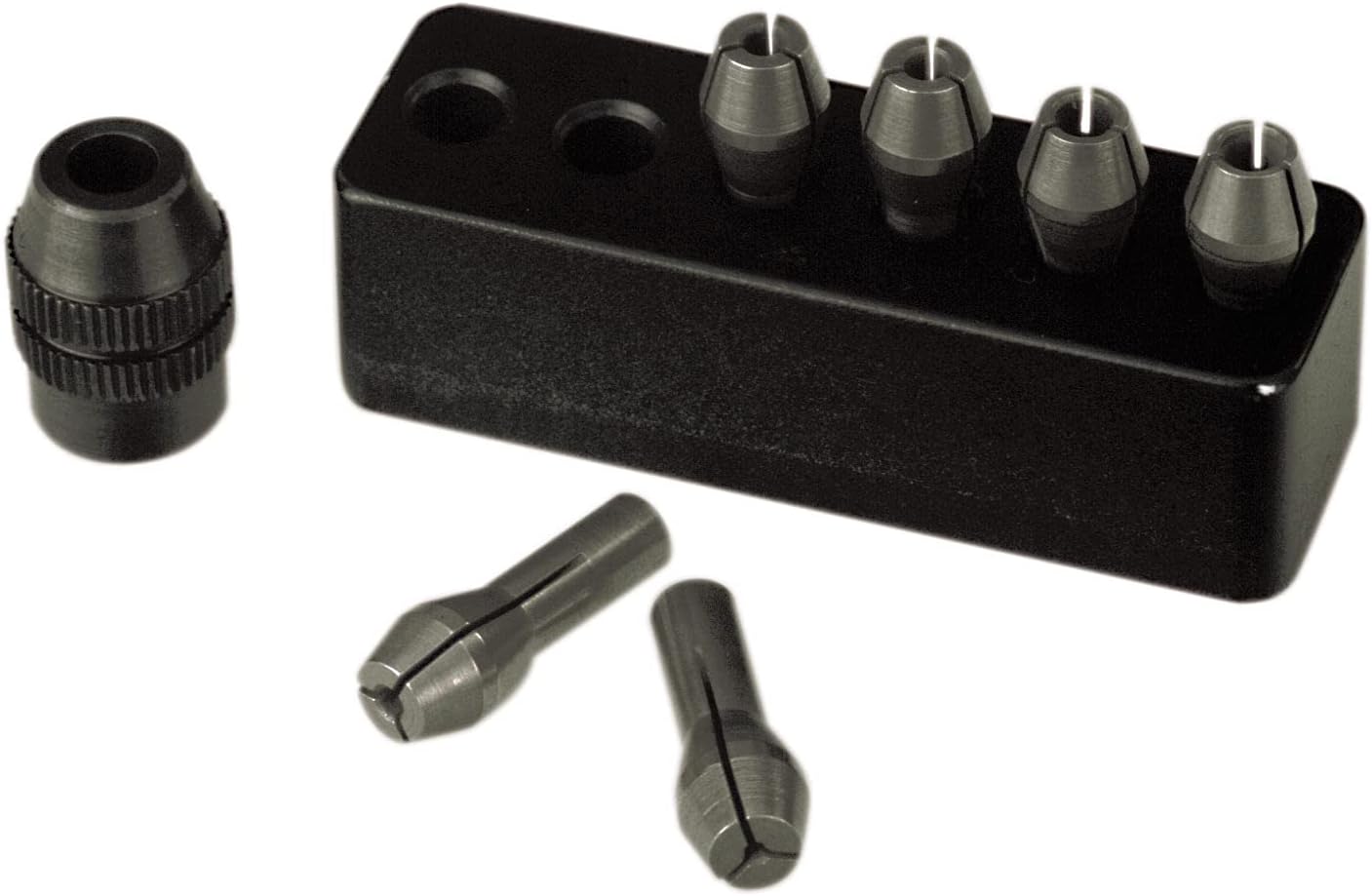

The unit is supplied with a stable base of cast iron. Both vertical column and compound table are of treated, high quality aluminum. All axes are play-free and have adjustable slides. The headstock, made of die-cast aluminum, houses the 24 pole balanced special motor and provides stability even at high operating speeds. This stability facilitates the use of the finest cutters. Six triple slit, hardened MICROMOT steel collets come with the machine and cover shank sizes of 1/32", 1/16", 5/64", 3/32", 7/64" and 1/8" (1.0, 1.5, 2.0, 2.35, 3.0, 3.2mm). The table is fitted with three T-slots of the 15/32" x 15/64" x 13/64" (12 x 6 x 5mm) MICROMOT-norm. An adjustable ruler scale eases the positioning of the work piece. All hand wheels are zero adjustable with 1 revolution = 1/32" (1.0mm), 1 division = .002" (0.05mm).
Technical data:
- Speed 5,000 - 20,000rpm
- Table Size 7 7/8" x 2 3/4" (200 x 70mm)
- X-Y Travel 5 17/64" and 1 13/16" (134 and 46mm)
- Vertical Travel 2 3/4" (70mm)
- Footprint Size 5 7/64" x 8 55/64" (130 x 225mm)
- Height 13 25/64" (340mm)
- Max. Power 1/8hp (100W)
- Volts 110 - 120V AC, 60Hz
- Weight 15.5 lb (7kg)
