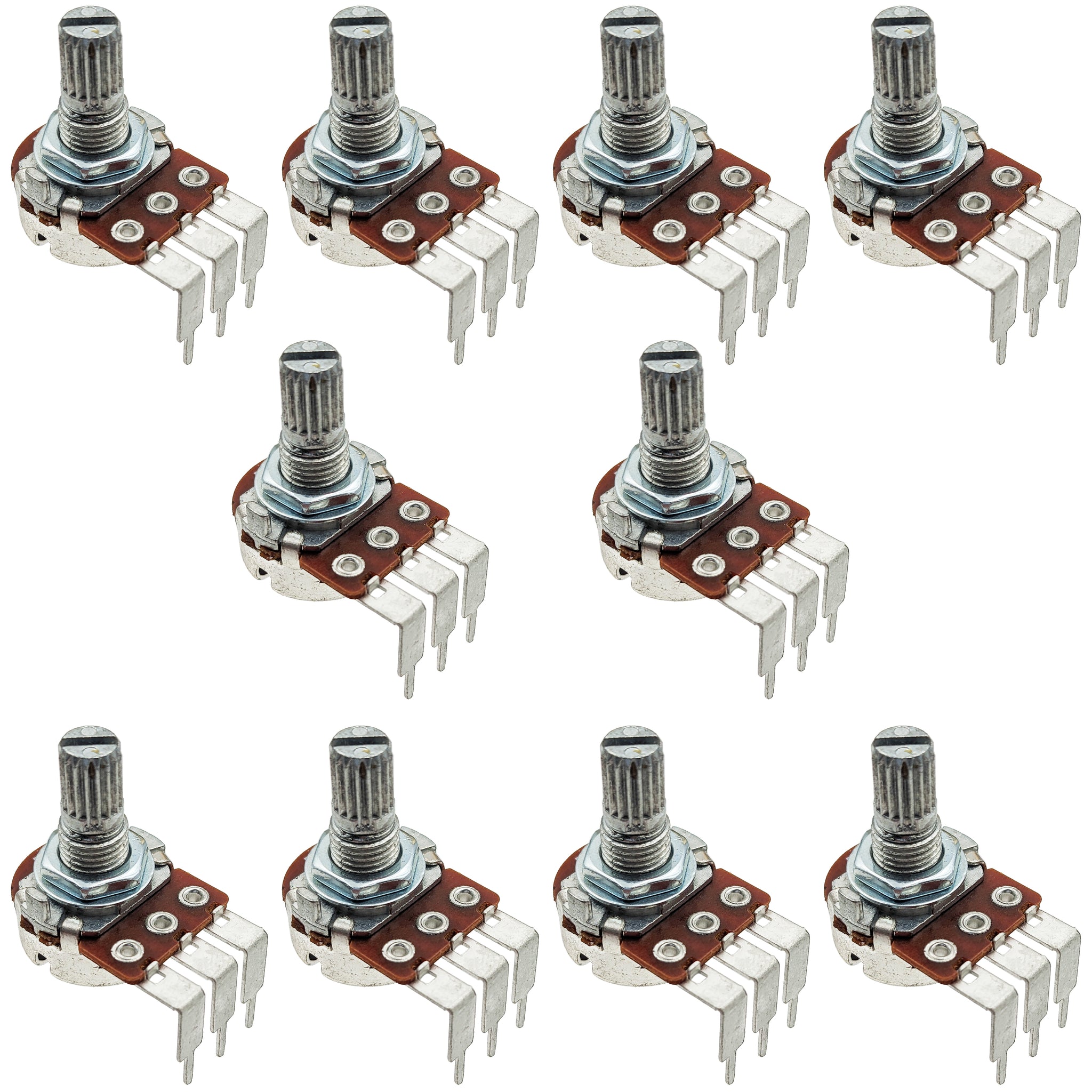

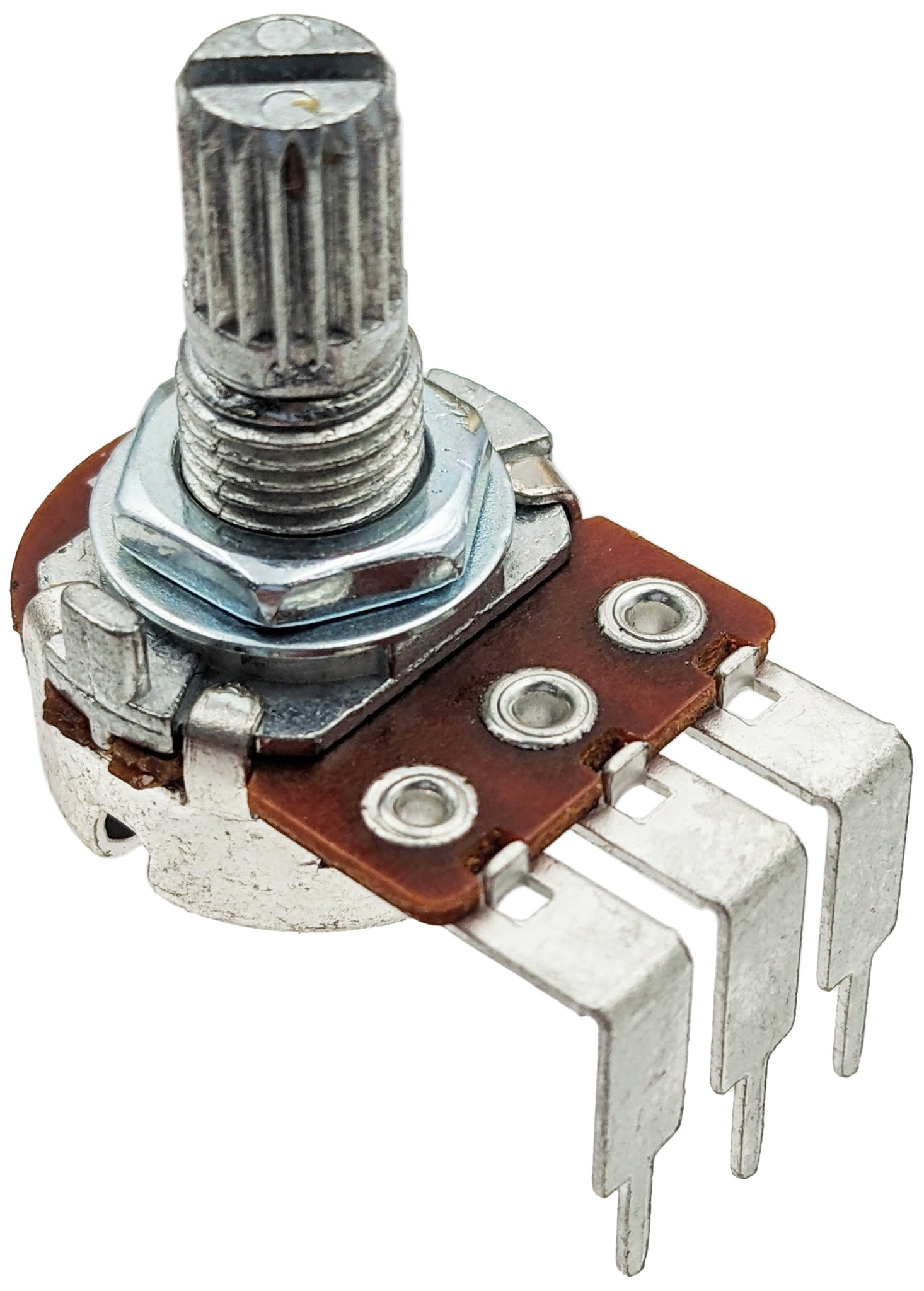

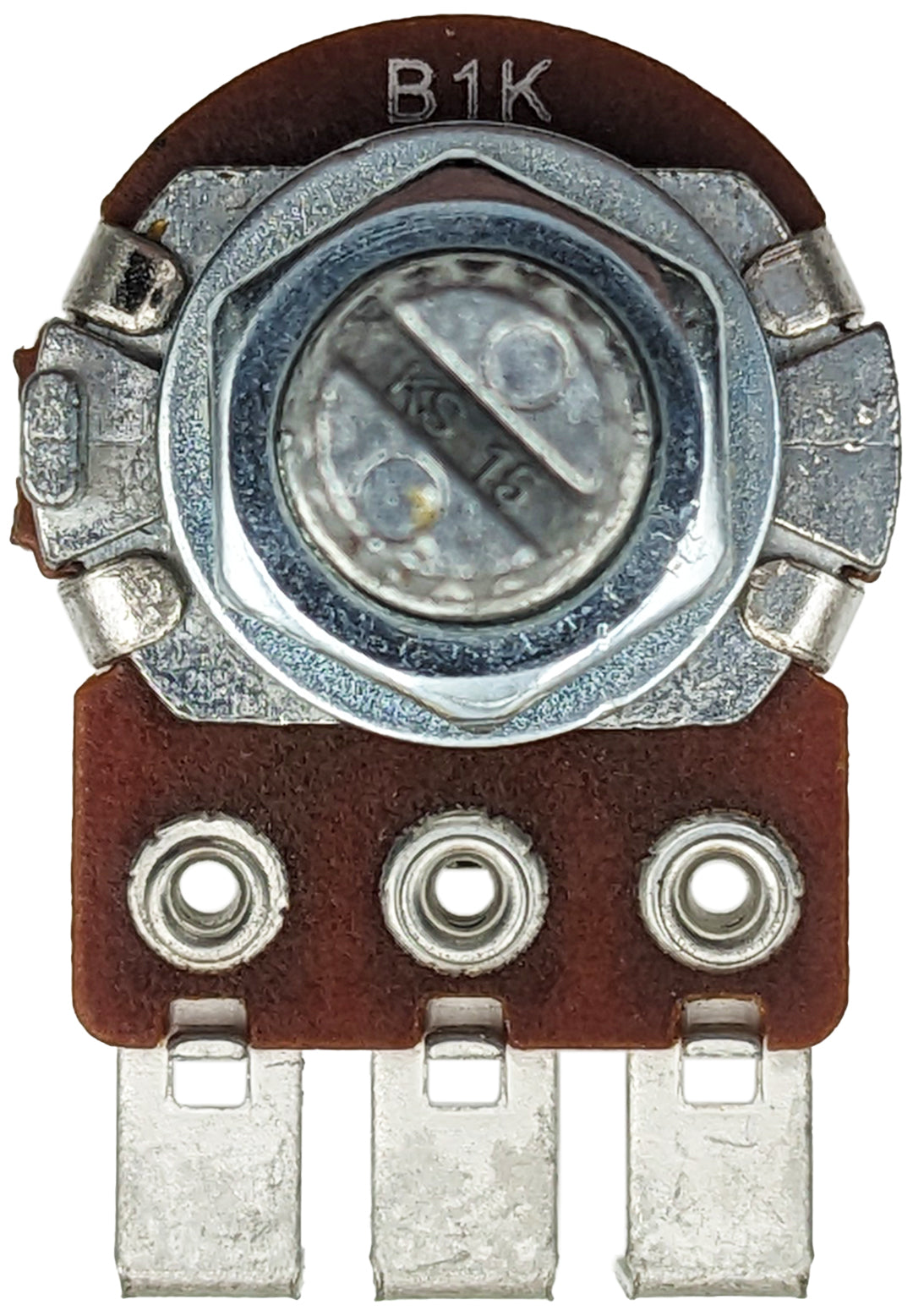

10 Pack 1K Ohm (1 kΩ) Carbon Potentiometers – 1/4W, Linear, Single Turn, 1/4" Serrated Shaft, Panel/PC Mount, 0.6" Body
10 Pack 1K Ohm (1 kΩ) Carbon Potentiometers – 1/4W, Linear, Single Turn, 1/4" Serrated Shaft, Panel/PC Mount, 0.6" Body
10 Pack 1K Ohm (1 kΩ) Carbon Potentiometers – 1/4W, Linear, Single Turn, 1/4" Serrated Shaft, Panel/PC Mount, 0.6" Body
  • Load image into Gallery viewer, 10 Pack 1K Ohm (1 kΩ) Carbon Potentiometers – 1/4W, Linear, Single Turn, 1/4" Serrated Shaft, Panel/PC Mount, 0.6" Body
  • Load image into Gallery viewer, 10 Pack 1K Ohm (1 kΩ) Carbon Potentiometers – 1/4W, Linear, Single Turn, 1/4" Serrated Shaft, Panel/PC Mount, 0.6" Body
  • Load image into Gallery viewer, 10 Pack 1K Ohm (1 kΩ) Carbon Potentiometers – 1/4W, Linear, Single Turn, 1/4" Serrated Shaft, Panel/PC Mount, 0.6" Body

10 Pack 1K Ohm (1 kΩ) Carbon Potentiometers – 1/4W, Linear, Single Turn, 1/4" Serrated Shaft, Panel/PC Mount, 0.6" Body

18PMD1KPK10
Regular price
$9.50
Sale price
$9.50
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

This pack contains 10 × 1K Ohm (1 kΩ) single-turn carbon potentiometers with a linear taper, rated 1/4 W. A 1K Ohm value is commonly used for transistor biasing, LED and current adjustment, and voltage dividers fed from a low-impedance source. It has a 1/4" serrated shaft for push-on knobs, a 0.6" diameter body and PC leads that the listing says are suitable for breadboard mounting.

Key Features

  • 1K Ohm (1 kΩ) resistance, ±20% tolerance
  • 1/4" serrated shaft for push-on knobs
  • PC leads suitable for breadboard mounting
  • Linear taper; carbon element rated 1/4 W, 150 V
  • Compact 0.6" body diameter
  • 10 pieces per pack

Specifications

Resistance 1KΩ (1,000 Ohms)
Tolerance ±20%
Power 1/4 W
Voltage rating 150 V
Turns Single turn
Taper Linear
Resistive element Carbon
Shaft Serrated, 1/4" diameter
Body diameter 0.6"
Mounting Panel/PC mount
Pack quantity 10
SKU 18PMD1KPK10

What's Included

  • 10 × 1K Ohm serrated-shaft potentiometers

Ideal For

Classrooms and makers who want a stock of knob-style 1K pots that plug into breadboards.

Frequently Asked Questions

Will it fit a breadboard?
Yes. The listing says its PC leads are suitable for breadboard mounting.

What is a serrated shaft for?
The fine splines let push-on knobs grip without a set screw.

Linear or audio taper?
Linear: resistance changes evenly with rotation. That suits setpoints, dividers and control inputs. For audio volume an audio (log) taper usually feels more natural; a linear pot will work but most of the volume change happens early in the turn.
