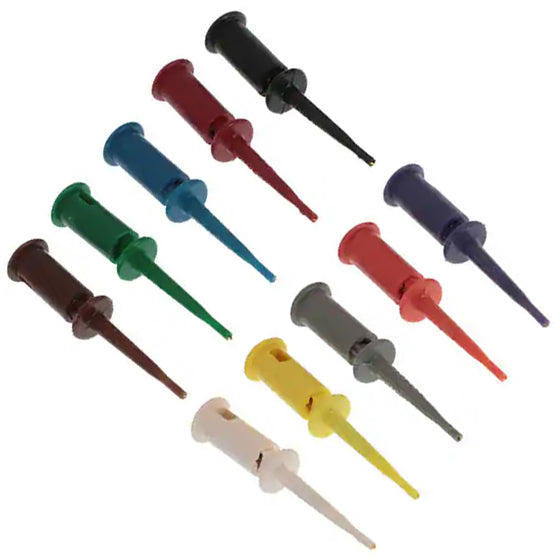

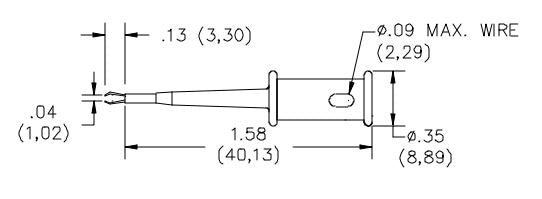

Pack of 10 Do-It-Yourself SMD Grabber Test Clips. Use these to build leads suited for testing surface mounted packages on centers as small as 0.03". Pincer-like contact grasps individual legs of SMD's. Includes one of each of the following colors: Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, and White.
MATERIALS:
Contact – Stainless steel, Type 301, ½ Hard
Spring – Stainless steel, Type 302.
Cap – Glass Filled Nylon.
Marking: “Model 5243”
Barrel – Glass filled nylon. Color: Matches color of cap.
Marking: “POMONA GRABBER®”
Finish: Contact – Gold plated per MIL-G-45204, Type II, 30 to 50 microinches.
RATINGS:
Operating Temperature: +102° C. (+216° F) Max.
Operating Voltage: 30VAC / 60VDC Max.
Current: 0.5 Amperes
SIMPLIFIED ASSEMBLY PROCEDURE
1. Pull off thumb cap to expose contact connection.
2. Thread wire through thumb cap and strip 3.18 (1/8).
3. Insert stripped end through hole on contact and solder.
4. Slide thumb cap back onto contact.
