The Arduino Plug and Make Kit (AKX00069) is a beginner kit built around the Arduino UNO R4 WiFi and seven plug-in Modulino sensor and actuator nodes that connect with Qwiic cables, so no breadboard, jumper wires or soldering are needed. It includes step-by-step guides for seven projects, such as a weather reminder, digital hourglass, plant monitor and gamepad, which can be controlled through Arduino Cloud.
Key Features
- Arduino UNO R4 WiFi main board (ABX00087)

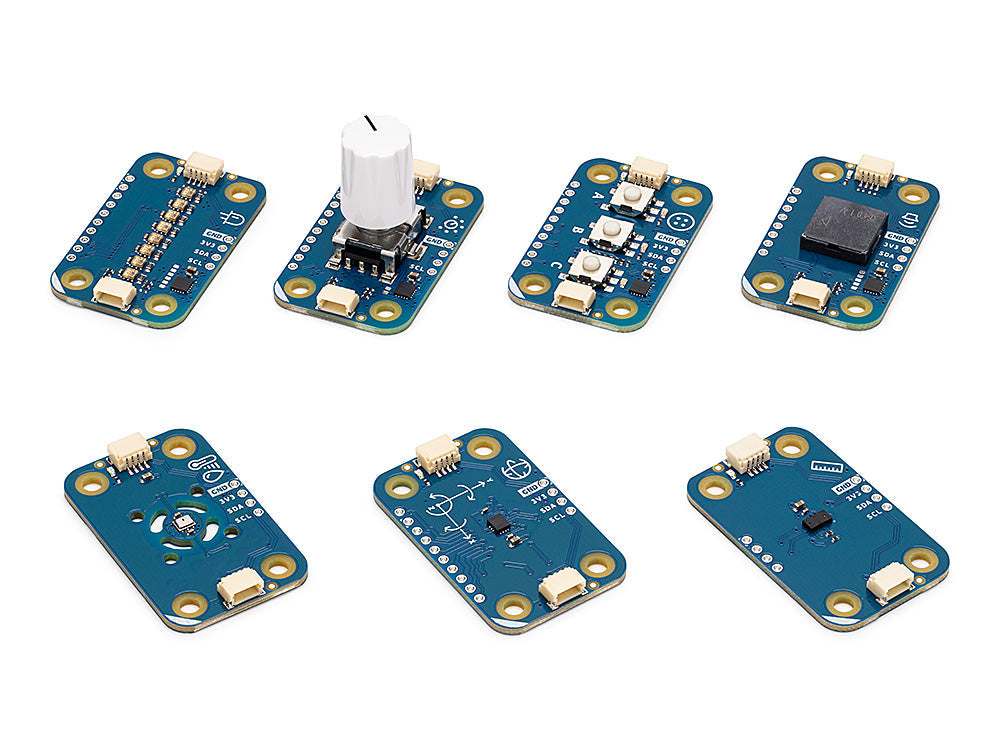

- 7 Modulino nodes: Knob, Pixels, Distance, Movement, Buzzer, Thermo, Buttons
- Polarized Qwiic I2C connections – no breadboard, wires or soldering

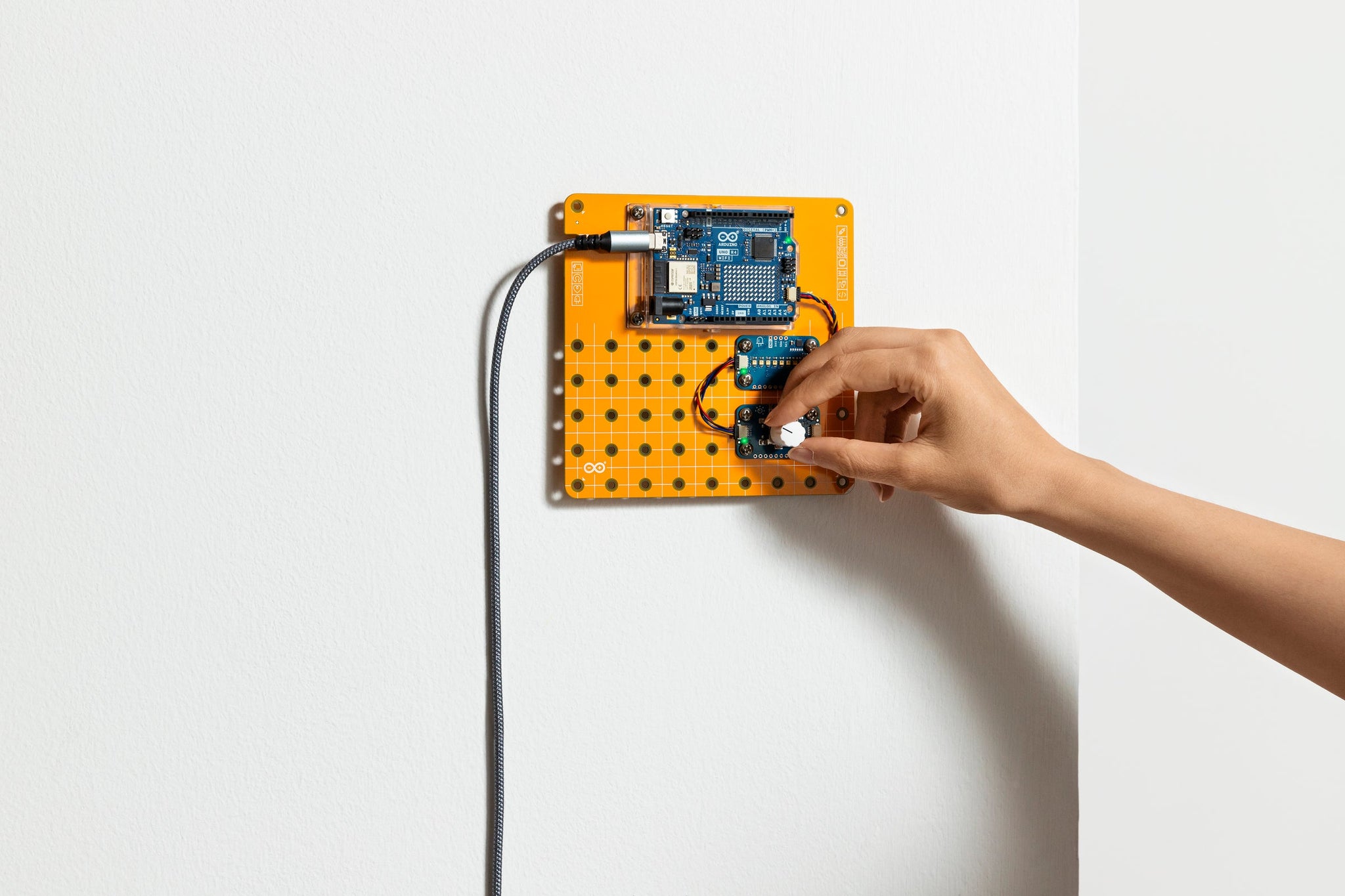

- Modulino Base and hardware for a tidy, permanent build
- Seven documented starter projects
- Free multilingual online guide and Arduino Cloud app control
Specifications
| Kit | Arduino Plug and Make Kit (AKX00069) |
|---|---|
| Board | Arduino UNO R4 WiFi (ABX00087) |
| Node interface | I2C over Qwiic |
| Node voltage | 3.3 V |
| Modulino Movement | ABX00101, LSM6DSOXTR |
| Modulino Distance | ABX00102, VL53L4CD time-of-flight |
| Modulino Thermo | ABX00103, HS3003 temperature/humidity |
| Modulino Knob | ABX00107, PEC11J encoder |
| Modulino Buzzer | ABX00108 |
| Modulino Pixels | ABX00109, 8 × LC8822 LEDs |
| Modulino Buttons | ABX00110, 3 buttons + 3 yellow LEDs |
| Guide languages | English, Italian, German, Spanish, French |
| SKU | 01AKX00069 |

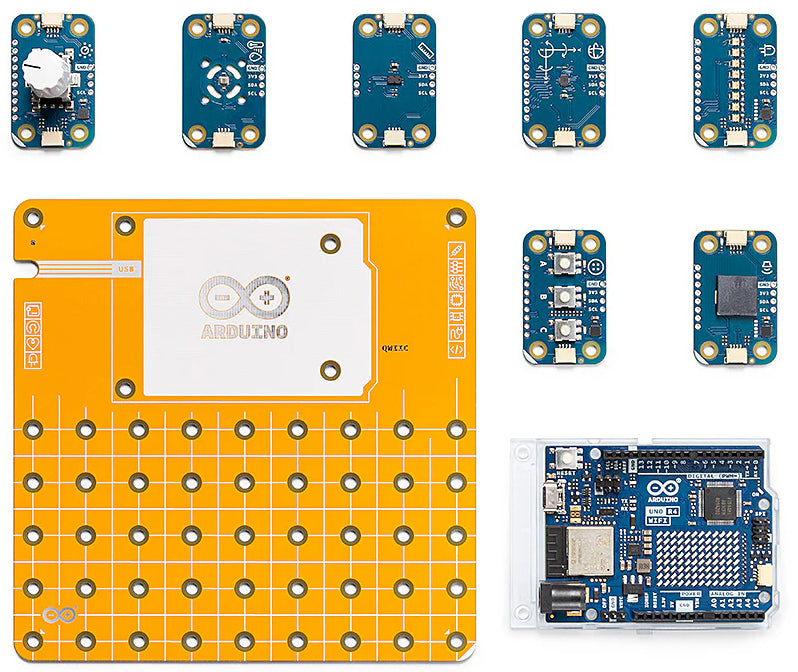

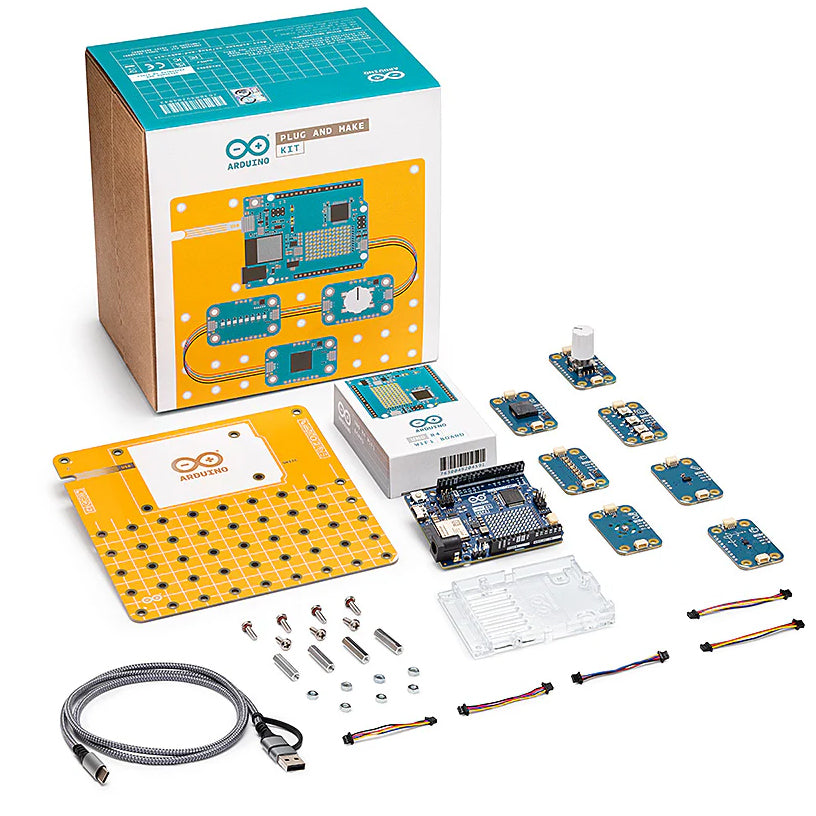

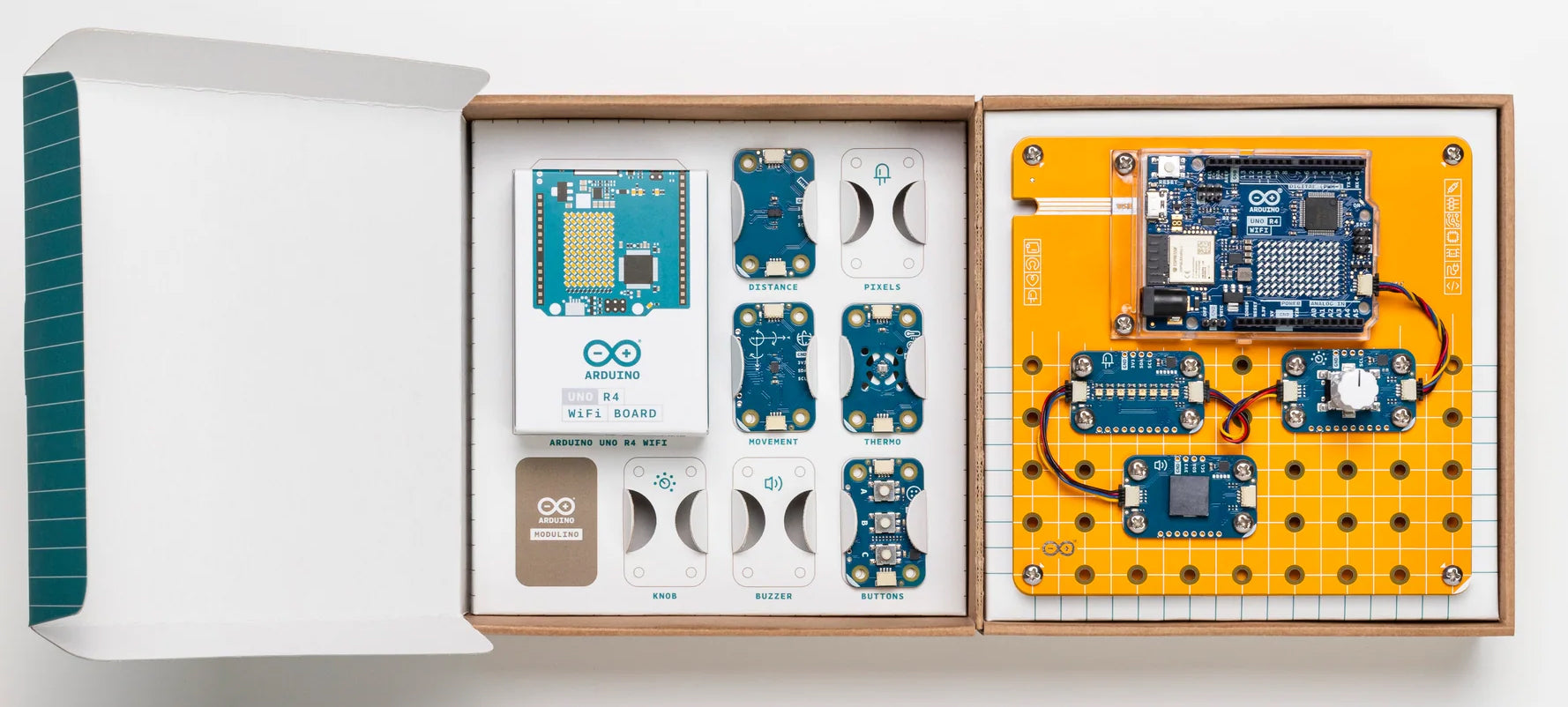

What's Included
- Arduino UNO R4 WiFi
- 7 Modulino nodes (one each: Knob, Pixels, Distance, Movement, Buzzer, Thermo, Buttons)

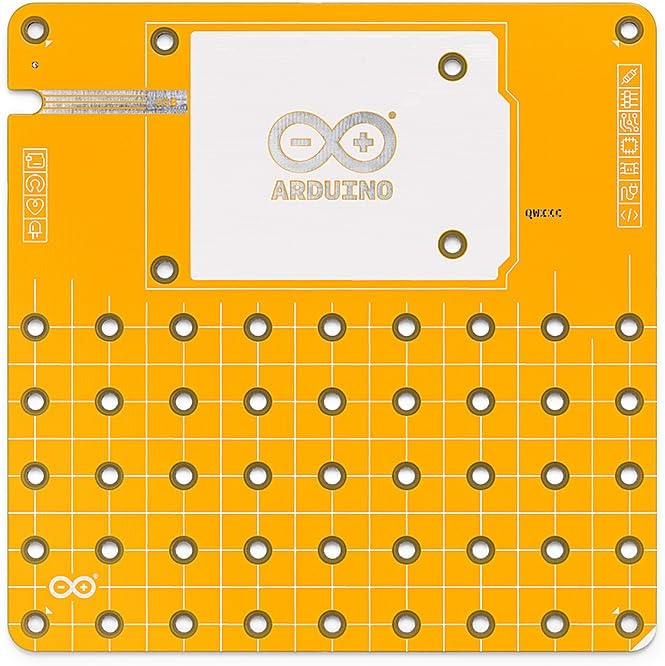

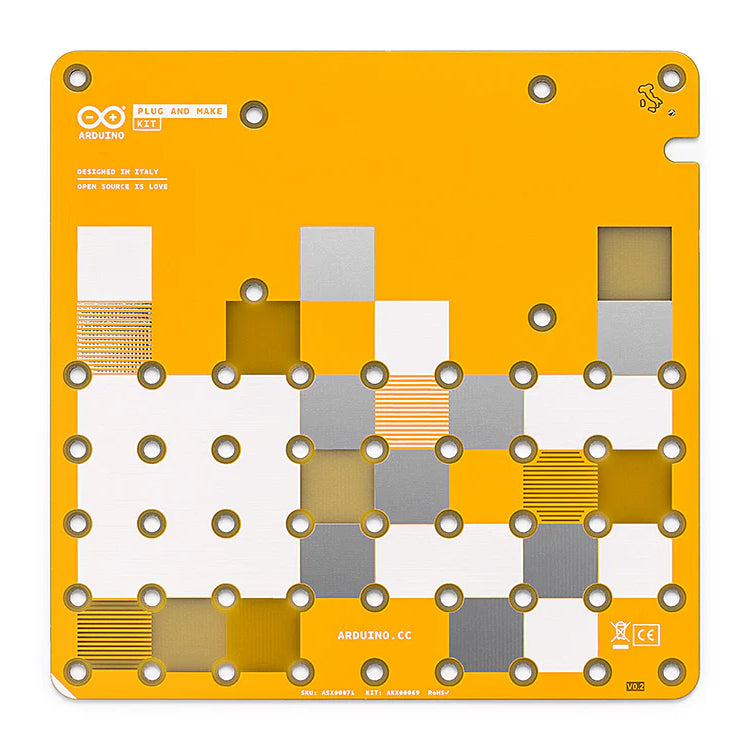

- Modulino Base
- USB-C cable with USB-A adapter
- 7 Qwiic cables
- 24 M3 screws (10 mm)
- 20 M3 nuts
- 4 metal spacers
Ideal For
First-time makers, families and classrooms who want connected projects without wiring or soldering.
Frequently Asked Questions
Do I need to solder or use a breadboard?
No. Modulino nodes connect to the UNO R4 WiFi with polarized Qwiic cables.
What projects can I build?

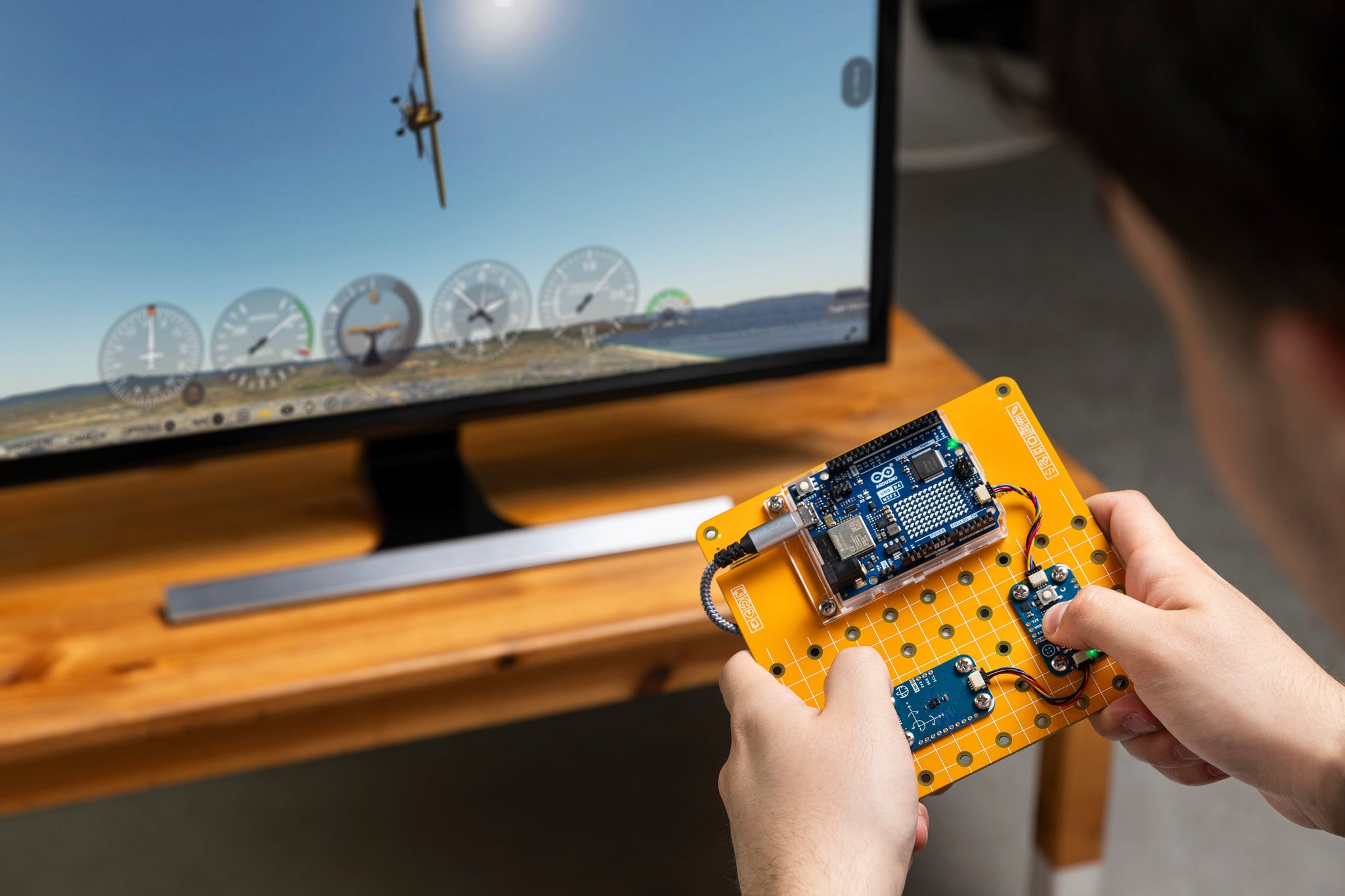

Seven guided projects: Weather Report, Hourglass, Eco Watch, Game Controller, Sonic Synth, Smart Lights and Touchless Lamp.
Can I use the Modulino nodes with other boards?
They communicate over I2C through a Qwiic connector, so they work with boards that offer a Qwiic/I2C connection.
