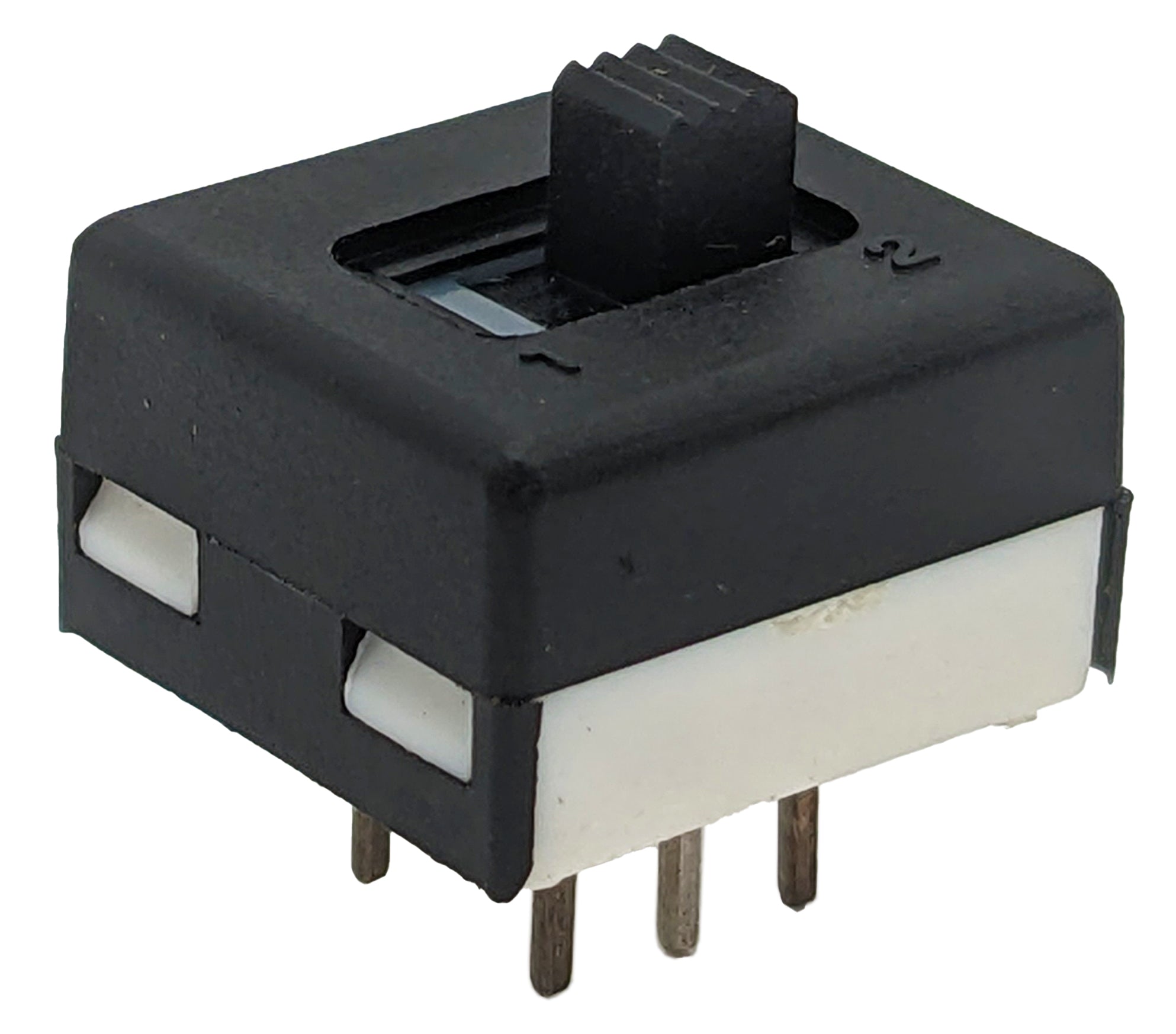

- DPDT (Double Pole Double Throw) Slide Switch
- Mini size, measures 0.55" x 0.5" x 0.43" (14mm x 12.7mm x 11mm)

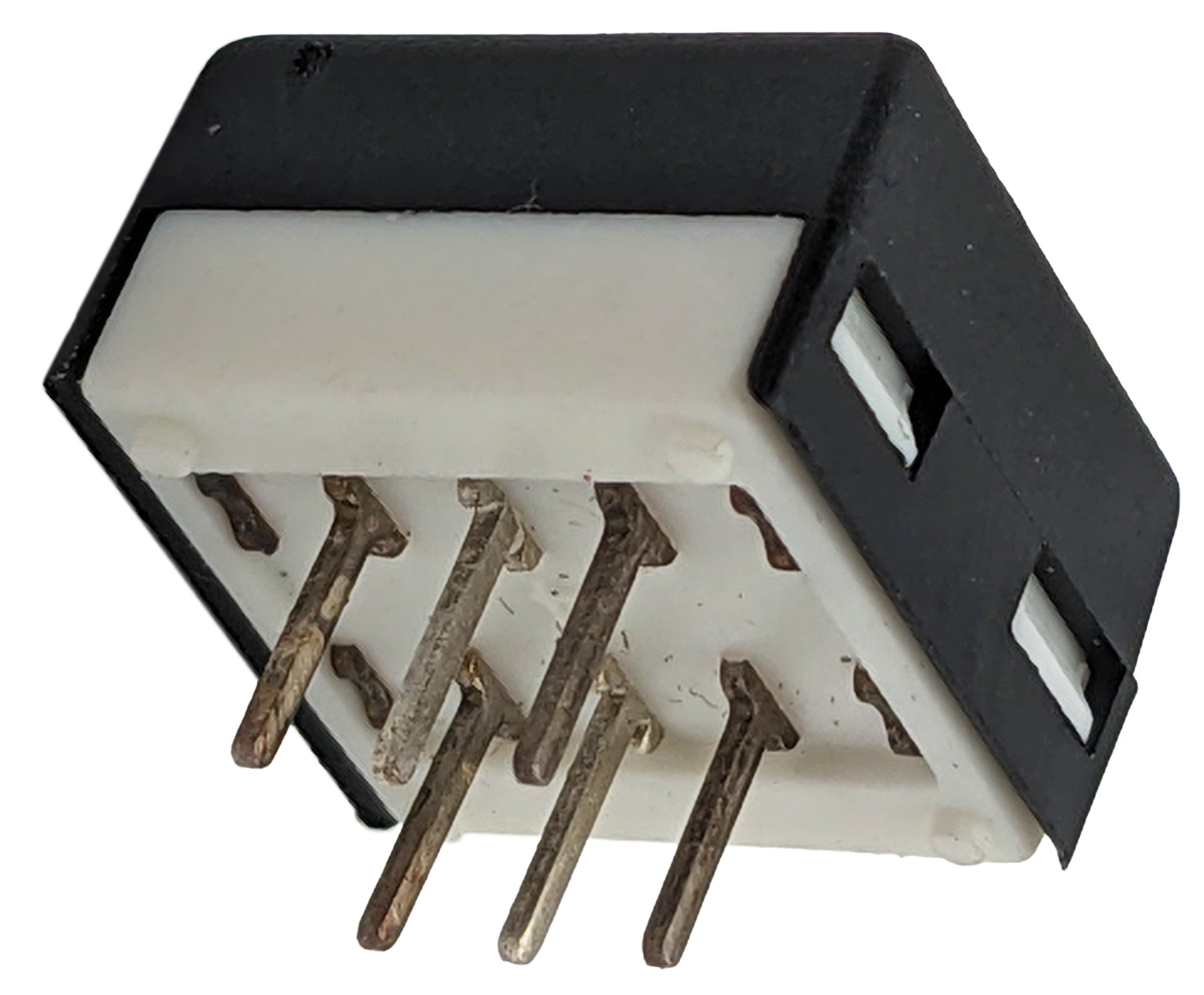

- Pins fit most breadboards and prototyping boards (2.54mm pitch, 5.08mm row spacing)

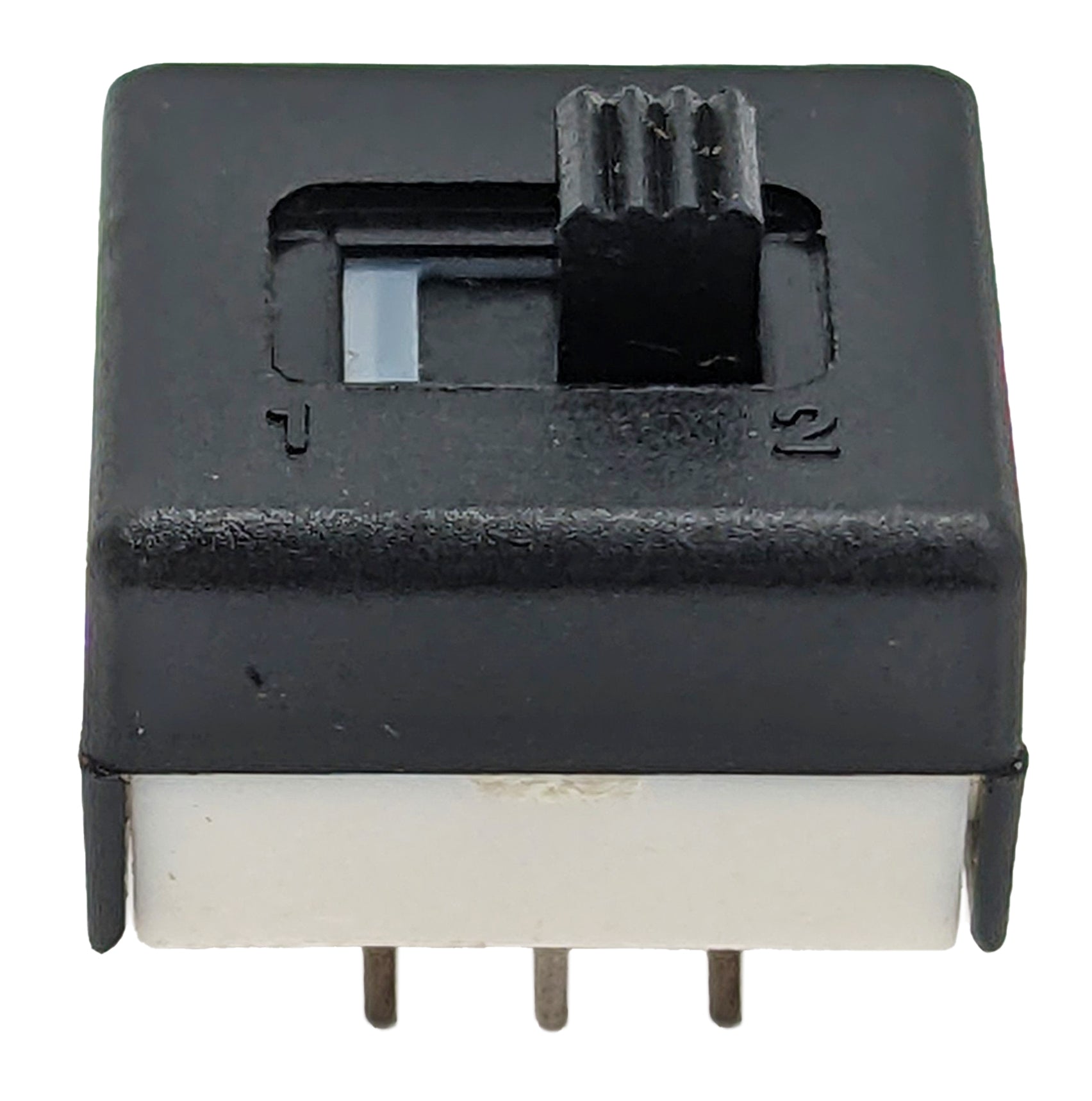

- Switch position is indicated by embossed numbers "1" and "2"
- Contact Resistance: 20 mΩ max. initial
- Insulation Resistance: 1000 MΩ min.
- Dielectric Strength: 1000 VAC/1 min.
- Operating temperature range: -25 to 85℃
