Mini DPDT ON-ON Toggle Switch, 6-Pin Through-Hole PCB Leads, 6A @ 125VAC / 3A @ 250VAC (0.51" x 0.46" x 1.15")
Mini DPDT ON-ON Toggle Switch, 6-Pin Through-Hole PCB Leads, 6A @ 125VAC / 3A @ 250VAC (0.51" x 0.46" x 1.15")
Mini DPDT ON-ON Toggle Switch, 6-Pin Through-Hole PCB Leads, 6A @ 125VAC / 3A @ 250VAC (0.51" x 0.46" x 1.15")
  • Load image into Gallery viewer, Mini DPDT ON-ON Toggle Switch, 6-Pin Through-Hole PCB Leads, 6A @ 125VAC / 3A @ 250VAC (0.51" x 0.46" x 1.15")
  • Load image into Gallery viewer, Mini DPDT ON-ON Toggle Switch, 6-Pin Through-Hole PCB Leads, 6A @ 125VAC / 3A @ 250VAC (0.51" x 0.46" x 1.15")
  • Load image into Gallery viewer, Mini DPDT ON-ON Toggle Switch, 6-Pin Through-Hole PCB Leads, 6A @ 125VAC / 3A @ 250VAC (0.51" x 0.46" x 1.15")

Mini DPDT ON-ON Toggle Switch, 6-Pin Through-Hole PCB Leads, 6A @ 125VAC / 3A @ 250VAC (0.51" x 0.46" x 1.15")

17TOGMTS202PC
Regular price
$0.99
Sale price
$0.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

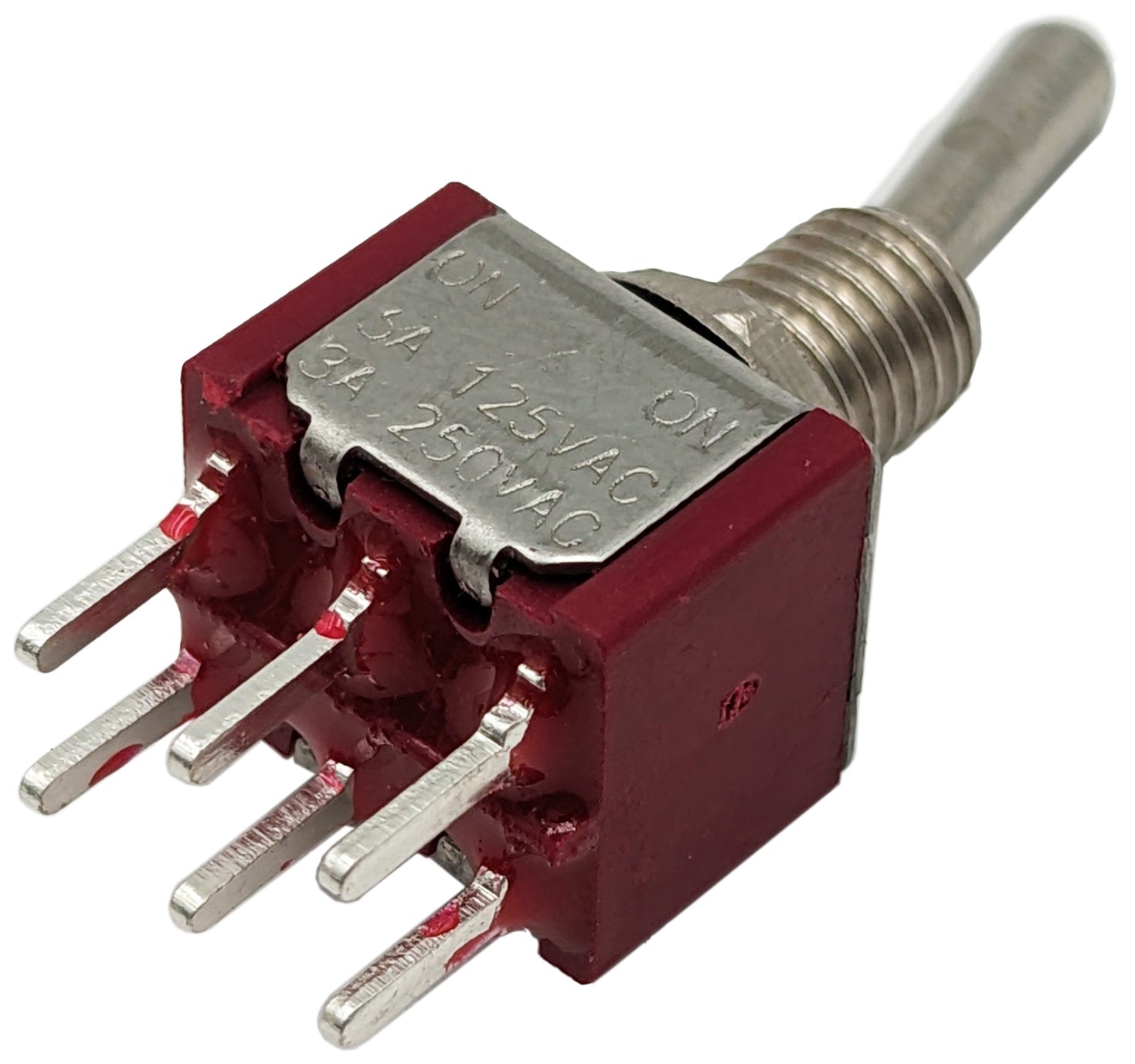

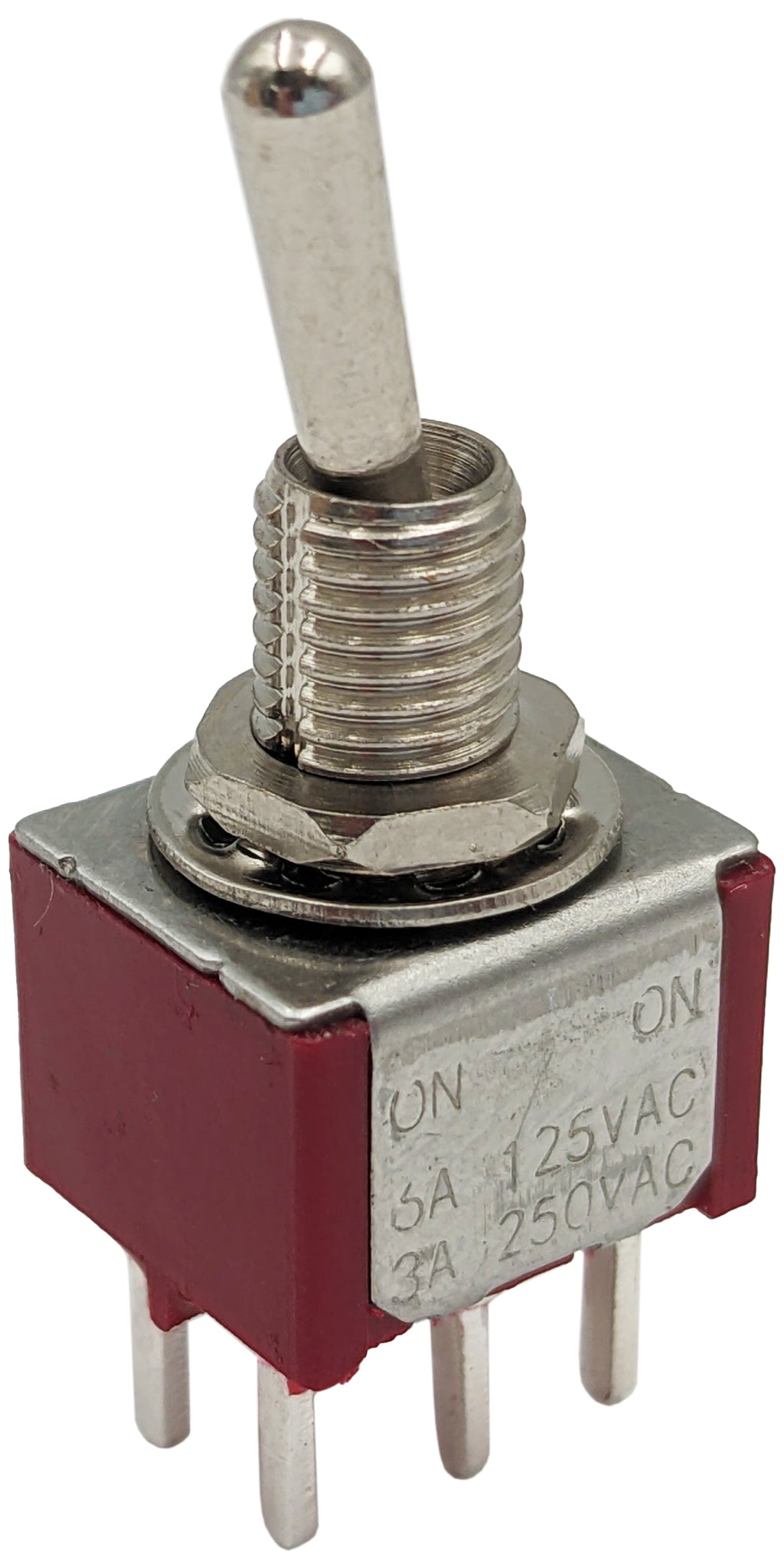

This is a miniature DPDT ON-ON toggle switch, rated 3A @ 250V AC, 6A @ 125V AC, with 6 through-hole PCB lead terminals. DPDT (double-pole, double-throw) is two SPDT switches worked by one lever, so it can switch two separate circuits at once, for example both wires of a load or polarity reversal of a small motor. ON-ON means the switch has two positions and connects the common terminal to one side or the other in each position, with no center off. It measures 0.51" x 0.46" x 1.15" (height excluding pins).

Key Features

  • DPDT (double-pole, double-throw), ON-ON action
  • Contact rating: 3A @ 250V AC, 6A @ 125V AC
  • 6-pin through-hole PCB lead termination
  • Body size: 0.51" x 0.46" x 1.15" (height excluding pins)

Specifications

Size Miniature
Circuit DPDT (double-pole, double-throw)
Function ON-ON
Contact rating 3A @ 250V AC, 6A @ 125V AC
Termination Through-hole PCB lead
Number of pins 6
Dimensions 0.51" x 0.46" x 1.15" (height excluding pins)
Color May vary
SKU 17TOGMTS202PC

What's Included

  • 1 x DPDT ON-ON toggle switch

Ideal For

Hobbyists, repair techs and makers who need a DPDT ON-ON switch for circuit boards.

Frequently Asked Questions

What does DPDT mean?
DPDT (double-pole, double-throw) is two SPDT switches worked by one lever, so it can switch two separate circuits at once, for example both wires of a load or polarity reversal of a small motor.

Is this switch for panel wiring or a circuit board?
Through-hole PCB leads are pins made to go through a circuit board and be soldered there. This version is meant for board mounting.

Can I use it on DC?
The listing gives AC ratings only, so a DC rating isn't stated. Check with the store before using it to switch DC loads.

Switch color may vary.
