MG Chemicals 4901-112G Sn99.3/Cu0.7 No-Clean Lead-Free Solder Wire, 0.032" (0.81 mm, 20 AWG), 1/4 lb Spool

06074901-112G
Regular price
$37.99
Sale price
$37.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

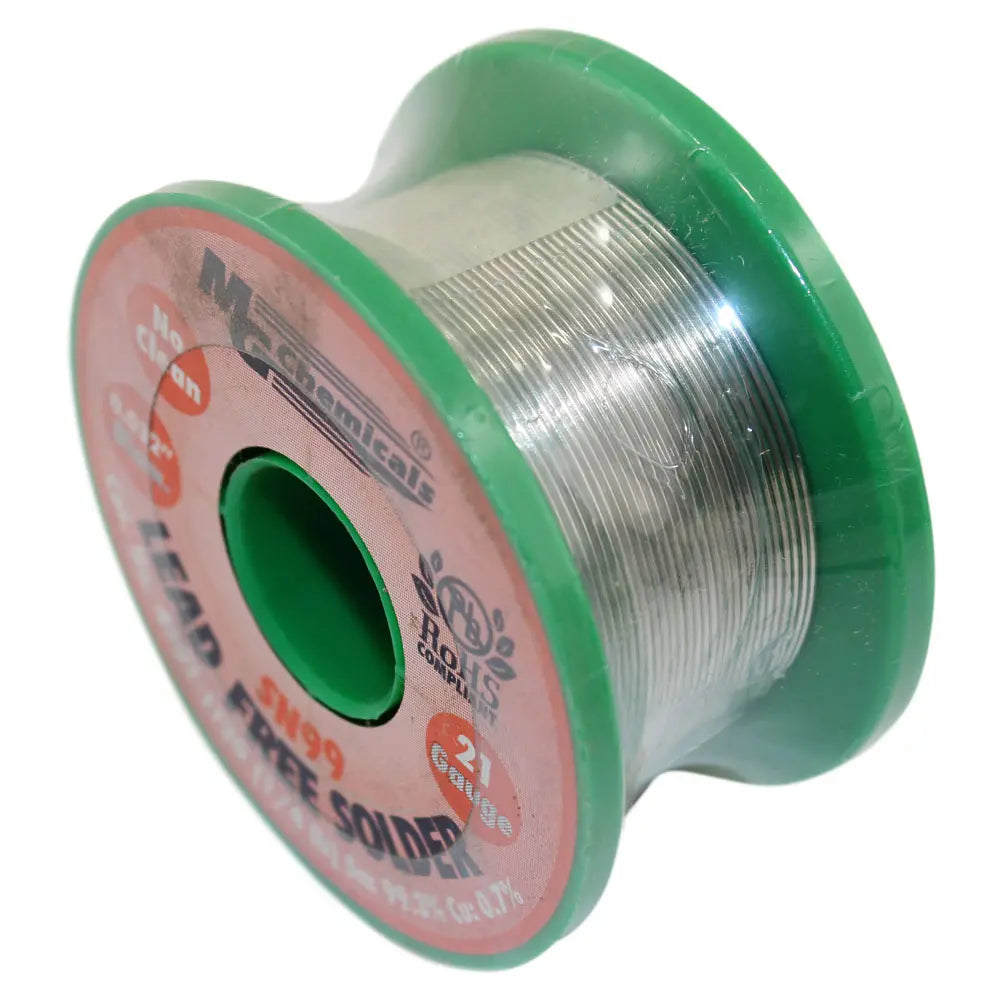

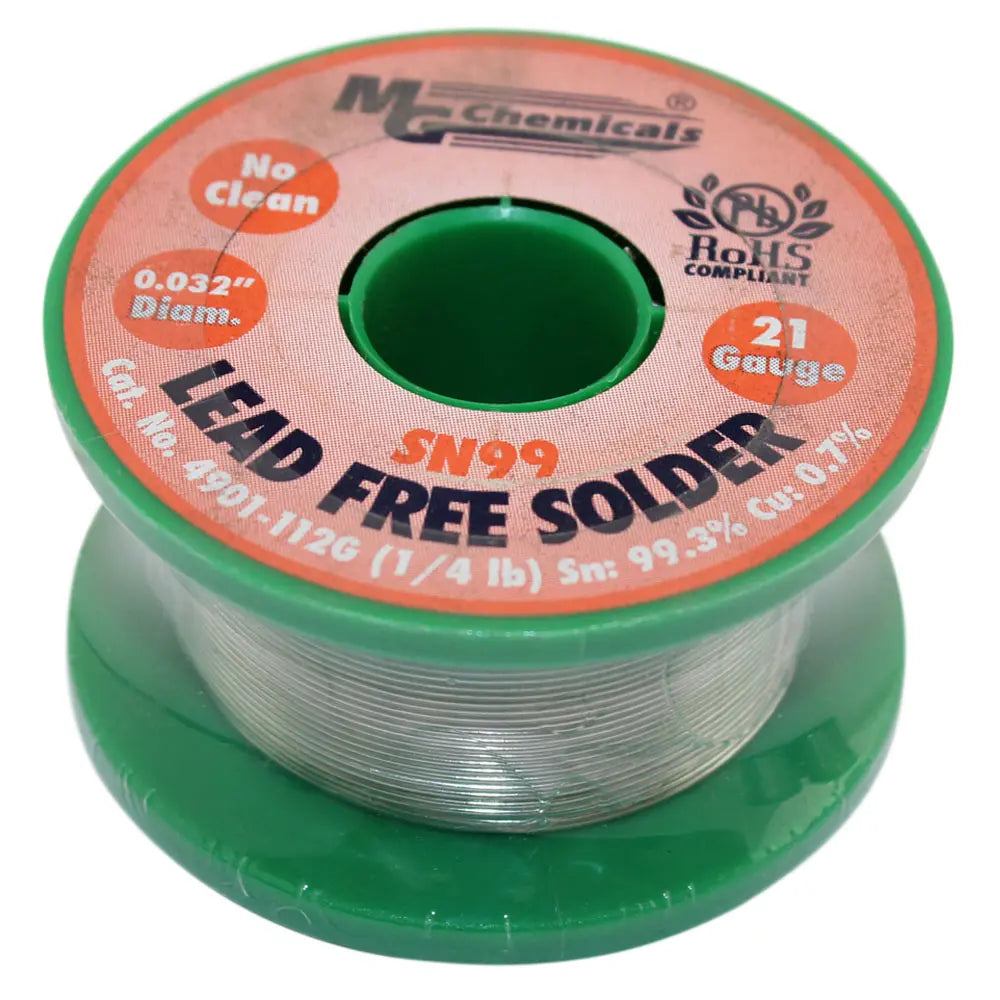

MG Chemicals 4901-112G is a 1/4 lb (4 oz) spool of Sn99.3/Cu0.7 no-clean lead-free solder wire, 0.032" (0.81 mm, 20 AWG) in diameter. The tin-copper alloy is eutectic, melting at 227°C (442°F), and the synthetic resin flux core spreads like a rosin-activated flux with virtually no spatter. Residue is non-corrosive and non-conductive.

Key Features

  • Eutectic Sn99.3/Cu0.7 lead-free alloy, melts at 227°C (442°F)
  • No-clean, halide-free resin flux core; virtually non-spattering
  • Non-corrosive, non-conductive residue
  • Alloy exceeds J-STD-006C and meets ASTM B 32; flux meets J-STD-004B
  • Listed as suitable for use in food facilities as a non-food chemical

Specifications

Brand / model MG Chemicals 4901-112G
Alloy Sn99.3/Cu0.7 (lead-free)
Diameter 0.032" (0.81 mm)
Wire gauge 20 AWG / 21 SWG
Melting point 227°C (442°F)
Flux type No-clean

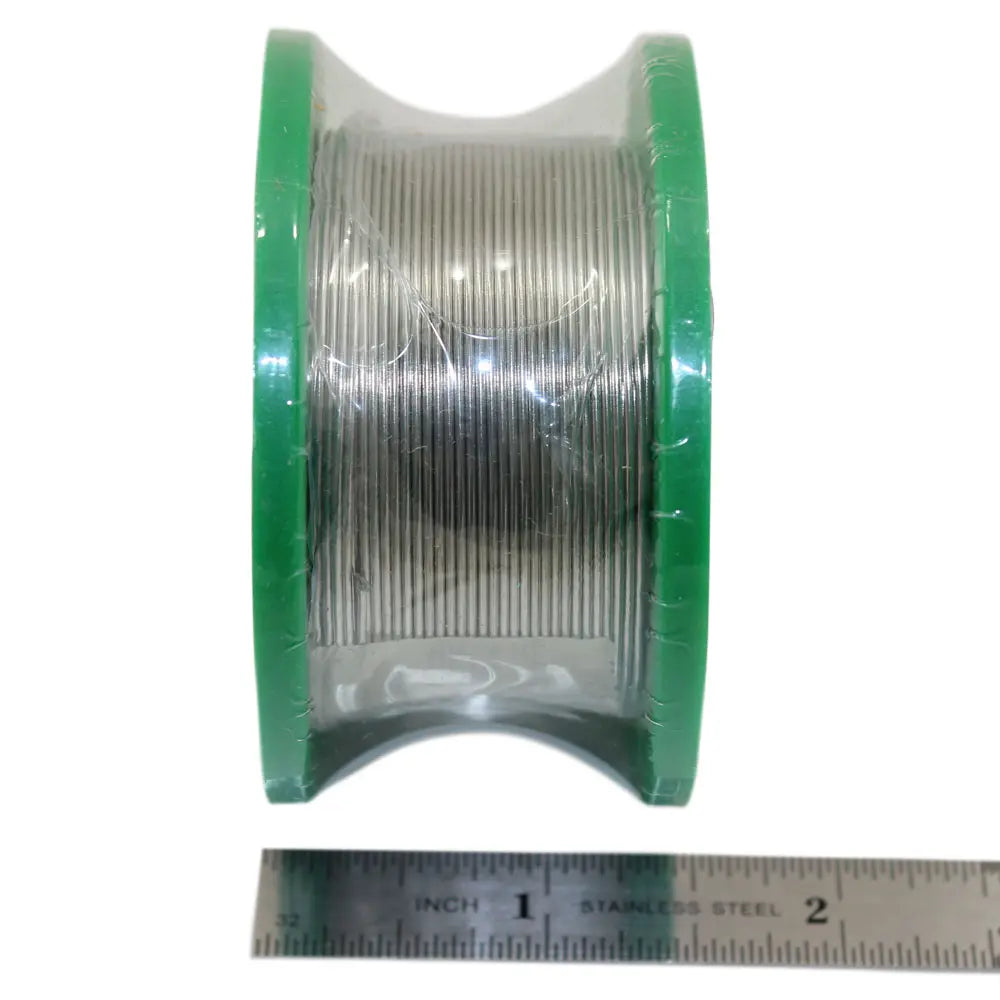

Form Spool, 4 oz (113.4 g)
Shelf life 60 months
Storage 50–86°F (10–30°C)
SKU 06074901-112G

What's Included

  • 1 spool of MG Chemicals 4901 solder wire, 1/4 lb

Ideal For

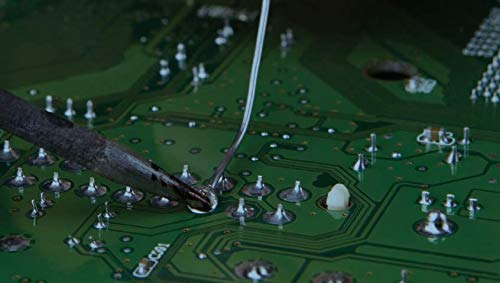

Lead-free electronics assembly and repair with a silver-free, no-clean solder.

Frequently Asked Questions

Why is tin-copper solder used?
It's a lead-free, silver-free alloy. It melts hotter than tin-lead solder, so use a temperature-controlled iron.

Is the flux residue a problem?
It's a no-clean flux, and the listing says the residue is non-corrosive and non-conductive.
