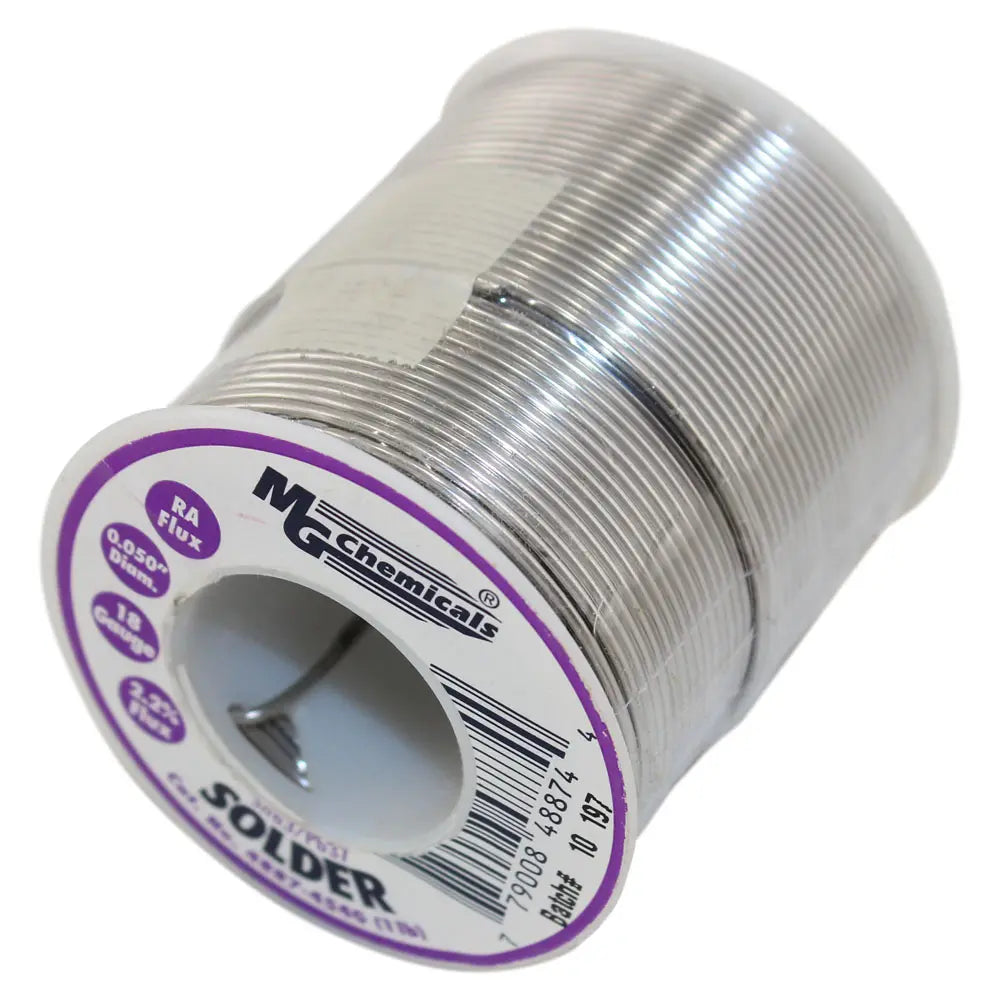

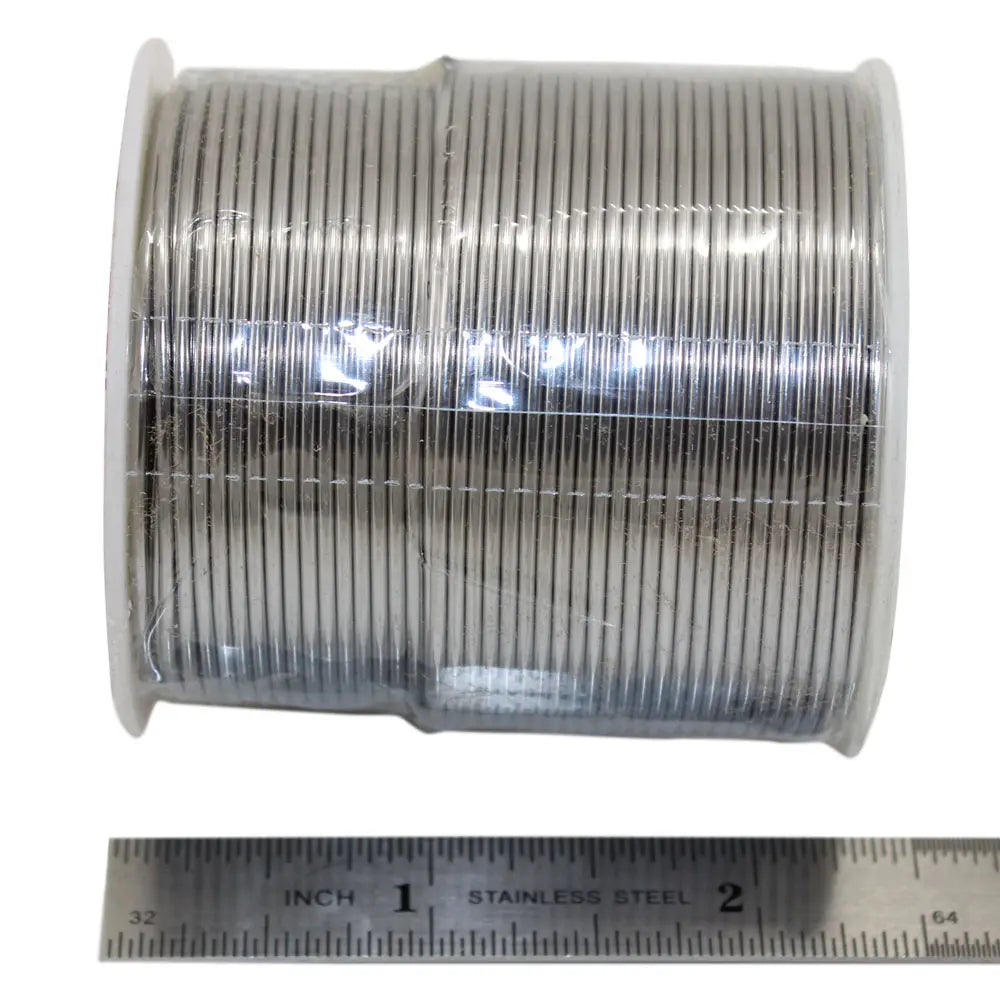

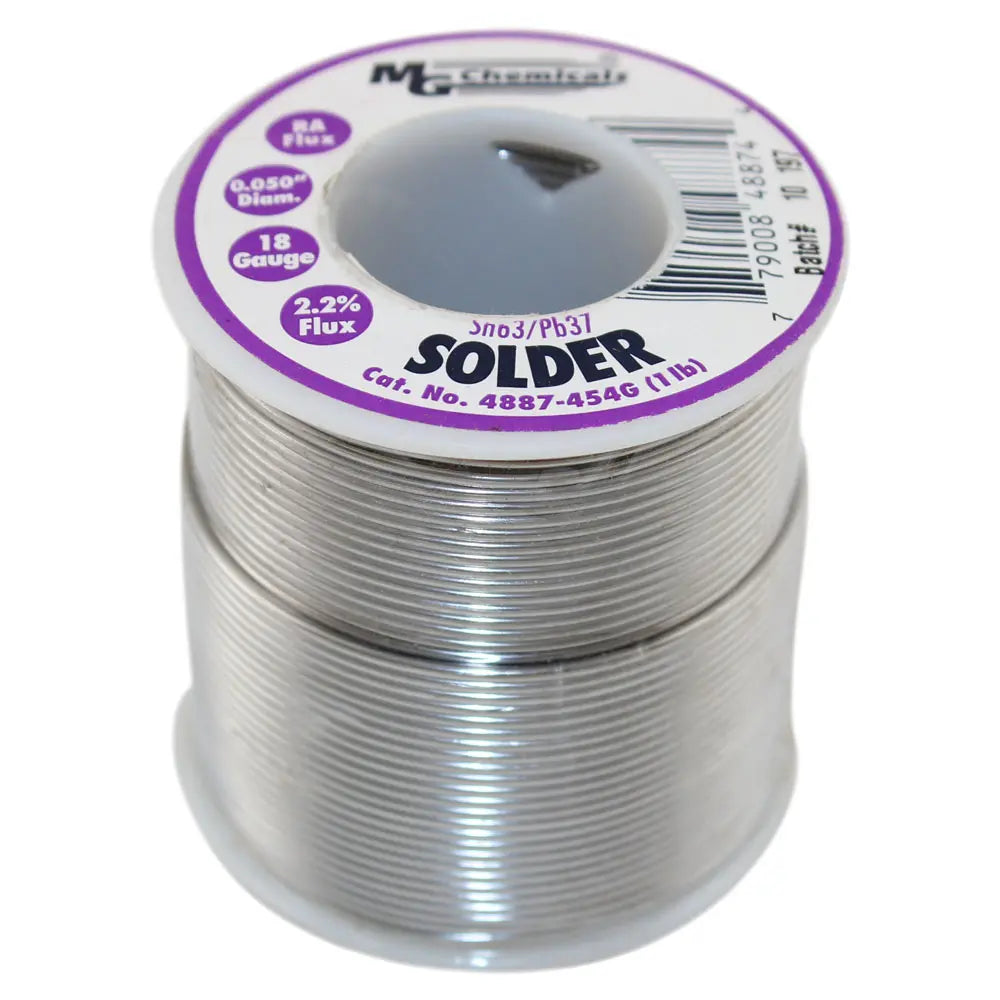

MG Chemicals 4887-454G is a 1 lb (454 g) spool of Sn63/Pb37 rosin core leaded solder wire, 0.050" (1.27 mm, 16 AWG) in diameter. 63/37 is a eutectic alloy, so it melts and solidifies sharply at 183°C (361°F), which makes it one of the easiest solders to work with. The rosin activated (RA) flux core wets and flows quickly and leaves a non-corrosive, non-conductive residue.

Key Features

  • Eutectic Sn63/Pb37 alloy, sharp 183°C (361°F) melting point
  • Rosin activated (RA) flux core: fast wetting and flowing
  • Non-corrosive, non-conductive residue
  • Alloy exceeds J-STD-006C and meets ASTM B 32; flux meets J-STD-004B
  • Heavy 0.050" wire for larger joints and wires

Specifications

Brand / model MG Chemicals 4887-454G
Alloy Sn63/Pb37 (leaded, eutectic)
Diameter 0.050" (1.27 mm)
Wire gauge 16 AWG / 18 SWG
Melting point 183°C (361°F)
Flux type Rosin activated (RA)
Form Spool, 1 lb (454 g)
Shelf life 60 months from manufacture
Storage 50–86°F (10–30°C)
SKU 06074887-454G

What's Included

  • 1 spool of MG Chemicals 4887 solder wire, 1 lb

Ideal For

Soldering heavier wires, terminals and connectors where a thick leaded solder speeds up the job.

Frequently Asked Questions

What does eutectic mean?
The alloy goes straight from liquid to solid at one temperature, with no pasty stage, which helps prevent disturbed joints.

Is 0.050" good for fine circuit board work?
It's a thick wire best for larger joints; thinner diameters are easier for small pads.

Contains lead (Sn63/Pb37 alloy).
