4890–4898 Sn60/Pb40 RA Solder Wire is electronics grade solder wire. The 60/40 rosin core solder uses a classic tin-to-lead alloy ratio complemented by a RA-like flux core. This solder wire meets J-STD-004B, ASTM B 32, and exceeds J-STD-006C specifications. It melts at slightly higher temperatures and over a wider temperature range than 63/37 solder. This results in robust and reliable joints that are highly resistant to whisker formation.
These 60/40 leaded solders achieve a consistent solder and flux percentage thanks to our state-of-the-art extrusion wire-drawing machine, which continuously monitors the wire to prevent voids and ensure consistency, resulting in a top-grade solder wire.
Features:
- Alloy exceeds J-STD-006C and meets ASTM B 32 purity requirements
- Flux meets J-STD-004B
- Rosin-activated flux
- Fast wetting
- Fast flowing
- Non-corrosive residue
- Non-conductive residue
Specifications:
- Type: Wire Solder
- Composition: Sn60Pb40 (60/40)
- Diameter: 0.040" (1.02mm)
- Melting Point: 361 ~ 376°F (183 ~ 191°C)
- Flux Type: Rosin Activated (RA)
- Wire Gauge: 18 AWG, 19 SWG
- Process: Leaded

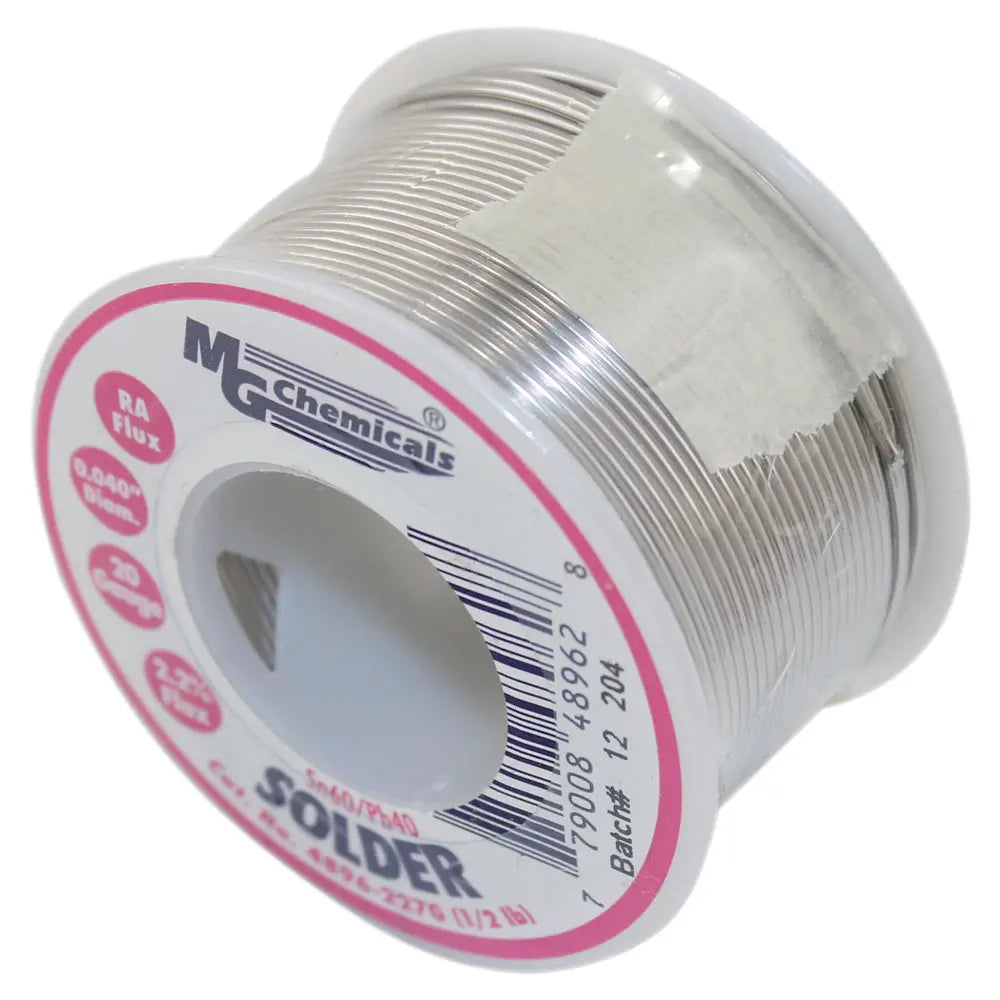

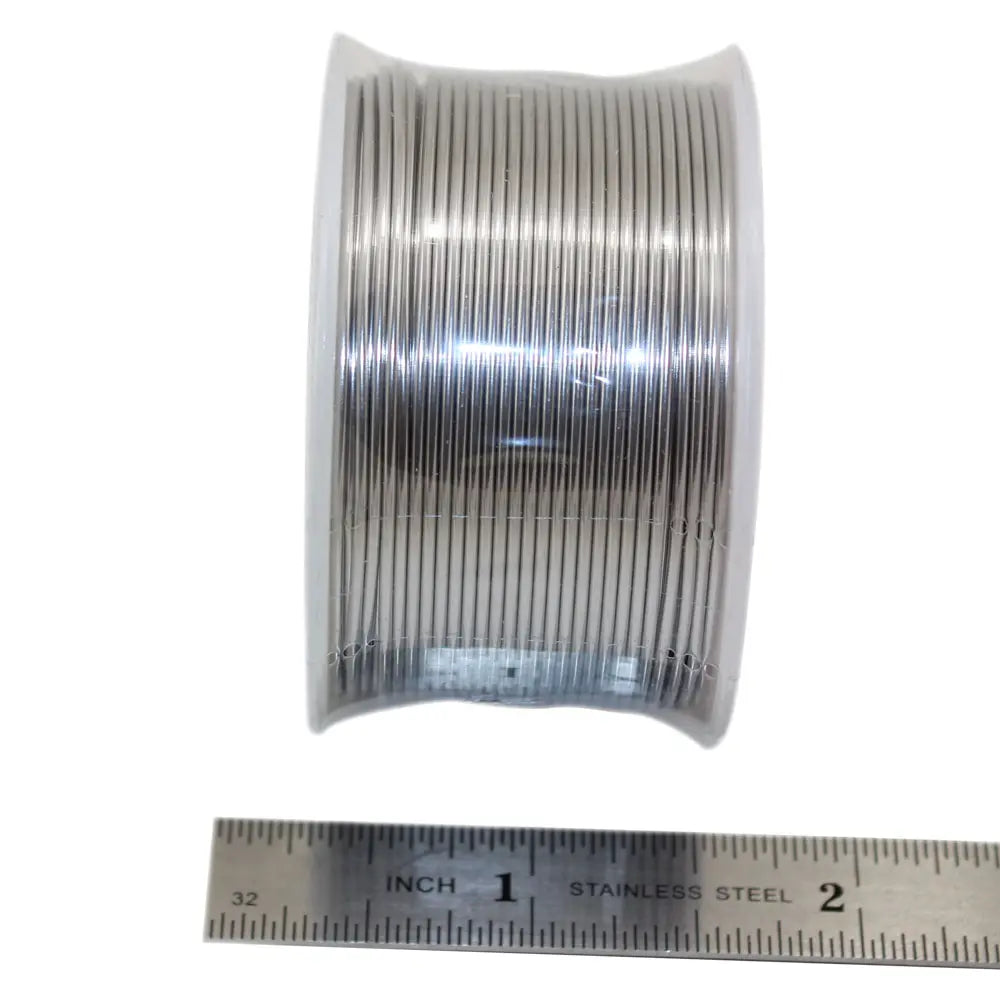

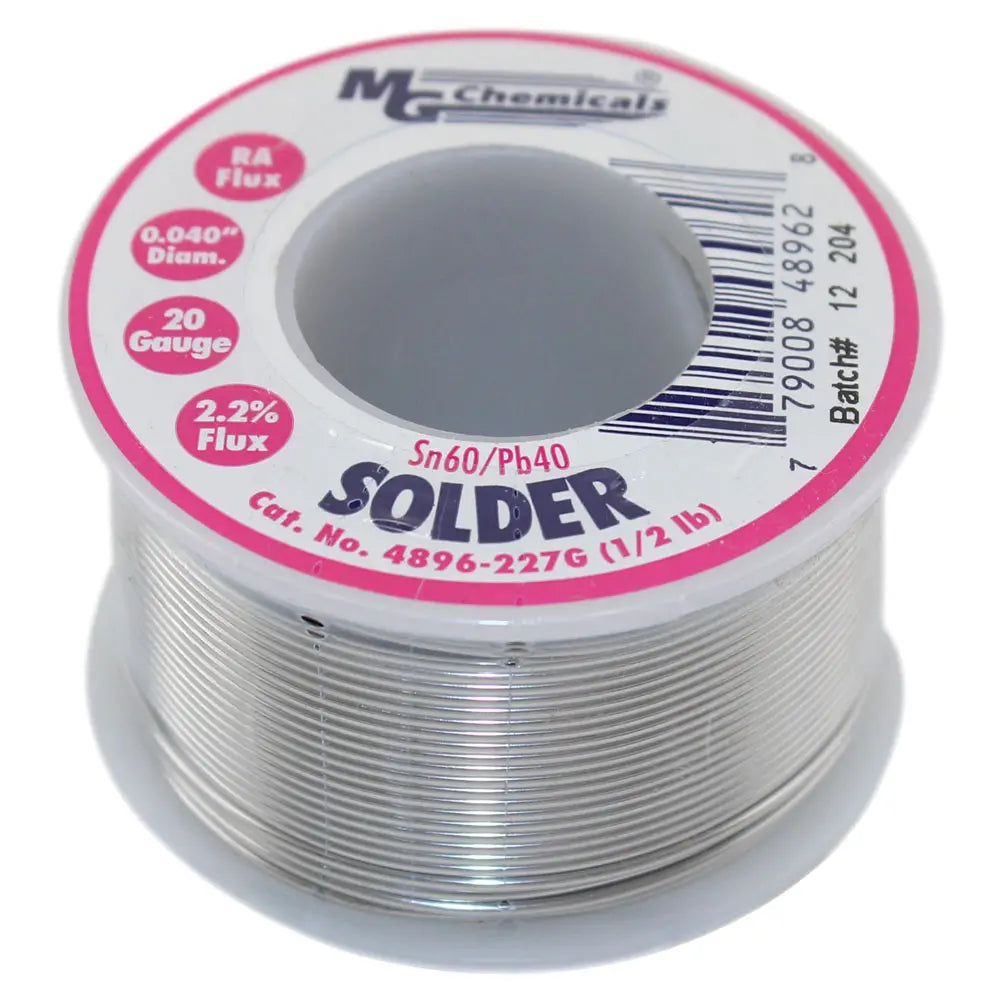

- Form: Spool, 8 oz (227g), 1/2 lb
- Shelf Life: 60 Months
- Storage/Refrigeration Temperature: 50°F ~ 86°F (10°C ~ 30°C)
