Green 10-Segment LED Bar Graph Display, DIP with 0.1" Pin Spacing

08DC10GDA
Regular price
$2.20
Sale price
$2.20
Regular price
$2.00
Sold out
Unit price
per
Shipping calculated at checkout.

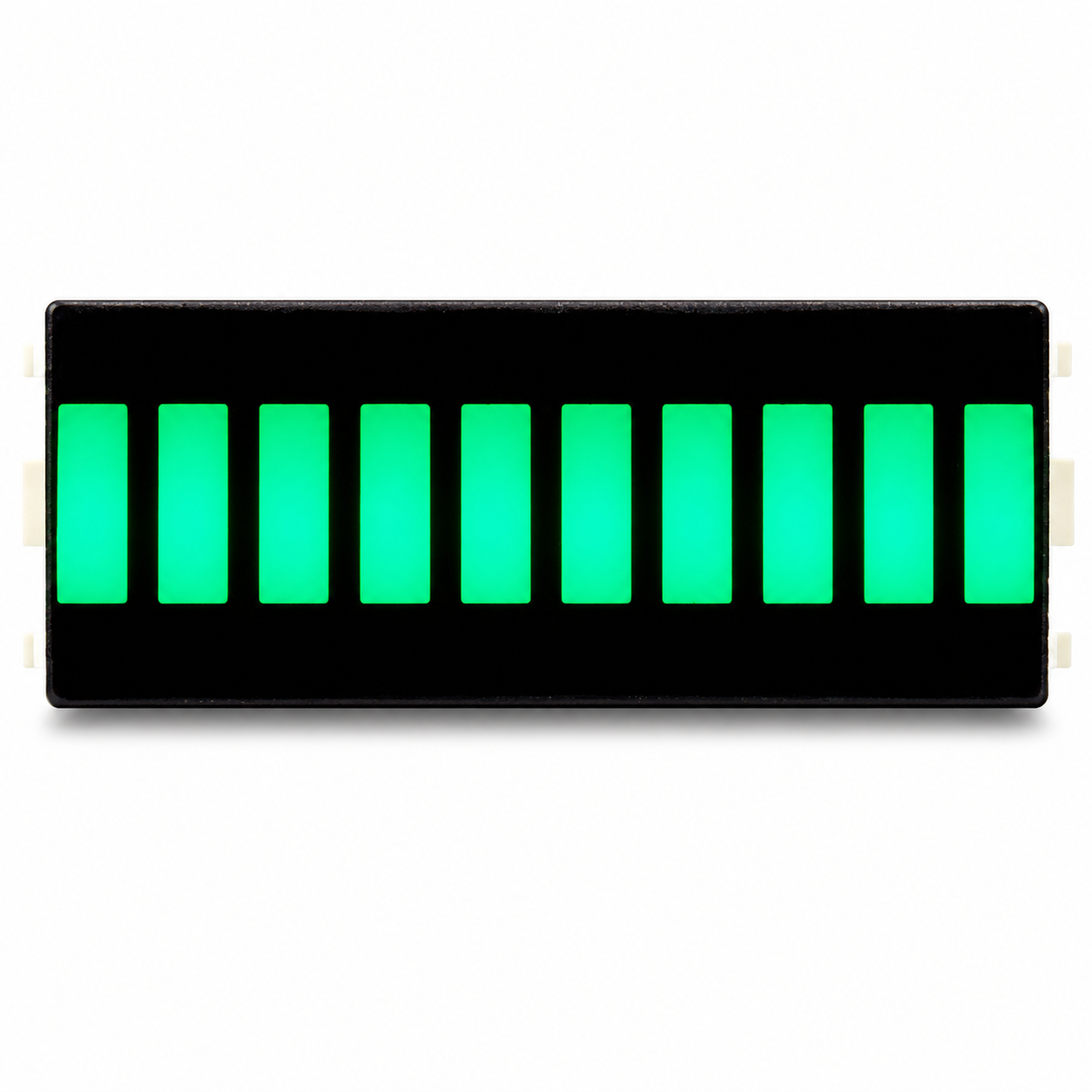

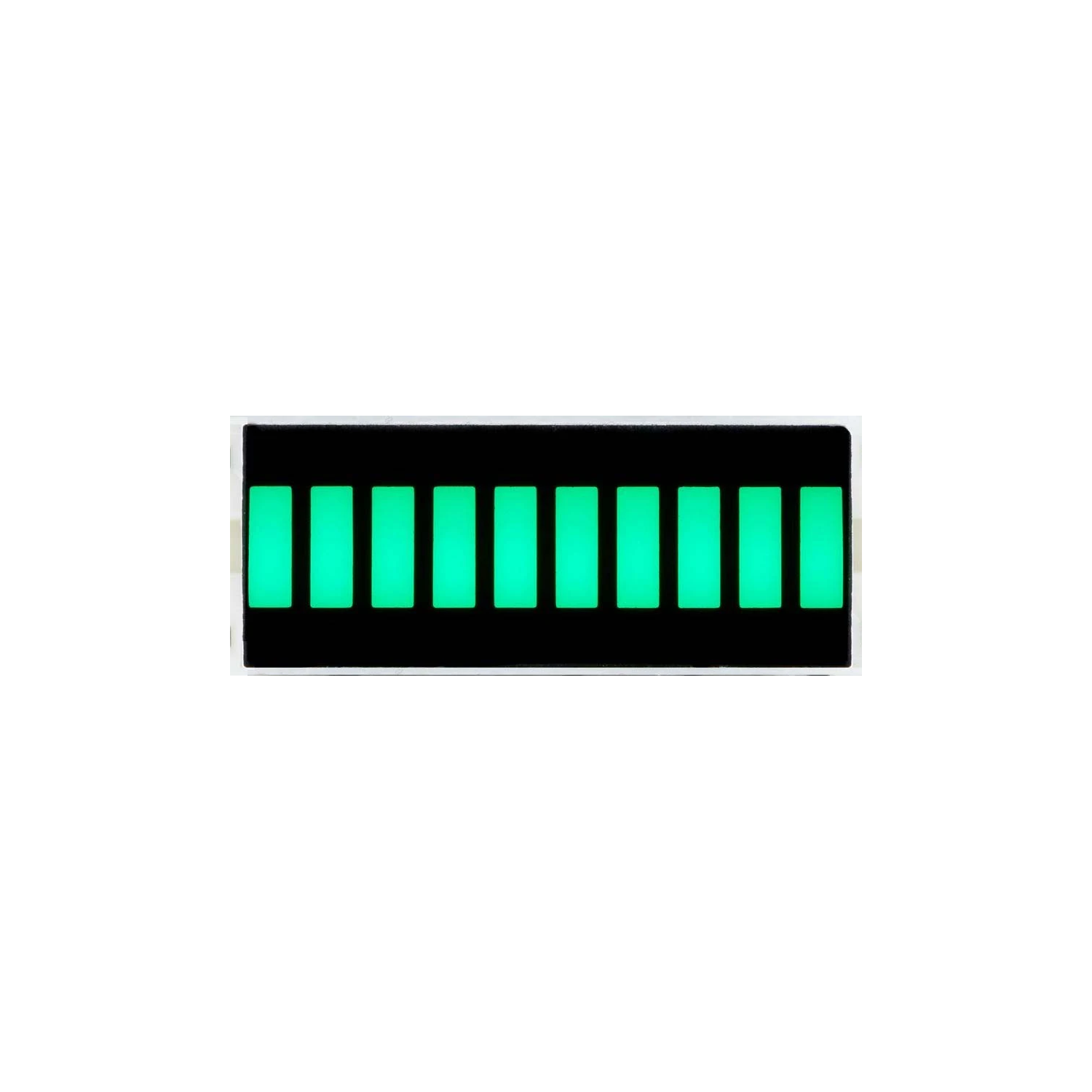

This is a green 10-segment LED bar graph display in a dual in-line package with 0.1" pin spacing. The large, individually defined segments make levels and status easy to read. The standard pin spacing suits breadboards, PCBs and educational projects.

Key Features

  • 10 large, clearly defined green segments
  • Dual in-line package, 0.1" pin spacing
  • Fits breadboards and PCBs
  • Shows signal levels, status or battery level

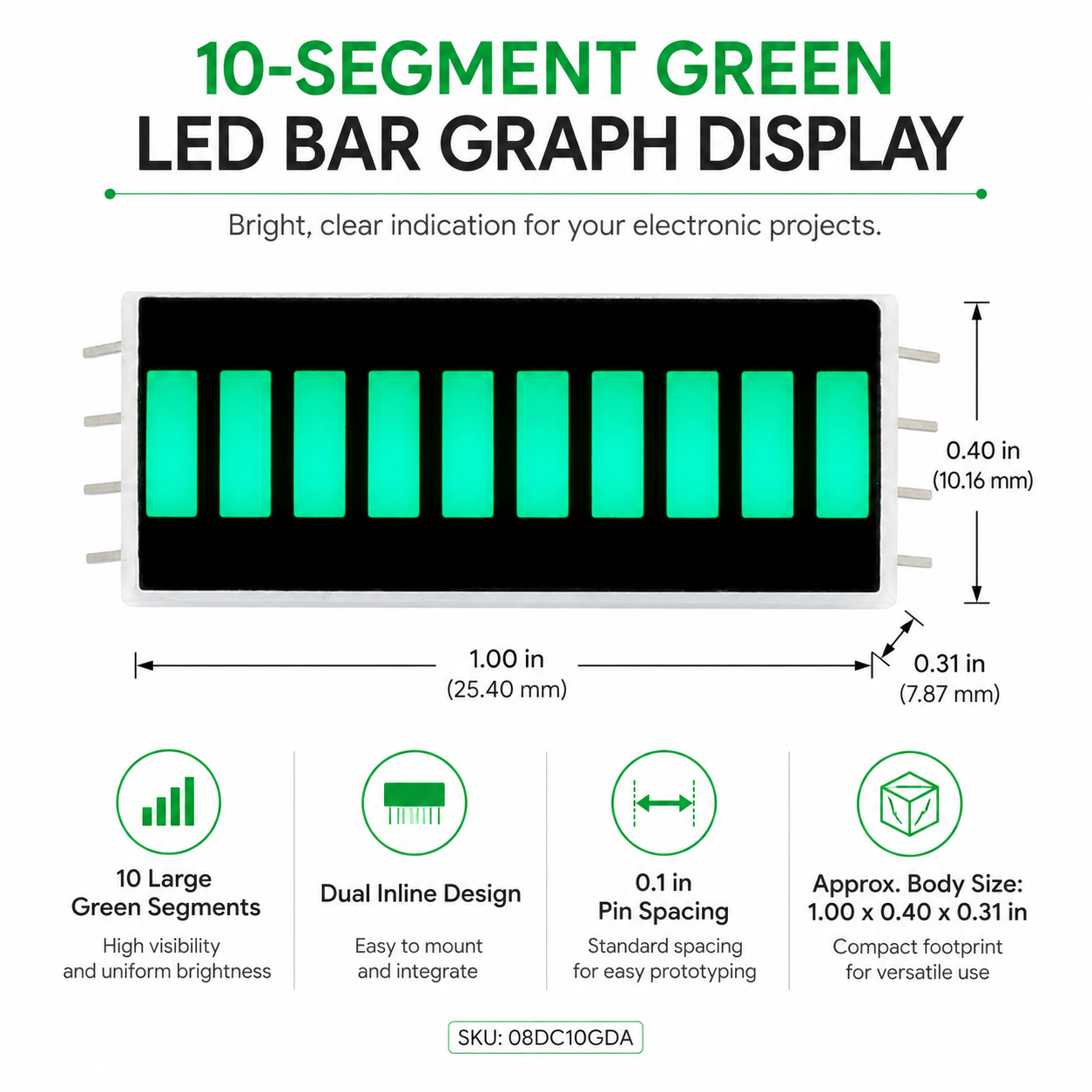

Specifications

Segments 10
LED color Green
Package Dual in-line (DIP)
Pin spacing 0.1"
SKU 08DC10GDA

What's Included

  • 1 green LED bar graph display

Ideal For

Breadboard projects that show a level, such as audio or battery voltage.

Frequently Asked Questions

Will it fit a breadboard?
Yes, it is a dual in-line package with 0.1" pin spacing.

Do I need resistors?
Generally yes; like any LED, each segment needs current limiting. The listing does not give current ratings.
