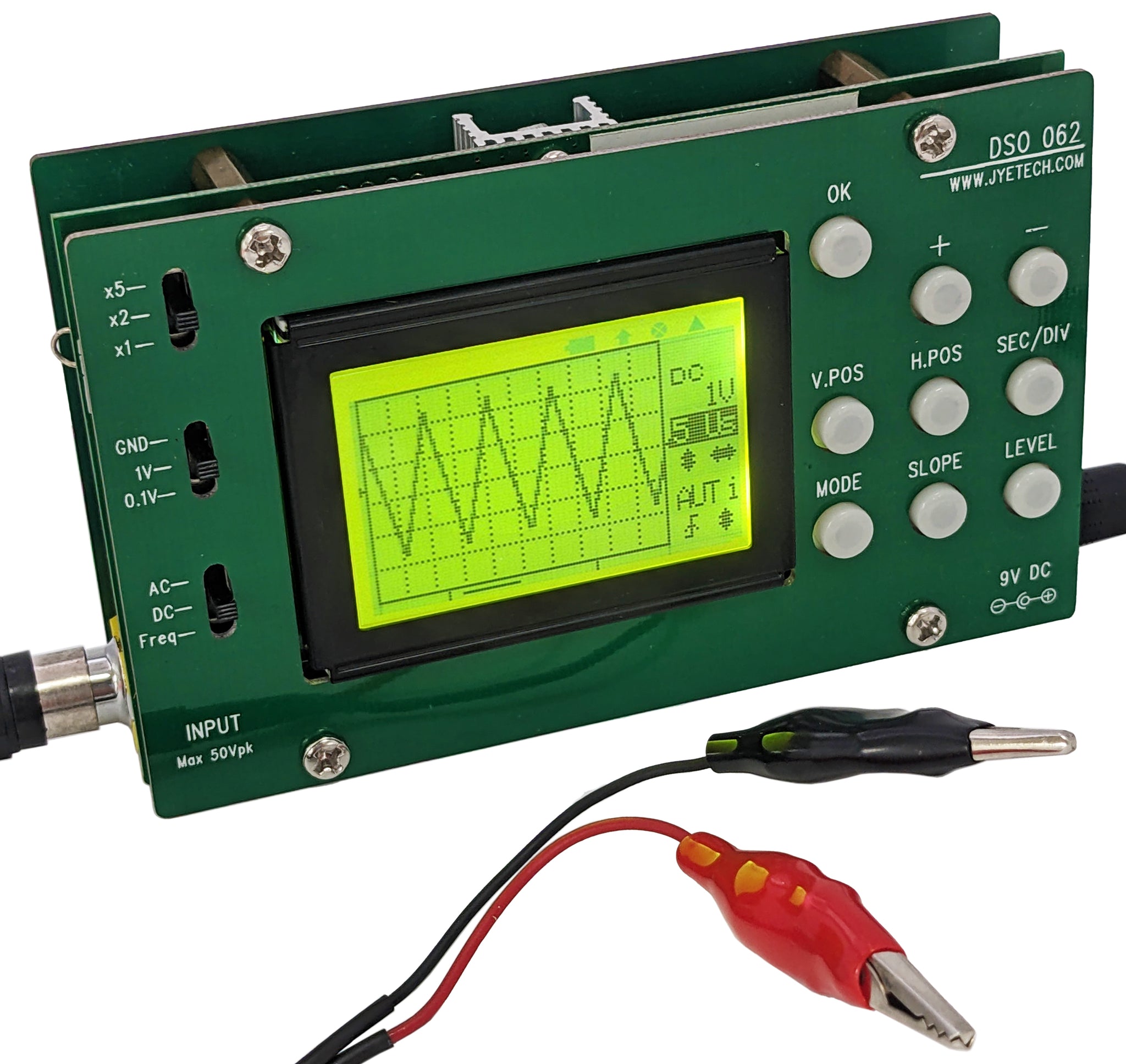

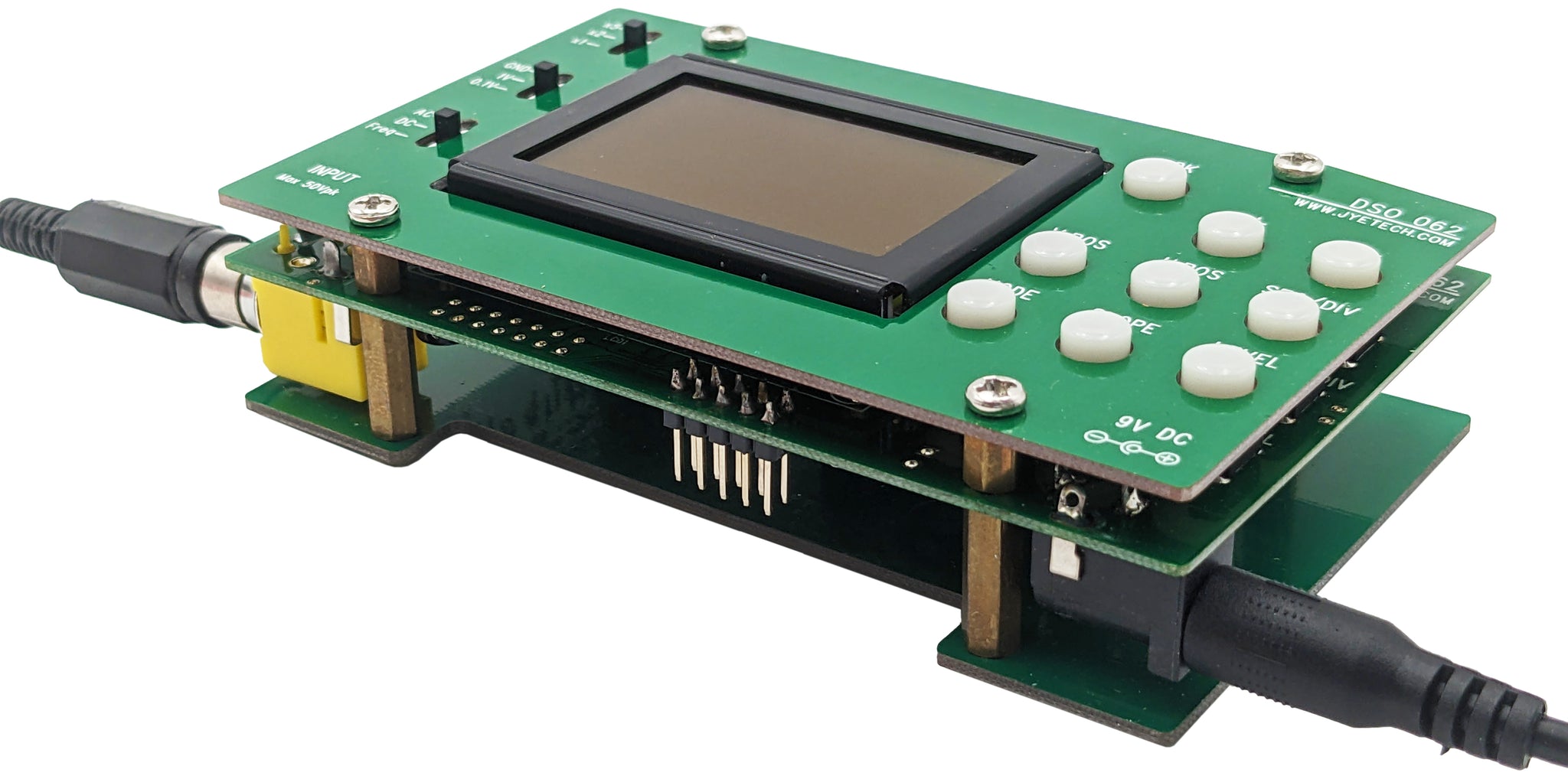

Assembled Pocket Oscilloscope, 1MHz Bandwidth, Single Channel (DSO062)
Assembled Pocket Oscilloscope, 1MHz Bandwidth, Single Channel (DSO062)
Assembled Pocket Oscilloscope, 1MHz Bandwidth, Single Channel (DSO062)
Assembled Pocket Oscilloscope, 1MHz Bandwidth, Single Channel (DSO062)
Assembled Pocket Oscilloscope, 1MHz Bandwidth, Single Channel (DSO062)
Assembled Pocket Oscilloscope, 1MHz Bandwidth, Single Channel (DSO062)

Assembled Pocket Oscilloscope, 1MHz Bandwidth, Single Channel (DSO062)

01DSO62
Regular price
$69.99
Sale price
$69.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.
Buy now with ShopPay

  • Comes with:
    • One DSO062 oscilloscope

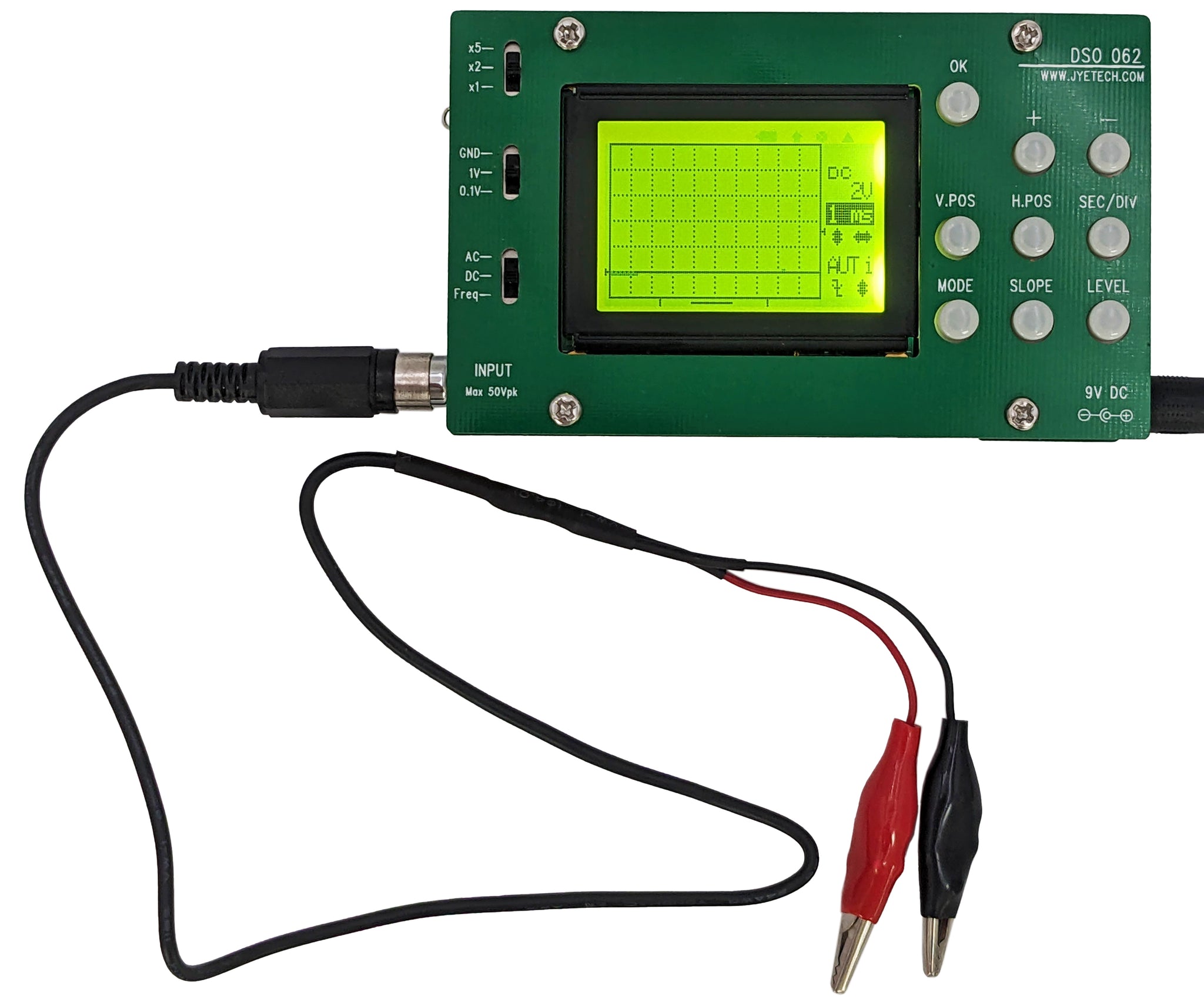

    • One simple alligator clip probe
    • One AC/DC power adapter
    • Quick Reference (English)
  • Maximum equivalent-time sampling rate (repetitive signal) - 20MSa/s
  • Maximum real-time sampling rate - 2MSa/s
  • Resolution - 8 bits
  • Record length - 256 bytes
  • Analog bandwidth - 1MHz
  • Vertical sensitivity - 100mV/Div - 5V/Div
  • Vertical position adjustable with indicator
  • Input impedance - 1M ohm
  • Max input voltage - 50Vpk (1x probe) [500Vpk for 10x probe]
  • DC/AC/GND coupling
  • Horizontal - 0.5us/Div - 10m(minute)/Div
  • Auto/Normal/Single trig modes
  • Rising/Falling edge trigger
  • External trig available
  • Trigger output is available, which makes it possible to cascade scopes to do multi-channel capture.
  • Trigger level adjustable with indicator
  • Hold/run feature
  • Save/recall up to 6 captures

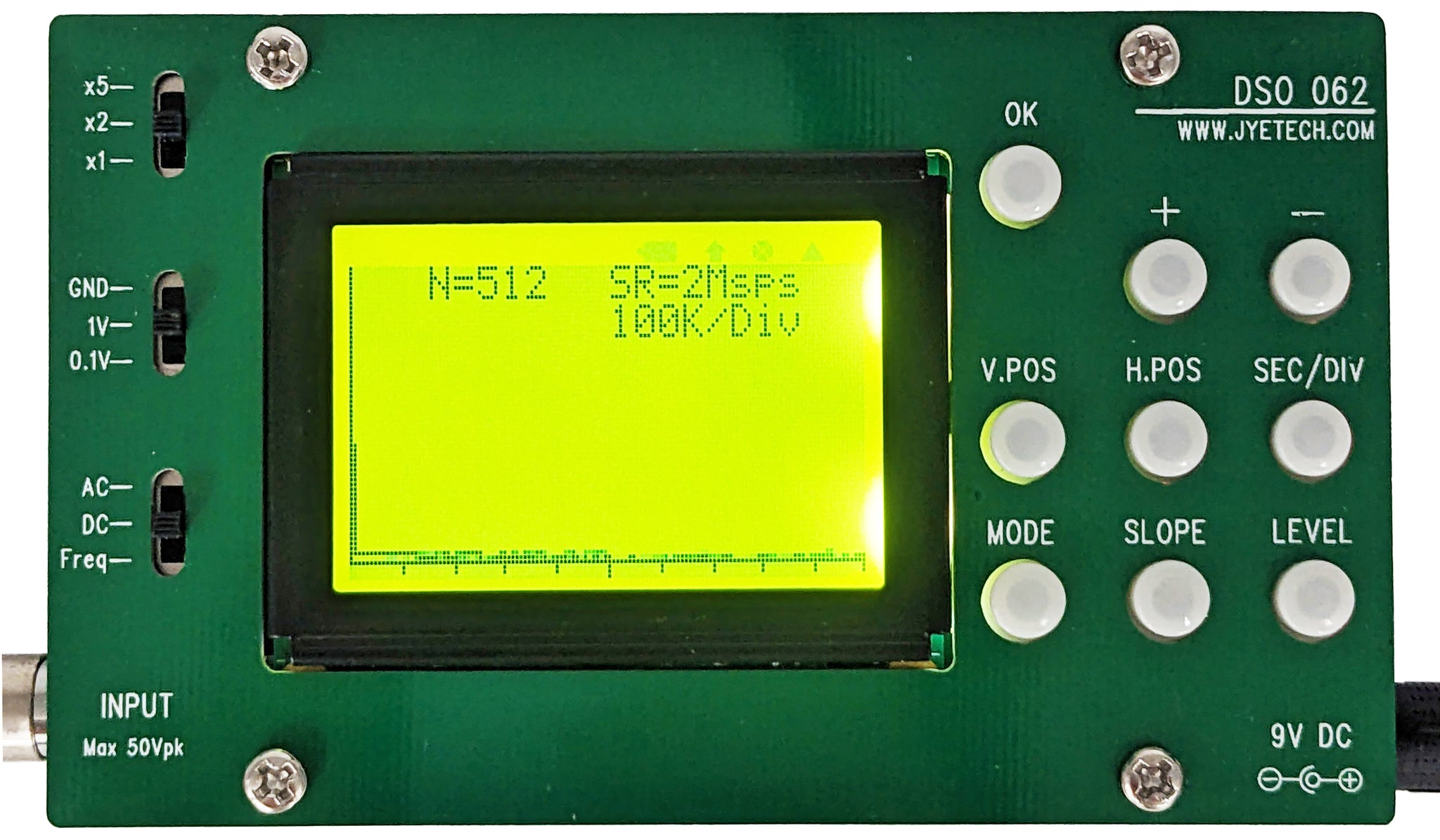

  • FFT function available - size of 256 points and 512 points selectable, sampling rate of 1Ksps to 2Msps selectable
  • Transfer screen to PC as bitmap file via serial connection
  • Built-in 500Hz/5Vpp test signal
  • Frequency Meter (For TTL level input signal)
  • Auto switching between Oscilloscope Mode and Frequency Meter Mode
  • 9V DC power supply
  • Dimension: 110mm X 65mm X 25mm
  • Weight: 125 gram (not including probe and power adapter)

Documents, firmwares, and tools:

Operating Instructions [ 1.9M Bytes, updated 2010.12.15 ]
Troubleshooting Guide [ 3.3M Bytes, updated 2010.08.01 ]
