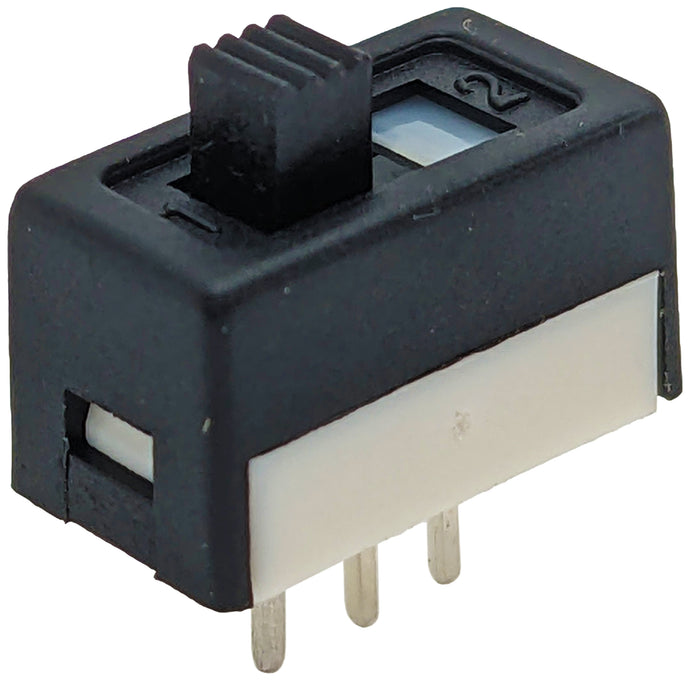

- SPDT (Single Pole Double Throw) Slide Switch
- Mini size, measures 0.550" x 0.307" x 0.303" (14mm x 7.80mm x 7.7mm)
- PC Lead termination, 3 Pins on 0.1" center (fits most breadboards and prototyping boards)
- Switch position is indicated by embossed numbers "1" and "2"
- Contact Rating: 3A @120 VAC or 28 VDC
Additional Specifications:
•Electrical Life: 10,000 cycles
•Contact Resistance: 20 mΩ max. initial
•Insulation Resistance: 1000 MΩ min.
•Dielectric Strength: 1000 VAC/1 min.
•Operating Temperature Range: -30°C to +85°C
Material:
•CASE: PBT with glass fiber, flame retardant, heat stabilized (UL94-VO)
•HOUSING: POM/PA66, flame retardant, heat stabilized (UL94-HB)
•ACTUATOR: PA66, flame retardant, heat stabilized (UL94-HB)
•CONTACTS & TERMINALS: Copper alloy, silver plated
•TERMINAL SEAL: Epoxy
