- Resistance measurement in 6 ranges from 300 ohms to 30 M ohms
- Continuity measurement under 300 ohms
- Capacitance measurement in 8 ranges from 3 nF to 30 mF
- Diode test
- Auto power-off, data hold, auto select mode, manually selectable range

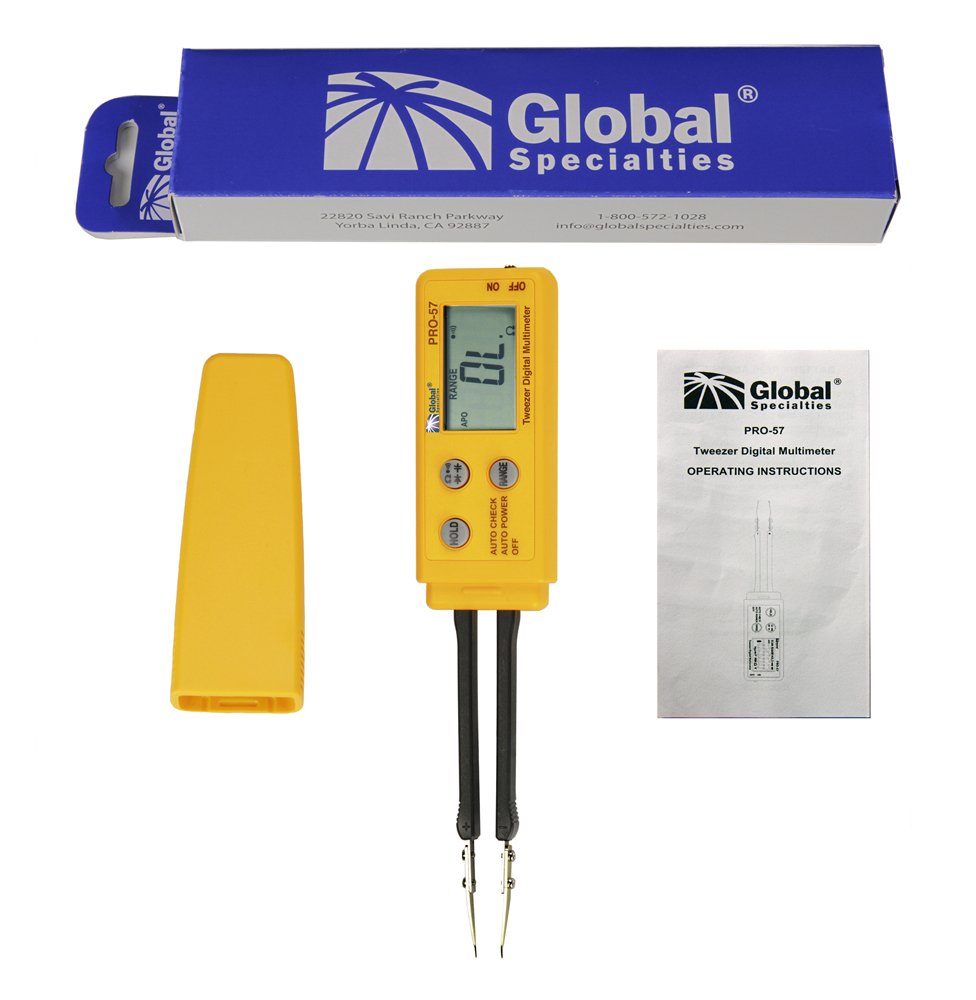

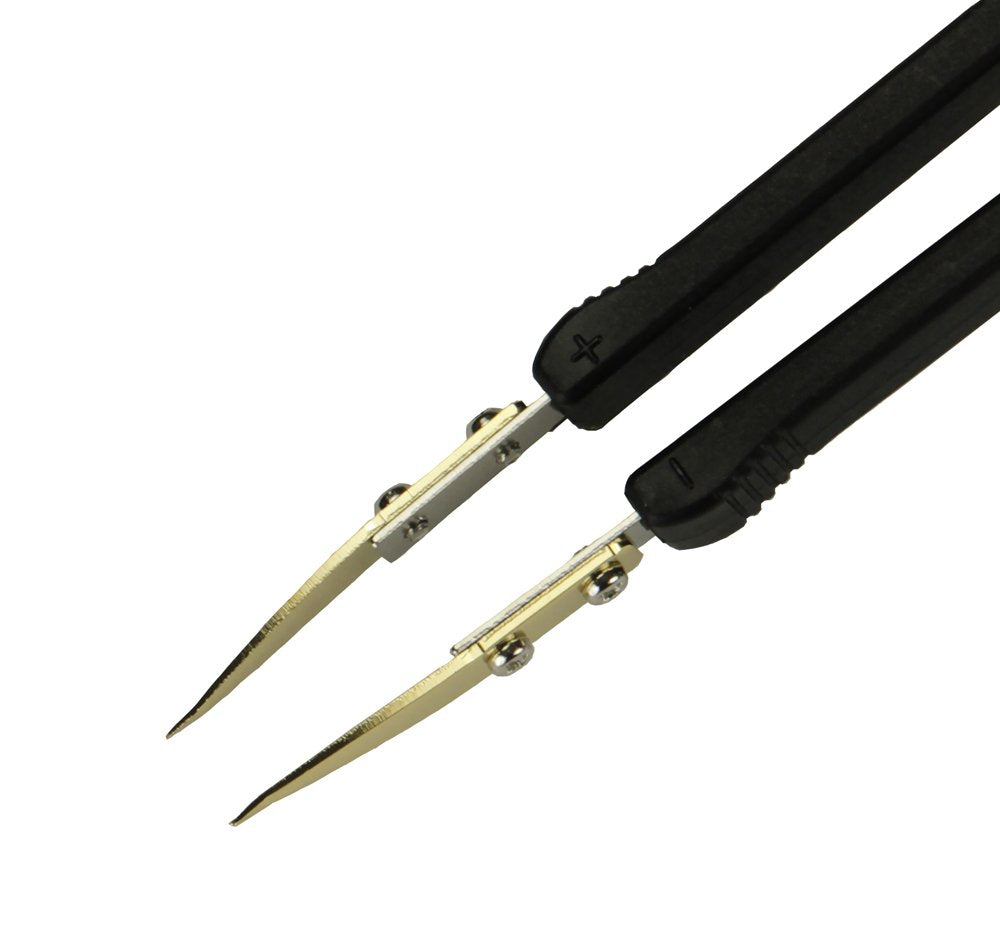

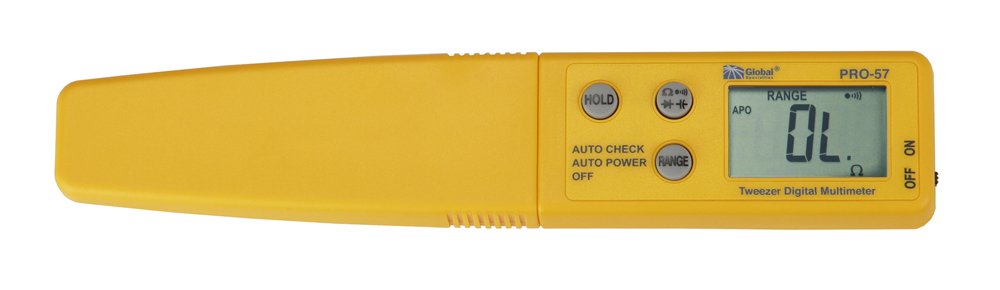

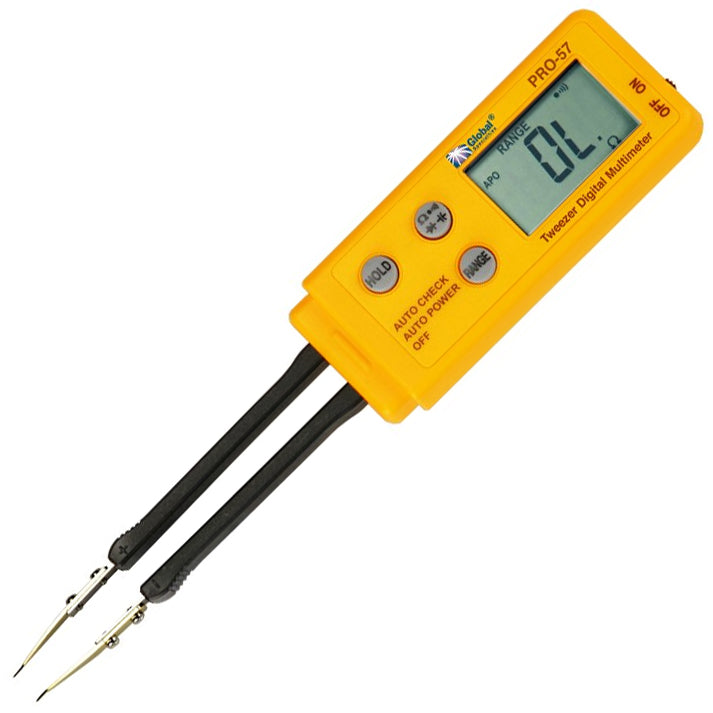

The PRO-57 Tweezer Digital Multimeter is a compact Digital Multimeter (DMM) with a tweezer form factor. Small enough for one-hand operation, it is ideally suited to measure Surface Mount Devices (SMD). Although the PRO-57 is much smaller and lighter than traditional multimeters, it is able to measure resistance in six ranges which are from 300 Ω to 30 MΩ, to measure continuity under 300 Ω, to measure capacitance in 8 ranges from 3 nF to 30 mF, and to test diodes. The Tweezer Digital Multimeter has Auto Check Mode which automatically switches to the applicable measurement for resistance, capacitance, continuity or diode test.
Features:
• Resistance
• Capacitance
• Continuity
• Diode Test
• Data Hold
• Auto Check Mode
• Manual Selectable Range
Specifications:
Resistance accuracy 1-5% depending on the range
Capacitance accuracy 3-5% depending on the range
Diode test accuracy 3%
Display 3000 counts
Polarity Automatic, ( - ) negative polarity indication
Over range “OL” mark indication
Low battery indication The “🔋” icon is displayed when the battery voltage drops below the operating level
Measurement rate 4 times per second, nominal
Auto power off Approx. 10 minutes
Operating environment 0ºC - 40ºC (32ºF - 104ºF) at < 70% R.H.
Storage temperature -20ºC - 60ºC (-4ºF - 140ºF) at < 80% R.H. with
battery removed from meter
Power 3.0 V button-type lithium battery ×1, CR2032
Battery life 100 hours continuous operation
Dimensions 205mm(H) × 40 mm(W) ×24.5mm(D)
Weight Approx. 3.5 oz ( 100g ) including battery
