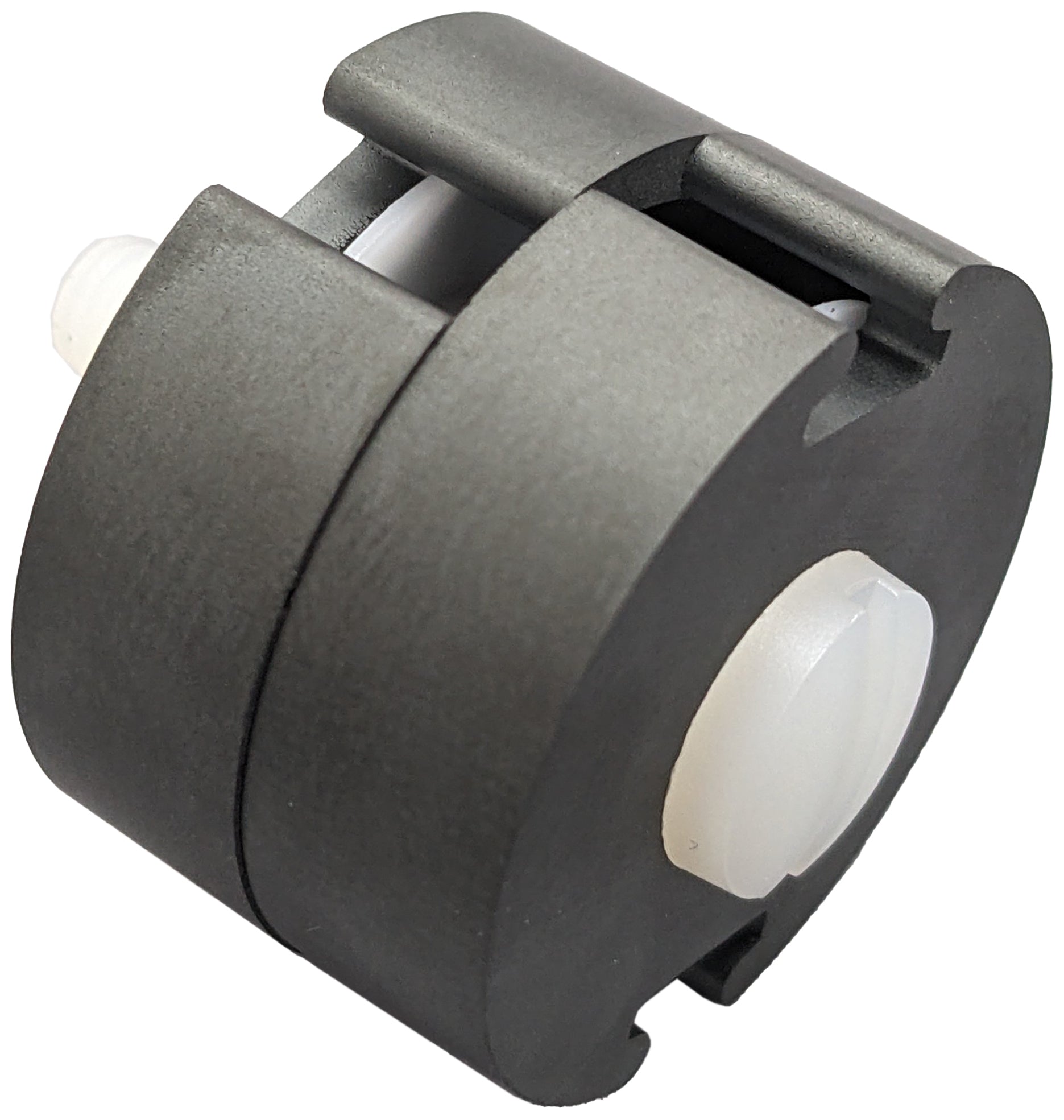

Ferrite Pot Core, 22mm x 13mm, µ = 2000

• To obtain large inductance with a relatively small core size
• Pot cores are completely self-shielding

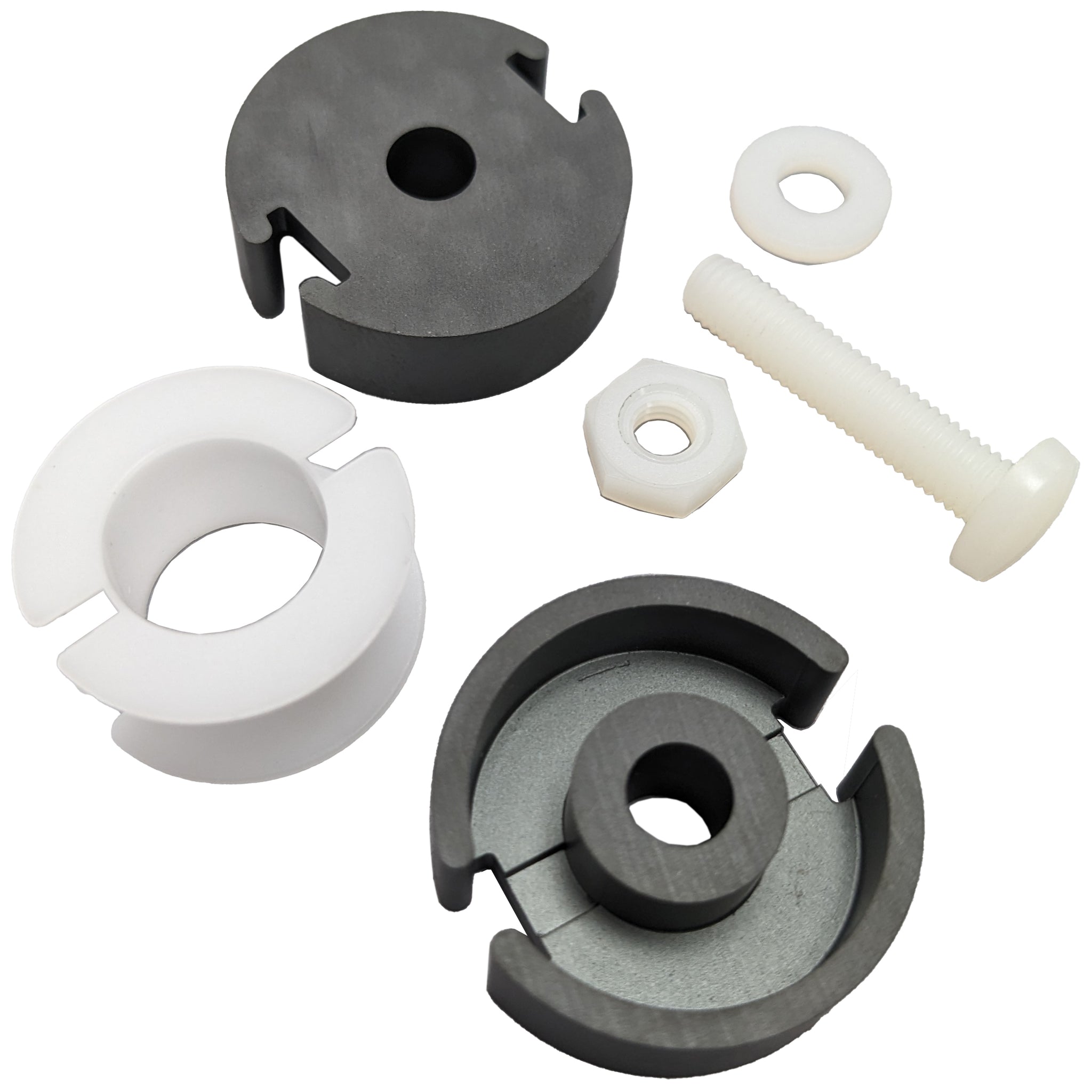

• Pot core assembly is supplied with 2 pot core halves, a nylon mounting bolt, and a nylon bobbin

µ = 2000
AL value given in mh/1000 turns.
Dimension (mm): 22 x 13
AL Value: 3660
