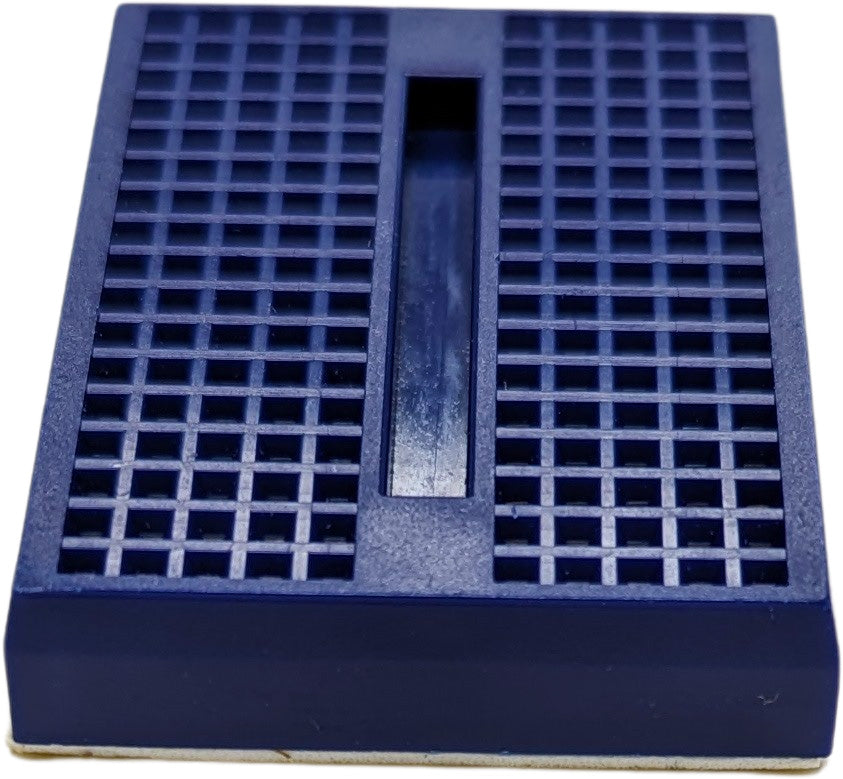

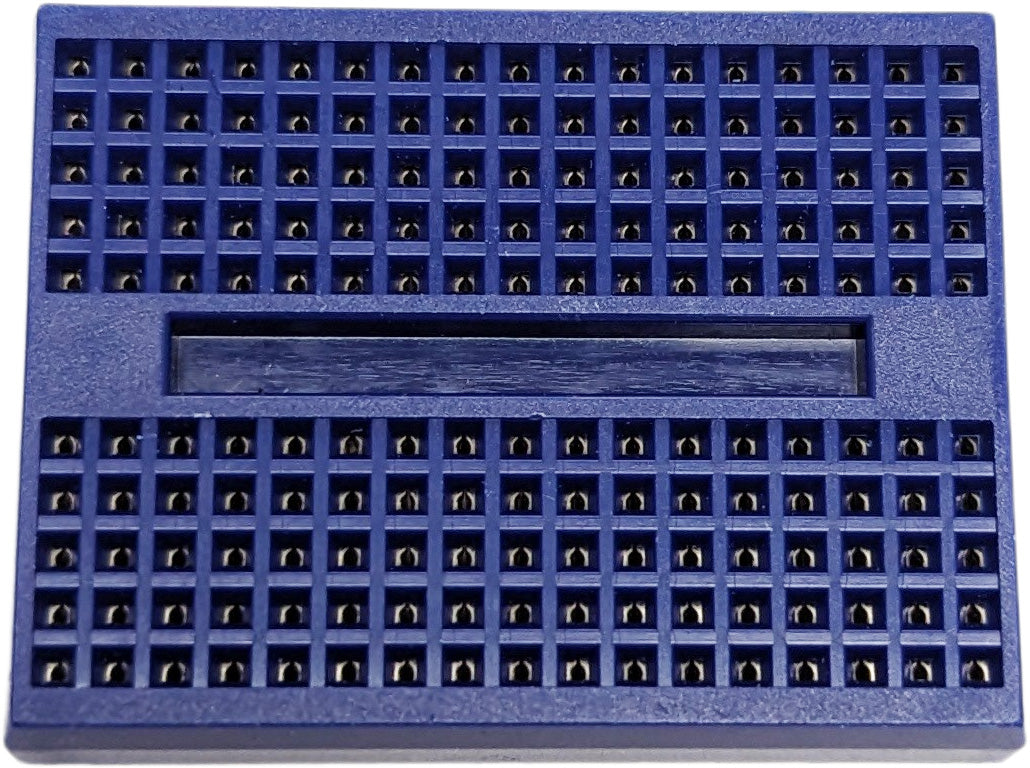

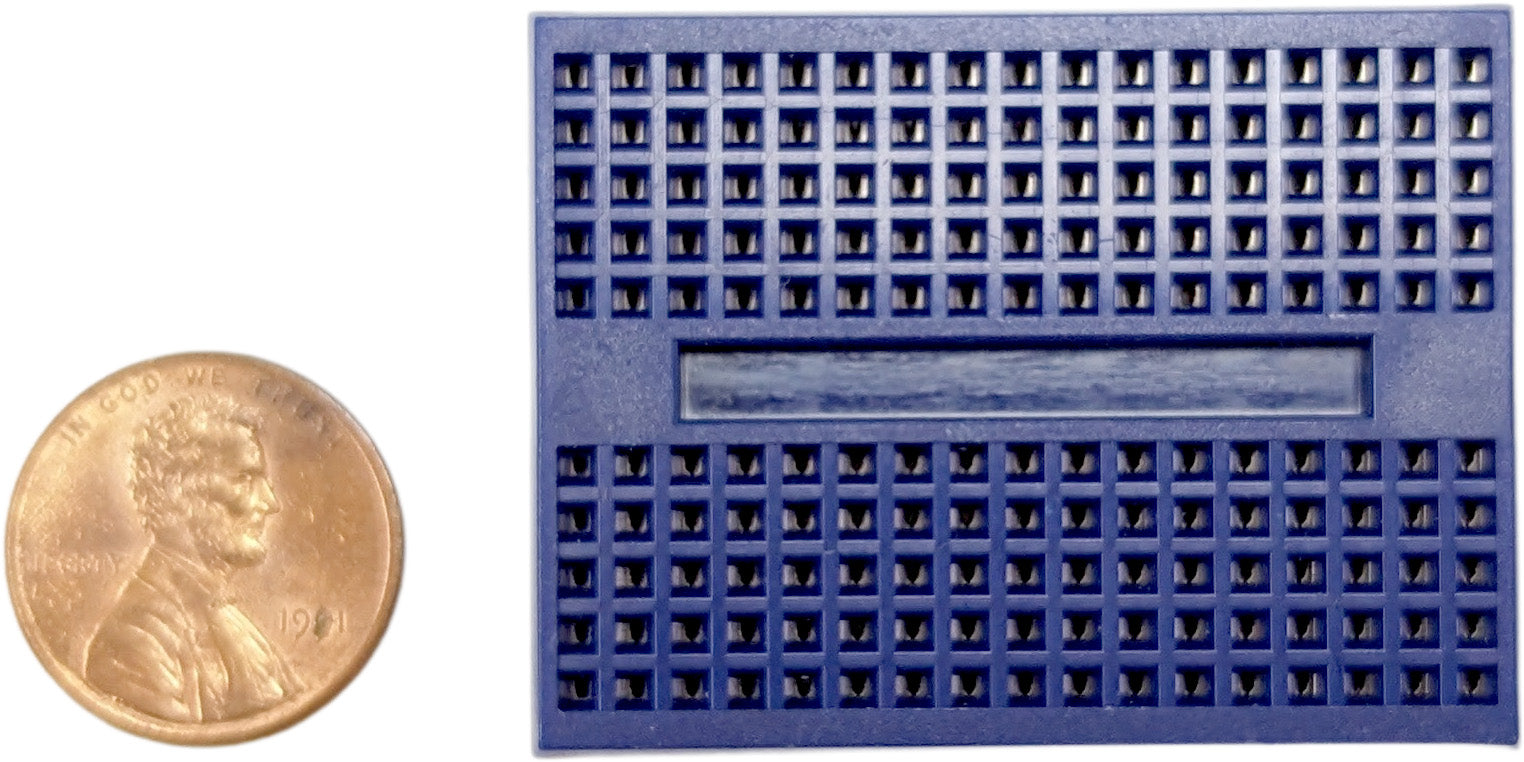

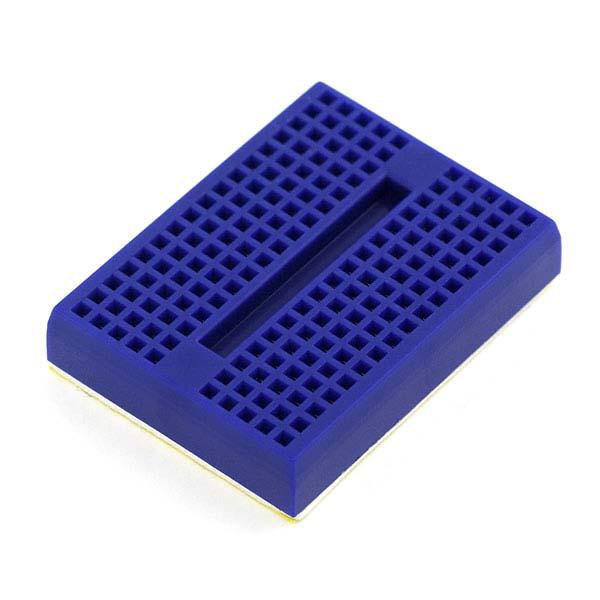

This mini breadboard measures 1.8" x 1.4" (45.7mm x 35.6mm x 9.4mm), is made of POM plastic, and is RoHS compliant. It is ideal for robotic or Arduino projects, and has 170 terminal holes. It is designed with a simple round hole style for easy insertion and has a heat distortion temperature of 150℃. It also features a phosphor bronze spring clip contact, a nickel-plated finish, and a contact life of 50,000 times.
- Measures 1.8" x 1.4" (45.7mm x 35.6mm x 9.4mm)

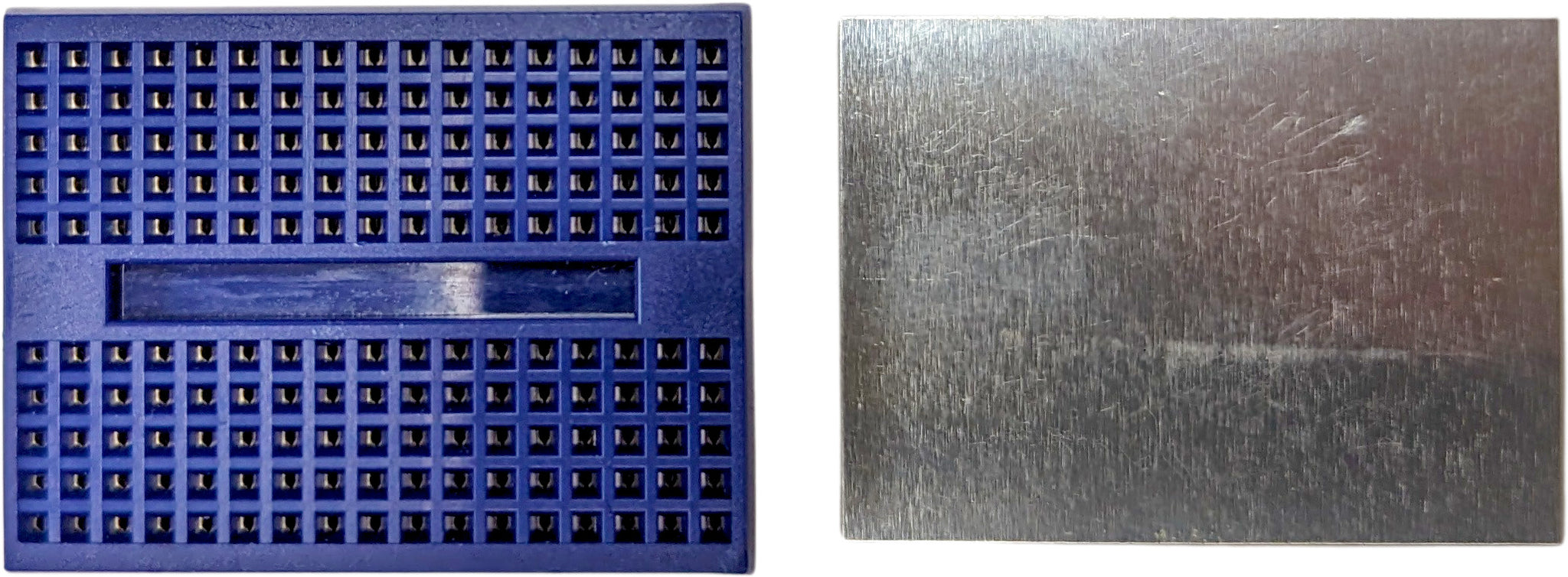

- Comes with aluminum back plate

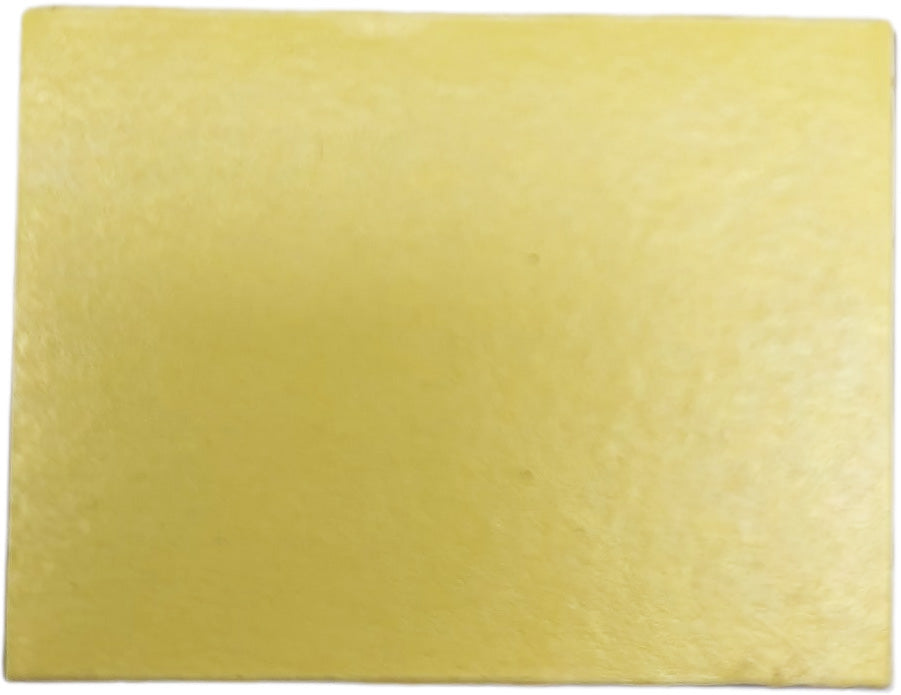

- This board also has a self-adhesive on the back
- Ideal for robotic or Arduino projects
- Color: Blue
- Terminal holes: 170 holes
- Body material : POM plastic
- Comes with screws (x 2pcs)
- Surface : Unprinted
- Heat distortion temperature : 150℃
- Spring clip contact : Phosphor Bronze
- Finish: Nickel plated
- Contact life: 50,000 times
- Round Hole style-easy for insertion
- Colorful for prototype module
- RoHS Compliant
