Before there was the Saturn V, there was the Saturn 1B, the NASA test bed for Apollo flight hardware. Versions of the Apollo Command and Service Module, and the Lunar Module were all test flown on the Saturn 1B while the Saturn V was still in development. Even the S-IVB upper stage which served as the third stage of the Saturn V was first tested on the Saturn 1B, functioning as that vehicle’s second stage. The Saturn 1B would eventually see service as the primary launch vehicle for Earth orbit missions in the Apollo spacecraft.
One of the distinctive features of the Saturn 1B is the set of cylindrical tanks that forms the rocket’s first stage. Resembling a cluster of smaller rockets, the tanks are sometimes misidentified as re-purposed Redstone missile stages. In fact, these 70-inch diameter tanks were created using the same forms that produced the Redstone rockets. So, while they share a common lineage, they were not surplus rockets themselves. The tanks fueled eight H-1 engines, four of which could gimbal to steer the rocket while under power. Eight low profile fins ringed the base of the rocket for guidance during atmospheric flight.
In February of 1966, the first Saturn 1B was launched with an early version of the Apollo Command and Service Modules – no crew was aboard. The subsequent Saturn 1B launch of Apollo 7 on October 11, 1967 certified the Apollo spacecraft for human spaceflight. It would be the last Saturn 1B launch for nearly five years.
In 1973, after the final Apollo moon landing, the last Saturn V was used to launch the Skylab Orbital Workshop. Three crews would eventually be sent to live and work in the space station, each launched aboard an Apollo Command Module carried by a Saturn 1B. The first of the three Skylab crews lifted-off on Saturn 1B vehicle SA-206 and stayed for 28 days. Their first task in orbit was to repair Skylab after an accident at launch ripped away a solar panel and sun shield. Led by Apollo 12 moon walker Pete Conrad, the crew performed a dangerous EVA and successfully rescued the space station.

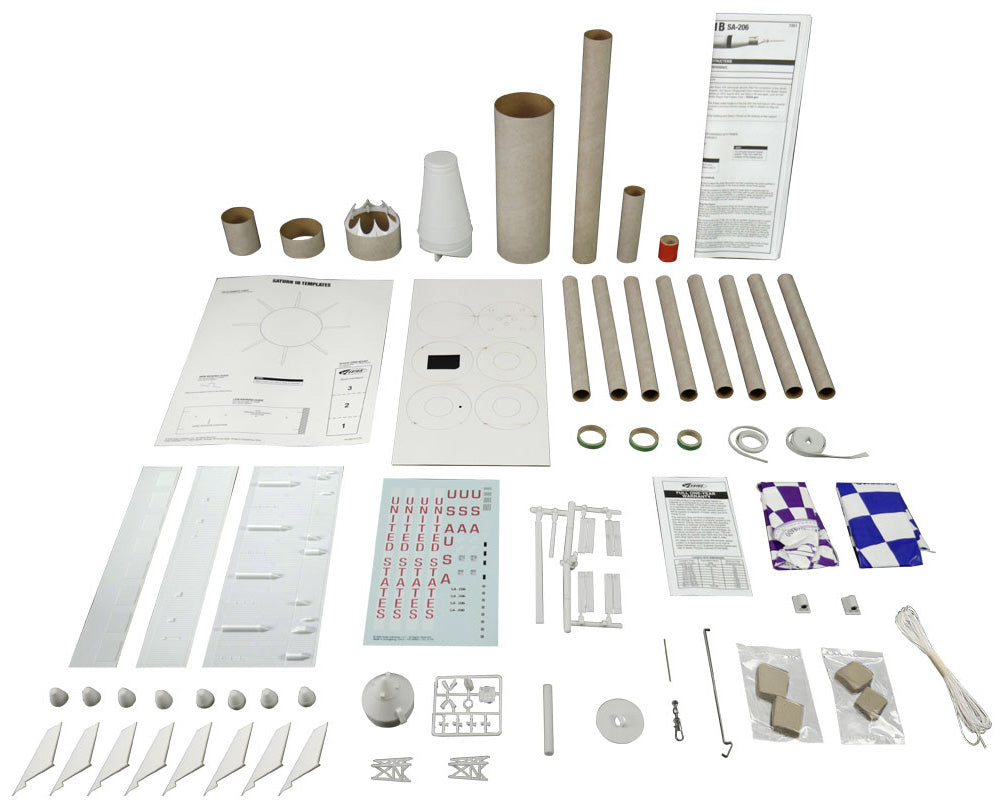

The Estes Saturn 1B SA-206 is a stunning 1:100 scale recreation of the Saturn 1B and Apollo spacecraft stack as it appeared in 1973 for the launch of the first Skylab crew. Every detail is there, from the Launch Escape System atop the Apollo Command and Service Module, to the first-stage H-1 engine nozzles (remove for launch). Textured body wraps, injection molded components, and other plastic formed parts add a level of realism to this Master-Level kit that every scale modeler will appreciate. Launch your finished model using one of the recommended Estes engines for a spectacular liftoff and dazzling two-piece recovery under dual parachutes. On display or in the air, the Estes Saturn 1B is a marvelous addition to any fleet.
WHAT YOU NEED TO BUILD: Pencil, #220 #320 #400 and #600 sandpaper, ca, ca accelerator, epoxy, yellow glue, tube-type plastic cement, liquid plastic cement, putty for plastic models, sanding sealer, tweezers, hobby knife, sharp blades, masking tape, permanent spray adhesive (not artists’ or repositionable), paint (flat black, flat white, silver). (Tools, construction and finishing supplies not included.)
WHAT YOU NEED TO LAUNCH (sold separately): Porta-Pad E Launch Pad and Pro Series II Launch Controller, Estes model rocket engines, starters and recovery wadding. Six C 1.5V high quality AA alkaline batteries are also required for launch controller (not included).
| Recommended Engines |
C11-3, D12-3, E12-4, E12-6 |
|---|---|
| Projected Max Altitude |
1000 ft. (305 m) |
| Recovery System |
1x 15 in. (38.1 cm) Parachute |
| Length |
26.8 in. (68.1 cm) |
| Diameter |
2.62 in. (67 mm) |
| Estimated Weight |
6.9 oz. (196 g) |
| Estimated Assembly Time |
10 Hours (painting and glue drying time not included) |
| Fin Materials |
Injection molded plastic |
| Decal Type |
Waterslide |
| Launch System |
E Launch Pad and Pro Series II Launch Controller |
| Launch Rod Size |
3/16" Maxi Rod (sold separately) |
| Age Recommendation |
Estes model rocketry is recommended for boys and girls ages 10+ with adult supervision for those under 12, and rocketeers of all ages. |
