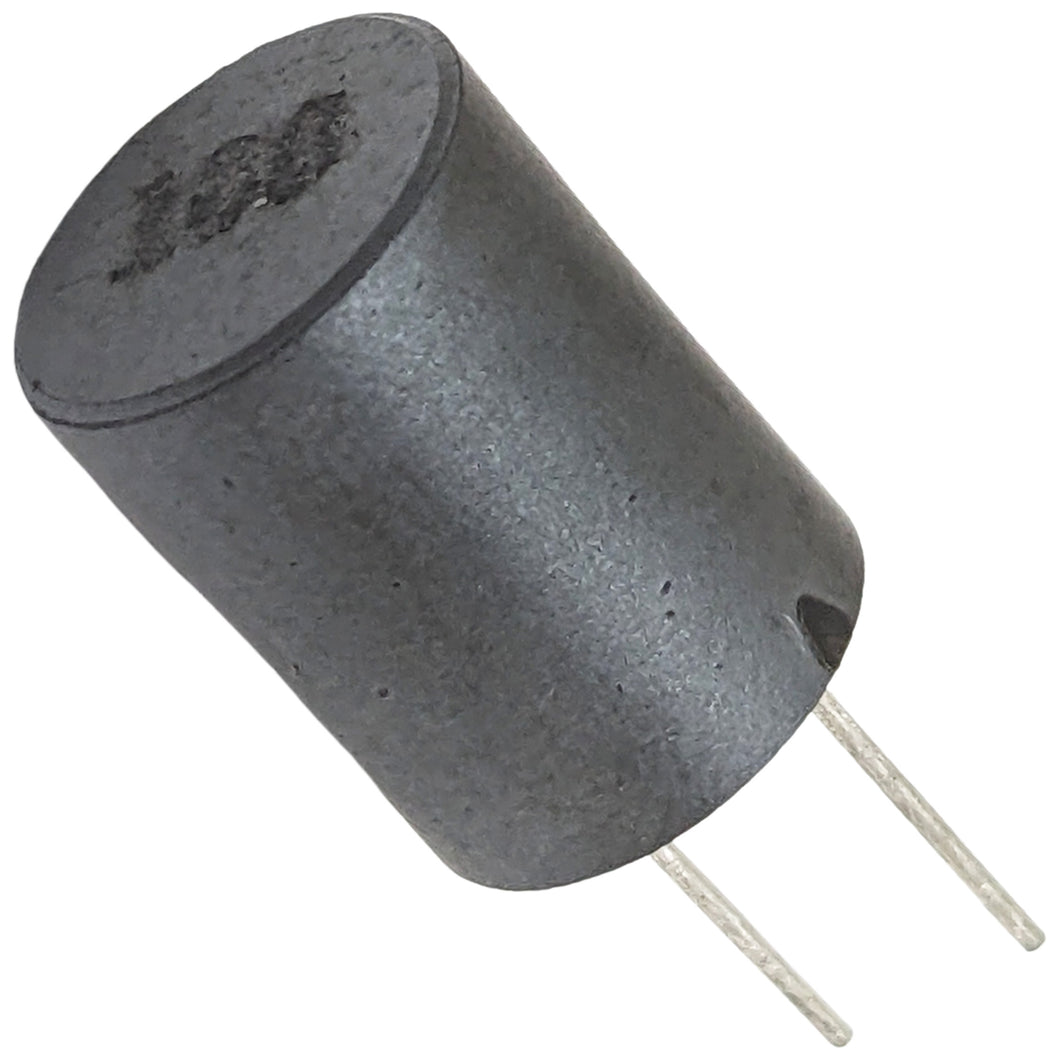

- Type: Radio Frequency Choke
- Inductance: 100 mH
- Maximum DC Current: 30 mA
- Maximum DC Resistance: 150 Ohms
- Termination: Through Hole
Electrical Specifications:
Inductance L: 100mH (±10%)
Test Frequency: 25.2 KHz
Q Min: 30
DCR Max: 150Ω
Wire Diameter: 0.08
Turns REF: 1590 TS
General Specifications:
Resistance to solder heat: 260°C 10 Sec.
Hand Soldering Temperature: 350°C ~ 400°C 3~5 Sec.
Size:
Diameter: 10.7mm
Height: 14.4mm (not including leads)
Lead length: 10mm
Distance between leads: 4.5mm
