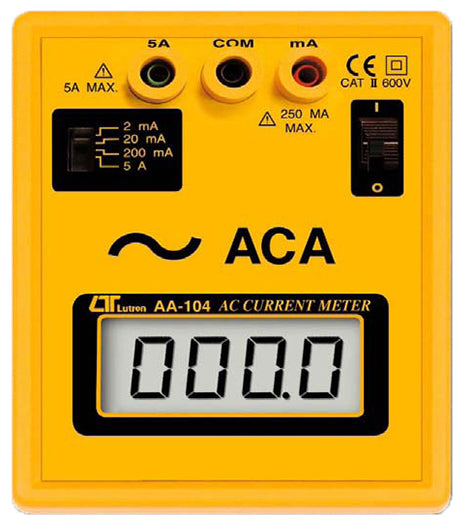

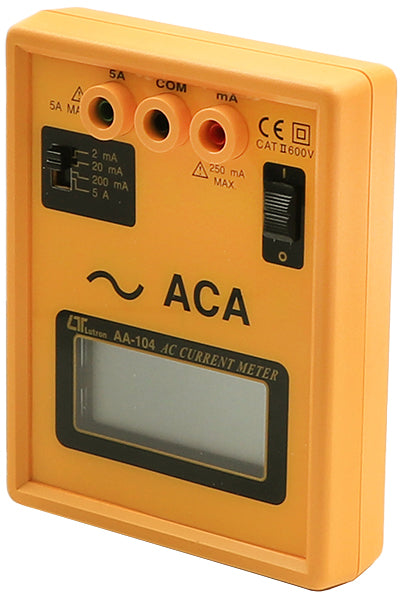

- Digital AC Current meter with large LCD display, 0.7" (18mm) digit height
- 4 ranges:
- 2 mA x 0.001 mA
- 20 mA x 0.01 mA
- 200 mA x 0.1 mA
- 5 A x 0.01 A
- Frequency Response: 40 Hz-500 Hz, sine wave
- Automatic zero adjustment
- All ranges feature a built-in fuse for over load protection
- Meets IEC1010 CATII 600V safety standard
- 9V battery operation
- Durable ABS plastic housing
- Compact size 5.8" x 4.6" x 2.0"
- Perfect for educational use, R & D, service, production line testing, and maintenance
This digital bench ACA meter is a high quality, easy to use meter at an economic price point. It provides portable protection. Applications include education, industrial, QC and R and D, Lab. Useful for students on the go. Compact and easy to handle.
Specifications:
Display: LCD, 0.7" (18mm) digit height
Measurement: AC current
Range / Resolution:
2 mA x 0.001 mA
20 mA x 0.01 mA
200 mA x 0.1 mA
5 A x 0.01 A
Accuracy:
2 mA/20 mA/200 mA range: ± ( 1.2% + 2d ) reading
5 A range: ± ( 1.5% + 3d ) reading
Voltage Drop of the full scale:
2 mA/20 mA/200 mA range: 200 mV
5 A range: 50 mV
Over load Protection:
2 mA/20 mA/200 mA range: 500 mA Fuse
5 A range: 5 A Fuse
Frequency Response: 40 Hz-500 Hz, sine wave
AC/DC converter: Average reading calibrated to RMS, sine wave
Zero Adjustment: Automatic
Over - input: display shows '1'
Input terminal: Standard banana terminals (Red, Black, Green)
Sampling Time: Approx. 0.4 second
Safety: Meets IEC1010 CATII 600V
Power Consumption: Approx. 1.9 mA
Operating Temperature: 32 to 122℉ (0 to 50℃)
Operating Humidity: Less than 80% RH
Weight (including battery): 0.34 lb. (313 g)
Dimensions: 5.8" x 4.6" x 2.0" (147 x 117 x 52 mm)
