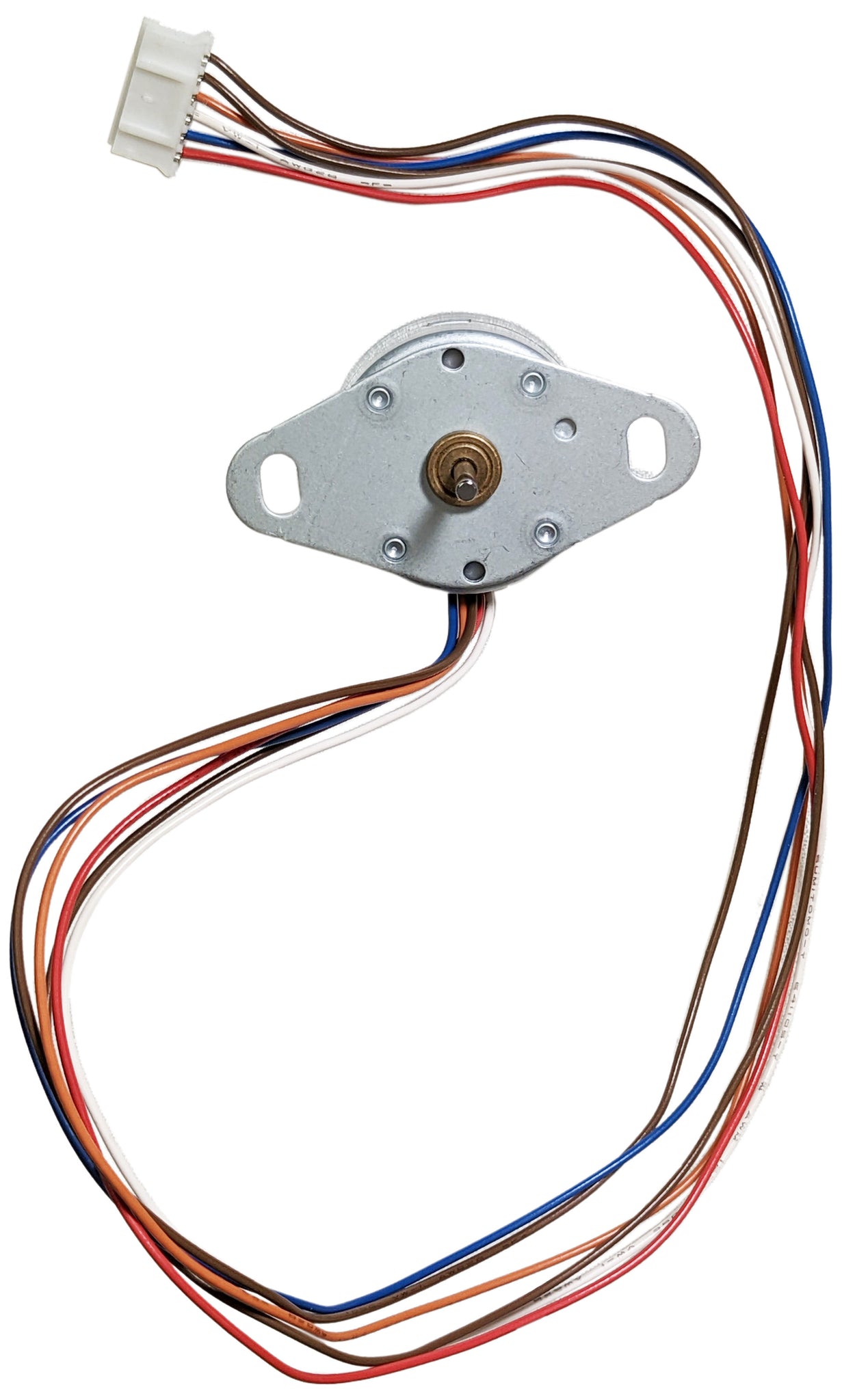

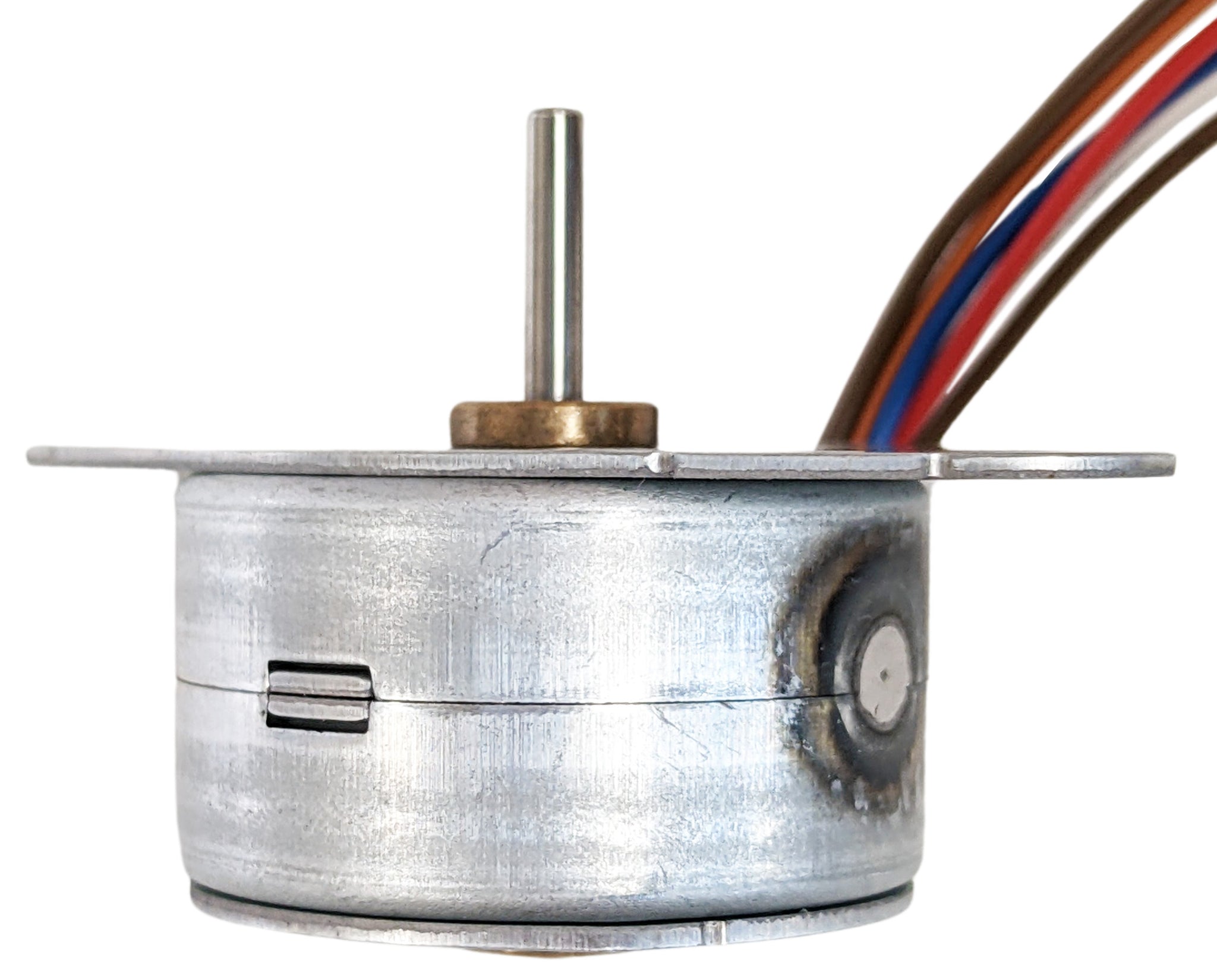

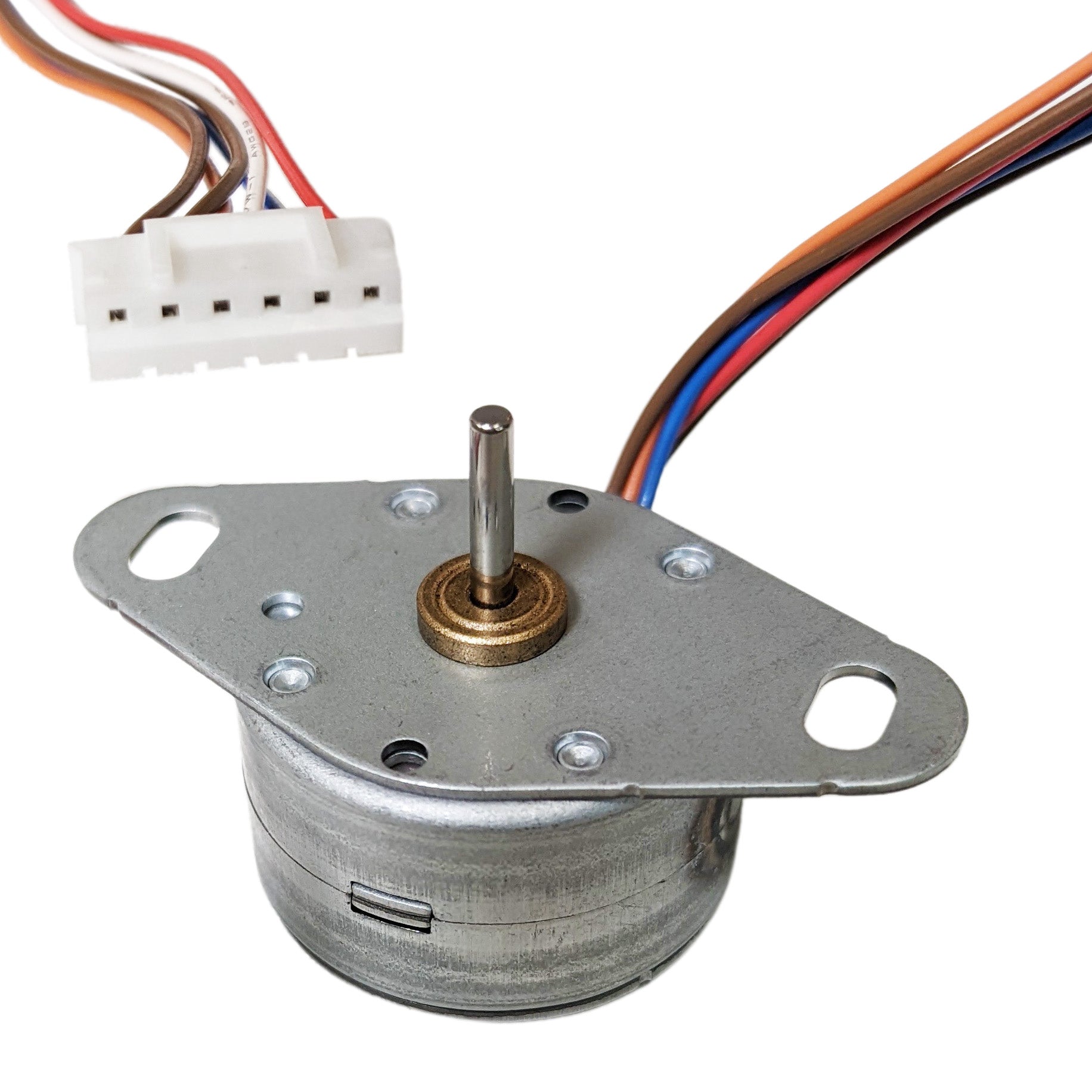

Stepper Motor DC 5V-9V, Unipolar, Dual Coil Center Tapped, 7.5° Per Step, 2mm Shaft Diameter
Stepper Motor DC 5V-9V, Unipolar, Dual Coil Center Tapped, 7.5° Per Step, 2mm Shaft Diameter
Stepper Motor DC 5V-9V, Unipolar, Dual Coil Center Tapped, 7.5° Per Step, 2mm Shaft Diameter
  • Load image into Gallery viewer, Stepper Motor DC 5V-9V, Unipolar, Dual Coil Center Tapped, 7.5° Per Step, 2mm Shaft Diameter
  • Load image into Gallery viewer, Stepper Motor DC 5V-9V, Unipolar, Dual Coil Center Tapped, 7.5° Per Step, 2mm Shaft Diameter
  • Load image into Gallery viewer, Stepper Motor DC 5V-9V, Unipolar, Dual Coil Center Tapped, 7.5° Per Step, 2mm Shaft Diameter

Stepper Motor DC 5V-9V, Unipolar, Dual Coil Center Tapped, 7.5° Per Step, 2mm Shaft Diameter

29STP6
$8.99
$8.99
Sold out
Shipping calculated at checkout.
  • DC 5V-9V stepper motor, unipolar
  • Dual coil center tapped
  • 100 ohm coil
  • 7.5 degrees / step
  • 6 wire leads with connector
  • Shaft Diameter: 2mm (0.08"), Shaft Length: 9mm (0.35")
  • Body Diameter: 24.8mm (0.98"), Body Height: 15mm (0.59")
  • Weight: 32.5 g (1.14 oz.)
  • Length of leads: 12"
