Dagu Motor and Encoder Kit for Robotics Projects, Includes Pair of Wheels, Motors, Encoder Kits (RS034)

29DGRS034
Regular price
$27.99
Sale price
$27.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

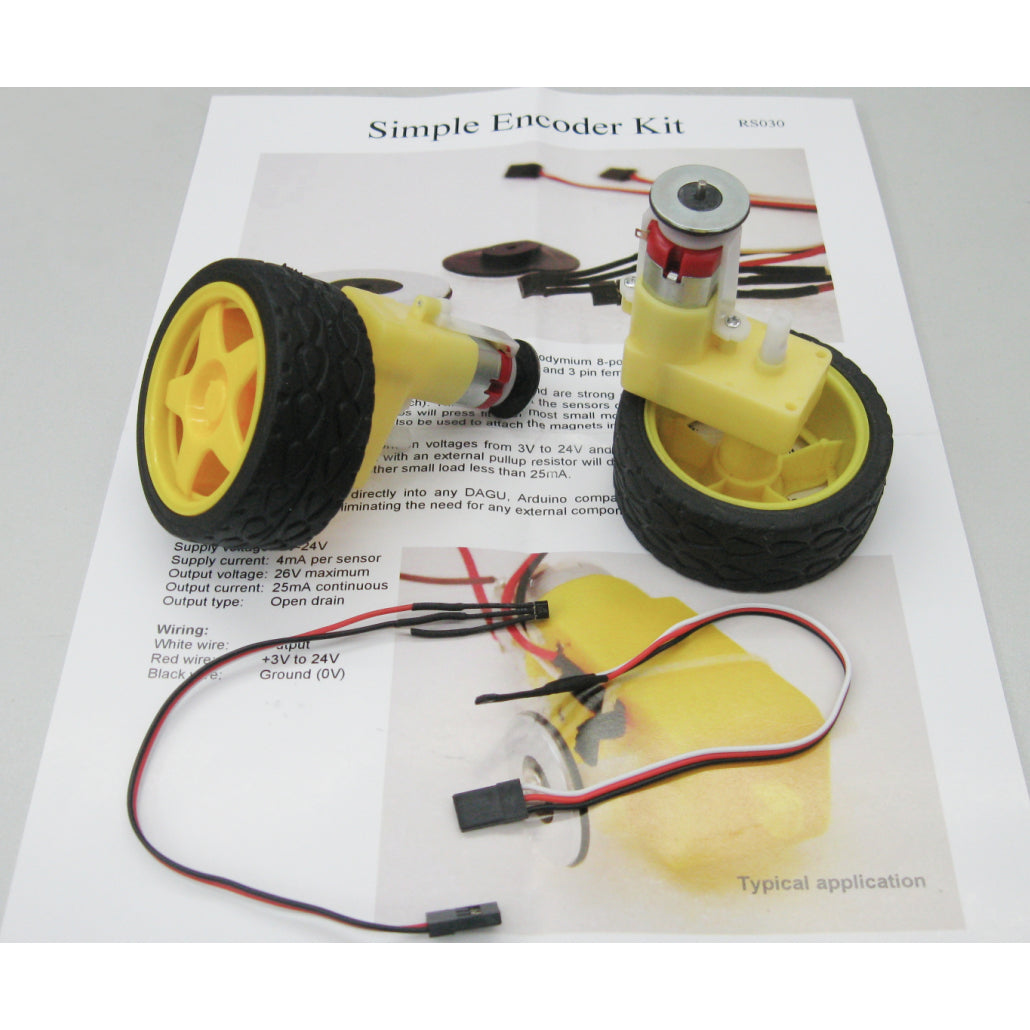

Perfect for any hobbyist or student, this simple motor and encoder kit from DAGU combines low cost, reliable encoders with powerful geared motors and 65mm diameter wheels with soft rubber tires and foam rubber inserts. Includes one pair (left and right). The new geared motors offer two shafts that the magnetic encoder disc can be attached to. When attached to the output shaft the encoder output will change state (high to low or low to high) 8 times per wheel revolution. When the encoder disc is fitted onto the motor shaft the resolution of the encoder is 948 state changes per revolution.

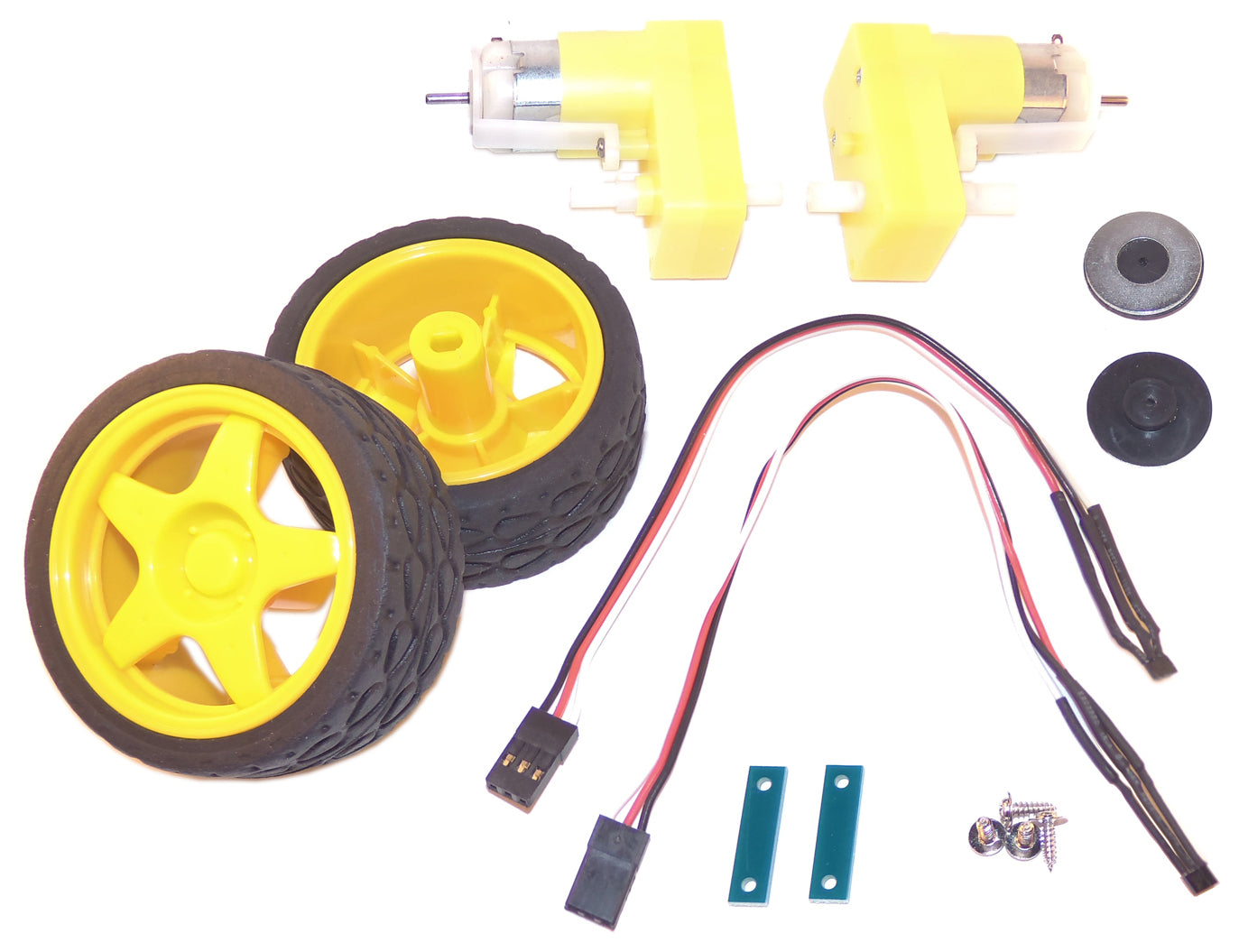

Includes: 2 wheels, 2 motors, 2 encoder kits, and screws

Encoder type: 8-pole neodymium magnet and hall-effect sensor

Encoder output: Open drain with short circuit protection

Encoder voltage: 3V - 24V with reverse polarity protection

Encoder resolution: 8 state changes / revolution when mounted on the output shaft 948 state changes / revolution when mounted on the motor shaft

Motor voltage: 3V - 6V

No load current: 200mA

Stall Current: 3A @ 6V 1.5A @ 3V

Gearbox ratio: 118.5:1

Wheel Speed: 135rpm @6V unloaded
