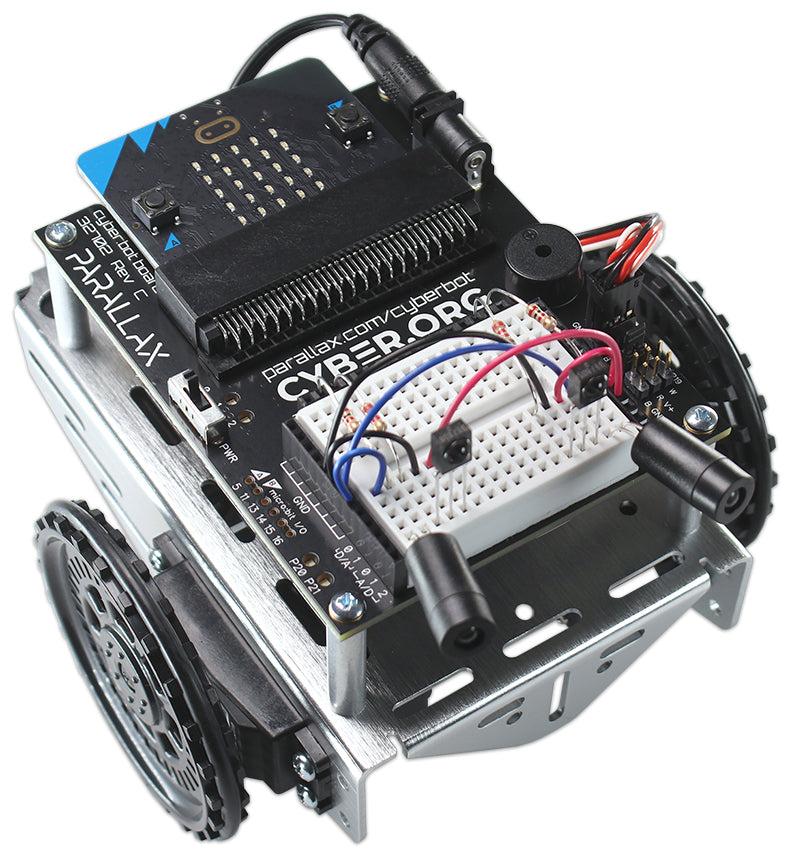

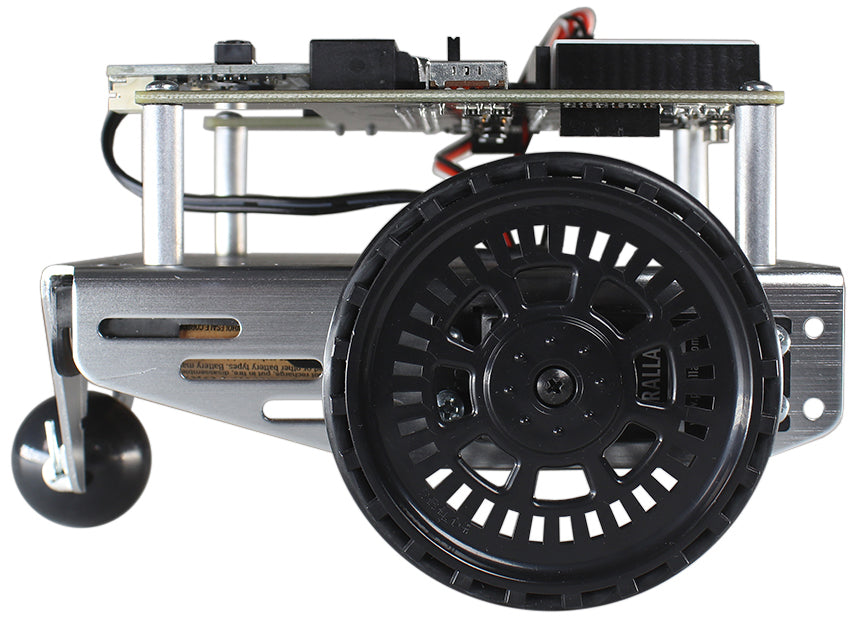

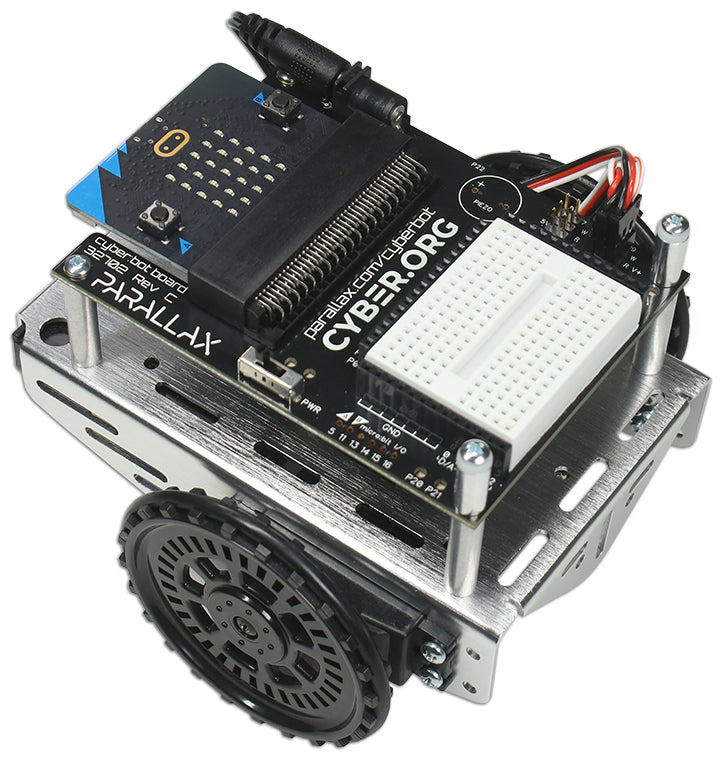

cyber:bot Robot Kit Overview:
The cyber:bot robot puts the BBC micro:bit module (may include v 1.5 or v2, both are compatible) on the Parallax small robot! The cyber:bot robot adds a tangible hardware dimension to Python-focused computer science, CTE and cybersecurity programs. This form factor is a proven STEM success in classrooms from middle school into college, leveraging the add-ons available for this chassis. A pre-programmed onboard Propeller Multicore Microcontroller assists the micro:bit, handling the real-time servo motor control and sensors built on the breadboard. This enables more robust robotic applications that go beyond what the micro:bit can do on its own.
The cyber:bot robot is a joint project of Parallax Inc. and CYBER.ORG, the academic initiative of the Cyber Innovation Center.
Features:
- Python-programmable with Mu software or online MicroPython editor
- cyber:bot board neatly connects the micro:bit to the Propeller Multicore Microcontroller and robot hardware
- Propeller multicore microcontroller pre-programmed with cyber:bot firmware manages sensors and servo motor control

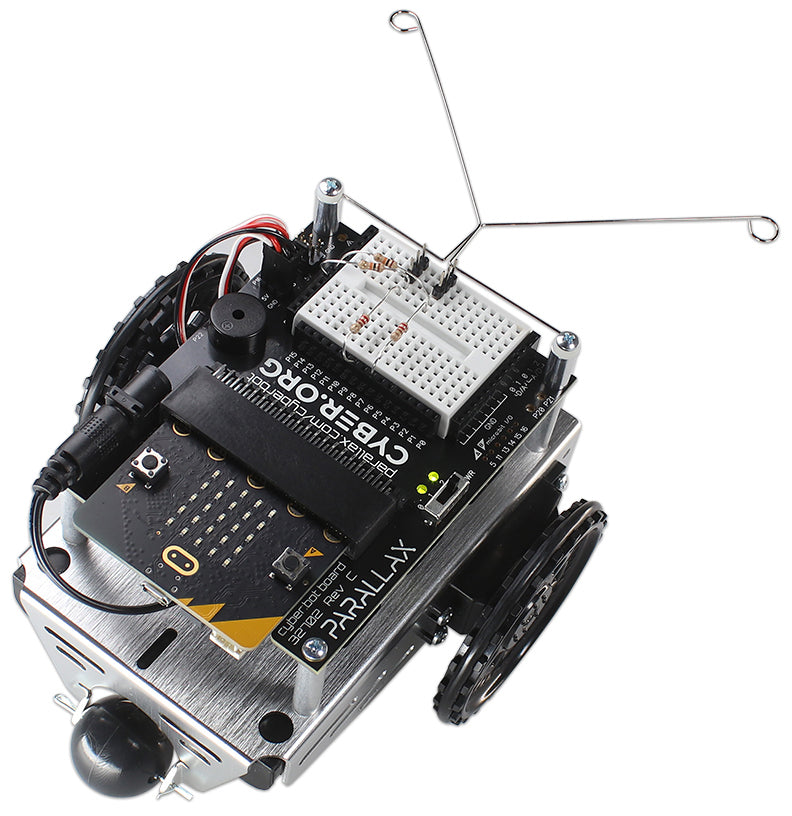

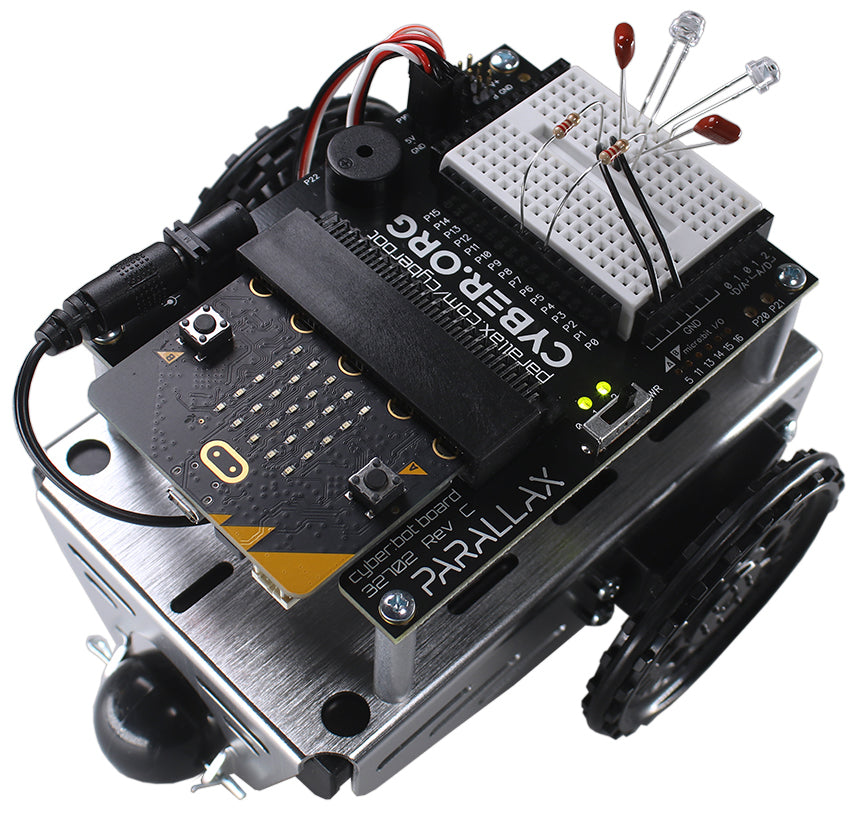

- Build DIY sensor circuits on the breadboard that use touch, visible light, and infrared light
- Compatible with Parallax small robot add-ons including the Ping))) Ultrasonic Distance Sensor, LaserPING 2m Rangefinder, QTI Line Follower Kit, Gripper Kit, Crawler Kit, and Parallax Feedback 360° High Speed Servos.
- Free online Robotics and Cybersecurity tutorials see the Parallax website's cyber:bot Tutorial Series page
- Free micro:bit robotics curriculum resources for educators
- RoHS CE and UKCA Declarations of Conformity for this kit are available under the Downloads tab of the cyber:bot page on the Parallax website.
Requires 5 AA 1.5 V alkaline batteries or 5 1.2 V nickel-metal hydride rechargeable batteries, not included. Assembly required, no soldering necessary.
cyber:bot Robot Kit – with micro:bit Kit Contents:
- (1) micro:bit module (#32715)
- (1) cyber:bot board (#32702)
- (2) Parallax Continuous Rotation Servos (#900-00008)
- (1) Small Robot Chassis (#700-00002)
- (2) Small Robot Wheel and Tire (#28114)
- (1) Small Robot Electronics Pack (#572-28132)
- (1) Small Robot Hardware Pack (#570-35000)
- (1) 5AA Battery Holder, Barrel Jack (#753-00007)
- (1) USB A to Micro B Cable (#805-00016)
- (1) Extra Hardware for cyber:bot board (#570-00002)
- Parallax Pocket Screwdriver (#700-00064)
Note: The cyber:bot board style/revision may vary depending upon component availability.
Note: A shunt jumper connects two pins next to each set of servo port 3-pin headers. This jumper selects the servo port voltage (5V or VIN) and the port will not receive power without this jumper. If replacements for this part are needed, please order Parallax part #452-00043; there are three per board.
