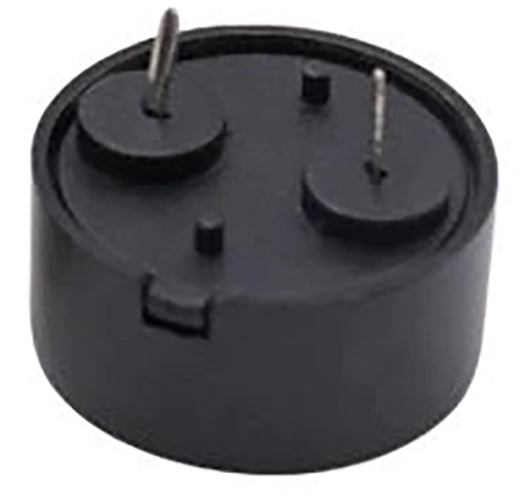

Buzzer Transducer, Externally Driven Piezo 5mA, 80dB @5V, 10cm, Through Hole PC Pins
Buzzer Transducer, Externally Driven Piezo 5mA, 80dB @5V, 10cm, Through Hole PC Pins
  • Load image into Gallery viewer, Buzzer Transducer, Externally Driven Piezo 5mA, 80dB @5V, 10cm, Through Hole PC Pins
  • Load image into Gallery viewer, Buzzer Transducer, Externally Driven Piezo 5mA, 80dB @5V, 10cm, Through Hole PC Pins

Buzzer Transducer, Externally Driven Piezo 5mA, 80dB @5V, 10cm, Through Hole PC Pins

26TD02
$8.99
$8.99
Sold out
Shipping calculated at checkout.
  • Rated Voltage: 5Vo-p
  • Operating Voltage: 1-30Vo-p
  • Sound Pressure Level: Min 80dB
  • Current: Max 5mA
  • Oscillation Frequency: 4000Hz
  • Capacitance at 1000Hz (nF): 11±30%
  • Operating Temperature: -20~+120℃
  • Storage Temperature: -30~+80℃
  • Mass: 0.7g
  • Housing Material: PBT
