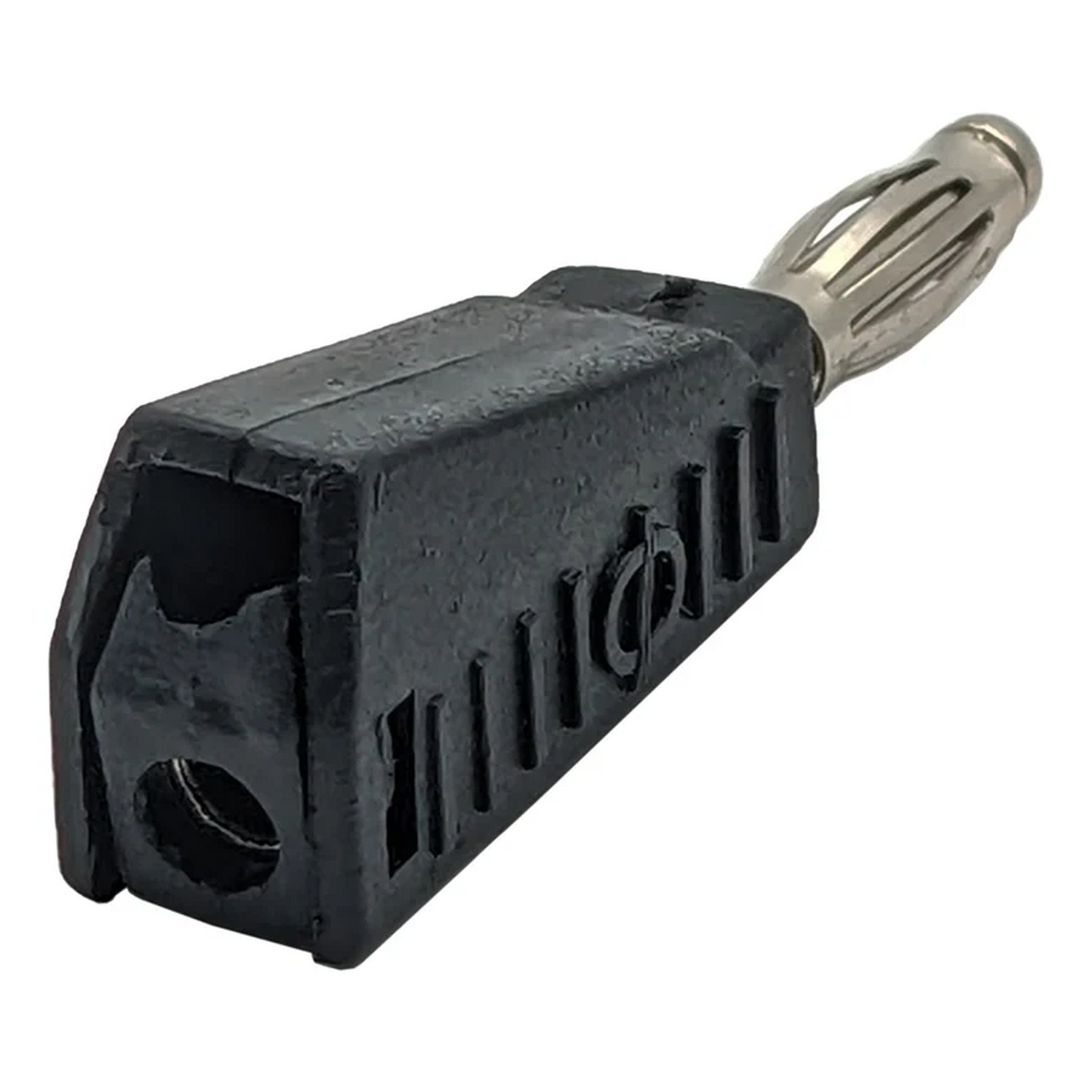

This 10 pack black stackable banana plug set fits standard 4mm banana sockets and is made for building or repairing test leads. Each plug solders to test lead wire with an outer diameter under 3mm, and its stackable design lets another plug connect to the back. The contacts are nickel-plated, heat-treated beryllium copper in a PVC handle, rated 30A.
Key Features
- Pack of 10 identical plugs
- Fits standard 4mm banana sockets
- Stackable: another plug can connect to the back
- Solders to wire under 3mm outer diameter
- Nickel-plated, heat-treated beryllium copper contact
- Black PVC handle
- Rated 30A
Specifications
| Quantity | 10 |
|---|---|
| Color | Black |
| Mates with | Standard 4mm banana sockets |
| Termination | Solder |
| Wire outer diameter | Under 3mm |
| Plug material | Nickel-plated, heat-treated beryllium copper |
| Handle | PVC |
| Current | 30 A |
| Insulation | DC 500V, 100 MΩ |
| Withstand voltage | AC 1,500V (1 minute) |
| SKU | 070332271PK10 |
What's Included
- 10 black stackable banana plugs
Ideal For
Making or repairing black multimeter and power supply test leads.
Frequently Asked Questions
What wire does it fit?
Test lead wire with an outer diameter under 3mm, soldered to the plug.
What does stackable mean?
The back of the plug has a socket, so another banana plug can be connected to it to tap the same point.
What does 'DC 500V 100MΩ' mean?
It is the insulation resistance rating: at least 100 megohms measured at 500 V DC.
