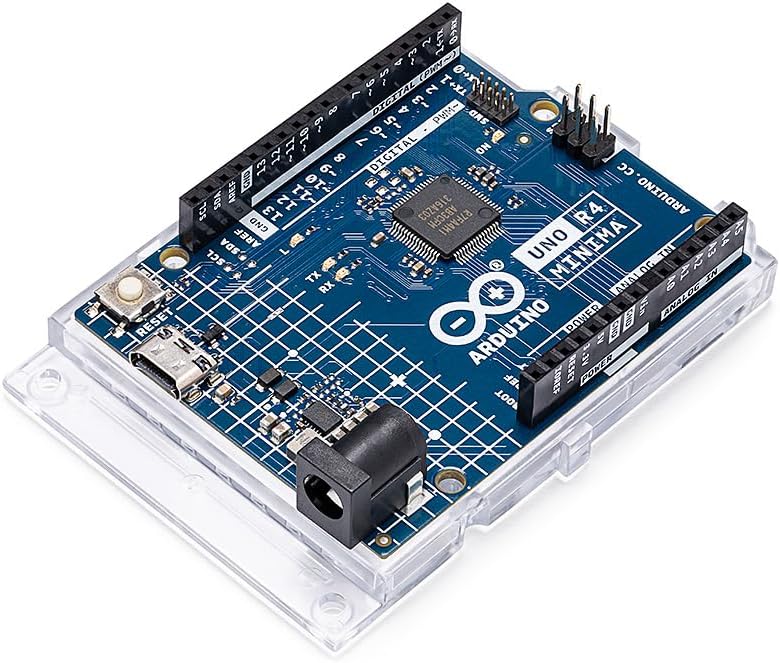

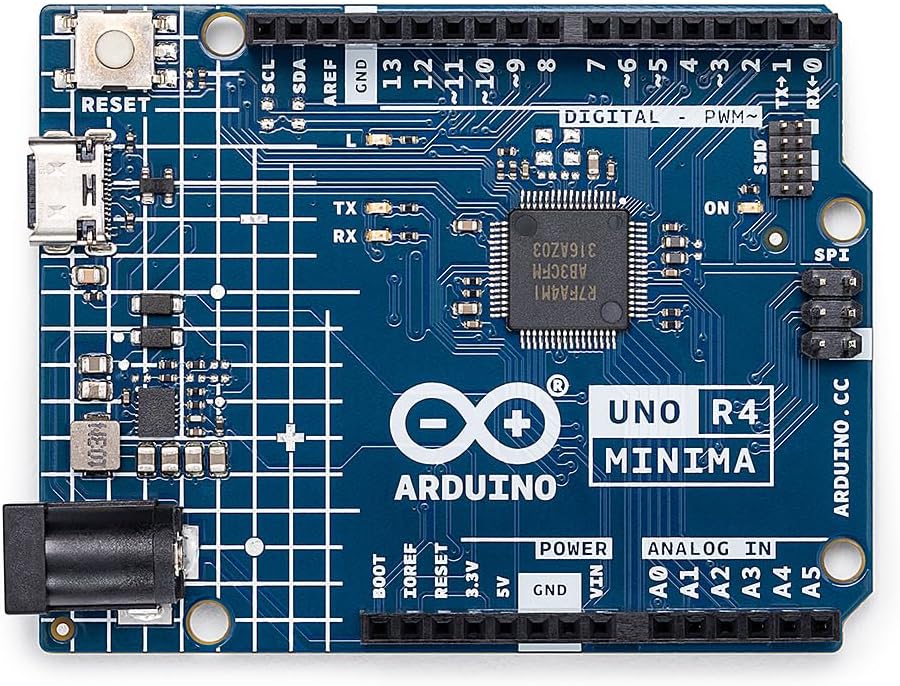

The Arduino UNO R4 Minima (ABX00080) is an UNO-format development board built on the Renesas RA4M1 32-bit Arm Cortex-M4 microcontroller at 48 MHz, with 256 kB flash and 32 kB RAM. It keeps the UNO R3 form factor, pinout and 5 V logic, so existing shields still fit, and adds a 12-bit DAC, CAN bus, op amp, SWD debug connector and USB-C. It accepts 6–24 V on VIN.

Key Features

  • Renesas RA4M1 (Arm Cortex-M4) at 48 MHz; 256 kB flash, 32 kB RAM
  • Same form factor, pinout and 5 V operating voltage as UNO R3
  • 12-bit DAC, CAN bus and op amp on board
  • Wide 6–24 V input range
  • SWD connector for external debuggers
  • USB-C with HID support (can act as a keyboard or mouse)

Specifications

Model Arduino UNO R4 Minima (ABX00080)
Microcontroller Renesas RA4M1 (Arm Cortex-M4)
Clock 48 MHz
Memory 256 kB flash, 32 kB RAM
USB USB-C
Digital I/O 14
Analog inputs 6
DAC 1 (12-bit)
PWM pins 6
UART / I2C / SPI 1 / 1 / 1
CAN 1 CAN bus
Operating voltage 5 V
Input voltage (VIN) 6–24 V
DC current per I/O pin 8 mA
Dimensions 68.85 × 53.34 mm
SKU 01ABX00080

What's Included

  • 1 × Arduino UNO R4 Minima board

Ideal For

UNO users wanting more speed and memory with existing shields, plus CAN, DAC and debugging.

Frequently Asked Questions

Will my UNO R3 shields work with the R4 Minima?
It keeps the UNO form factor, pinout and 5 V operating voltage, so shields designed for the UNO R3 are intended to fit and work.

Does the Minima have Wi-Fi?
No. The listing describes no Wi-Fi or Bluetooth on the Minima.

What is the SWD connector for?
Serial Wire Debug lets you attach an external debugger to step through code and inspect the microcontroller.
