- Measures AC/DC voltage up to 600 V, AC/DC current, resistance, frequency, capacitance and duty cycle
- CAT III 600 V safety rated
- Non-contact voltage detection enhances safety
- Audible continuity quickly identifies shorts and opens
- Diode test to verify diode polarity
- Data hold freezes the reading on the display for further analysis
- MIN/MAX recording records min/max measurements over time to show voltage fluctuations
- Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
- Combines user friendly features such as, auto power-off to conserve battery life, low battery warning, a “third hand” test probe holder, built-in test leads storage, a built-in flashlight, and a Velcro strap to hang the meter
- Auto and manual-ranging delivers maximum flexibility
- Backlit LCD display makes it easy to view results

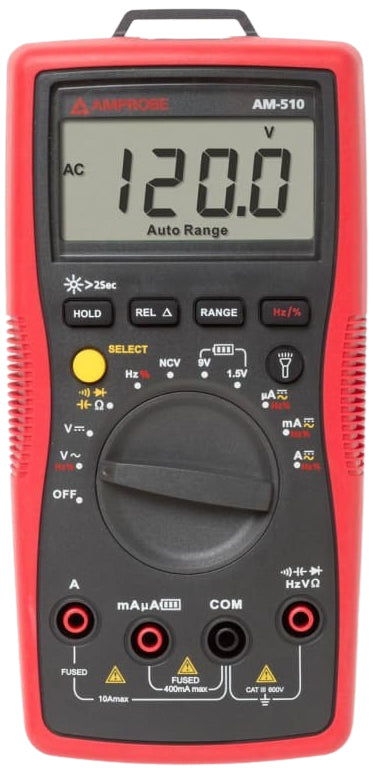

Compact yet tough, the Amprobe AM-510 autoranging digital multimeter delivers rugged, accurate performance for electrical maintenance applications like rewiring an electrical panel, electrical sockets, and automotive electrical problems. Its CAT III safety rating and ease of use make it ideal for high voltage multimeter applications. Innovative digital multimeter features expedite go/no-go checks, and the built-in flashlight makes it easy to see wires and fuses in the dark. Plus a rubber tilt stand and a probe holder give you a “third-hand” when you need it.
| Safety Rating |
CAT III 600 V |
|---|---|
| AC Voltage (V) |
600 V |
| DC Voltage (V) |
600 V |
| AC Current (A) |
10 A |
| DC Current (A) |
10 A |
| Microamps |
✓ |
| Resistance |
✓ |
| Capacitance |
✓ |
| Frequency |
✓ |
| Duty Cycle |
✓ |
| Relative Zero |
✓ |
| Diode Test |
✓ |
| Continuity Beeper |
✓ |
| Non-Contact Voltage |
✓ |
| Autoranging |
✓ |
| Battery Test |
✓ |
| Backlight |
✓ |
| Data Hold |
✓ |
| Auto Power Off |
✓ |
| FEATURE | AM-510 | Best Accuracy |
| AC Voltage | 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
+/- (1.0 % rdg + 3 LSD) @ 45 Hz to 400 Hz, 4 V to 400V ranges |
| DC Voltage | 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V |
+/- (0.8% rdg + 1 LSD) @ 4 V to 400 V ranges |
| Resistance | 400.0 Ω, 4.000 kΩ, 40.00 kΩ, 400.0 kΩ, 4.000 MΩ, 40.00 MΩ |
+/- (1.0% rdg + 2 LSD) @ 4 kΩ to 400 kΩ ranges |
| AC Current | 400.0 μA, 4000 μA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A |
+/- (1.2% rdg + 3 LSD) @ 400 μA to 400 mA ranges |
| DC Current | 400.0 μA, 4000 μA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A |
+/- (1.2% rdg + 3 LSD) |
| Frequency | 10 Hz to 10 MHz | +/- (0.1% rdg + 4 LSD) |
| Capacitance | 40.00 nF, 400.0 nF, 4.000 μF, 40.00 μF, 100.0 μF, 4000 μF |
+/- (3.0% rdg + 5 LSD) @ 400 nF to 40 μF ranges |
| Temperature | -40 °F to 1832 °F
-40 °C to 1000 °C |
+/- (1.8% rdg + 6 °F) @ >32 °F to 212 °F +/- (1.2% rdg + 3 °C) @ >0 °C to 100 °C |
| Number of temperature inputs | Single Thermocouple |
