7mm CdS Photocell (LDR) GL7516, 4K-10K Ohm Light Resistance at 10 Lux, 500K Ohm Dark
7mm CdS Photocell (LDR) GL7516, 4K-10K Ohm Light Resistance at 10 Lux, 500K Ohm Dark
7mm CdS Photocell (LDR) GL7516, 4K-10K Ohm Light Resistance at 10 Lux, 500K Ohm Dark
  • Load image into Gallery viewer, 7mm CdS Photocell (LDR) GL7516, 4K-10K Ohm Light Resistance at 10 Lux, 500K Ohm Dark
  • Load image into Gallery viewer, 7mm CdS Photocell (LDR) GL7516, 4K-10K Ohm Light Resistance at 10 Lux, 500K Ohm Dark
  • Load image into Gallery viewer, 7mm CdS Photocell (LDR) GL7516, 4K-10K Ohm Light Resistance at 10 Lux, 500K Ohm Dark

7mm CdS Photocell (LDR) GL7516, 4K-10K Ohm Light Resistance at 10 Lux, 500K Ohm Dark

08GL7516
Regular price
$0.75
Sale price
$0.75
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

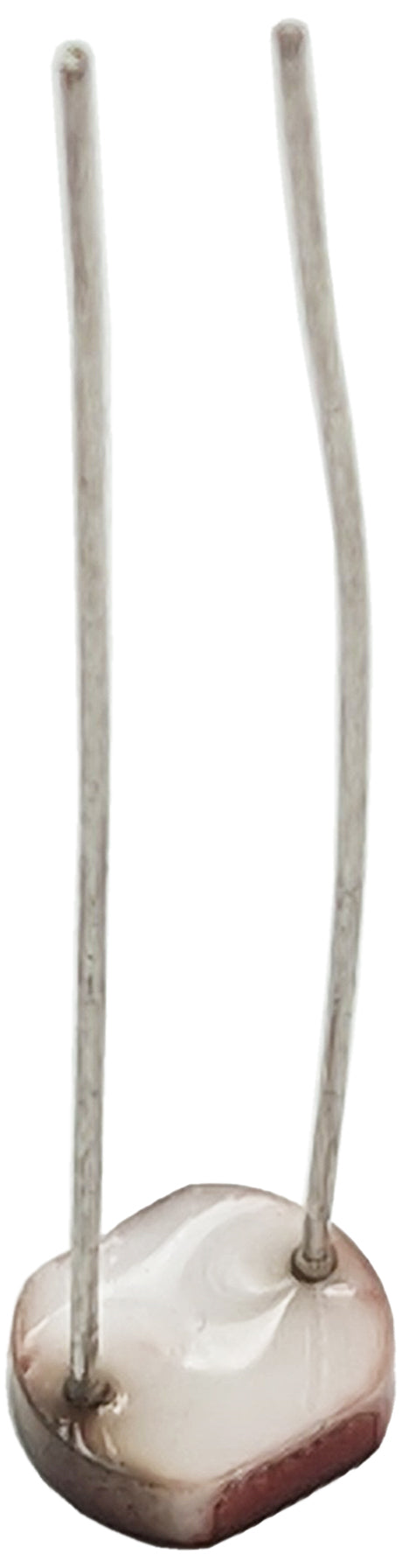

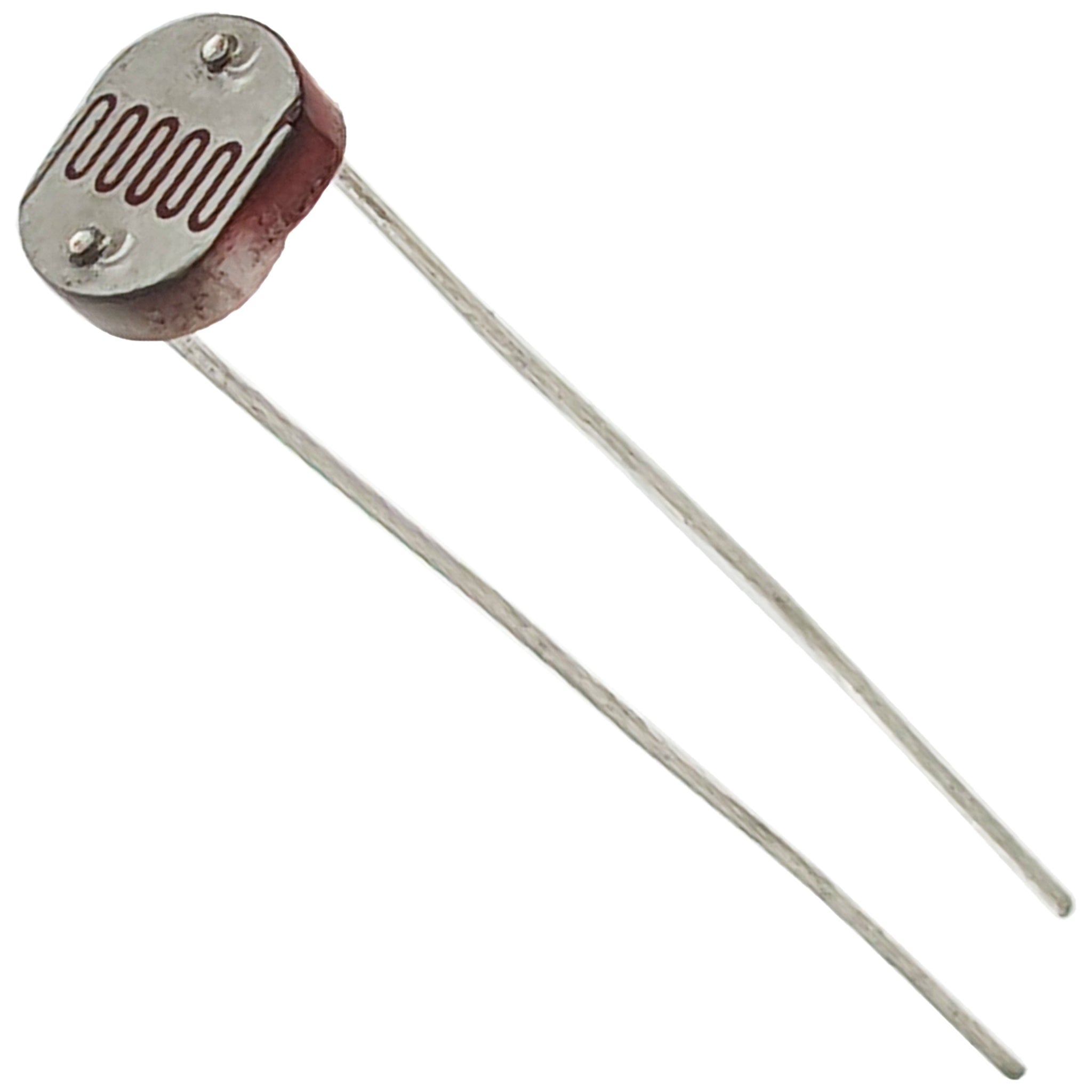

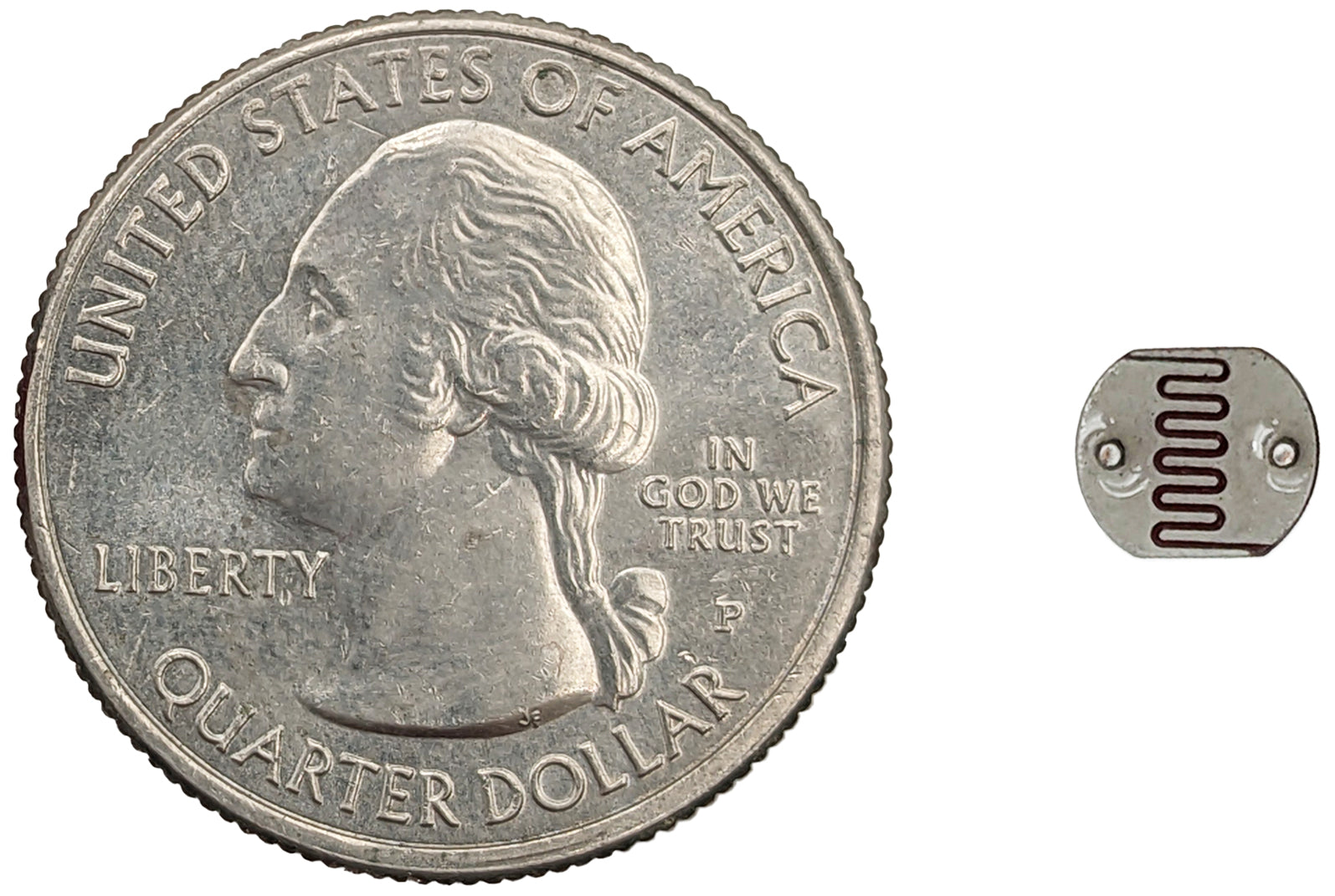

This is a 7mm cadmium sulfide (CdS) photoconductive cell with 4K-10K ohm resistance at 10 lux and 500K ohm in the dark. Its resistance falls as light increases, making it an easy-to-use light sensor. It is epoxy encapsulated with 33mm leads and a 550nm spectral peak.

Key Features

  • 7mm cell with 33mm leads
  • Light resistance 4K-10K ohm at 10 lux; dark resistance 500K ohm
  • Cadmium sulfide (CdS) construction
  • Epoxy encapsulated with quick response
  • Spectral peak 550nm
  • Operating temperature -30°C to +70°C

Specifications

Size 7mm
Lead length 33mm
Light resistance (10 lux) 4K-10K ohm
Dark resistance 500K ohm
Pmax (min) 150 (unit not stated)
Spectral peak 550nm
Material Cadmium sulfide (CdS)
Operating temperature -30°C to +70°C
SKU 08GL7516

What's Included

  • 1 × 7mm CdS photocell

Ideal For

Compact light sensors for night lights, alarms and Arduino projects.

Frequently Asked Questions

How do I use it with an Arduino?
Wire it in a voltage divider with a fixed resistor near its mid-range value and read the junction on an analog pin.

What does the dark resistance tell me?
It is the resistance in darkness (500K ohm here); the larger the gap between light and dark values, the easier it is to detect a change.

Contains cadmium sulfide; dispose of according to local electronics regulations.
