- Scale Model of the US Army’s M-104 surface-air missile
- SKILL LEVEL: The U.S. Army Patriot M-104 is an Intermediate level rocket which will help a budding rocketeer develop some basic model building and finishing skills.
- RECOMMENDED ENGINES: B4-4, B6-4, B6-6, C6-5
- PROJECTED ALTITUDE: 600 ft. (183 m) on a C6-5

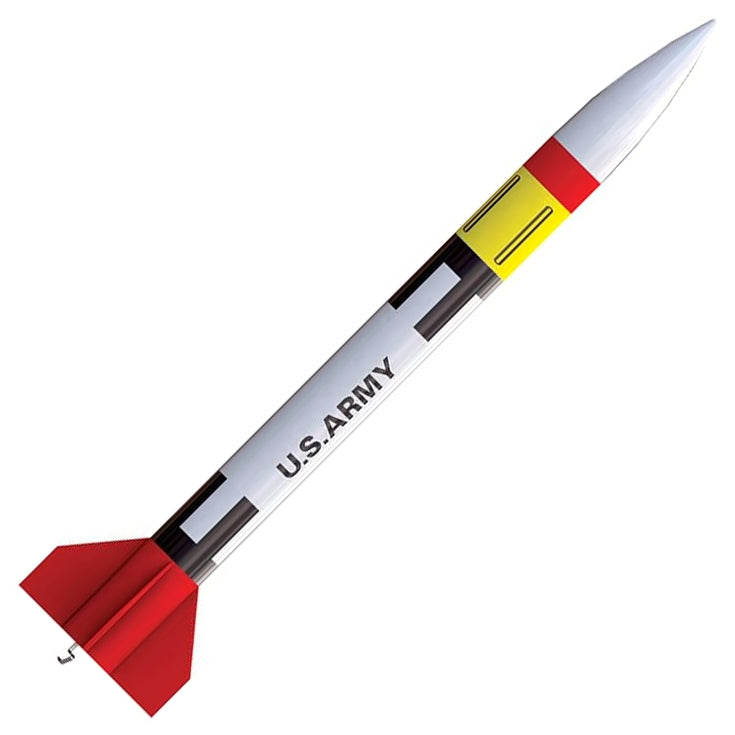

What a classic! That’s what you’ll get with the Estes U.S. Army Patriot M-104 rocket. This 1:10 scale model rocket of the desert hero and mother-of-all air defense missiles is based on the U.S. M-104 surface-air missile.
Now, you have the chance to launch a model rocket using Estes standard engines and watch it soar to heights of up to 600 feet. The U.S. Army Patriot M-104 Rocket is a perfect option to build for your first scale model rocket.
This Desert Storm Veteran features a top notch, two piece body tube as well as authentic replica self-stick decals. The U.S. Army Patriot M-104 is easy to build and can be finished in a single morning or afternoon.
This classic scale model can fly up to 600 feet high on Estes standard model rocket engines and recovers with a 12 inch parachute. So, if you don't have this one, get it. It's a scale ARMY classic that every rocketeer should have in their rocket arsenal.
What You Need to Build (sold separately): Scissors, pencil, ruler, fine sandpaper, carpenter’s glue, hobby knife, masking tape, primer (white), paint (gloss red) and clear coat (optional).
What You Need to Fly (sold separately): Estes Porta-Pad II Launch Pad and Electron Beam Launch Controller, Estes model rocket engines, starters and recovery wadding. Four 1.5V high quality AA alkaline batteries.
Technical Specifications:
Recommended Engines: B4-4, B6-4, B6-6, C6-5
Projected Max Altitude: 600 ft. (183 m)

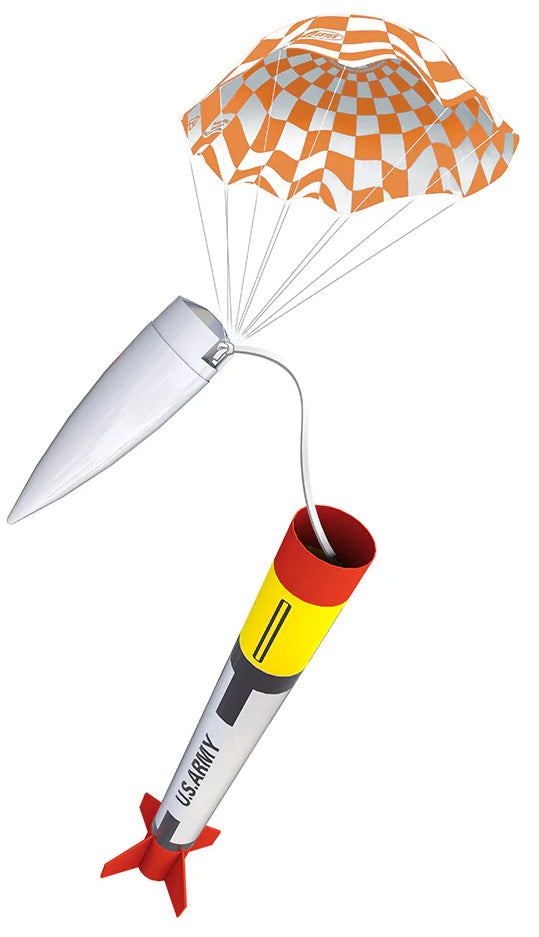

Recovery System: 12 in. (30.5 cm) Parachute
Length: 21.3 in. (54.1 cm)
Diameter: 1.64 in. (42 mm)
Weight: 2 oz. (56.7 g)
Fin Material: Laser Cut Balsa Wood
This product recommended for children ages 10+ with adult supervision for those under 12, and rocketeers of all ages.
