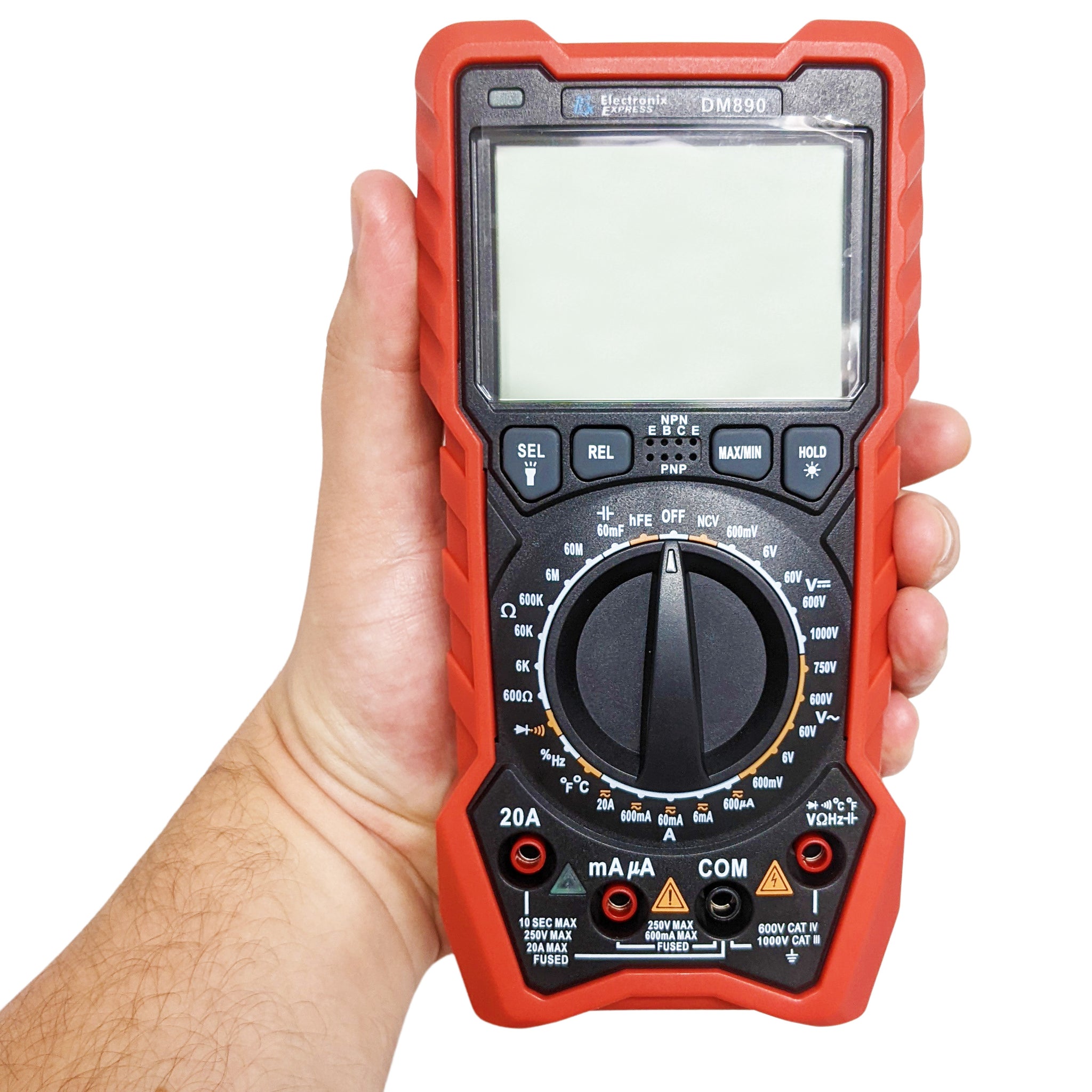

- The DM890 handheld digital multimeter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Continuity, Frequency, Duty Cycle, Temperature, NCV, along with Triode hFE and Diode test.

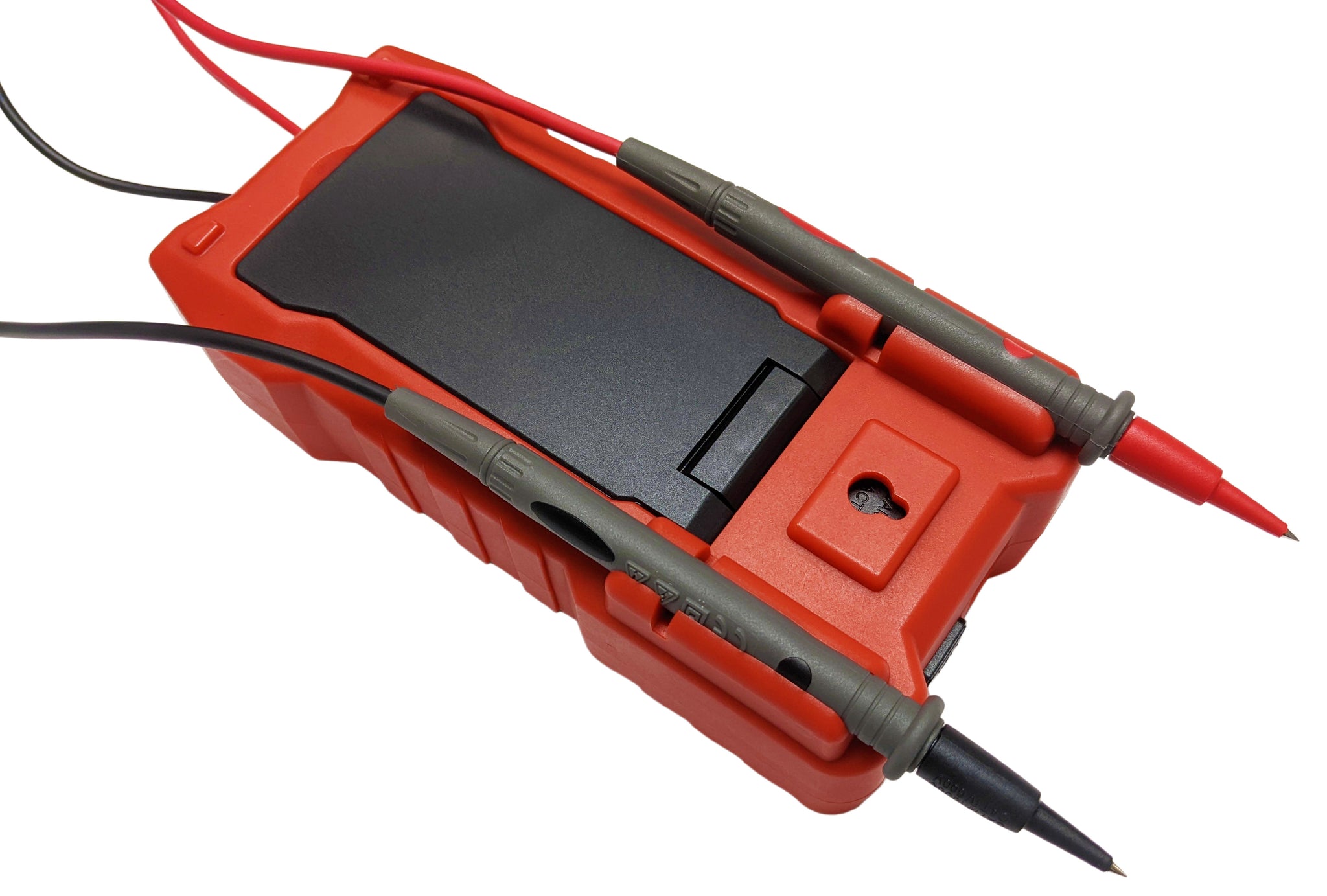

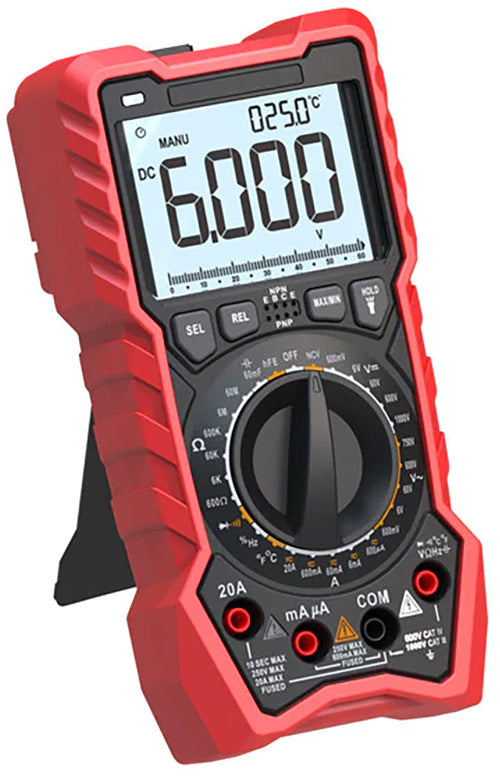

- True-RMS. Auto and Manual ranging. Large 6000 counts LCD display with backlight. Features auto power off, hold function, min/max function. Collapsible stand and rugged jacket with built-in lead holders. Safety Rating: CAT IV 600V CAT III 1000V.
- Measuring Voltage Range: (DC) 600mV – 1000V; (AC) 600mV – 750V. Measuring Current Range: 20A
- Measuring Resistance Range: 600Ω – 60MΩ. Measuring Capacitance Range: 9.999 nF – 60mF. Measuring Temperature Range: -20°C – 1000°C / -4°F – 1832°F.

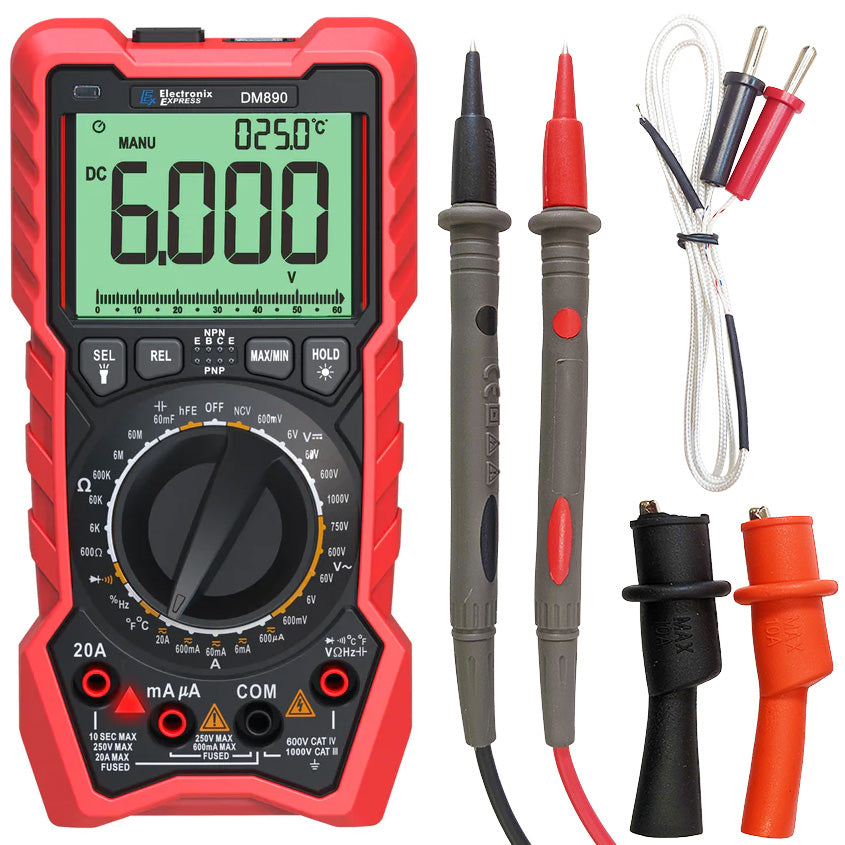

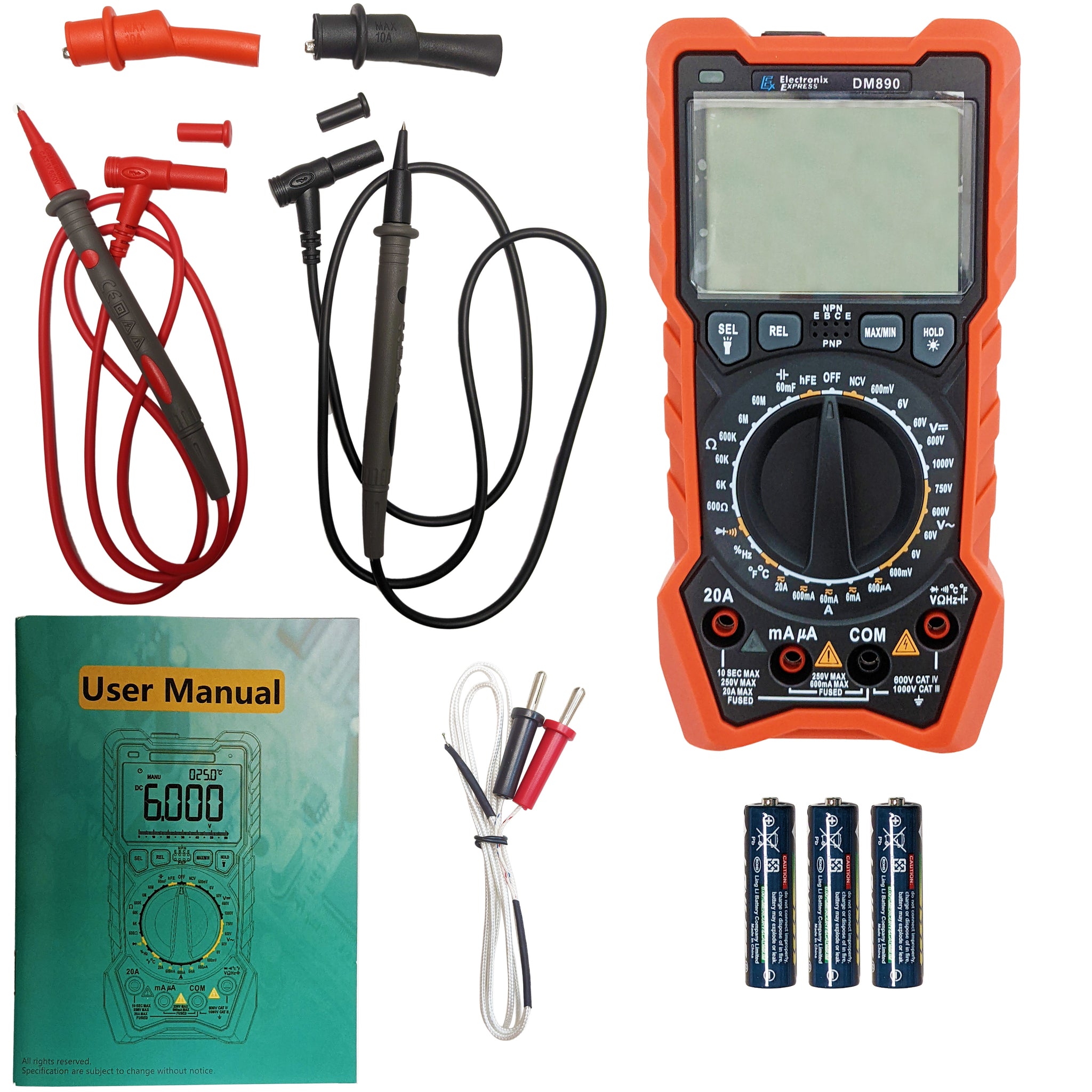

- Comes with leads, alligator clip attachments, temperature probe, three AA batteries, and user manual
The DM890 handheld digital multimeter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Continuity, Frequency, Duty Cycle, Temperature, NCV, along with Triode hFE and Diode test. The meter has a collapsible stand and a rugged jacket with built-in lead holders. Comes with leads, alligator clip attachments, temperature probe, three AA batteries, and user manual.

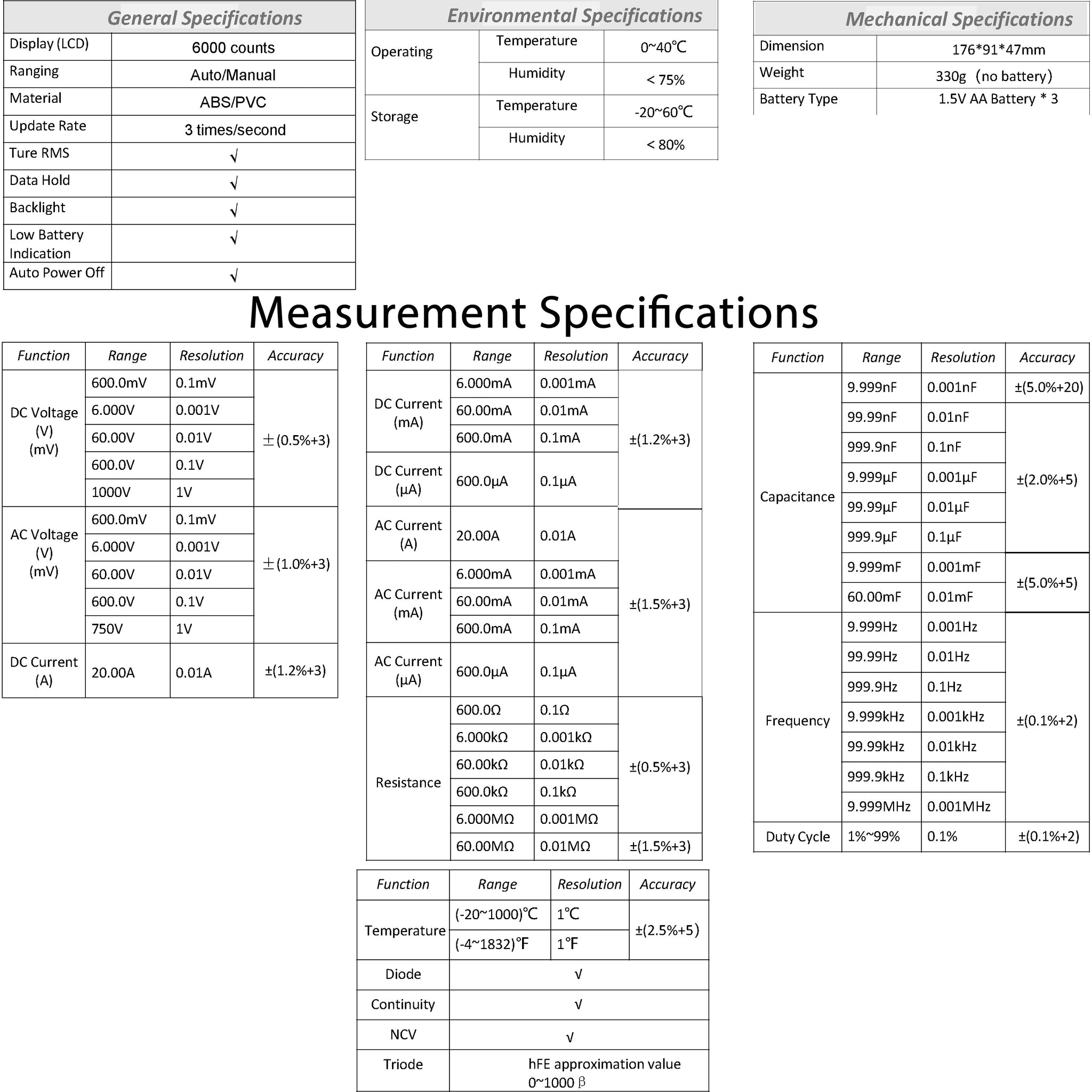

Specifications:
True-RMS
Auto and Manual ranging
Large 6000 counts LCD display with backlight
Auto power off, hold function, min/max function
Safety Rating: CAT IV 600V CAT III 1000V.
Measuring Voltage Range: (DC) 600mV – 1000V; (AC) 600mV – 750V
Measuring Current Range: 20A
Measuring Resistance Range: 600Ω – 60MΩ
Measuring Capacitance Range: 9.999 nF – 60mF
Measuring Temperature Range: -20°C – 1000°C / -4°F – 1832°F
