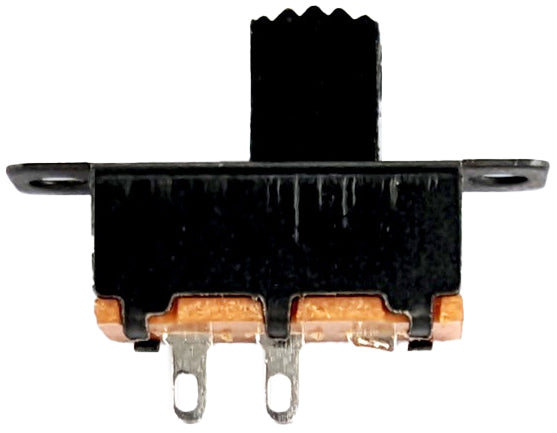

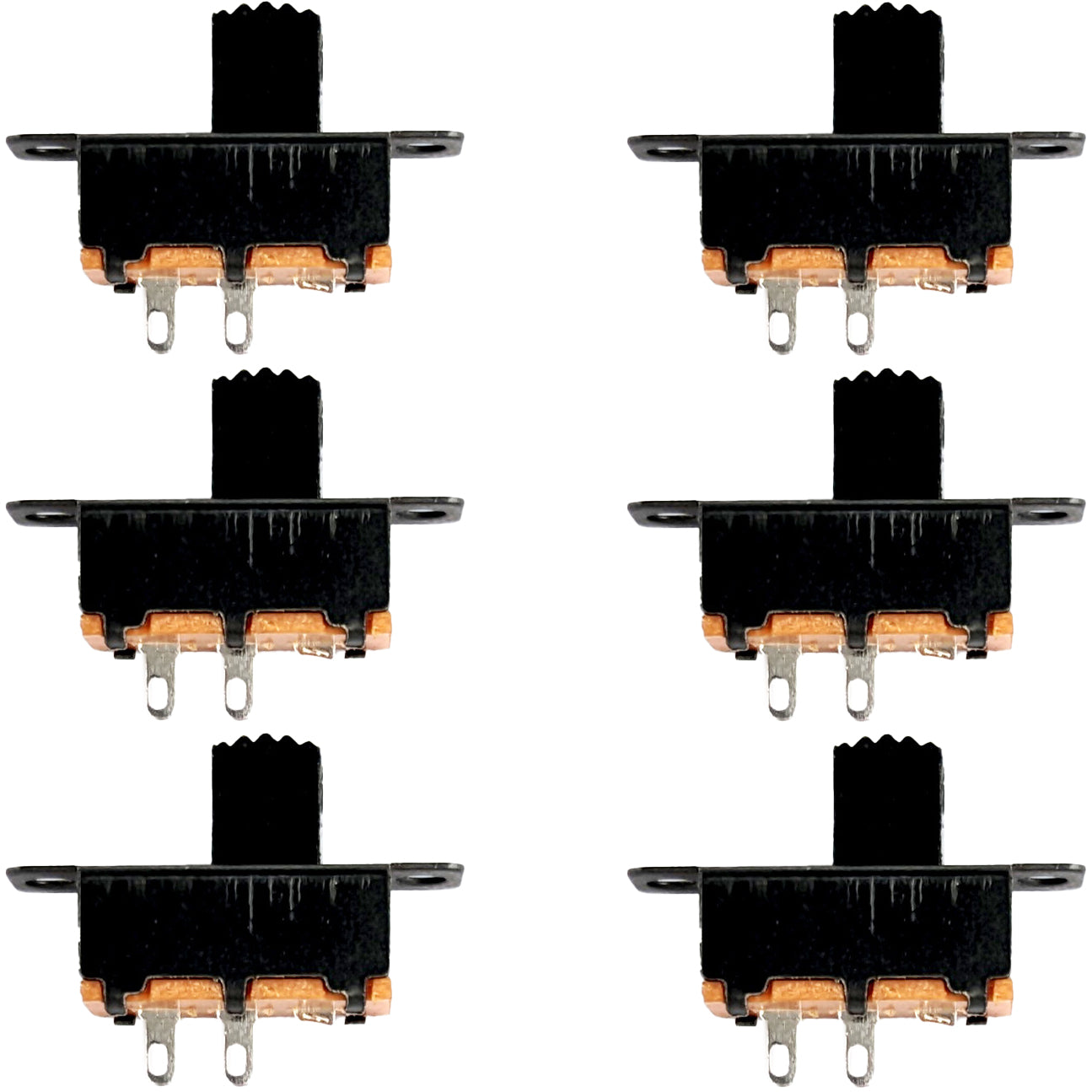

- Pack of 6 Mini Slide Switches
- Circuit: SPST
- Number of pins: 2

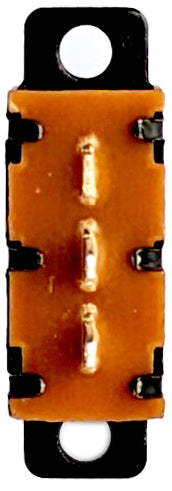

- Termination: Solder Lug

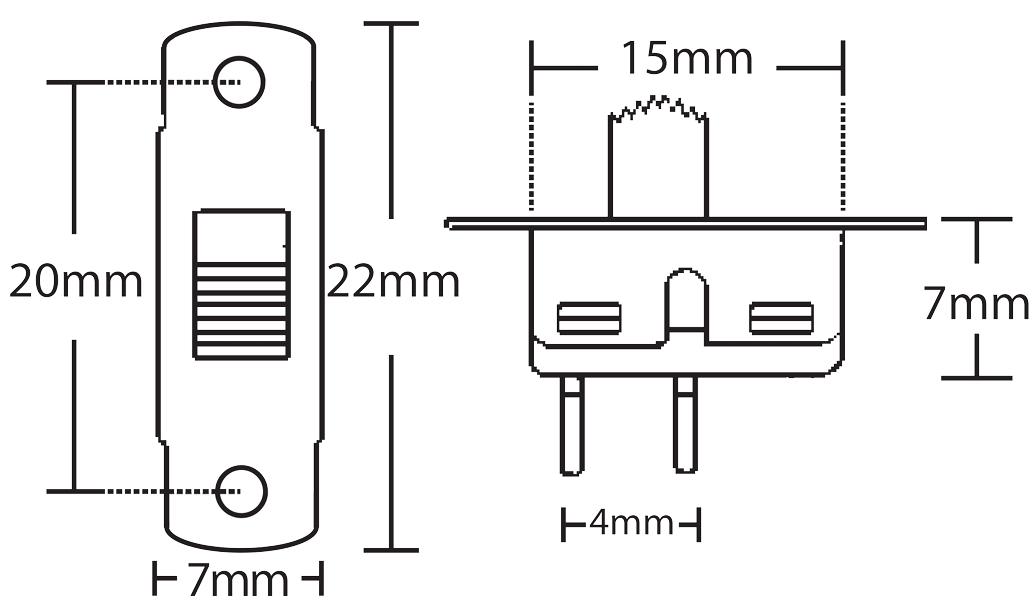

- Measures 15mm x 7mm x 7mm (22mm overall length including mounting ears)
6 Pack. These Mini Slide Switches are a perfect addition to your electronic projects. The switches feature a SPST (single-pole, single-throw) circuit, along with 2 solder lug pins for termination. Ideal for small areas in your electronic project where a compact switch is required. Plastic switch with sturdy metal housing that fits into a 16mm x 7.4mm cutout.
